Toyota Supra
2022-07 → present · chassis DB02,27 · catalogue 291450 · United States
Supported model
Data version 2022-08

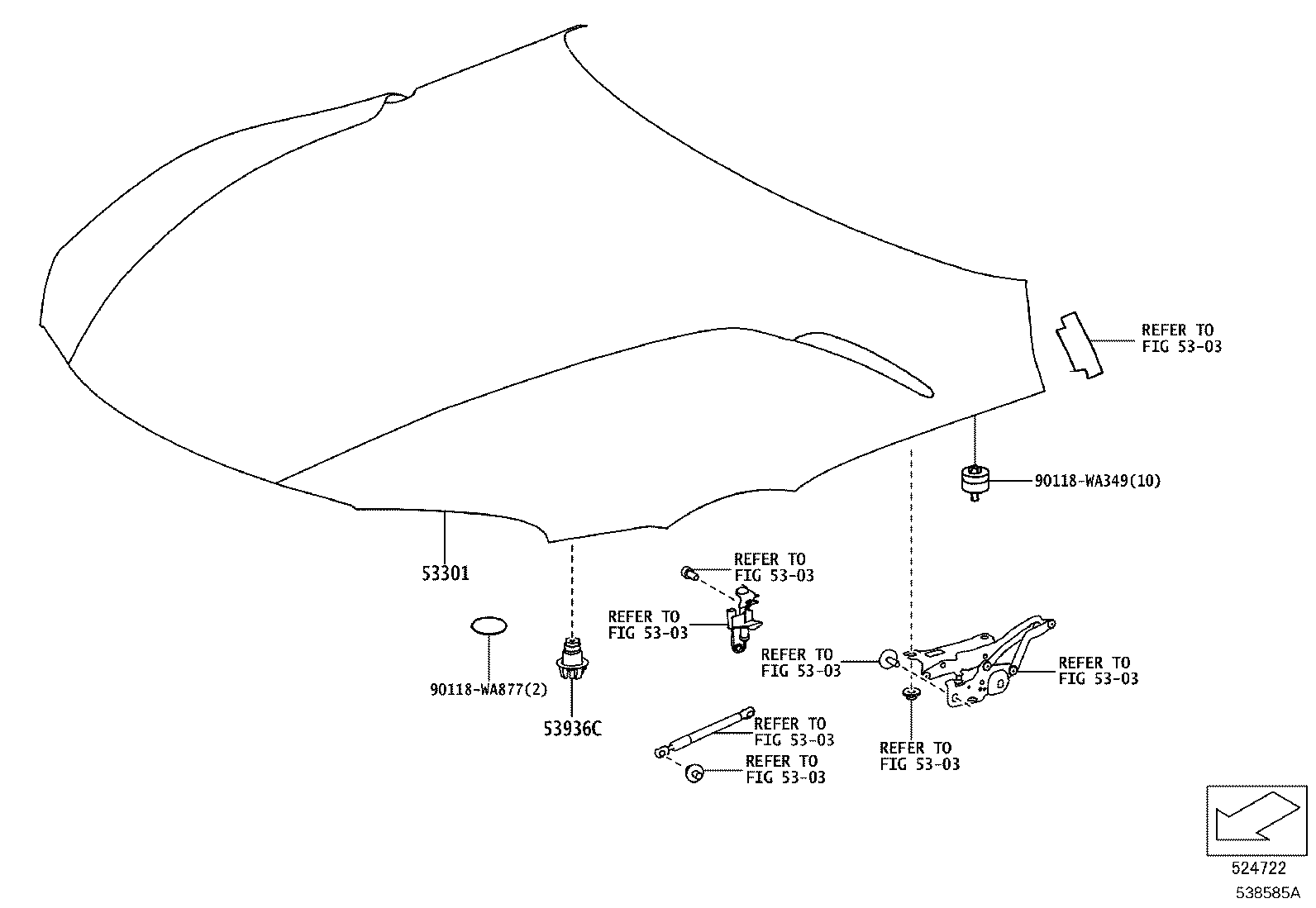

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53301 — Hood Sub-assy | ||||
| 53301-WAA01 |
Hood Sub-assy
2022-07 → —
|
DB07,27 | — | |
| 53936C — Cushion | ||||
| 53384-WAA01 |
Cushion
2022-07 → —
|
DB07,27 | — | |
| 90118-WA349 |
Cushion
2022-07 → —
|
DB07,27 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
