Toyota Supra
2022-07 → present · chassis DB02,27 · catalogue 291450 · United States
Supported model
Data version 2022-08
Mounting
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

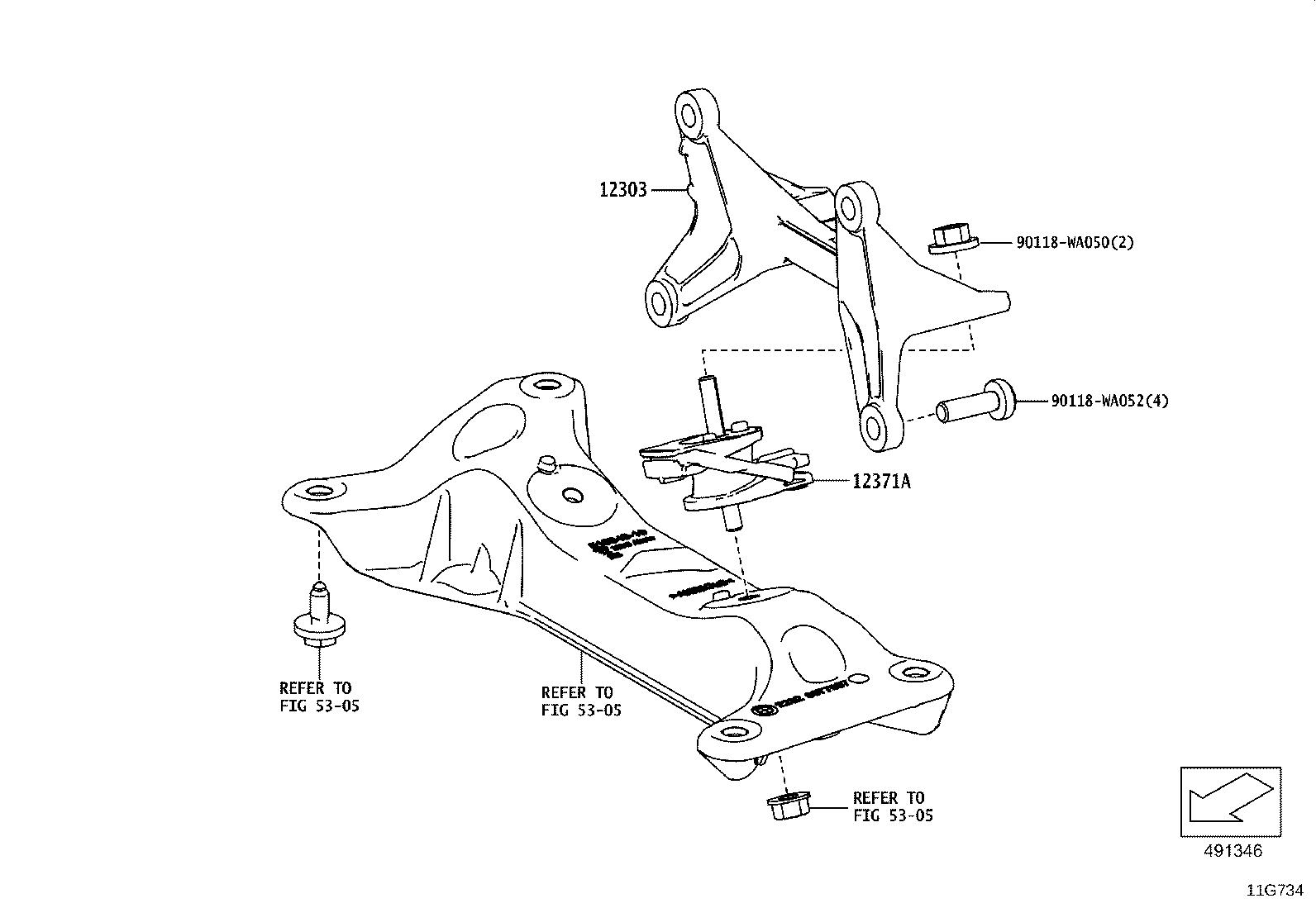

| 12303 | Bracket Sub-assy, Engine Mounting, Rear |
| 12311 | Bracket, Engine Mounting, Front NO.1 RH |

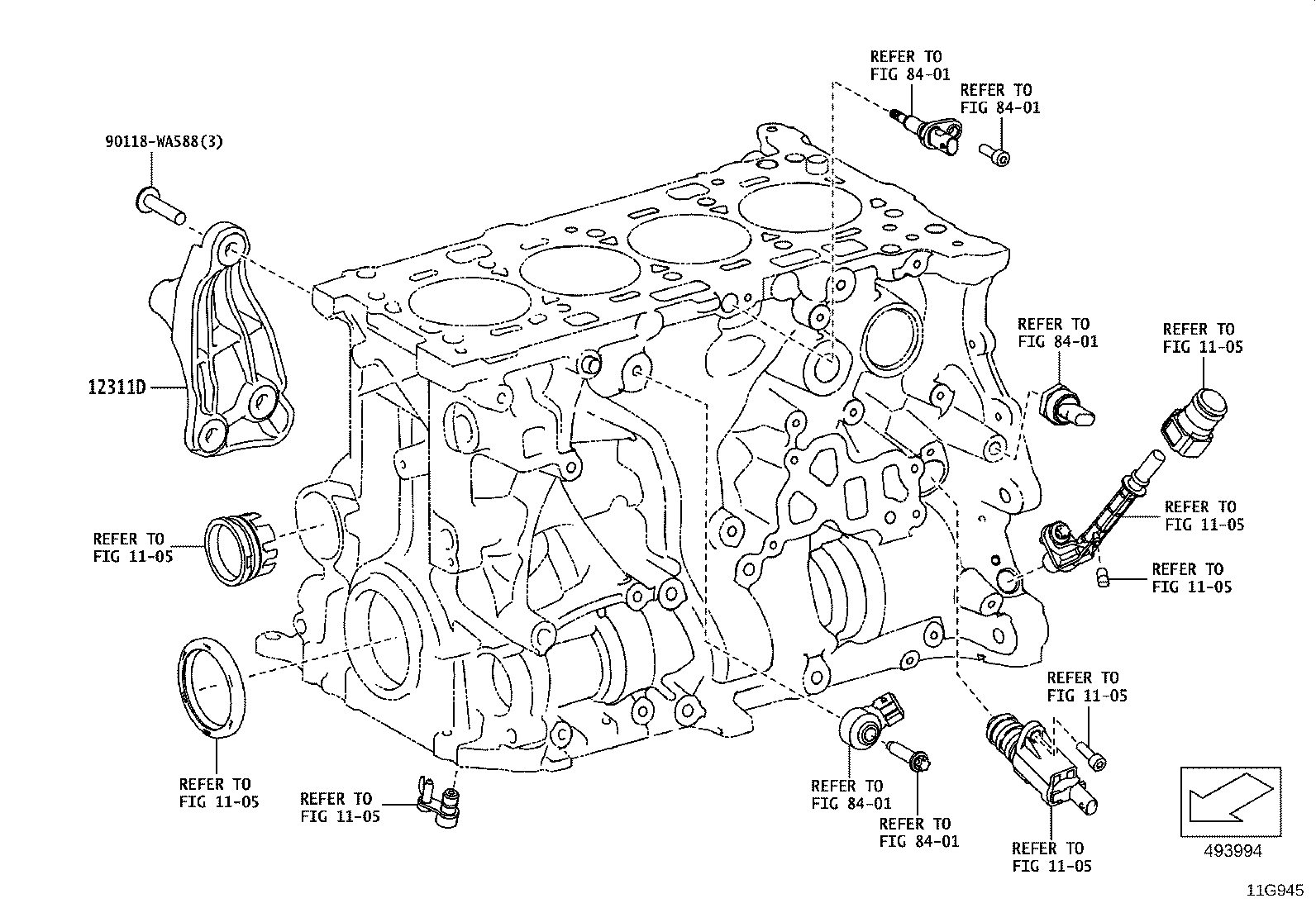

| 12311D | Bracket, Engine Mounting |
| 12315 | Bracket, Engine Mounting, Front NO.1 LH |
| 12361 | Insulator, Engine Mounting, Front |
| 12371A | Insulator, Engine Mounting, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
