Toyota Supra

2022-07 → present · chassis DB02,27 · catalogue 291450 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

13 part groups · 5 illustrations

Illustrations

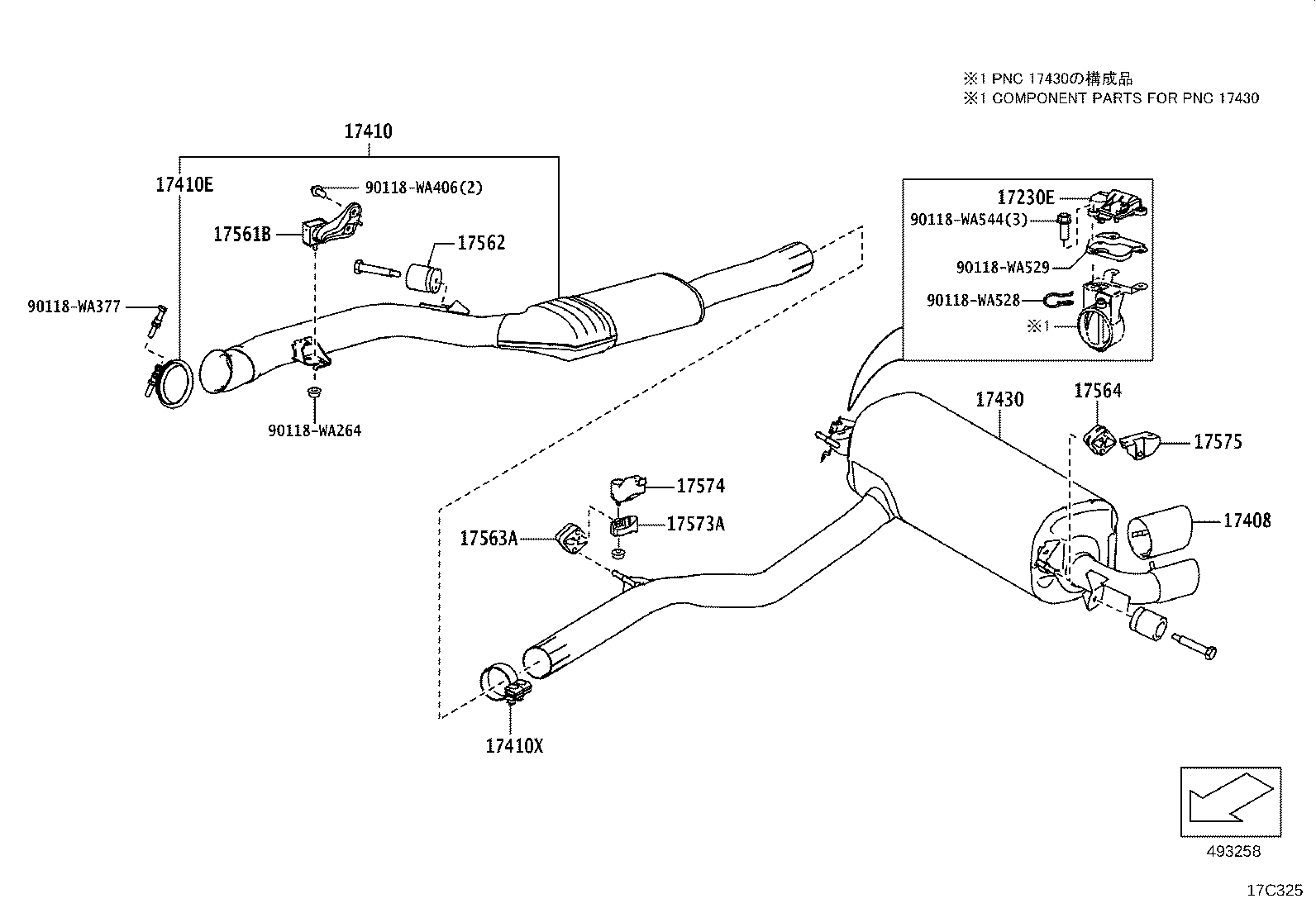

Figure 17C324 17C324 2022-07 → — Figure 17C317 17C317 2022-07 → — Figure 17C325 17C325 2022-07 → — Figure 17C319 17C319 2022-07 → — Figure 17C321 17C321 2022-07 → —

Part groups

PNCDescription
17230E Actuator Assy, W/Bracket
17408 Baffle Sub Assy, Exhaust Tailpipe
17410 Pipe Assy, Exhaust, Front
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410X Clamp NO.1, Exhaust Pipe Front (FOR REAR)
17430 Pipe Assy, Exhaust, Tail
17561B Support, Exhaust Pipe, NO.1
17562 Support, Exhaust Pipe, NO.2
17563A Support, Exhaust Pipe, NO.3
17564 Support,Exhaust Pipe, NO.4
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
17575 Bracket, Exhaust Pipe Support, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
