Toyota Supra

2022-07 → present · chassis DB02,27 · catalogue 291450 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

2 part groups · 2 illustrations

Illustrations

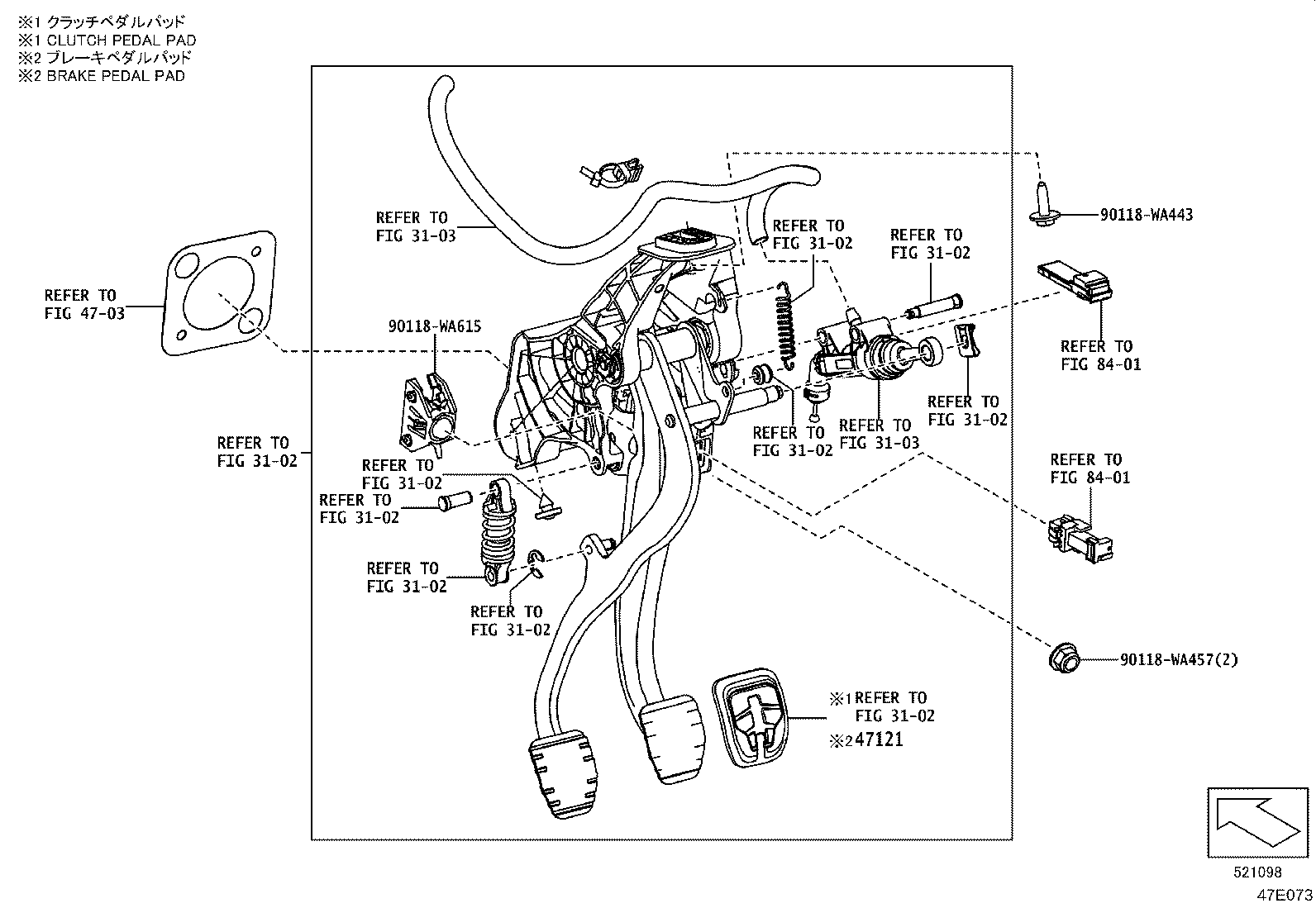

Figure 47D942 47D942 2022-07 → — Figure 47E073 47E073 2022-07 → —

Part groups

PNCDescription
47110 Support Assy, Brake Pedal
47121 Pad, Brake Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
