Toyota Supra

2022-07 → present · chassis DB02,27 · catalogue 291450 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

43 part groups · 10 illustrations

Illustrations

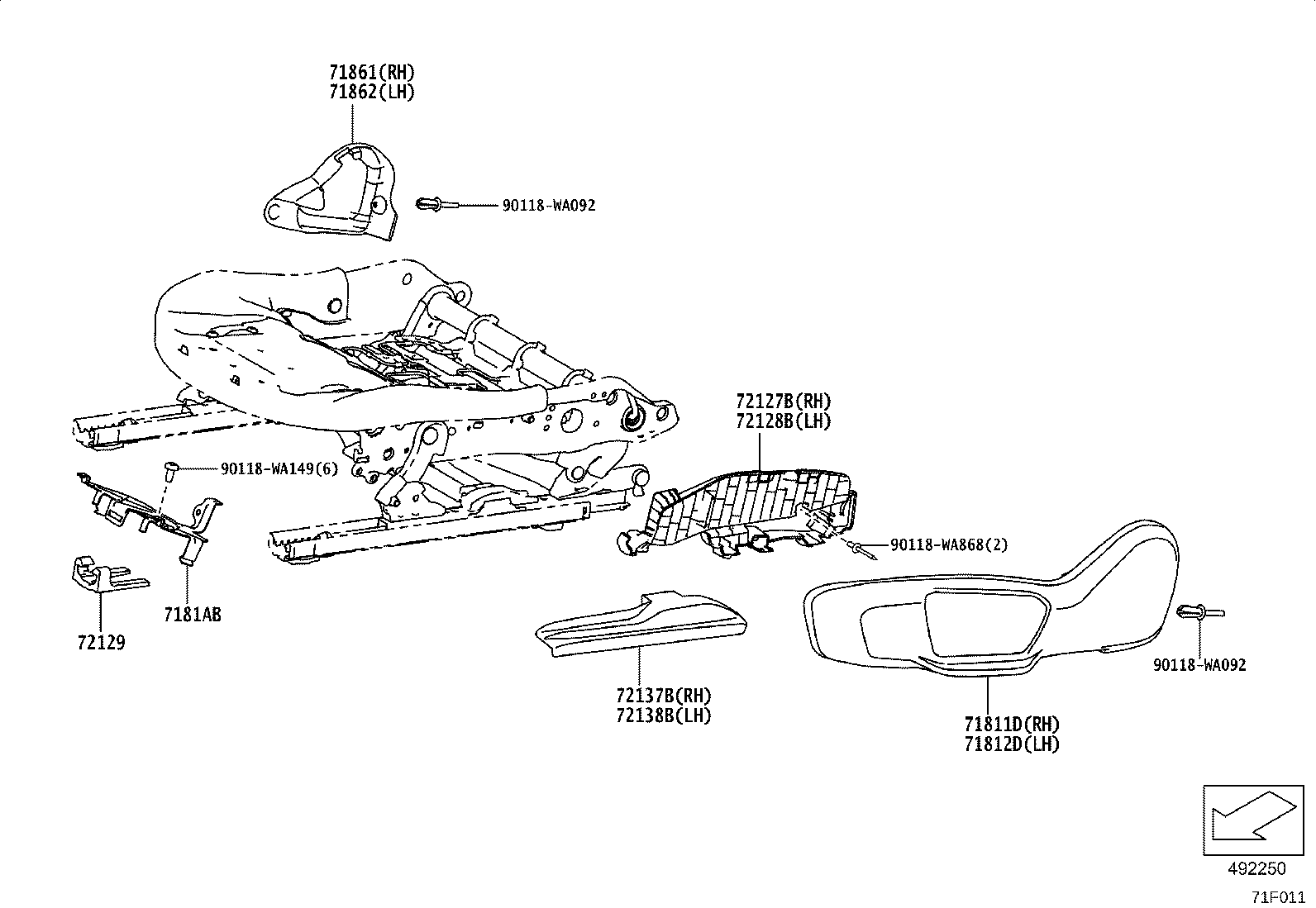

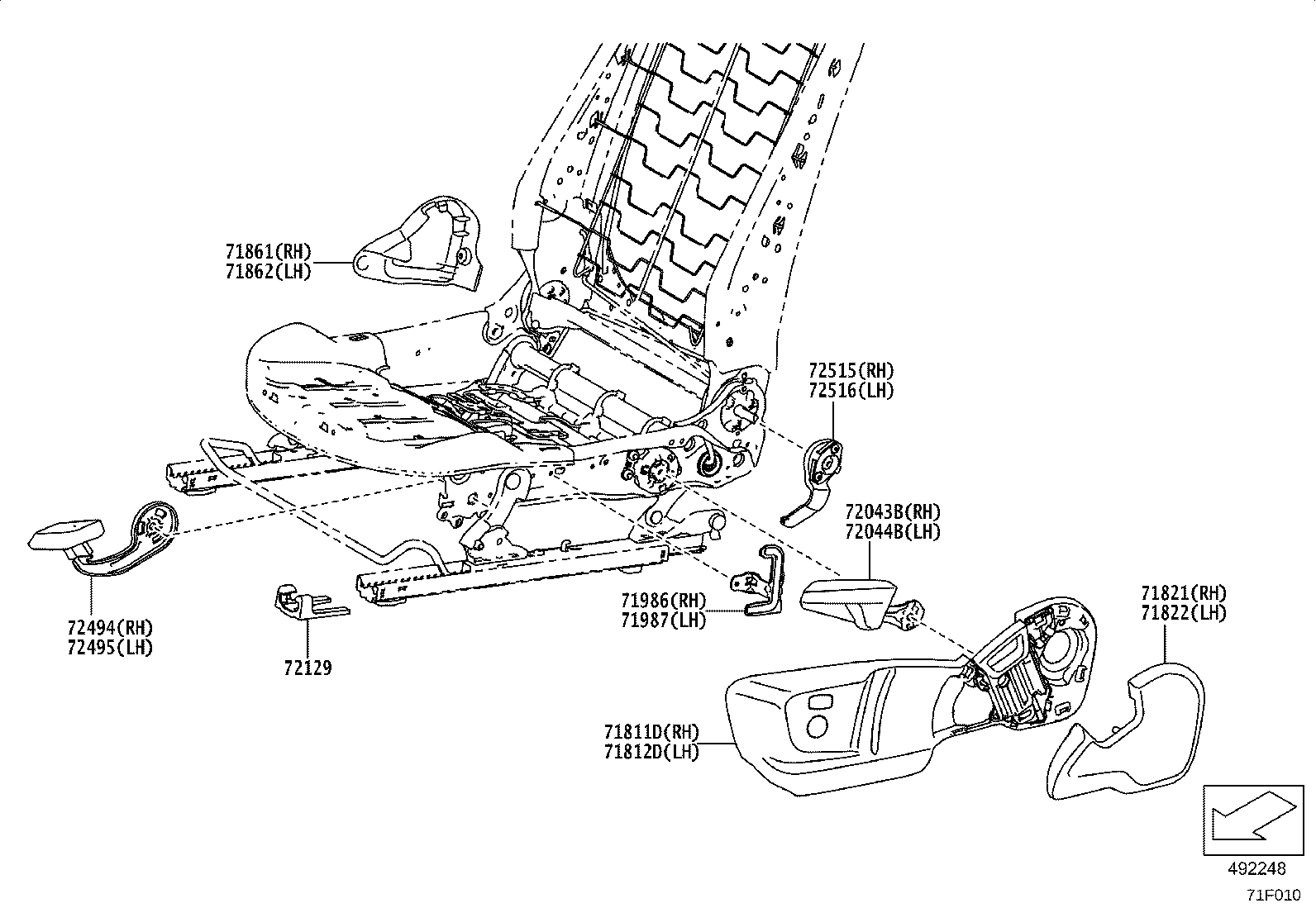

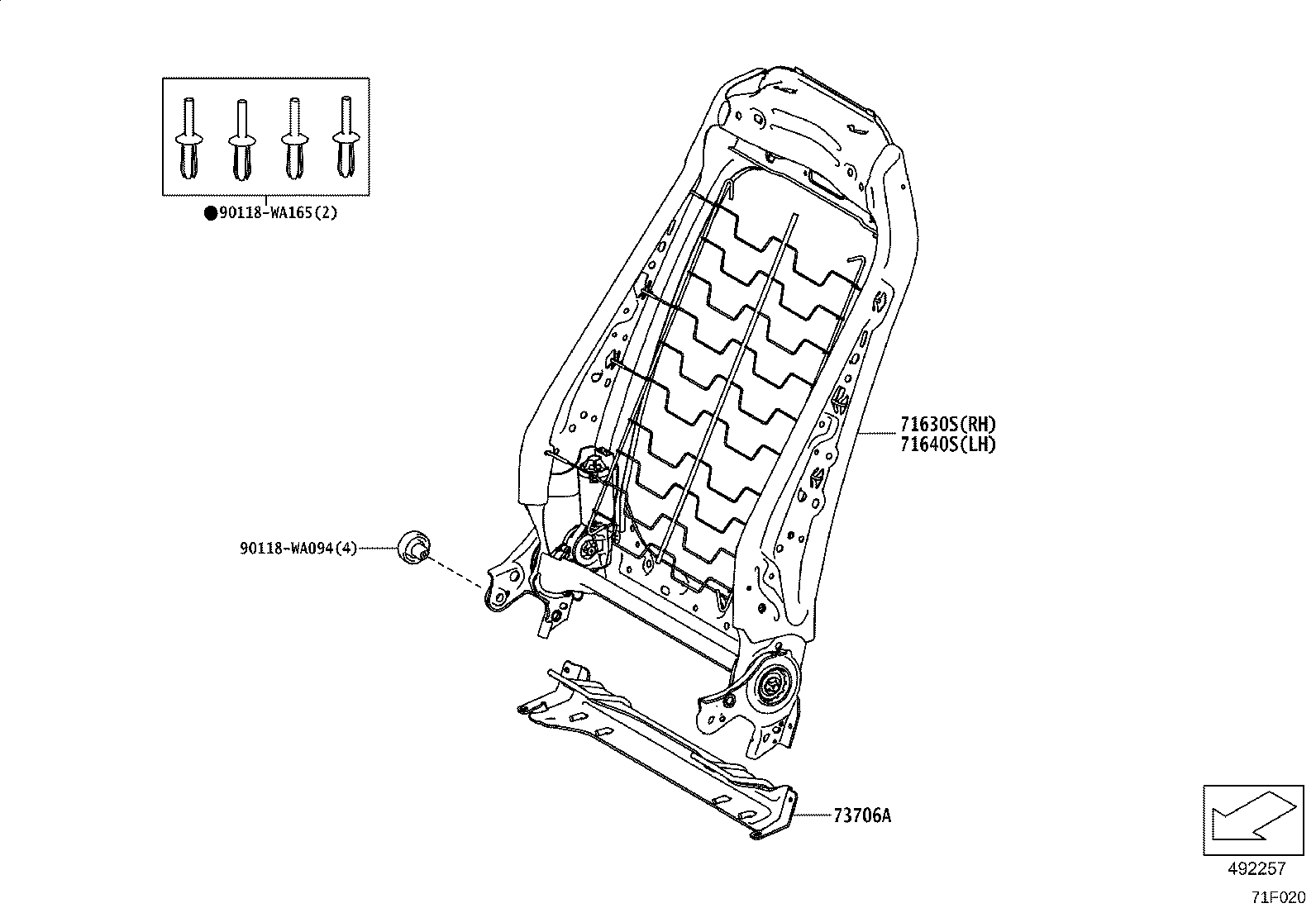

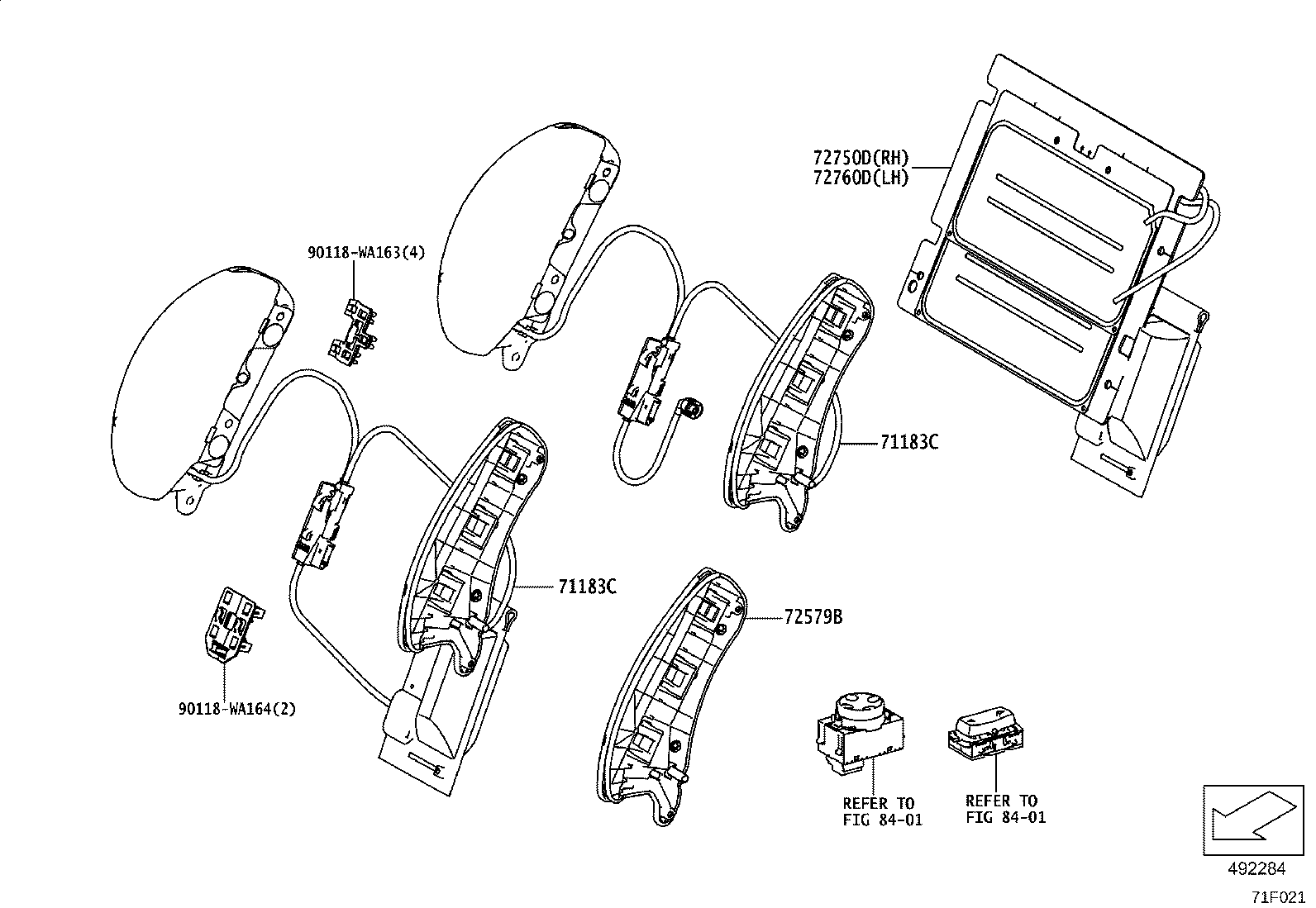

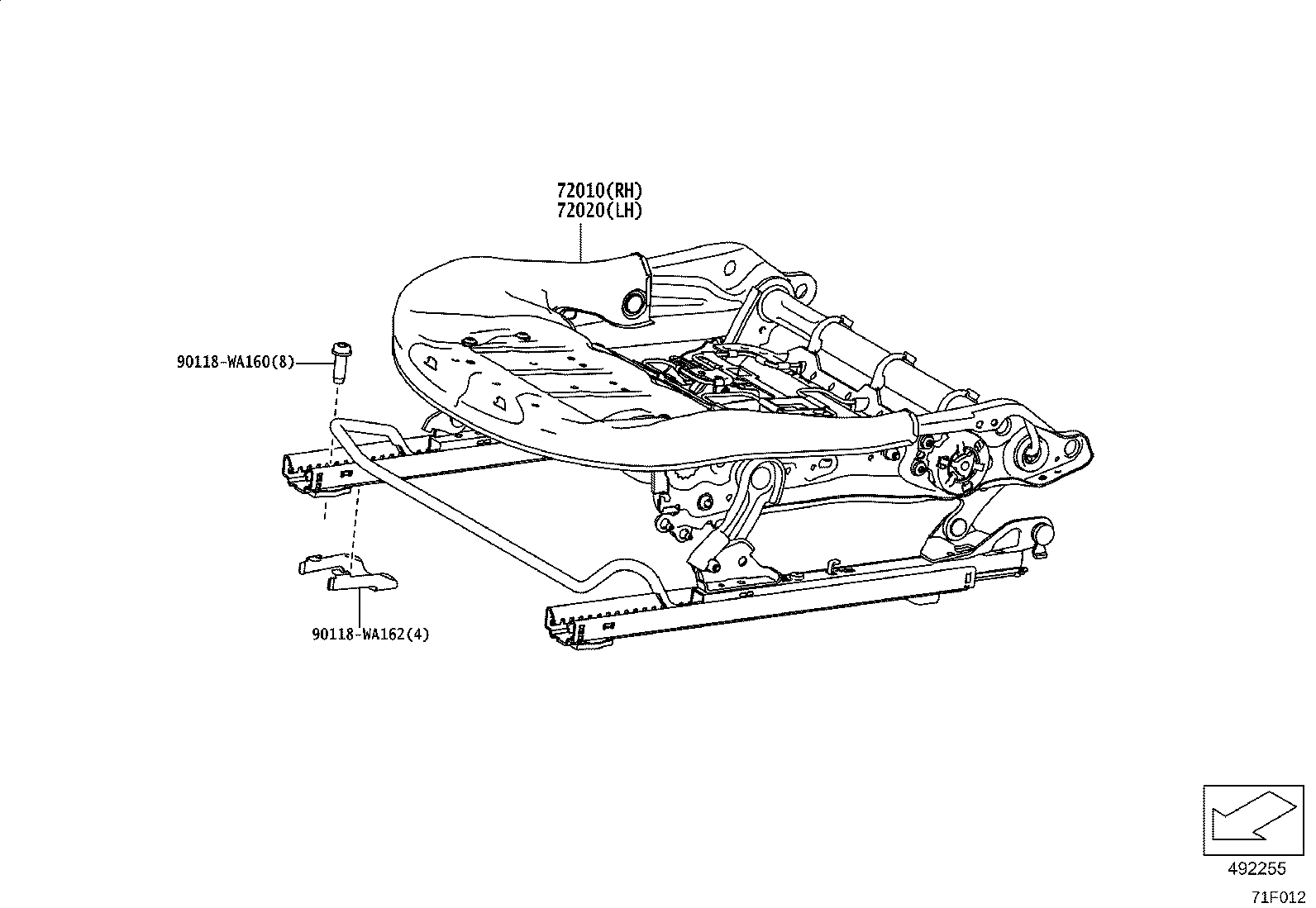

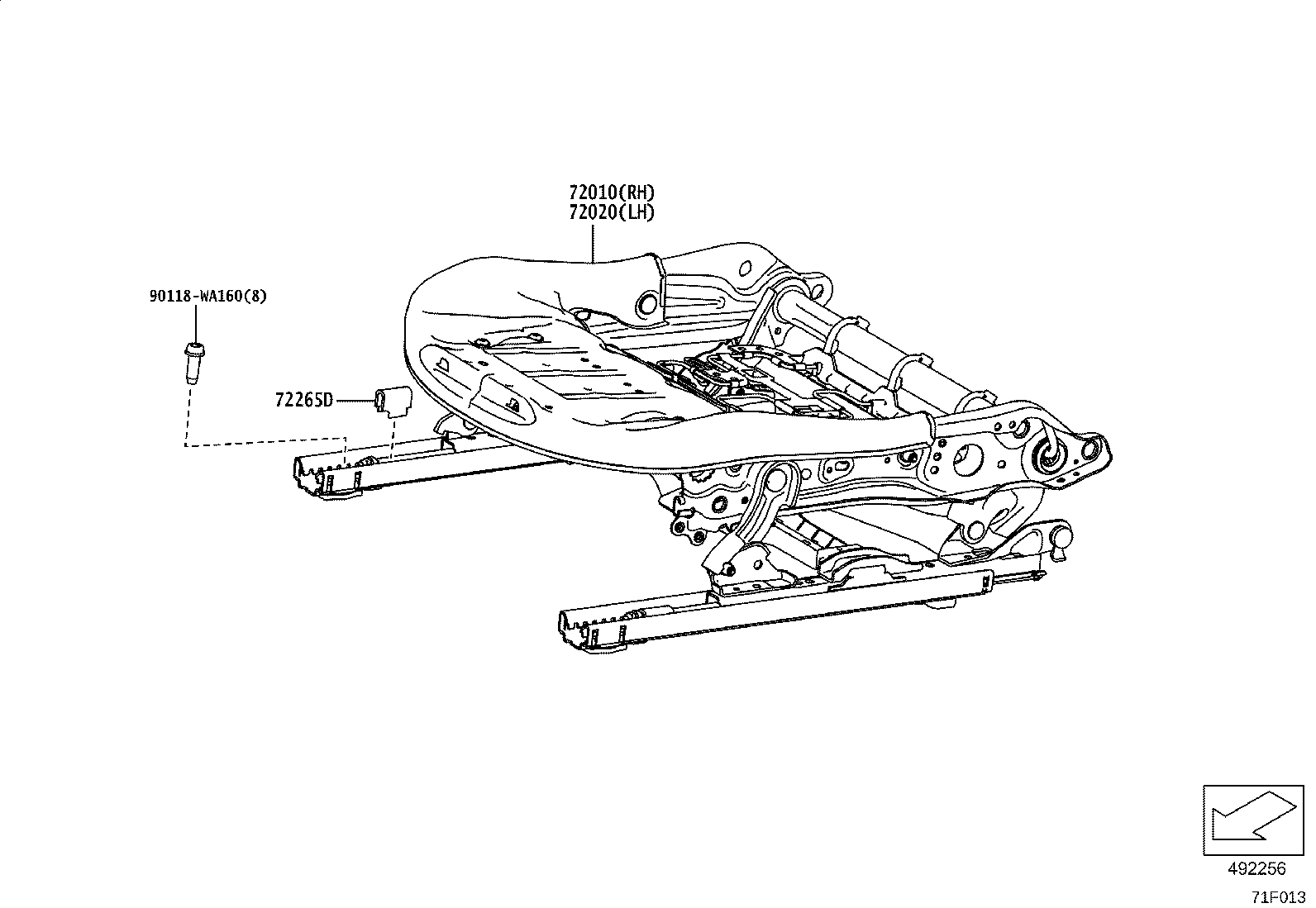

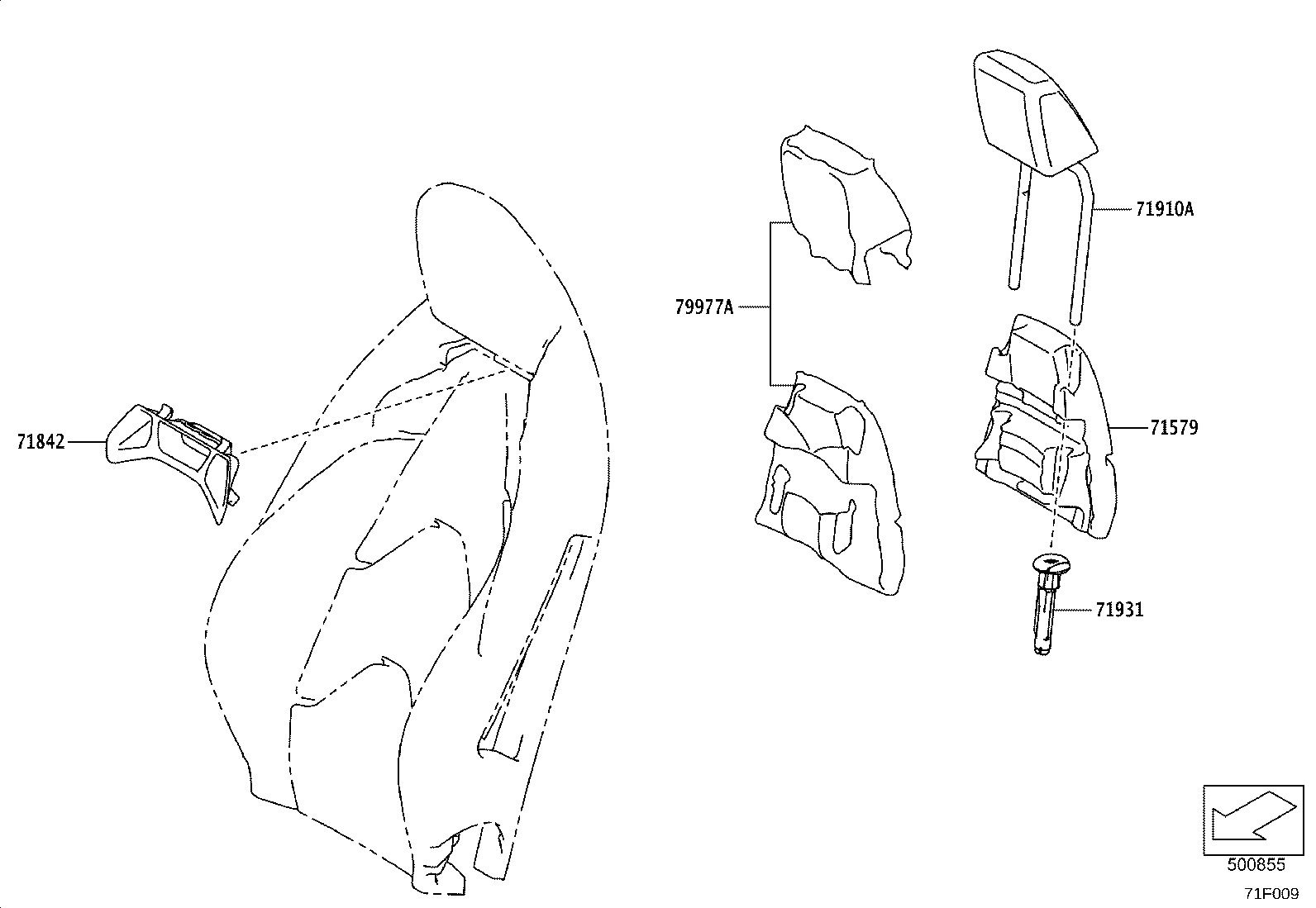

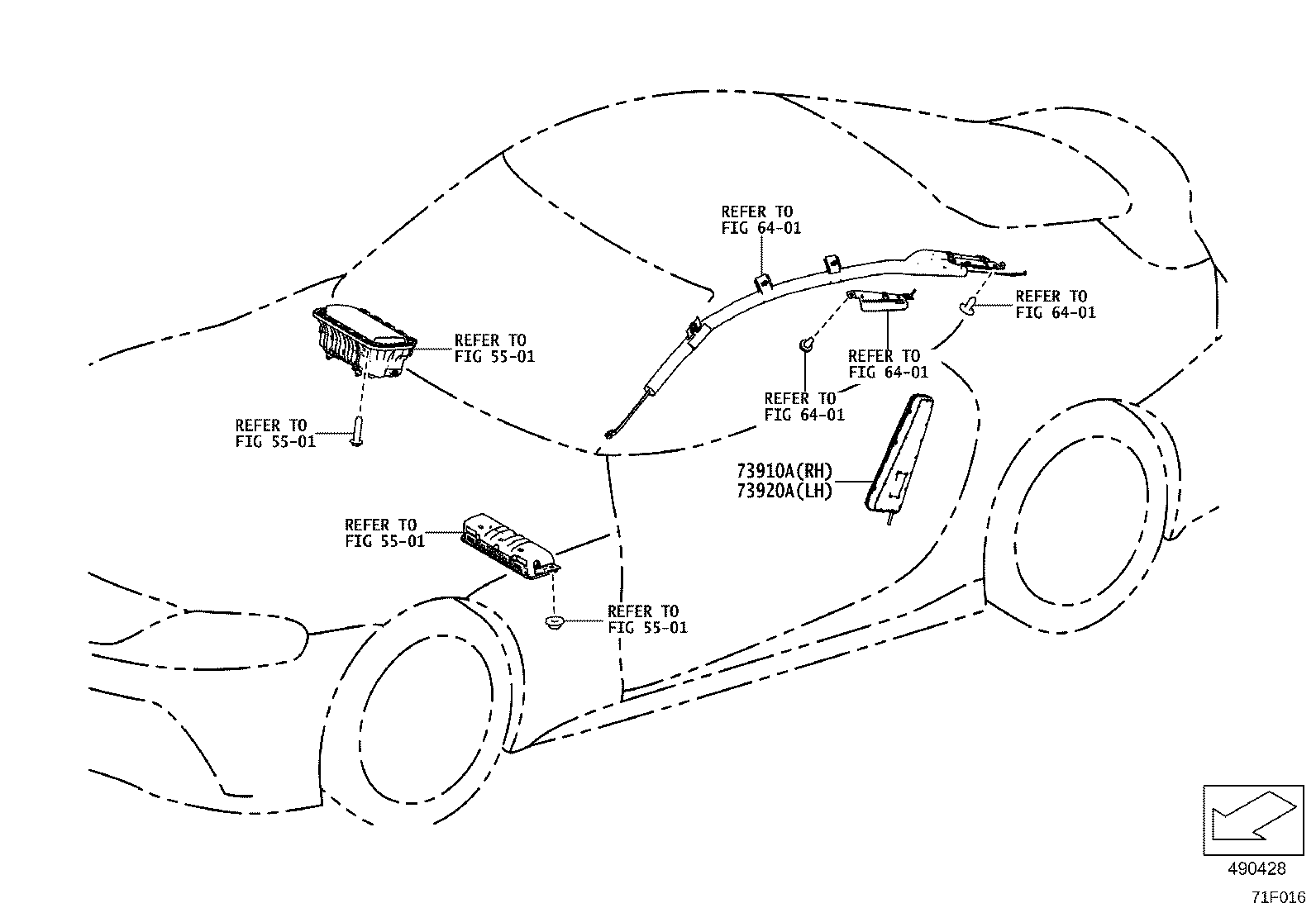

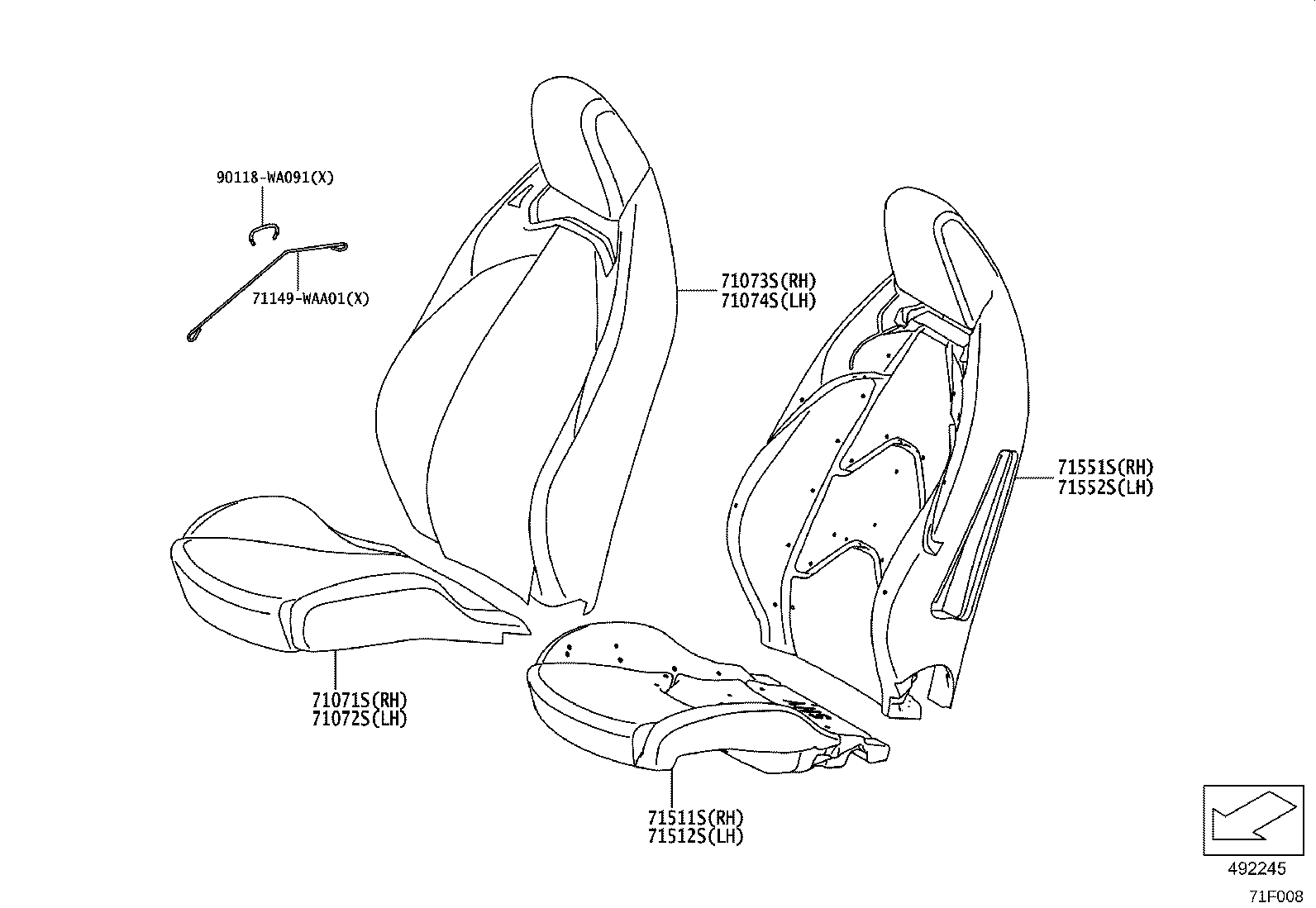

Figure 71F007 71F007 2022-07 → — Figure 71F008 71F008 2022-07 → — Figure 71F009 71F009 2022-07 → — Figure 71F010 71F010 2022-07 → — Figure 71F011 71F011 2022-07 → — Figure 71F012 71F012 2022-07 → — Figure 71F013 71F013 2022-07 → — Figure 71F020 71F020 2022-07 → — Figure 71F021 71F021 2022-07 → — Figure 71F016 71F016 2022-07 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71183C Adjuster Assy, Seatback Side Support
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71579 Board, Front Seatback
71630S Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181AB Bracket, Front Seat Cushion
71821 Shield, Front Seat Side, RH
71822 Shield, Front Seat Side, LH
71842 Garnish, Front Seatback
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
71986 Bracket, Front Seat Side Shield, NO.1
71987 Bracket, Front Seat Side Shield, NO.2
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72043B Lever Sub-assy, Seat Lifter, RH
72044B Lever Sub-assy, Seat Lifter, LH
72127B Support, Front Seat, RH
72128B Support, Front Seat, LH
72129 Protector, Seat Track Lower Rail, NO.1
72137B Cover, Seat Track, RH
72138B Cover, Seat Track, LH
72265D Cover, Seat Track Upper Rail
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72515 Arm,Reclining Adjuster Releas, NO.1
72516 Arm, Reclining Adjuster Releas, NO.2
72579B Plate, Spring Set
72750D Adjuster Assy, Lumbar Support, RH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
79977A Felt, Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
