Toyota Supra

2022-07 → present · chassis DB02,27 · catalogue 291450 · United States

Supported model Data version 2022-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

61 part groups · 44 illustrations

Illustrations

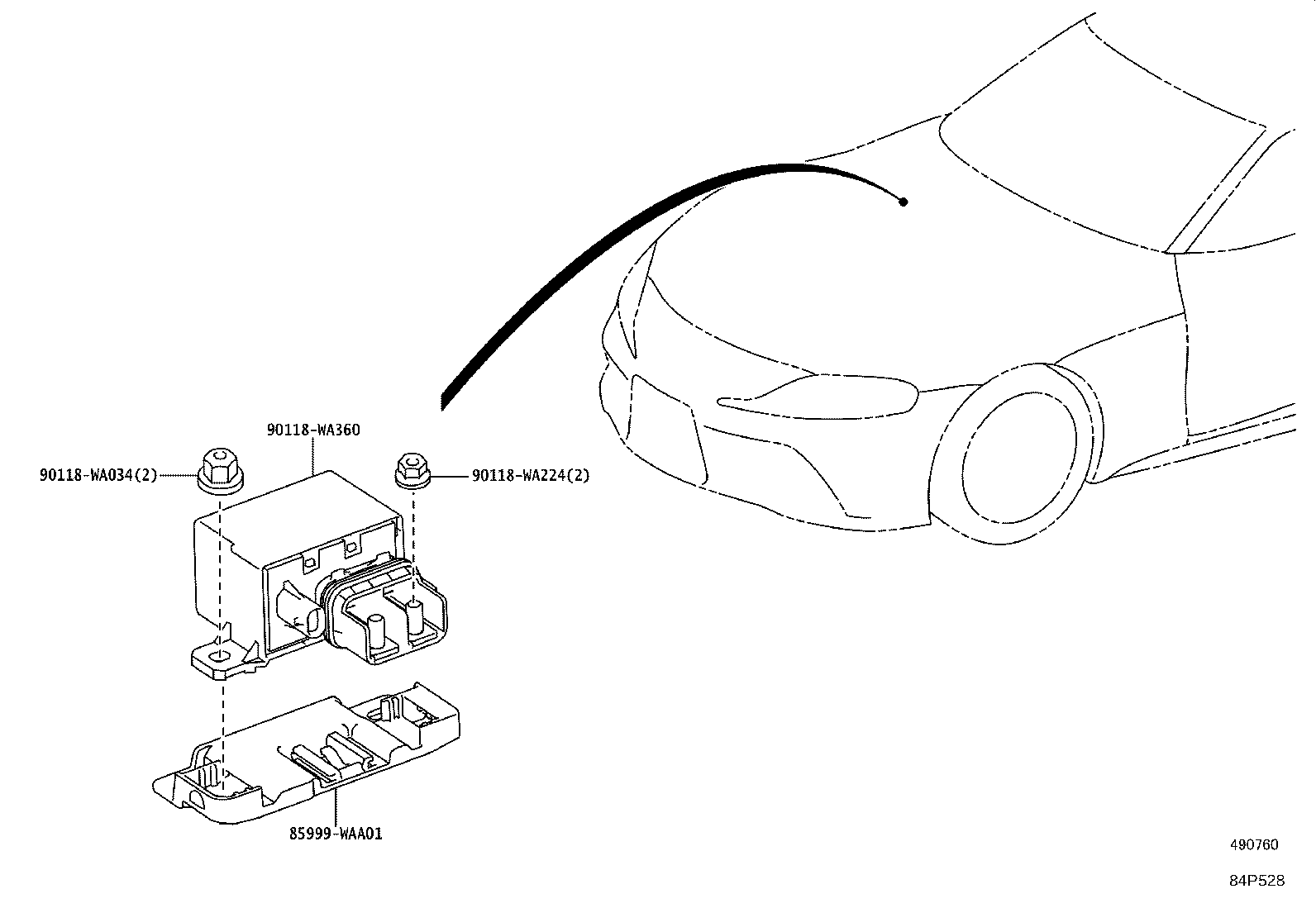

Figure 84P522 84P522 2022-07 → — Figure 84P484 84P484 2022-07 → — Figure 84P836 84P836 2022-07 → — Figure 84P837 84P837 2022-07 → — Figure 84P485A 84P485A 2022-07 → — Figure 84P838 84P838 2022-07 → — Figure 84P839 84P839 2022-07 → — Figure 84P486 84P486 2022-07 → — Figure 84P487 84P487 2022-07 → — Figure 84Q399 84Q399 2022-07 → — Figure 84Q400 84Q400 2022-07 → — Figure 84P489 84P489 2022-07 → — Figure 84P528 84P528 2022-07 → — Figure 84P491 84P491 2022-07 → — Figure 84P492 84P492 2022-07 → — Figure 84P525 84P525 2022-07 → — Figure 84P526 84P526 2022-07 → — Figure 84P495 84P495 2022-07 → — Figure 84P523 84P523 2022-07 → — Figure 84P497 84P497 2022-07 → — Figure 84P498 84P498 2022-07 → — Figure 84P499 84P499 2022-07 → — Figure 84P500 84P500 2022-07 → — Figure 84P529 84P529 2022-07 → — Figure 84P503 84P503 2022-07 → — Figure 84P530 84P530 2022-07 → — Figure 84P505 84P505 2022-07 → — Figure 84P506 84P506 2022-07 → — Figure 84P507 84P507 2022-07 → — Figure 84P508 84P508 2022-07 → — Figure 84P509 84P509 2022-07 → — Figure 84P510 84P510 2022-07 → — Figure 84P511 84P511 2022-07 → — Figure 84P512 84P512 2022-07 → — Figure 84P513 84P513 2022-07 → — Figure 84P514 84P514 2022-07 → — Figure 84P515 84P515 2022-07 → — Figure 84P516 84P516 2022-07 → — Figure 84P517 84P517 2022-07 → — Figure 84P518 84P518 2022-07 → — Figure 84P519 84P519 2022-07 → — Figure 84P520 84P520 2022-07 → — Figure 84P521 84P521 2022-07 → — Figure 84P621 84P621 2022-07 → —

Part groups

PNCDescription

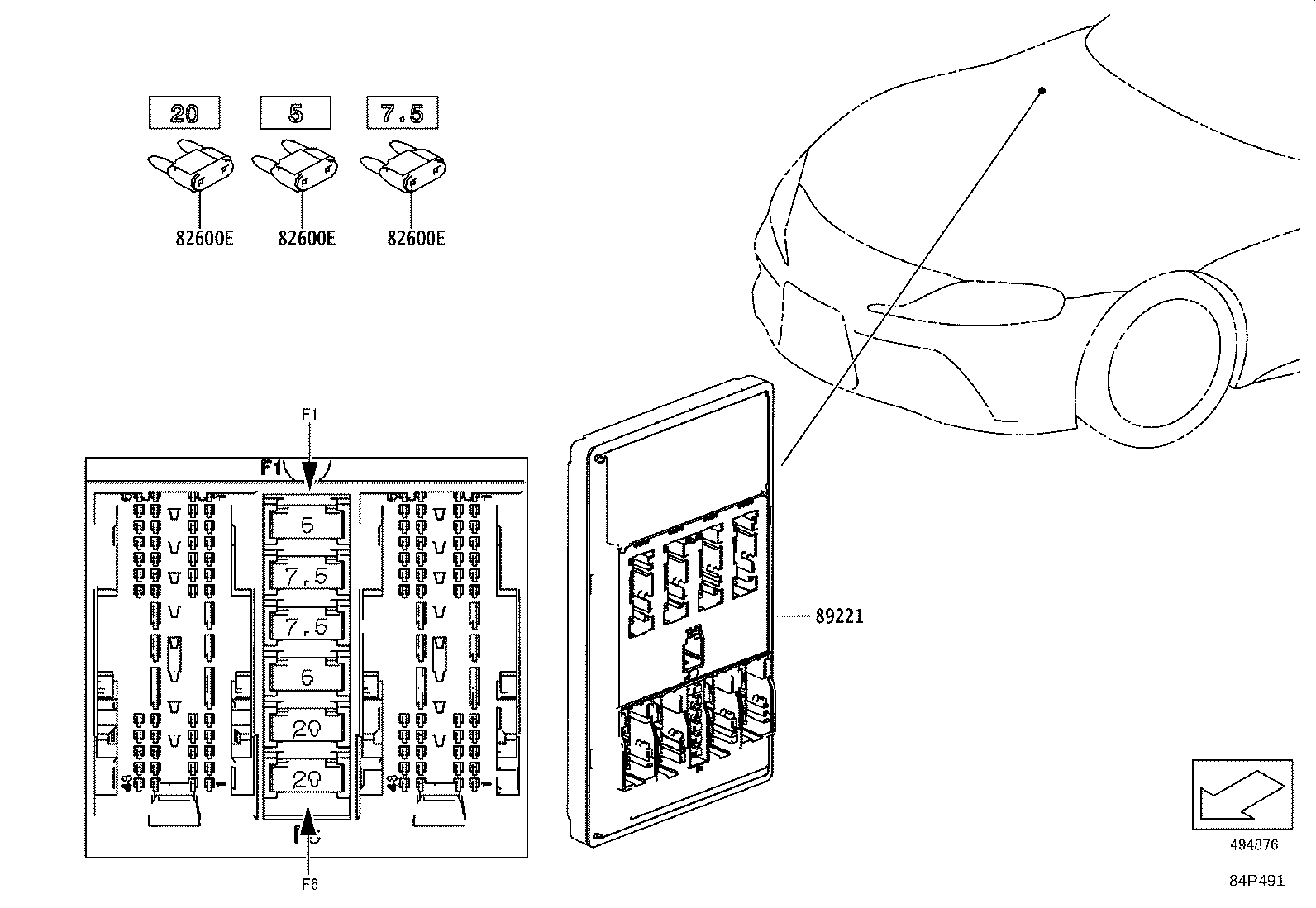

82600E Engine Room Fuse

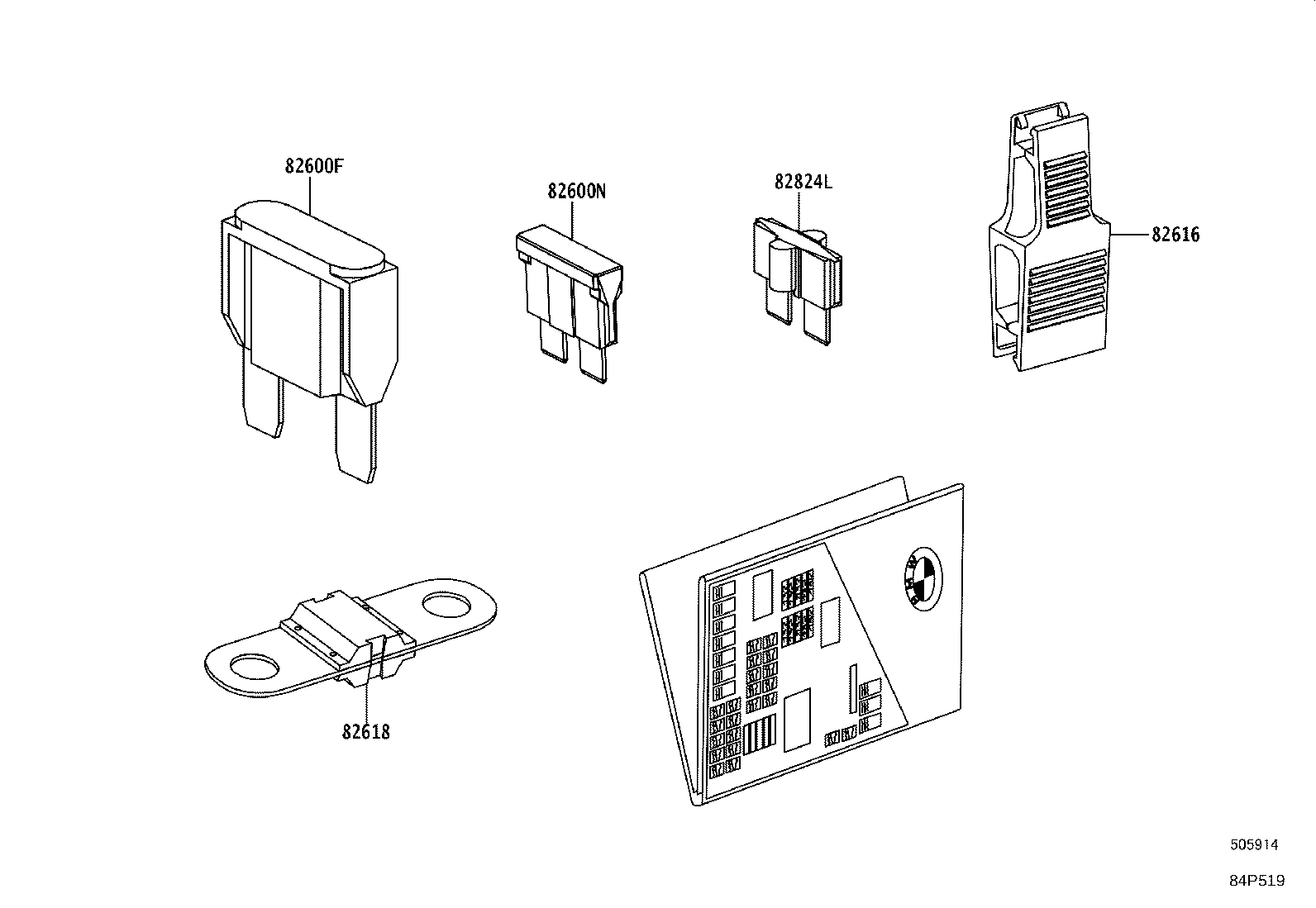

82600F Fuse, Fuse Block
82600N Fuse
82611 Cover, Fuse Block
82616 Puller, Fuse
82618 Fuse, Fuse Block

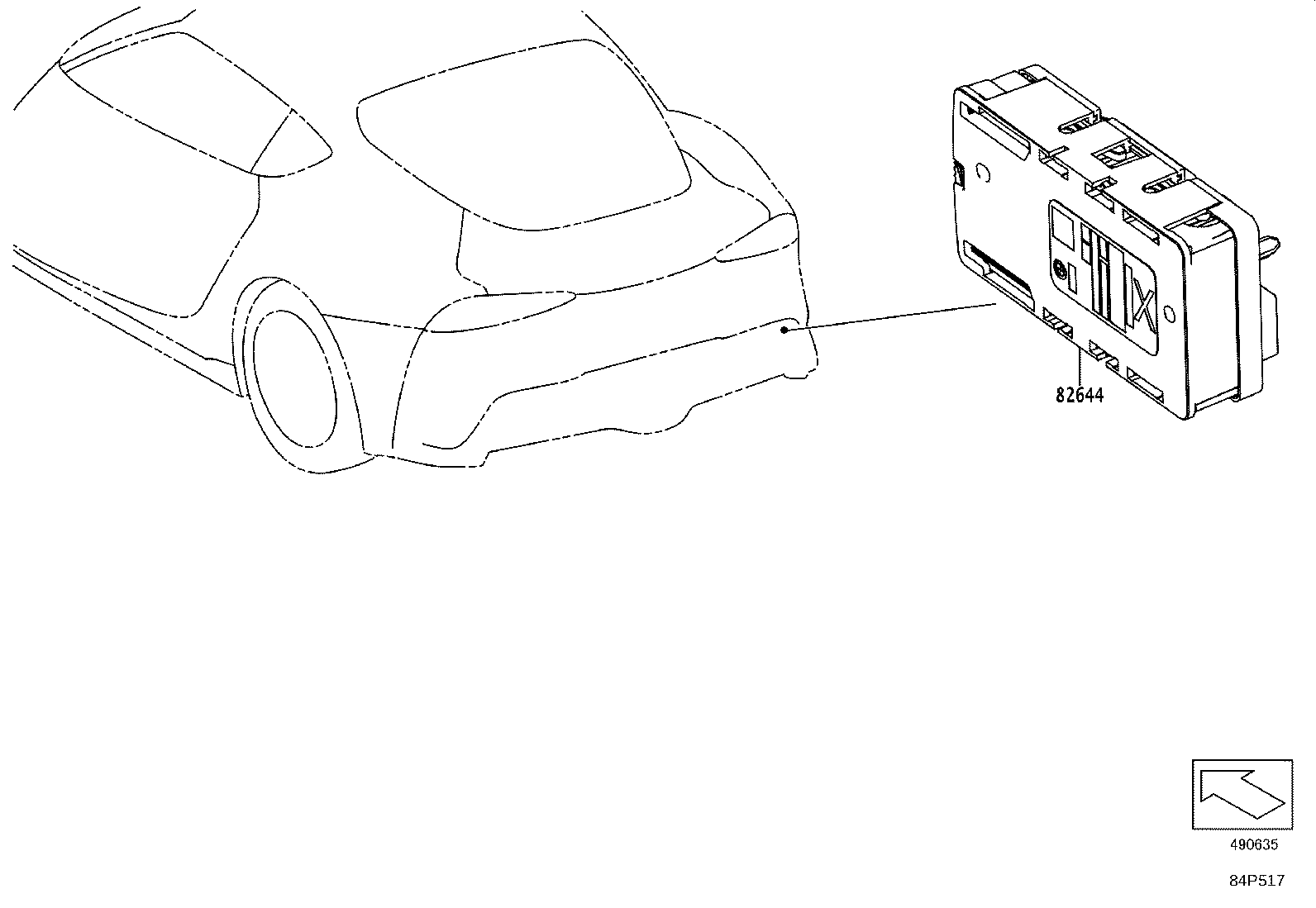

82644 Computer, Semiconductor Power Integration

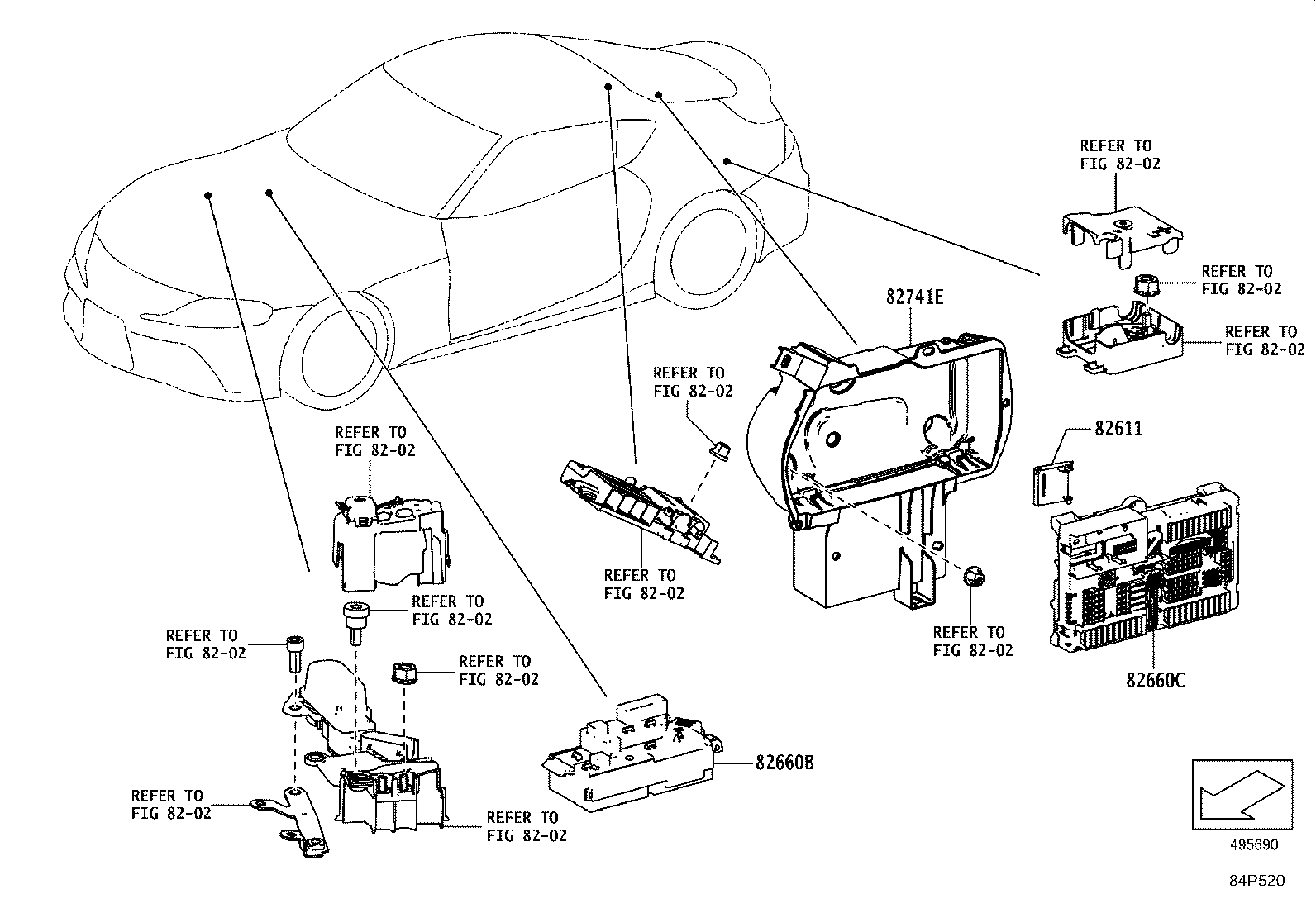

82660B Block Assy, Relay
82660C Block Assy, Relay
82741E Block, Luggage Room Relay, NO.1
82821B Cover, Connector
82824L Pin, Short

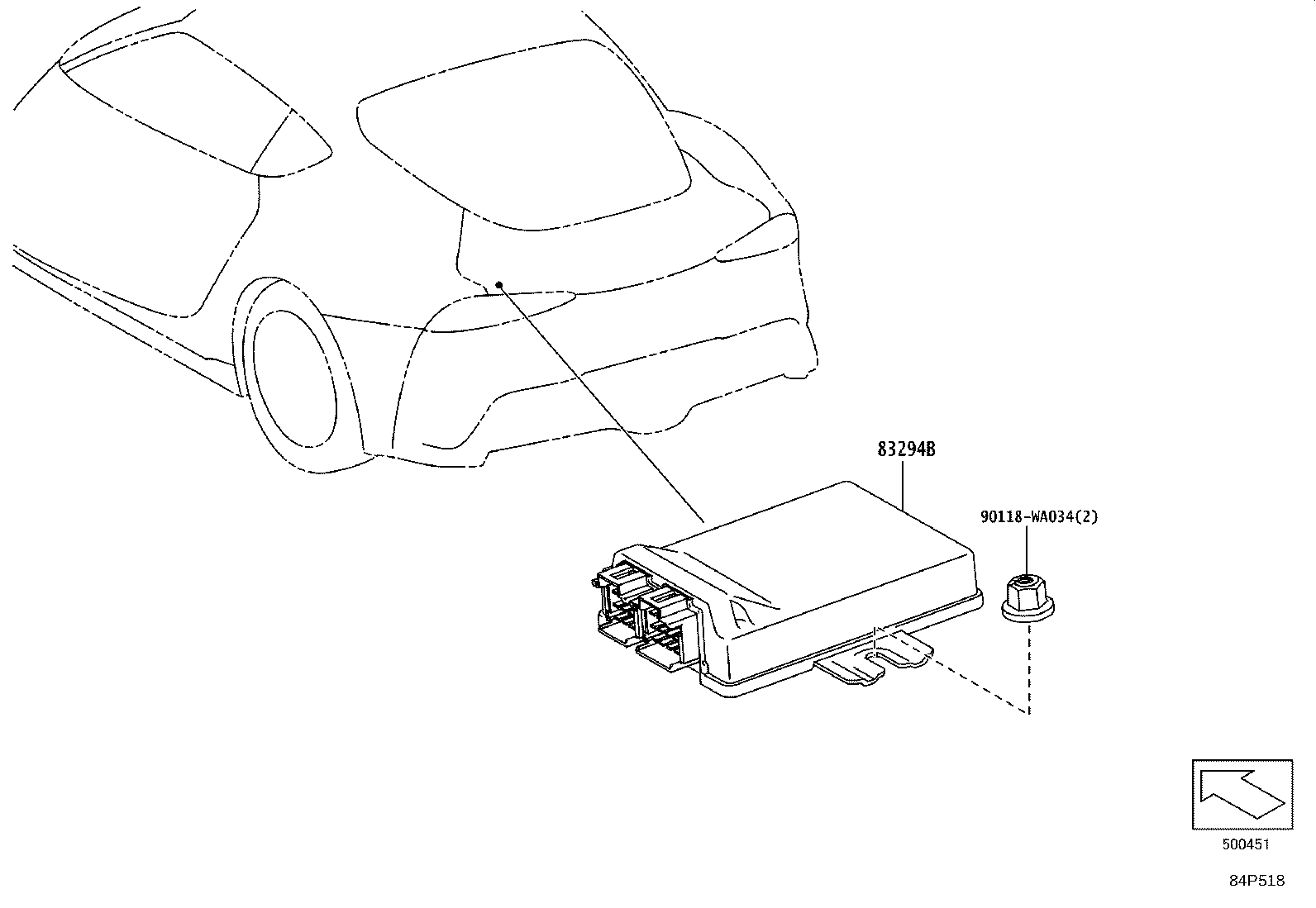

83294B Computer, Differential Lock

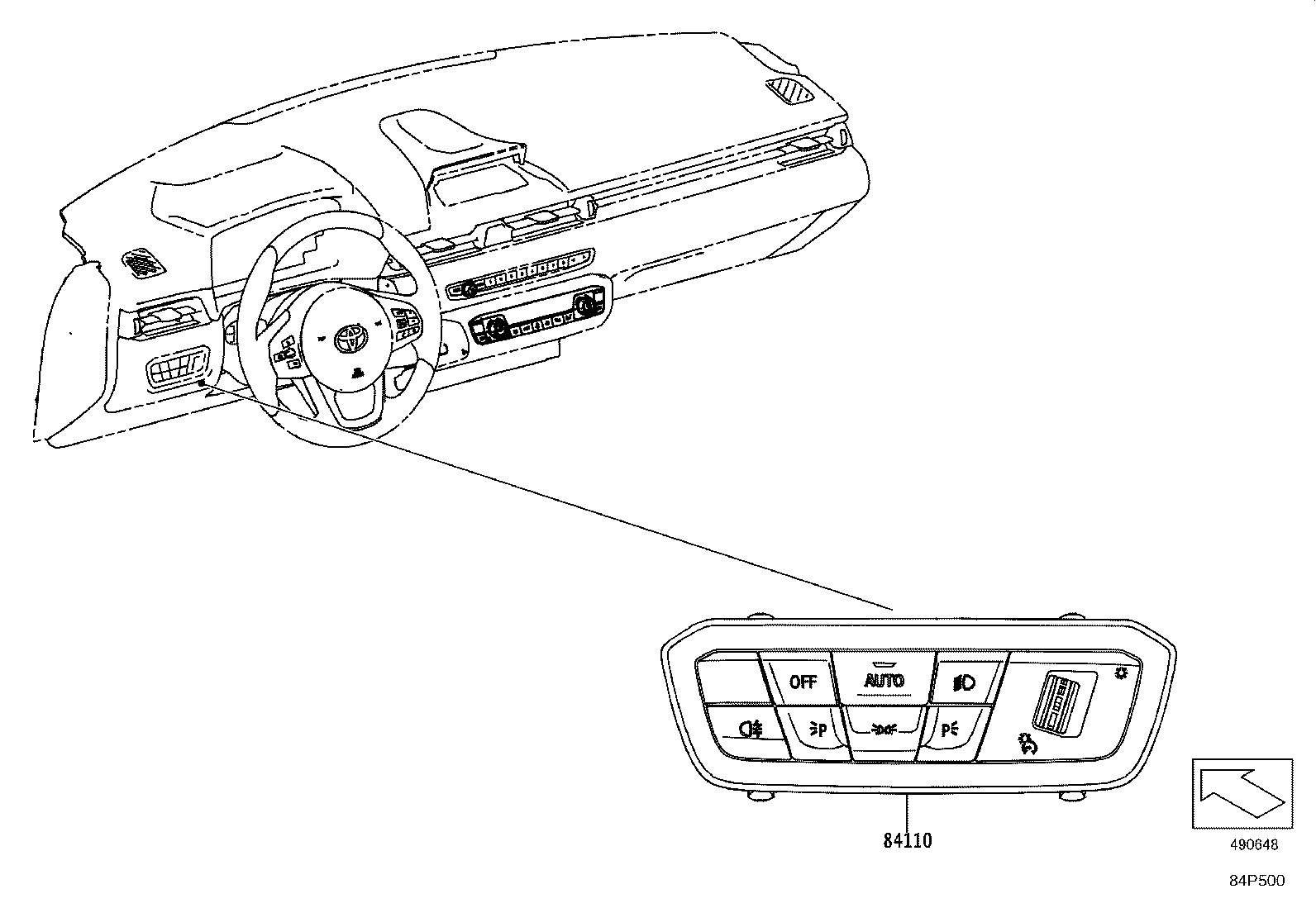

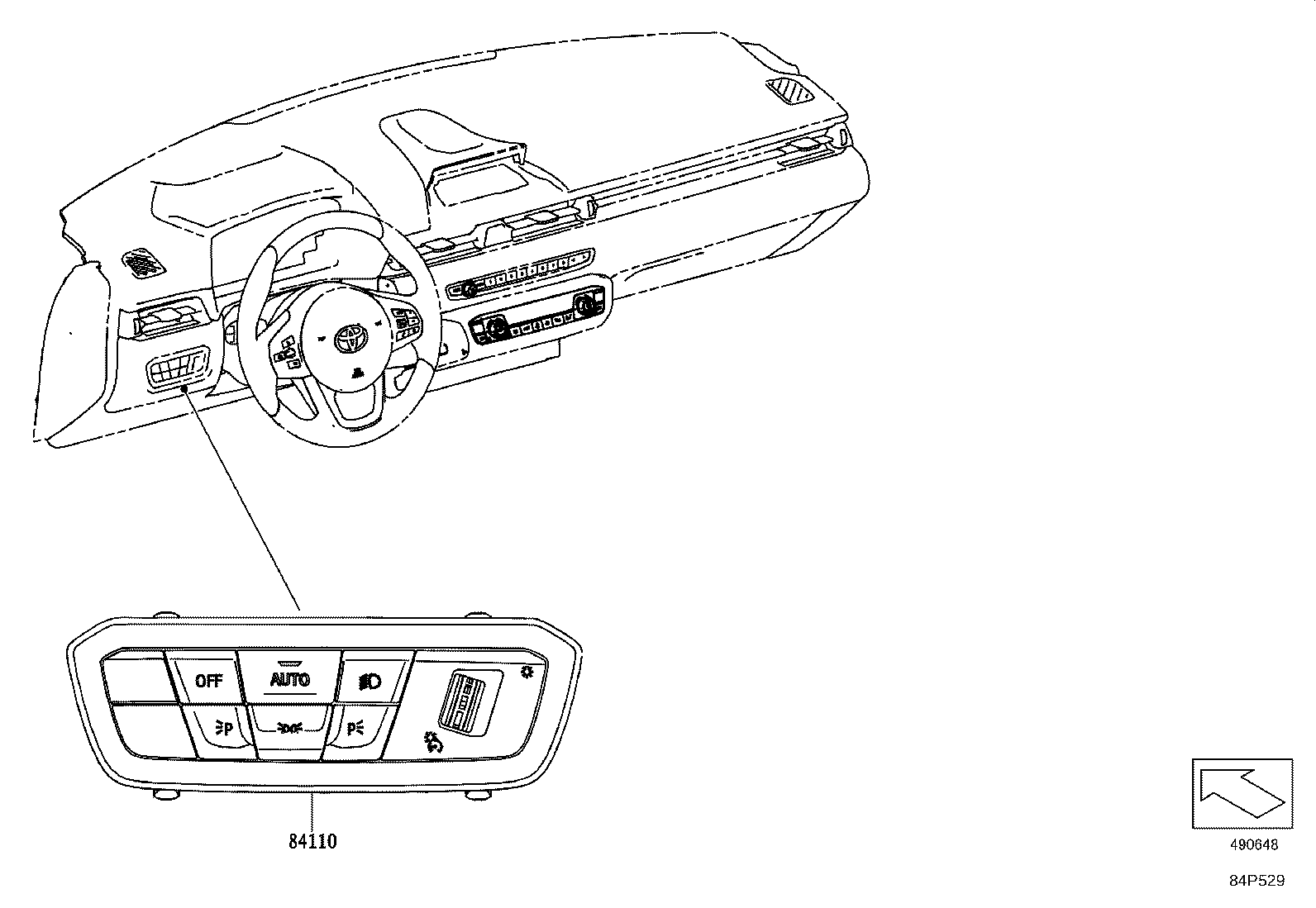

84110 Switch Assy, Light Control, NO.1

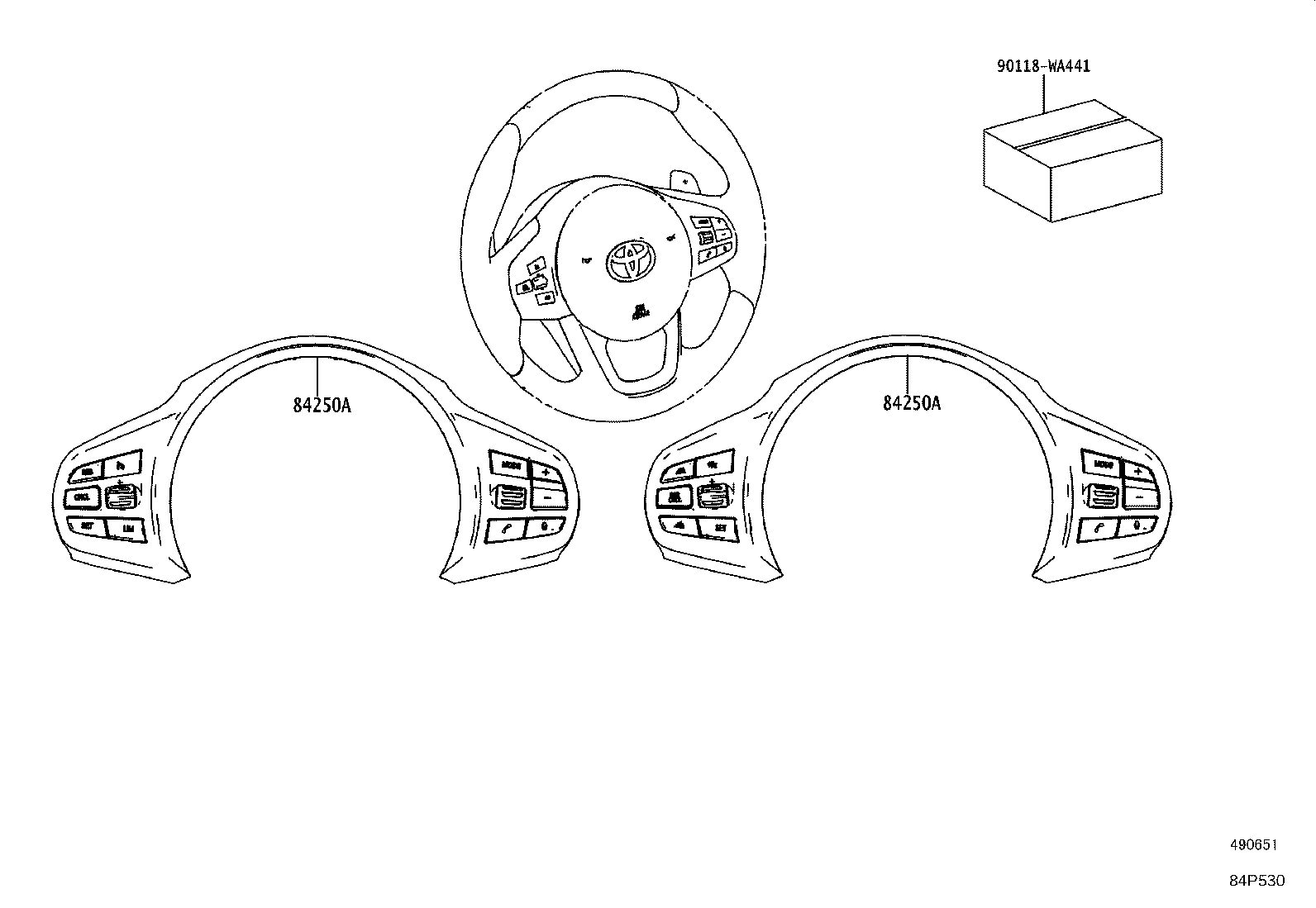

84250A Switch Assy, Steering Pad

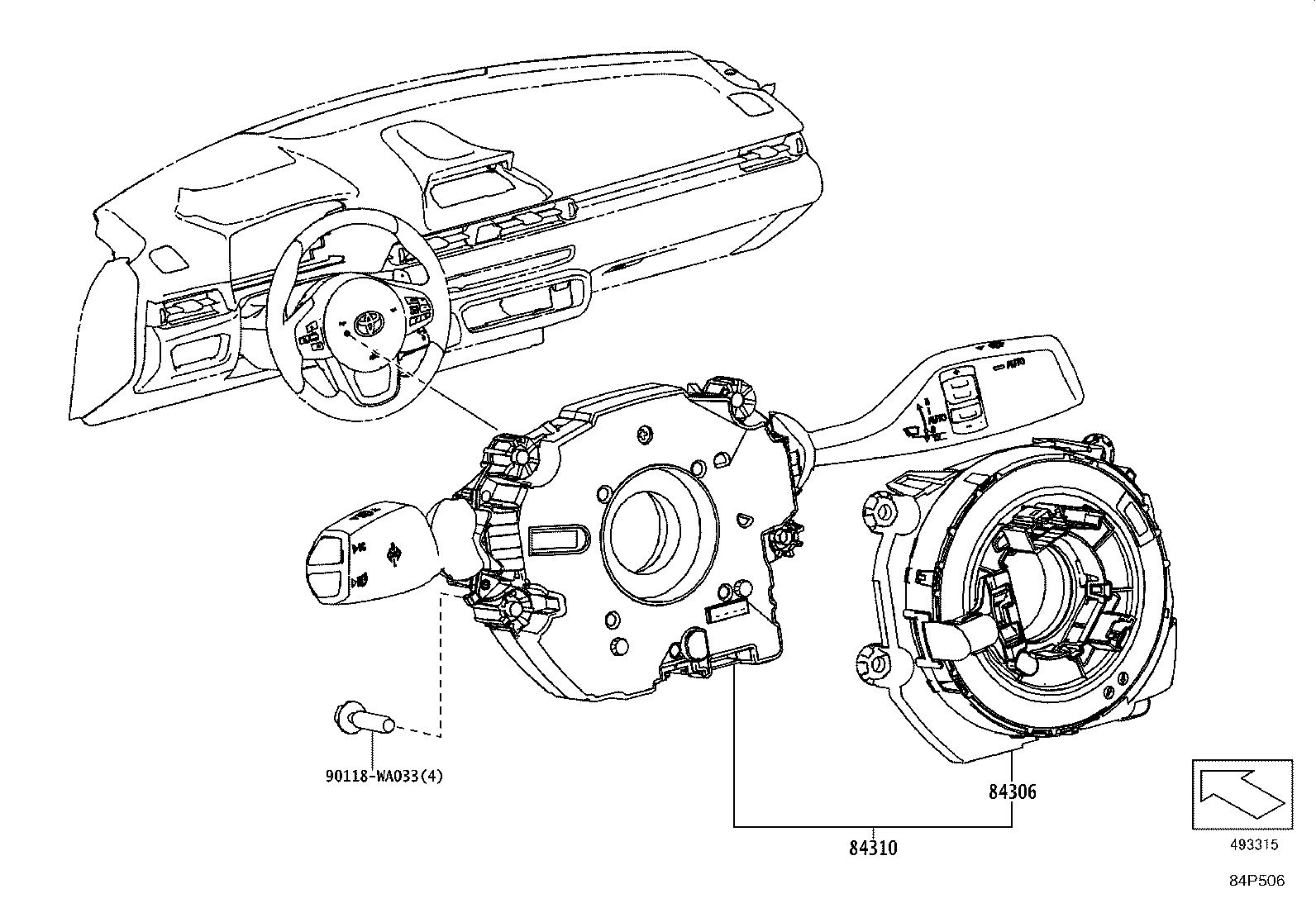

84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal

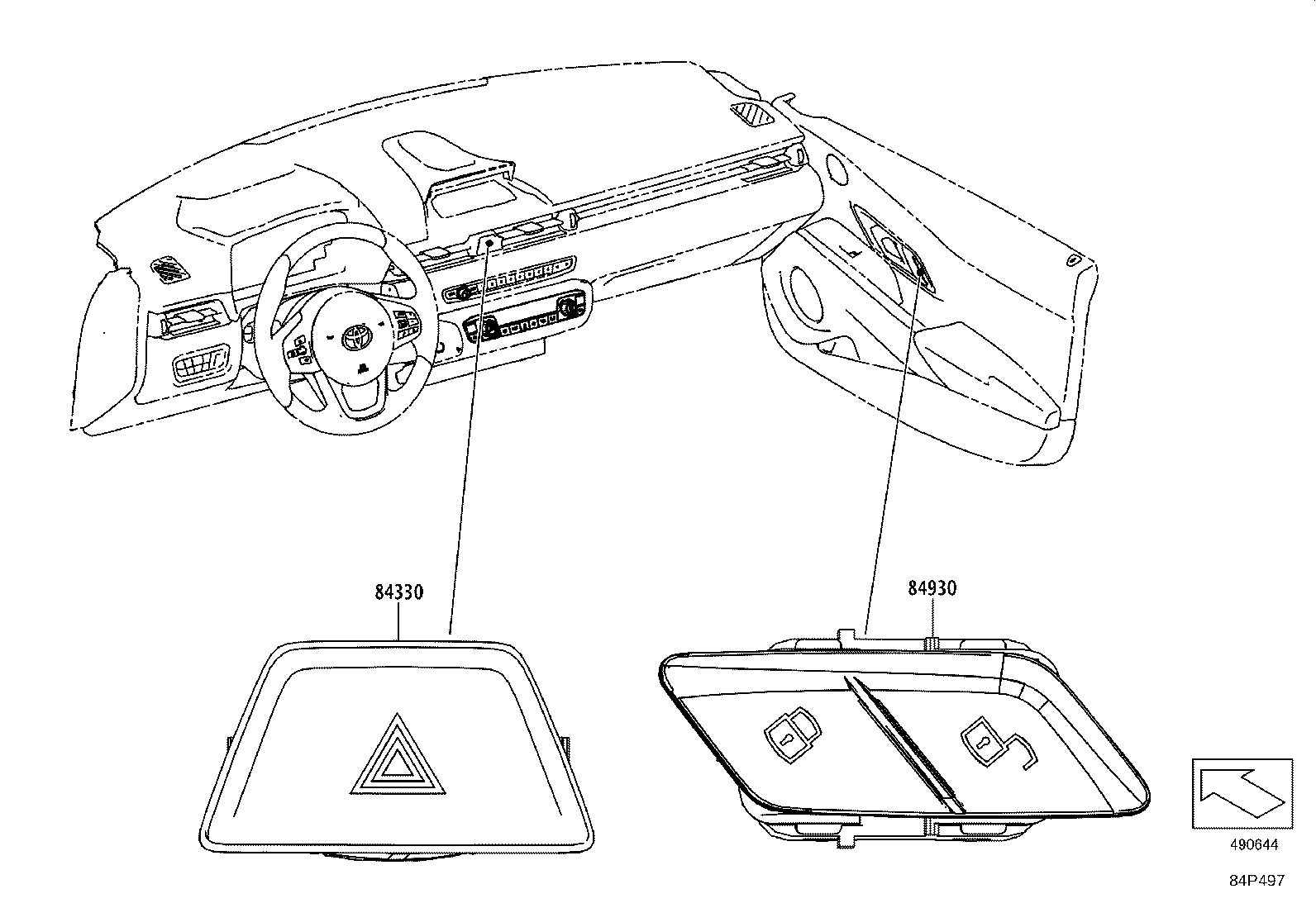

84330 Switch Assy, Hazard Warning Signal

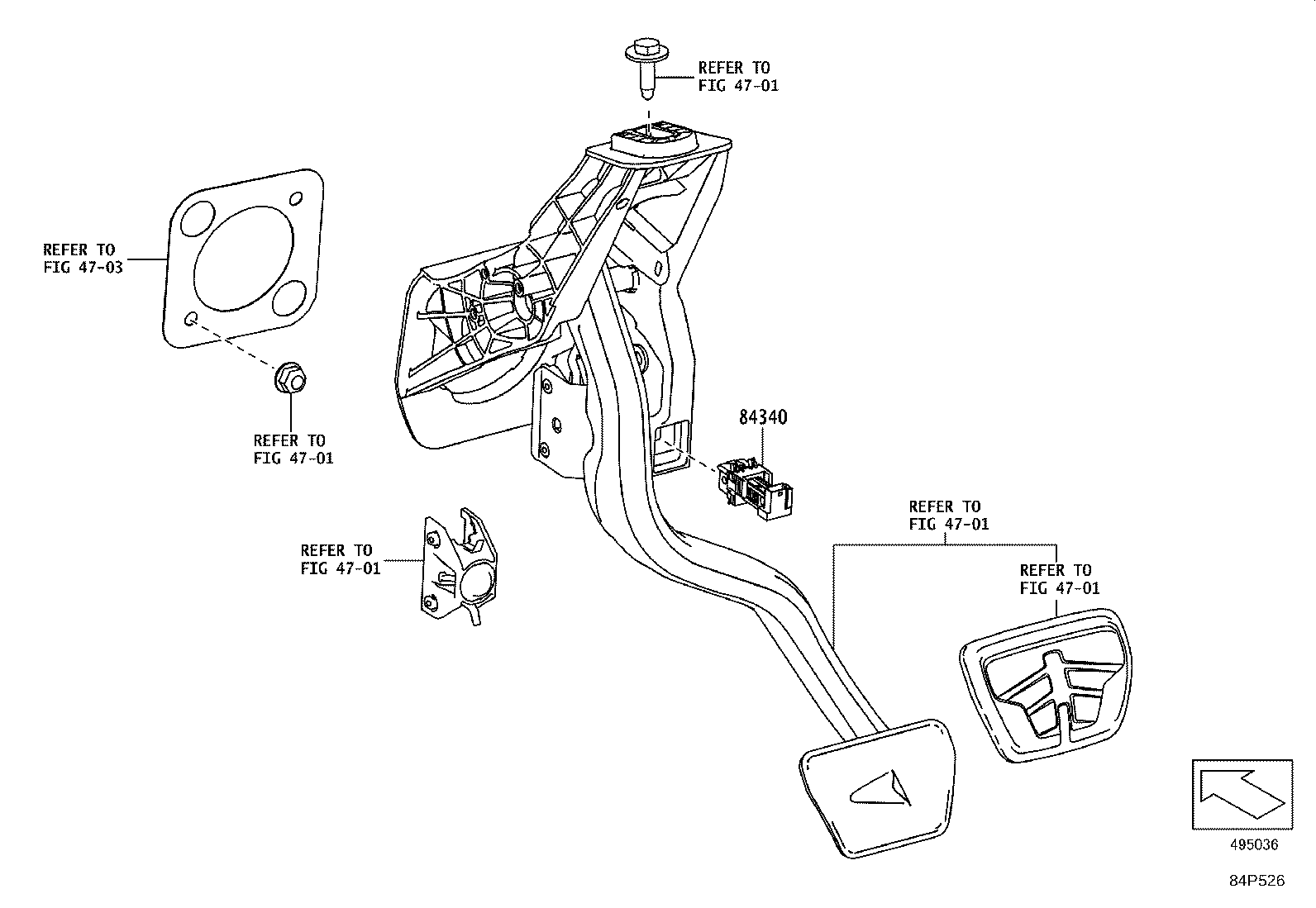

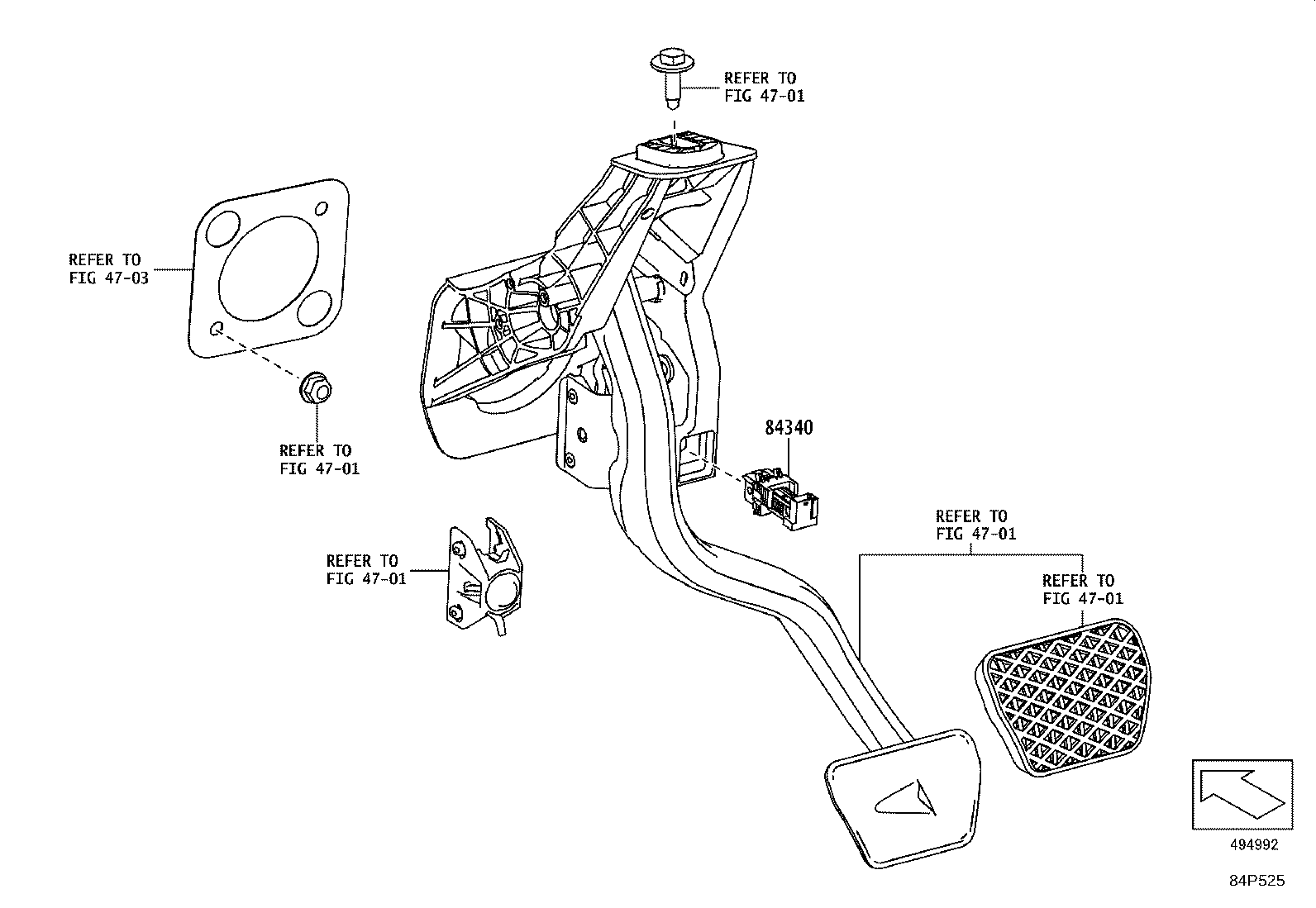

84340 Switch Assy, Stop Lamp

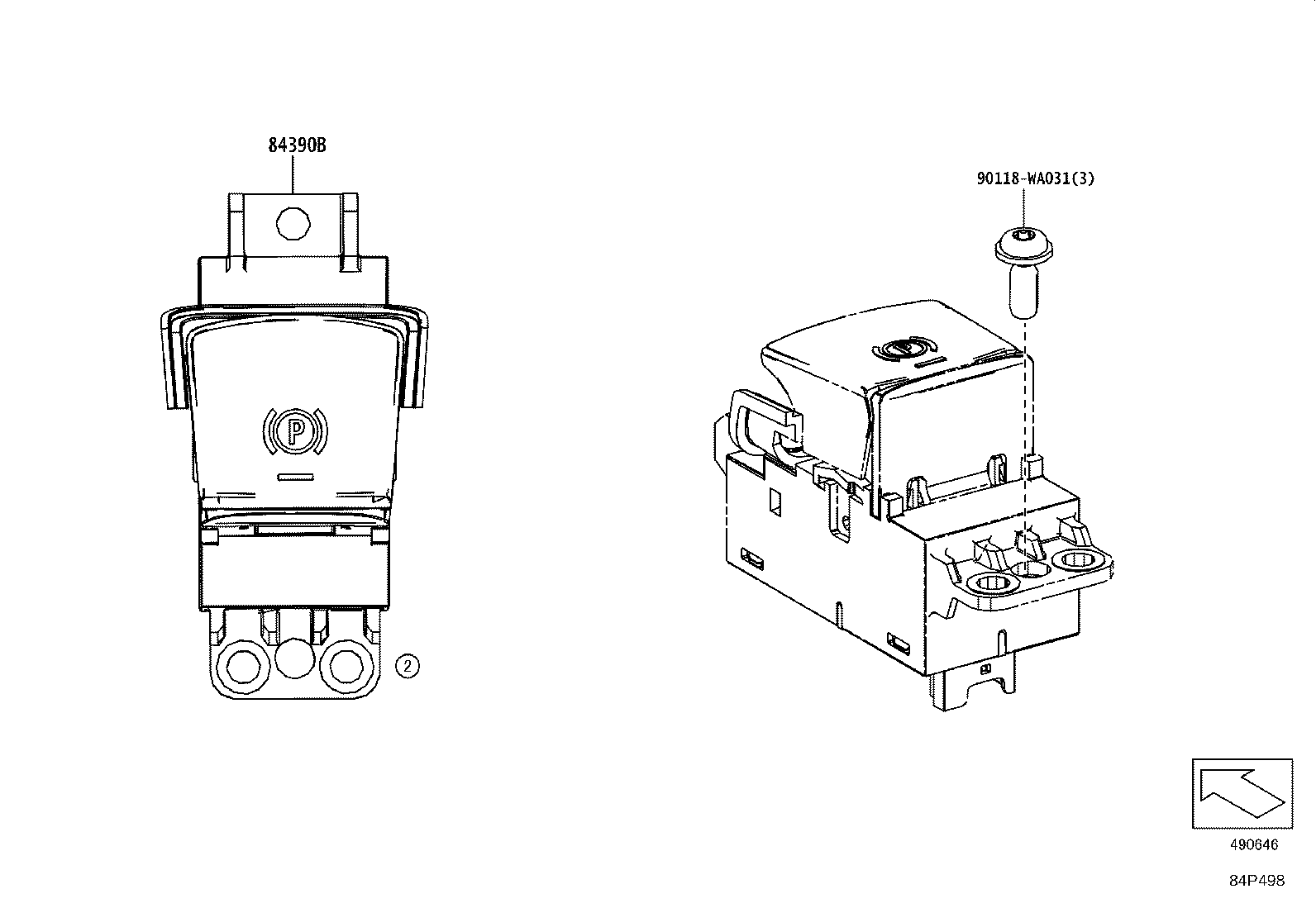

84390B Switch Assy, Electric Parking Brake

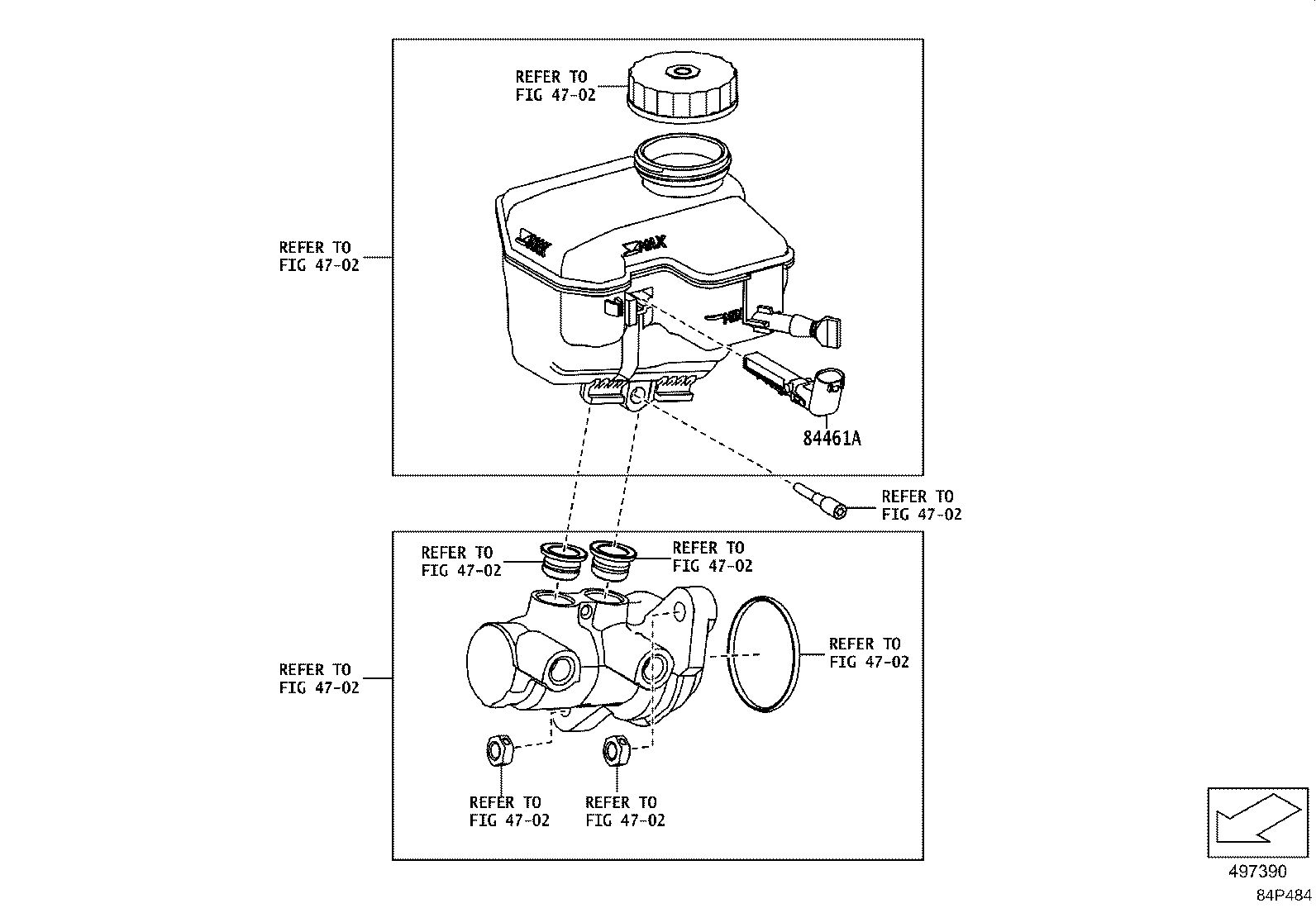

84461A Switch, Brake Reservoir Level Warning

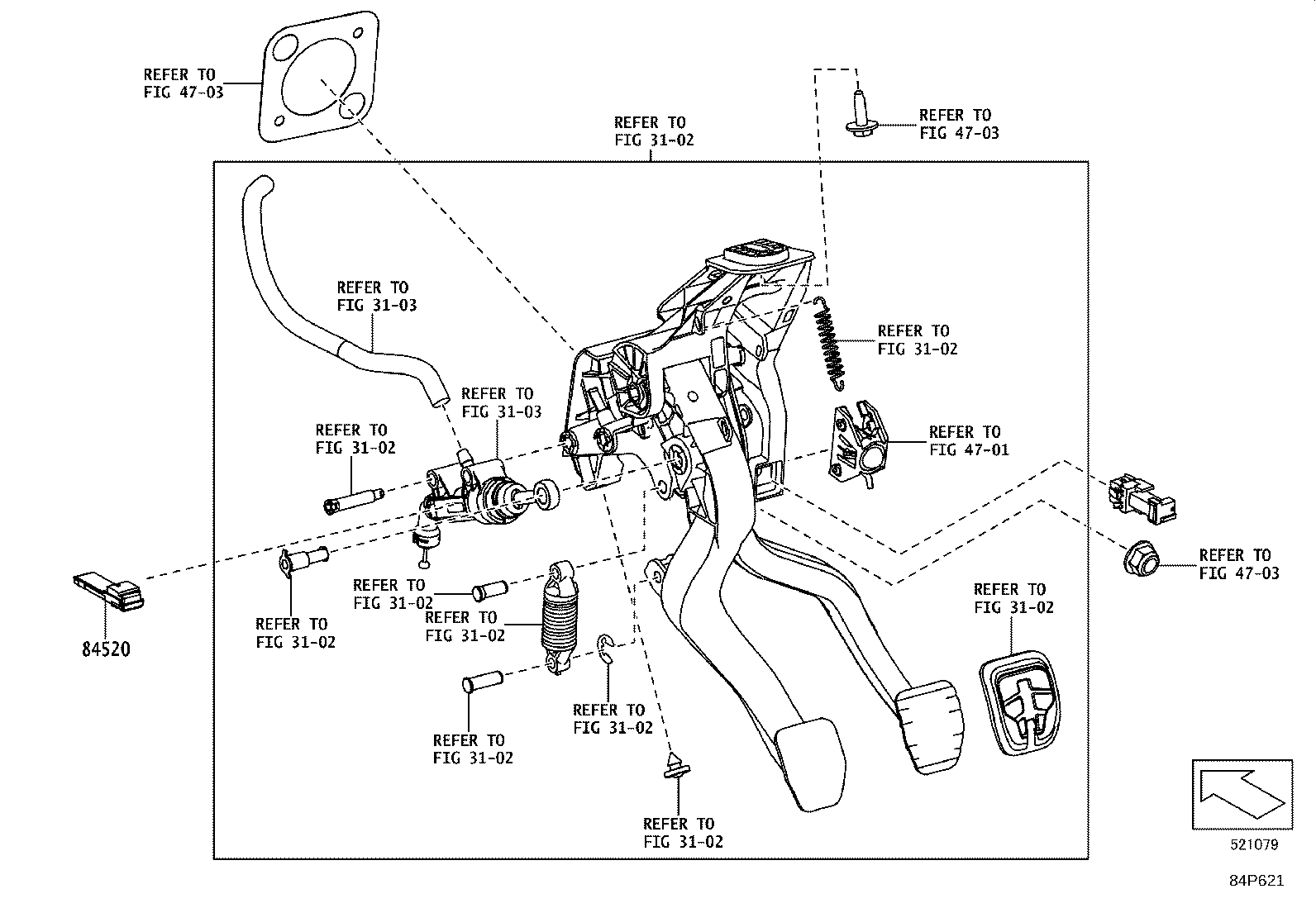

84520 Switch Assy, Clutch Start

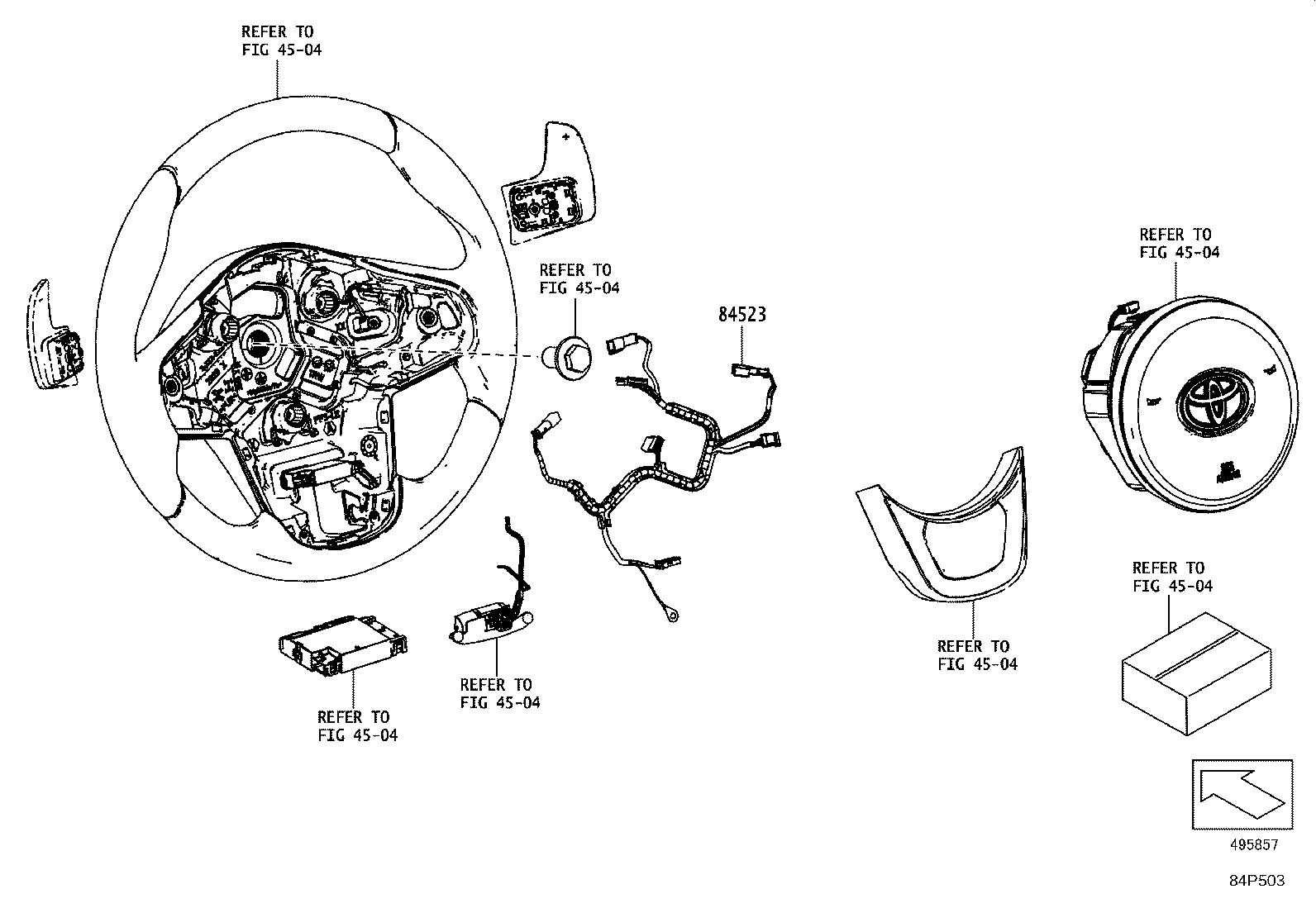

84523 Wire, Switch NO.1

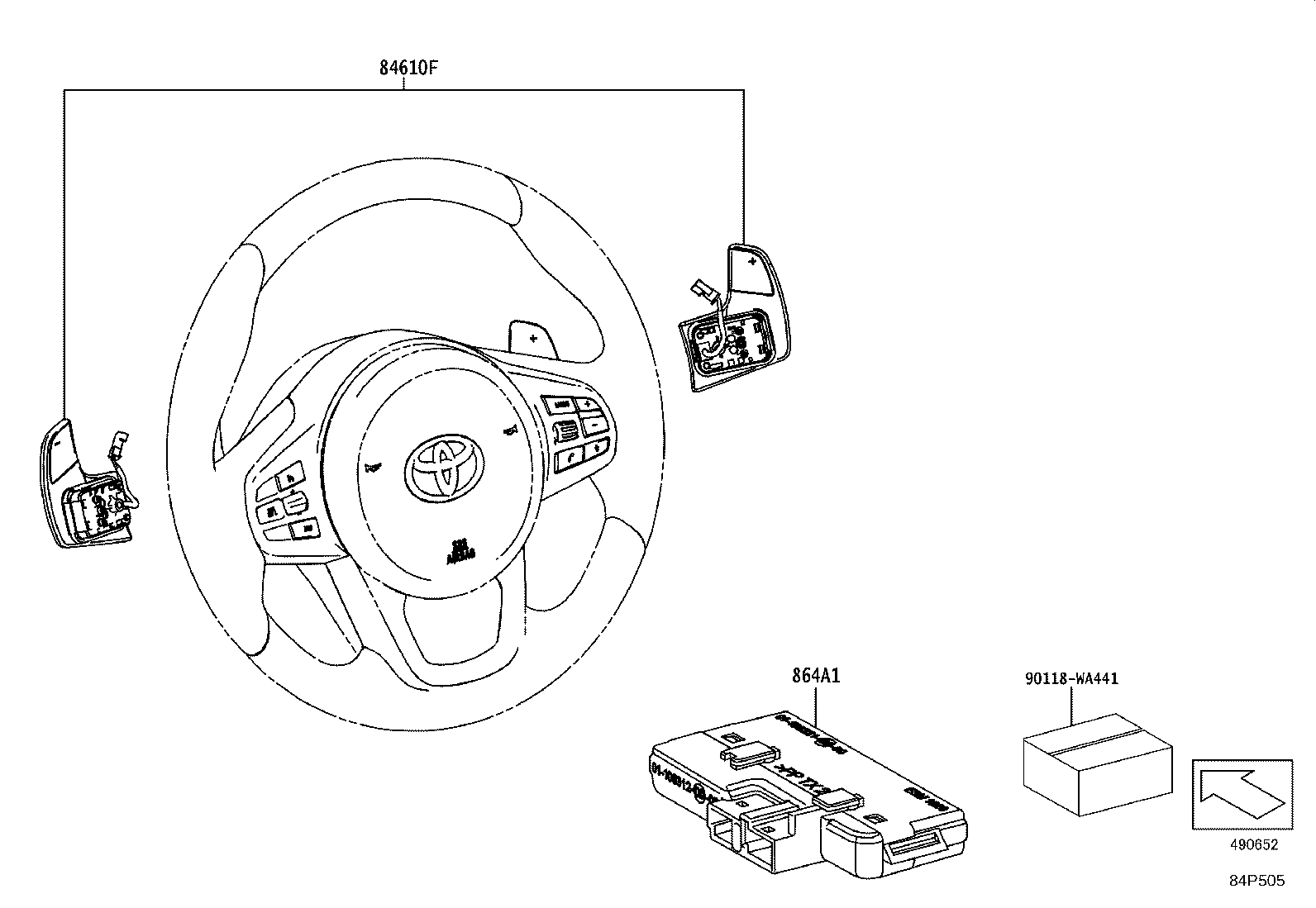

84610F Switch Assy, Transmission Shift

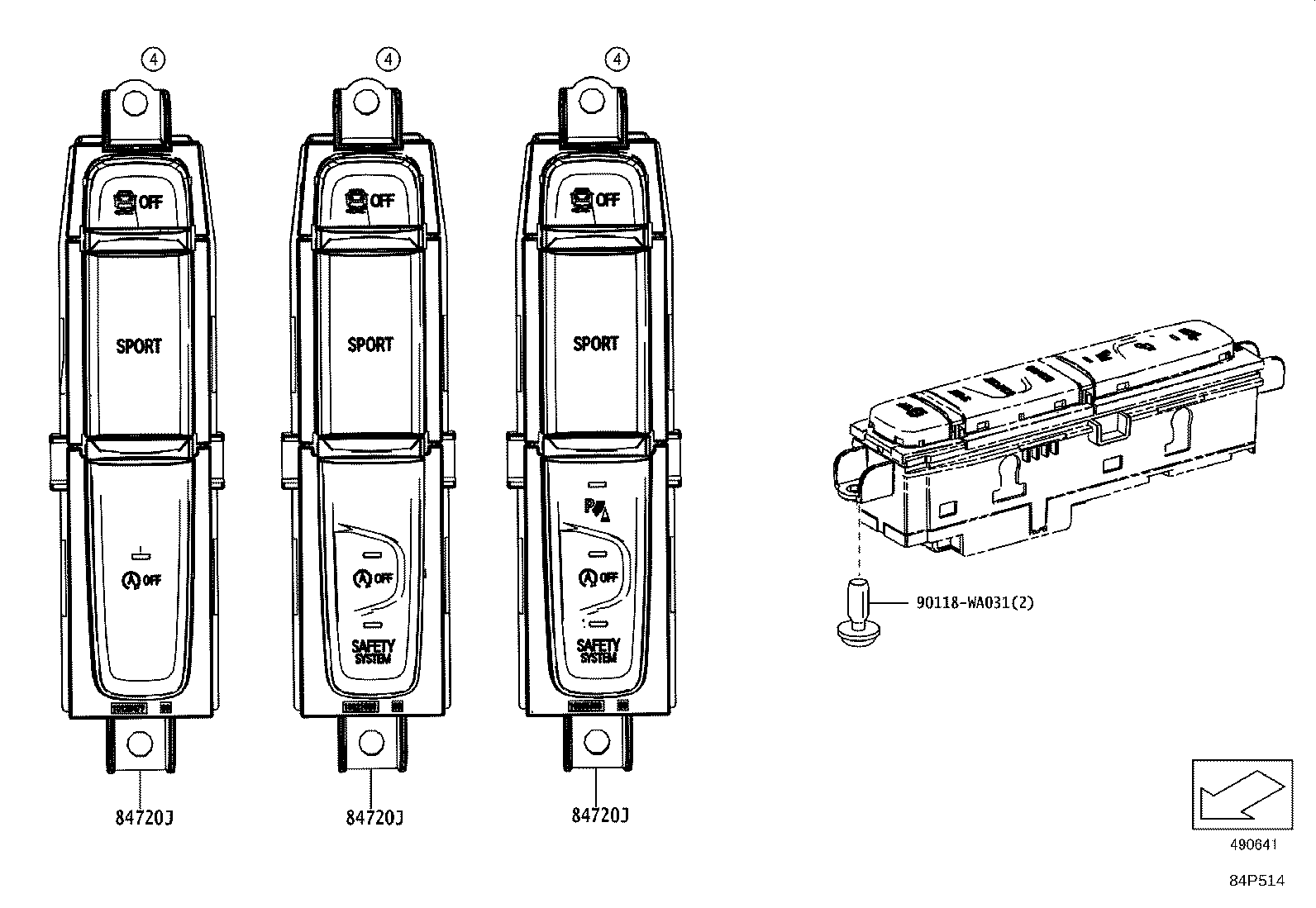

84720J Switch Assy, Pattern Select
84810 Switch Assy, Power Window Regulator

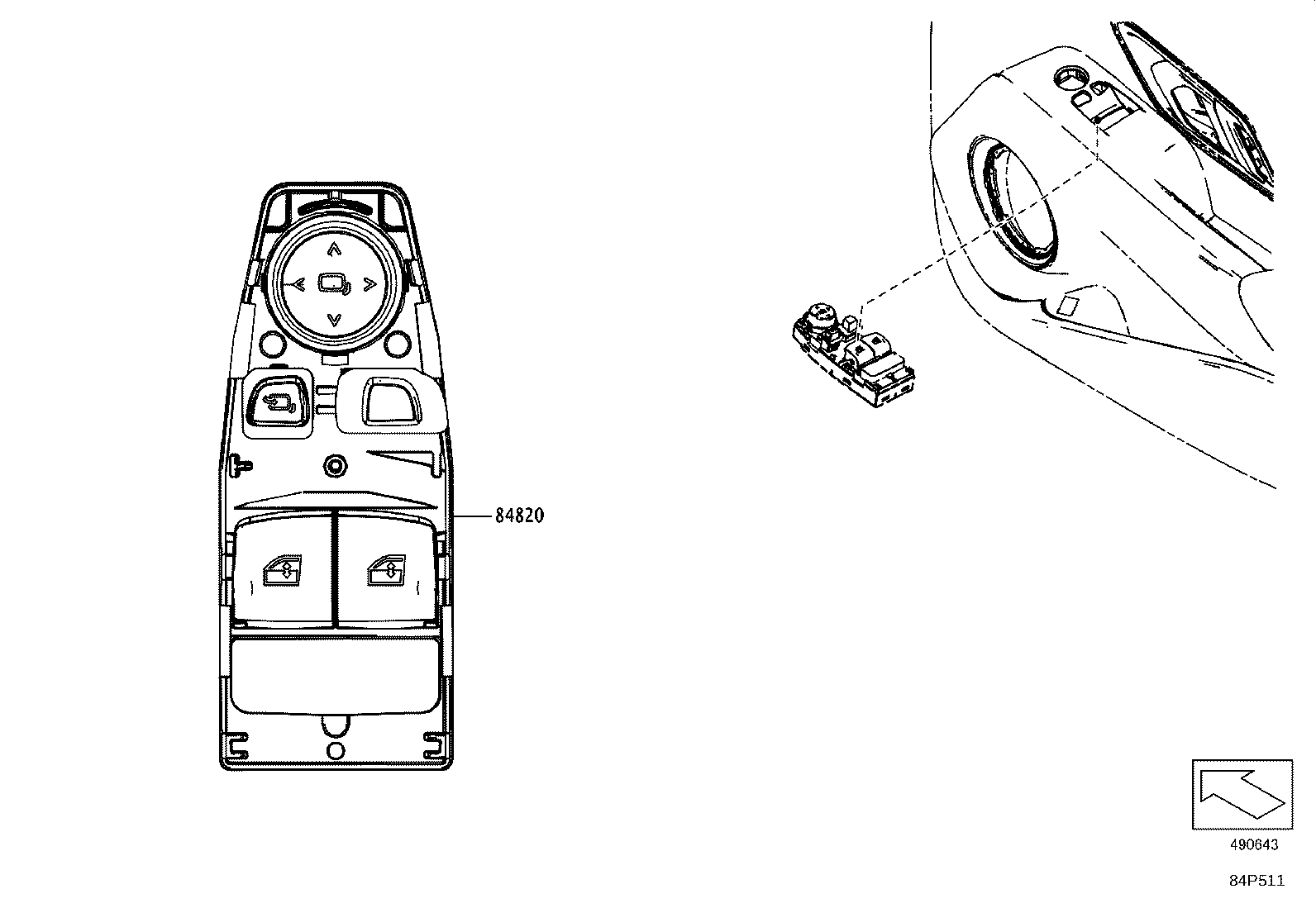

84820 Master Switch Assy, Power Window Regulator

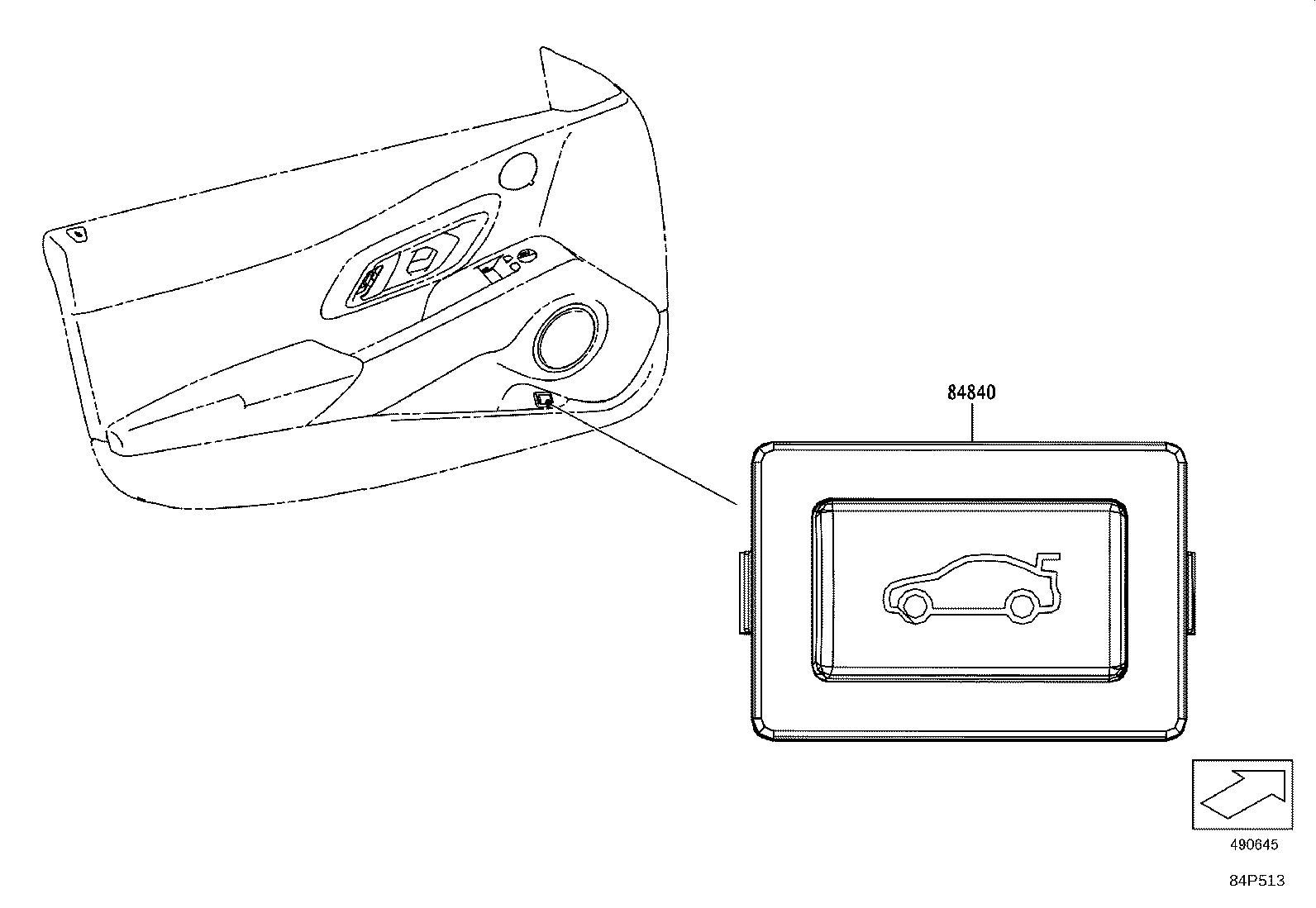

84840 Switch Assy, Luggage Compartment Door Opening

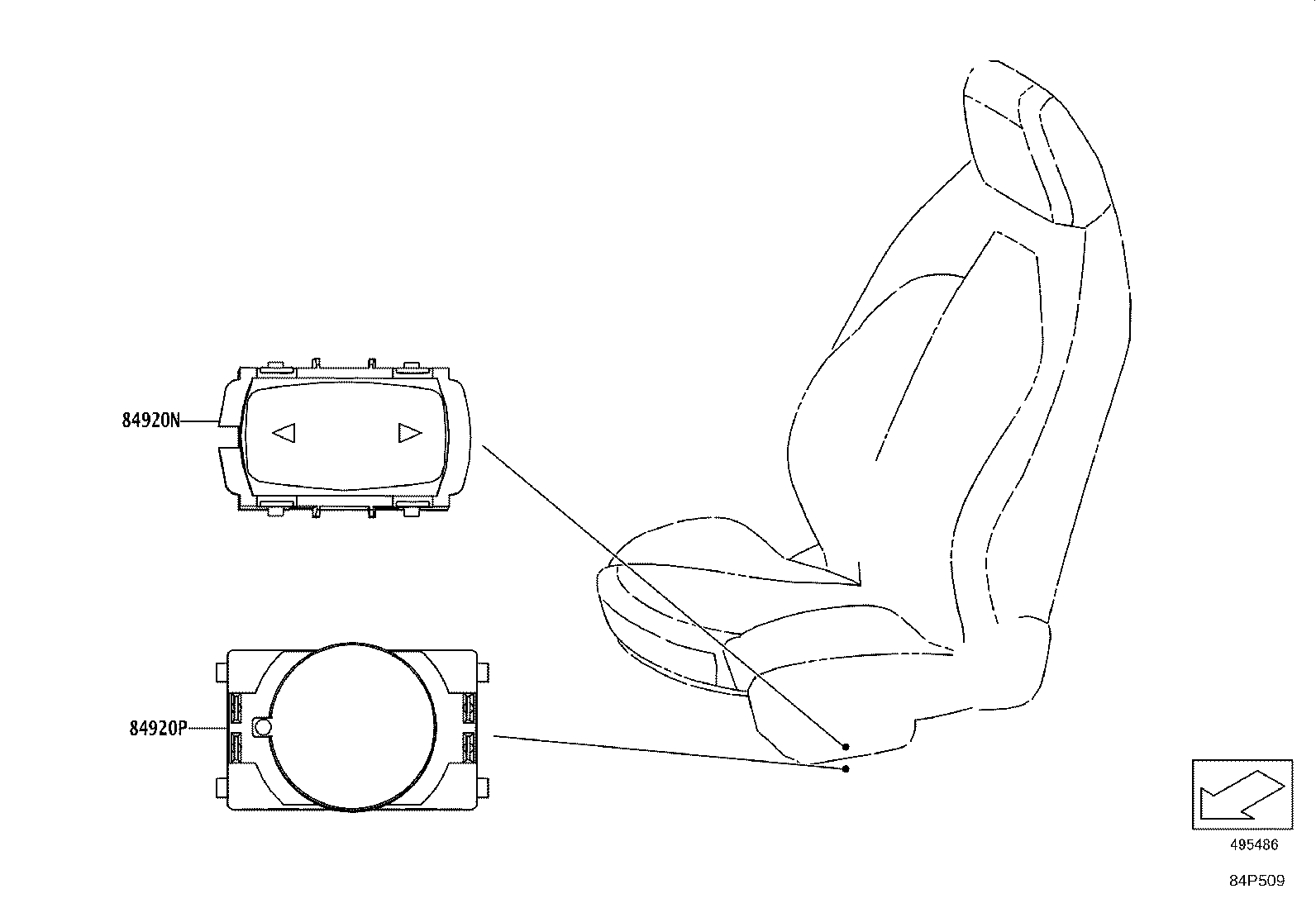

84920N Switch, Front Seatback Support Power Seat
84920P Switch, Front Lumbar Support Power Seat

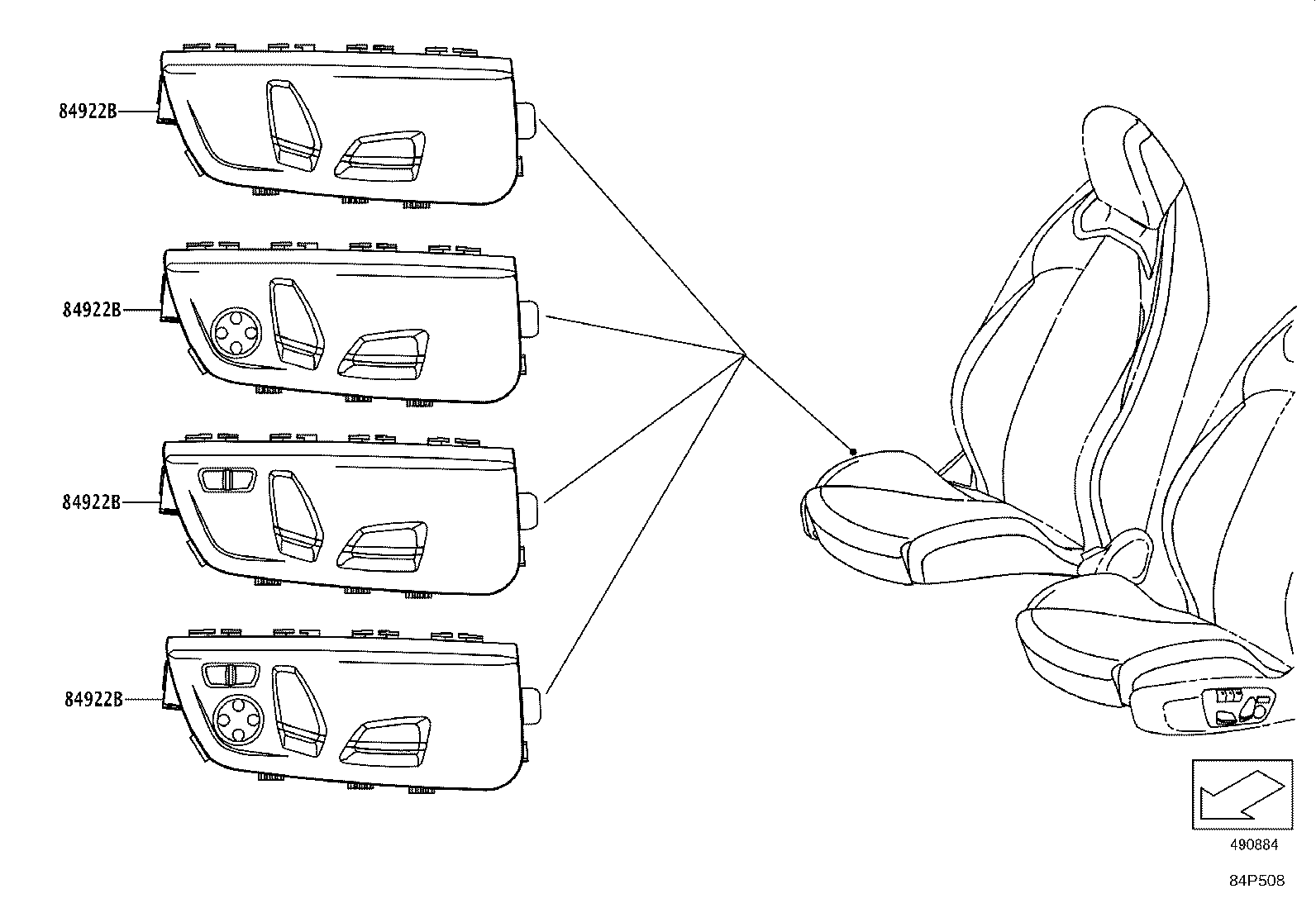

84922B Switch, Front Power Seat, RH

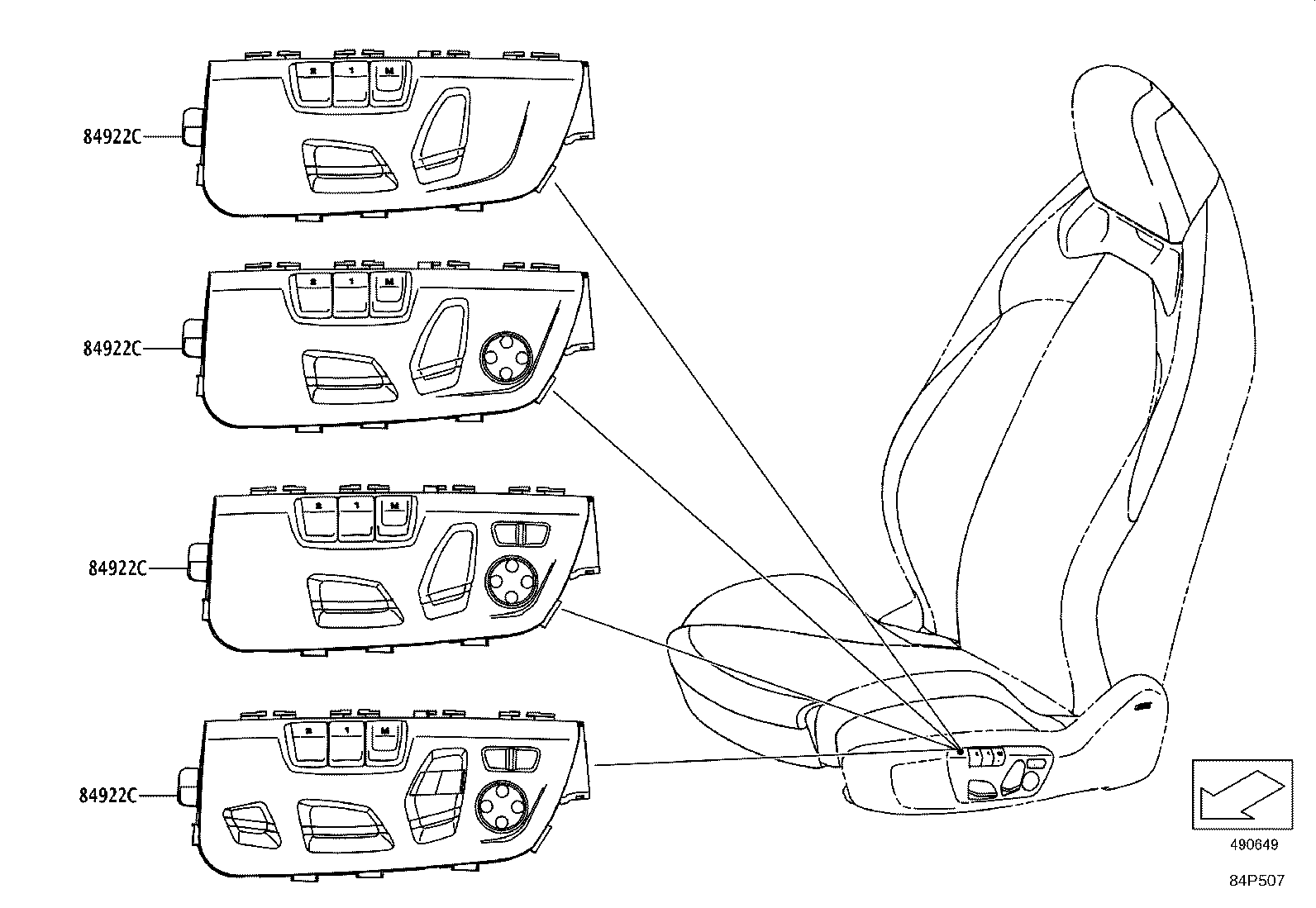

84922C Switch, Front Power Seat, LH
84930 Switch Assy, Door Control

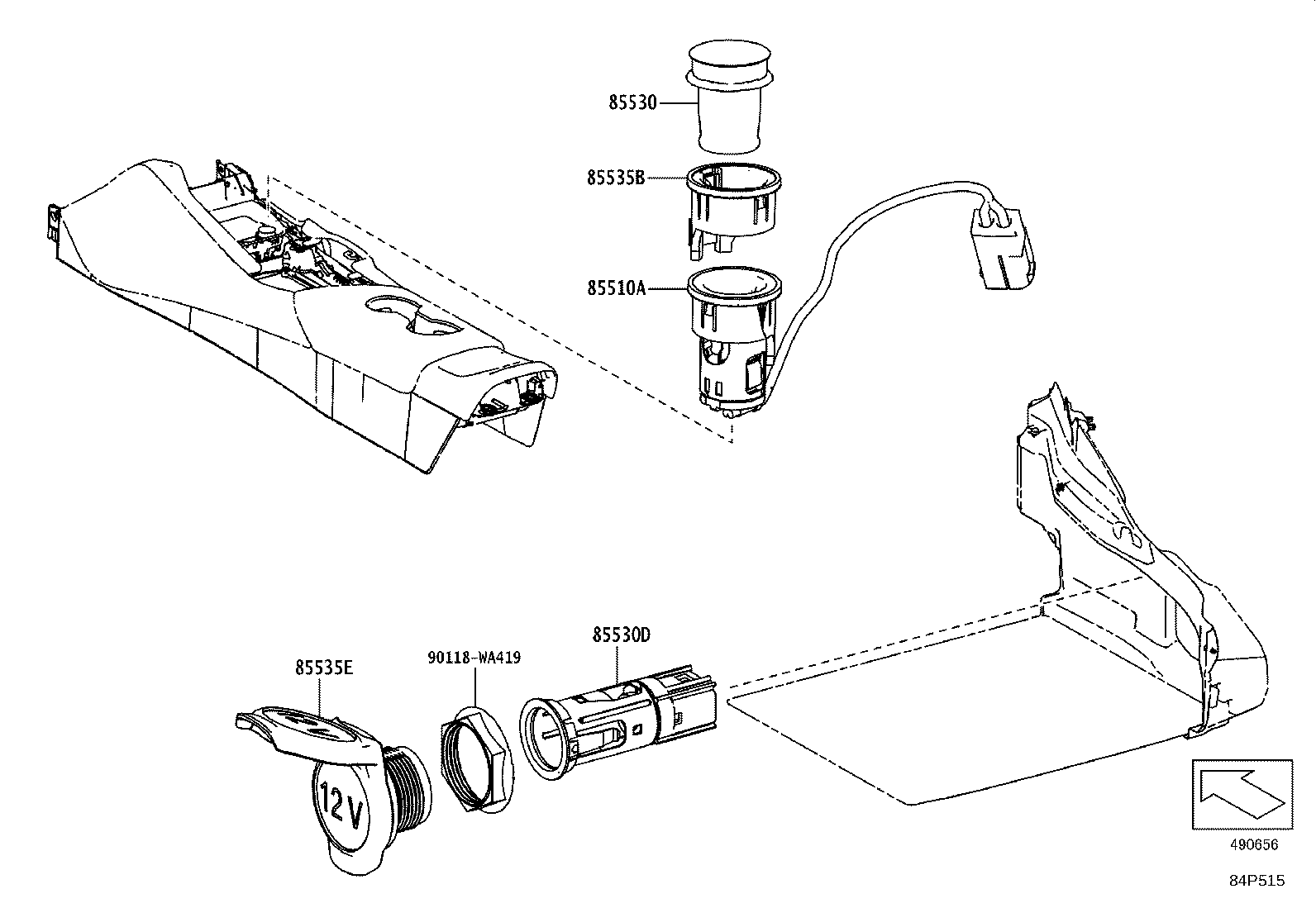

85510A Retainer, Power Outlet Socket
85530 Socket Assy, Power Outlet, NO.1
85530D Socket Assy, Power Outlet, NO.2
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
864A1 Computer, Steering Vibration & Heater

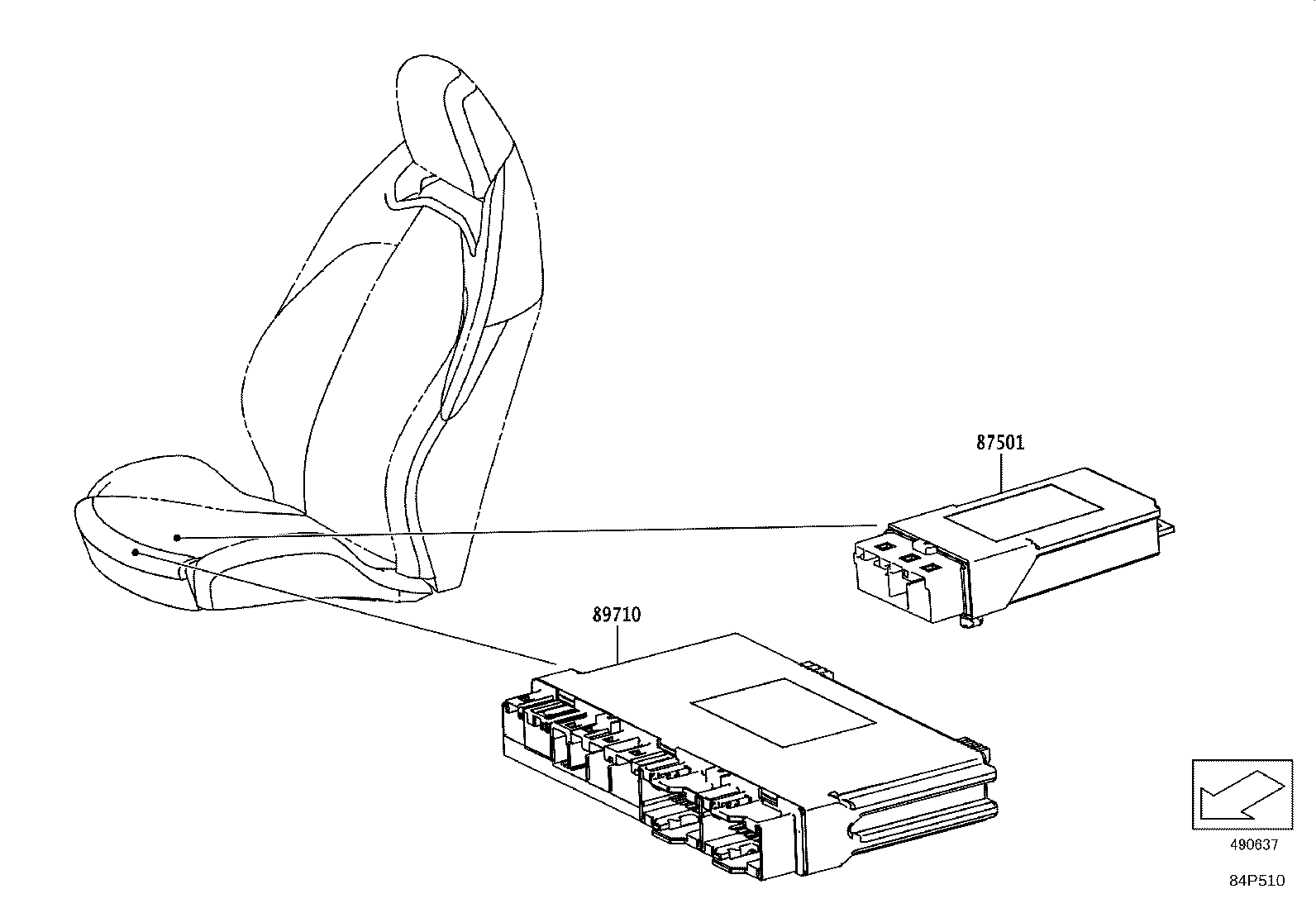

87501 Control Sub-assy, Seat Heater

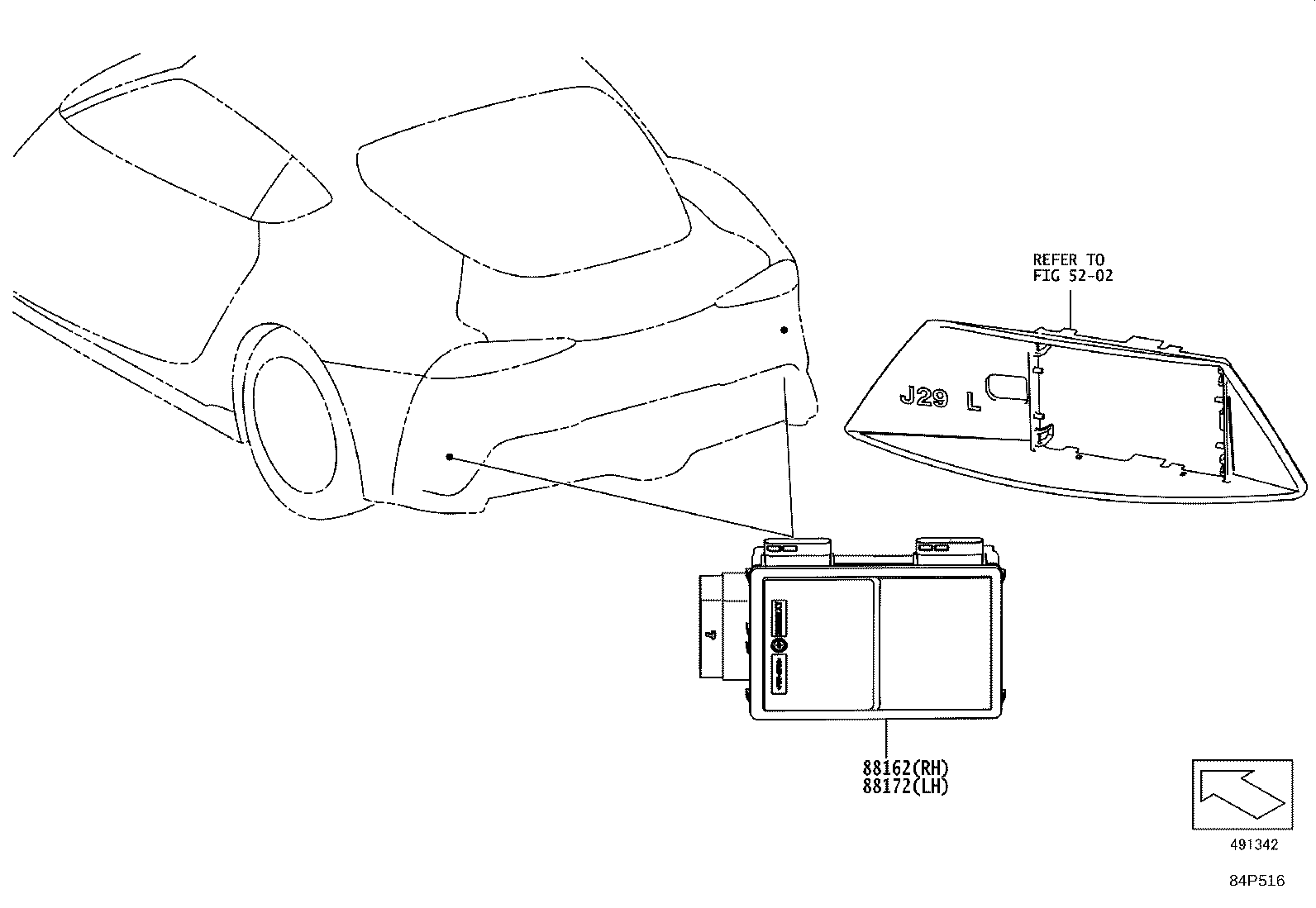

88162 Sensor, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH

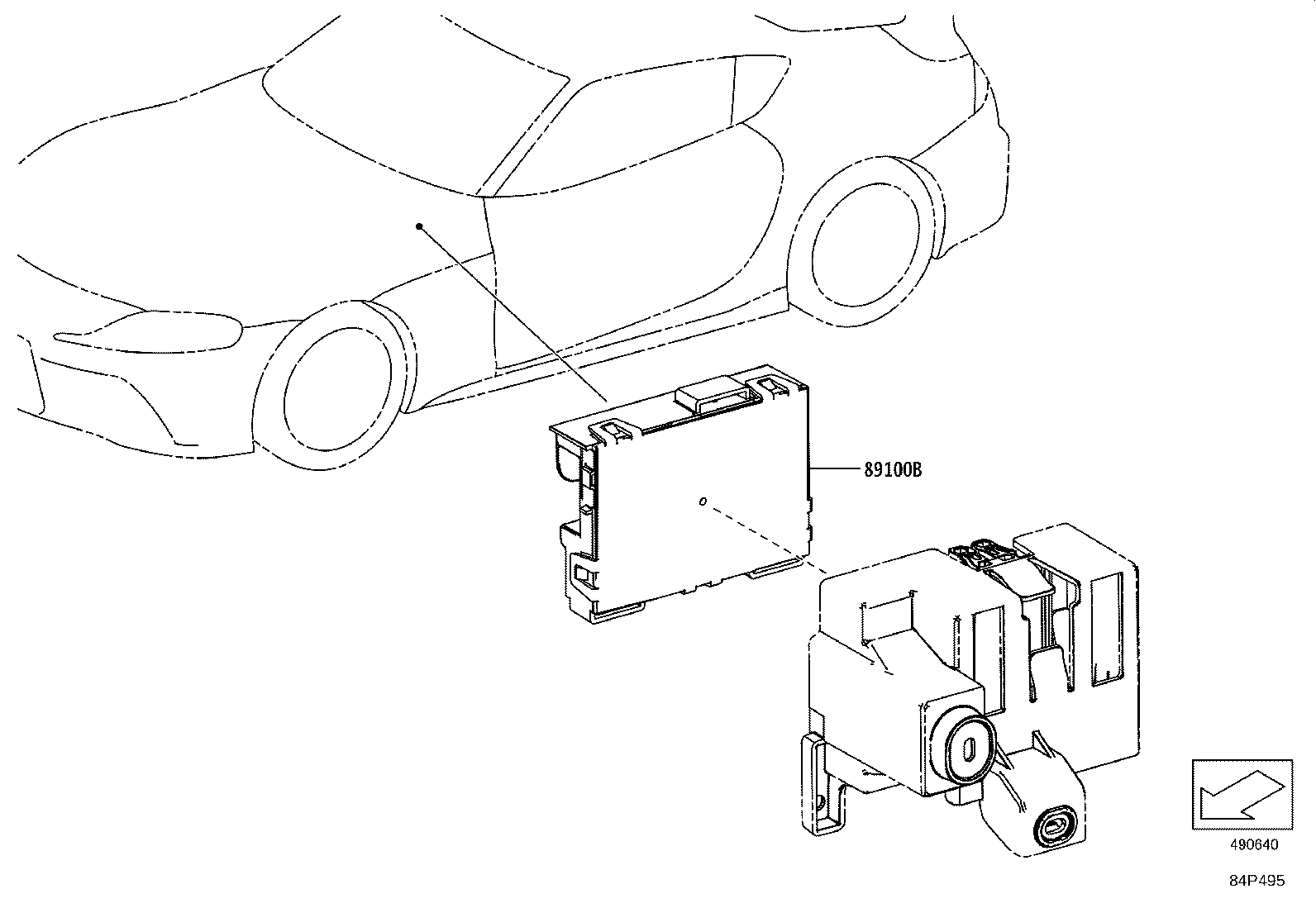

89100B Box, Ethernet Switch

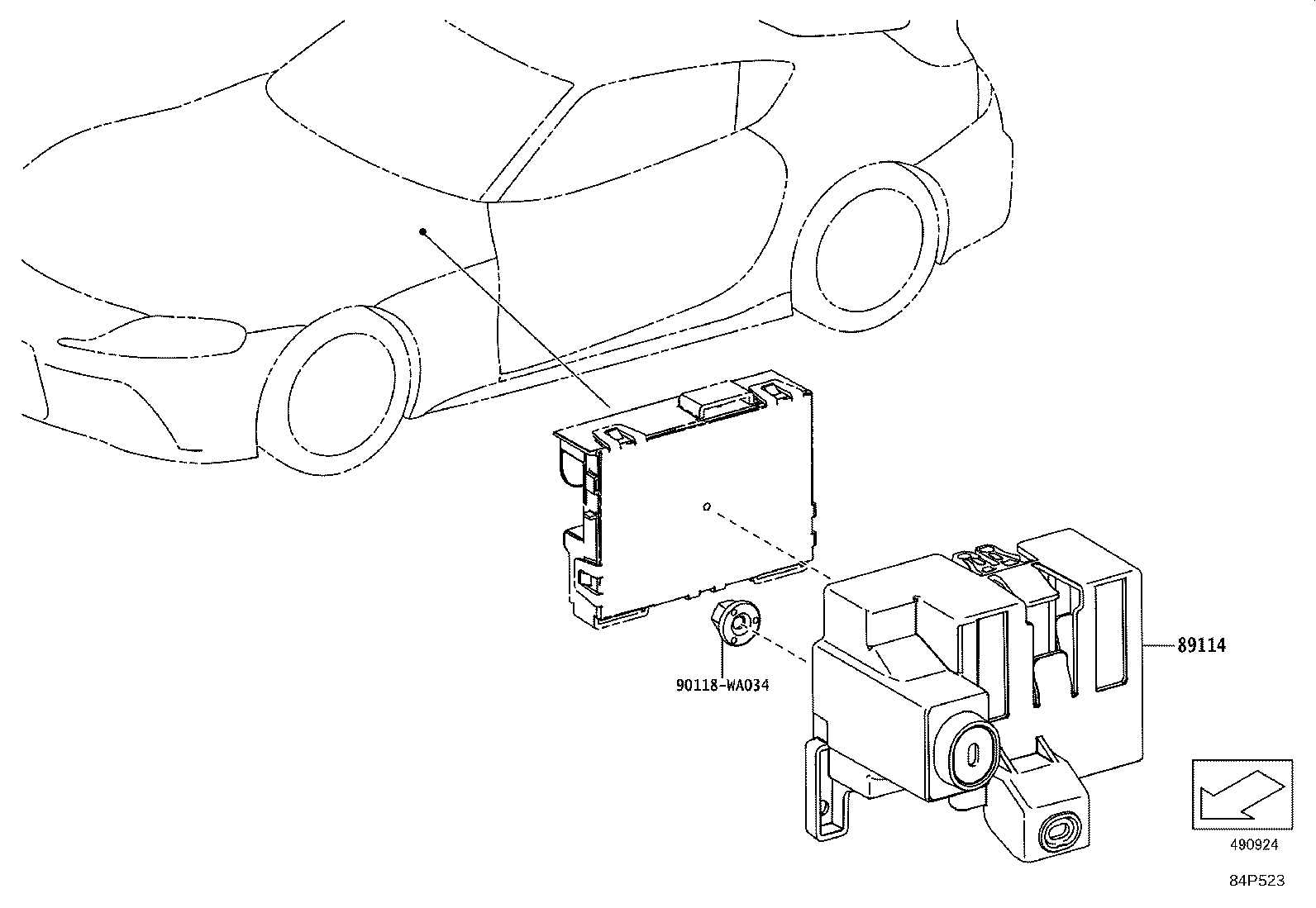

89114 Holder, Ethernet Switch Box
89221 Computer, Multiplex Network Body
89228 Cover, Multiplex Network

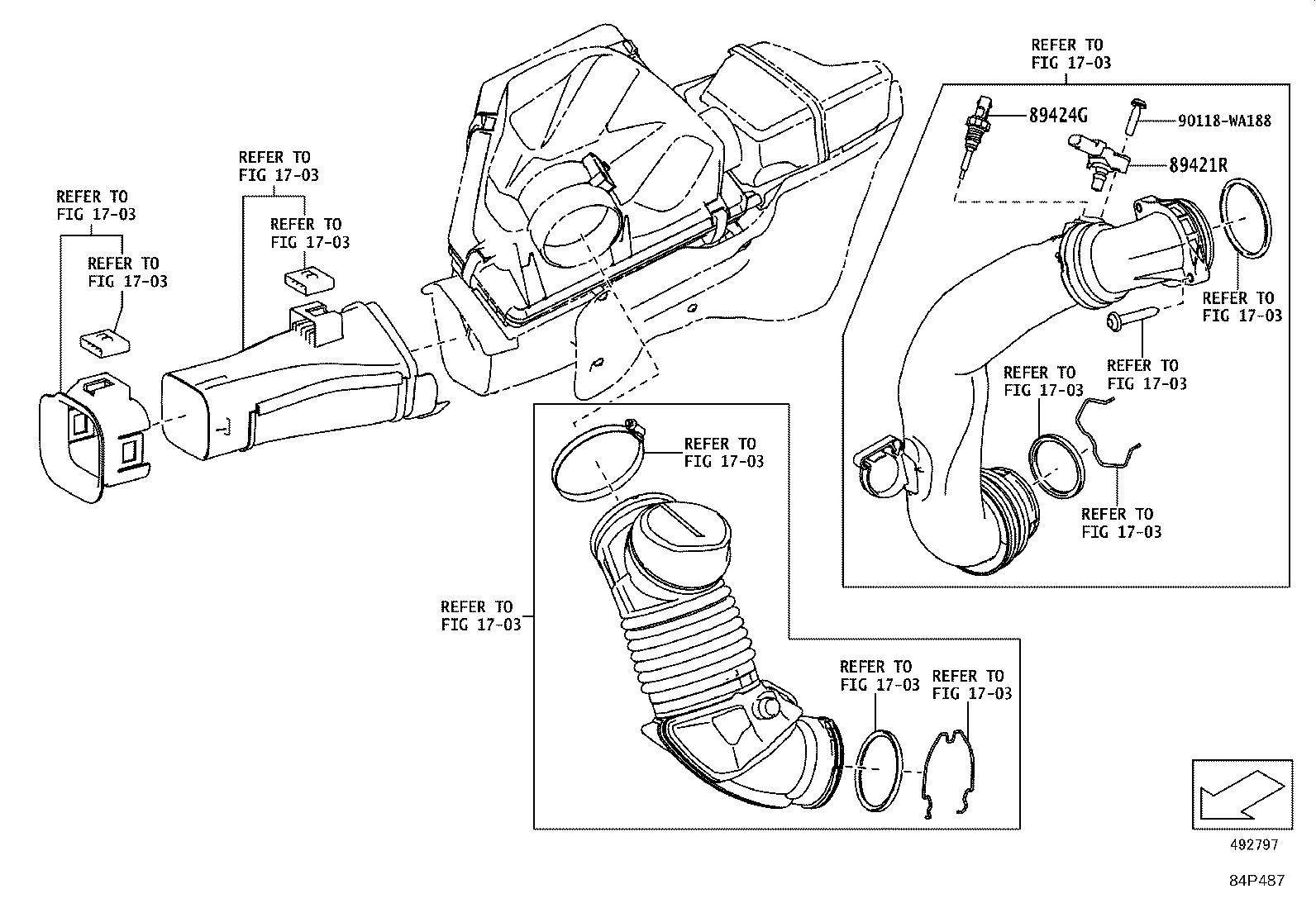

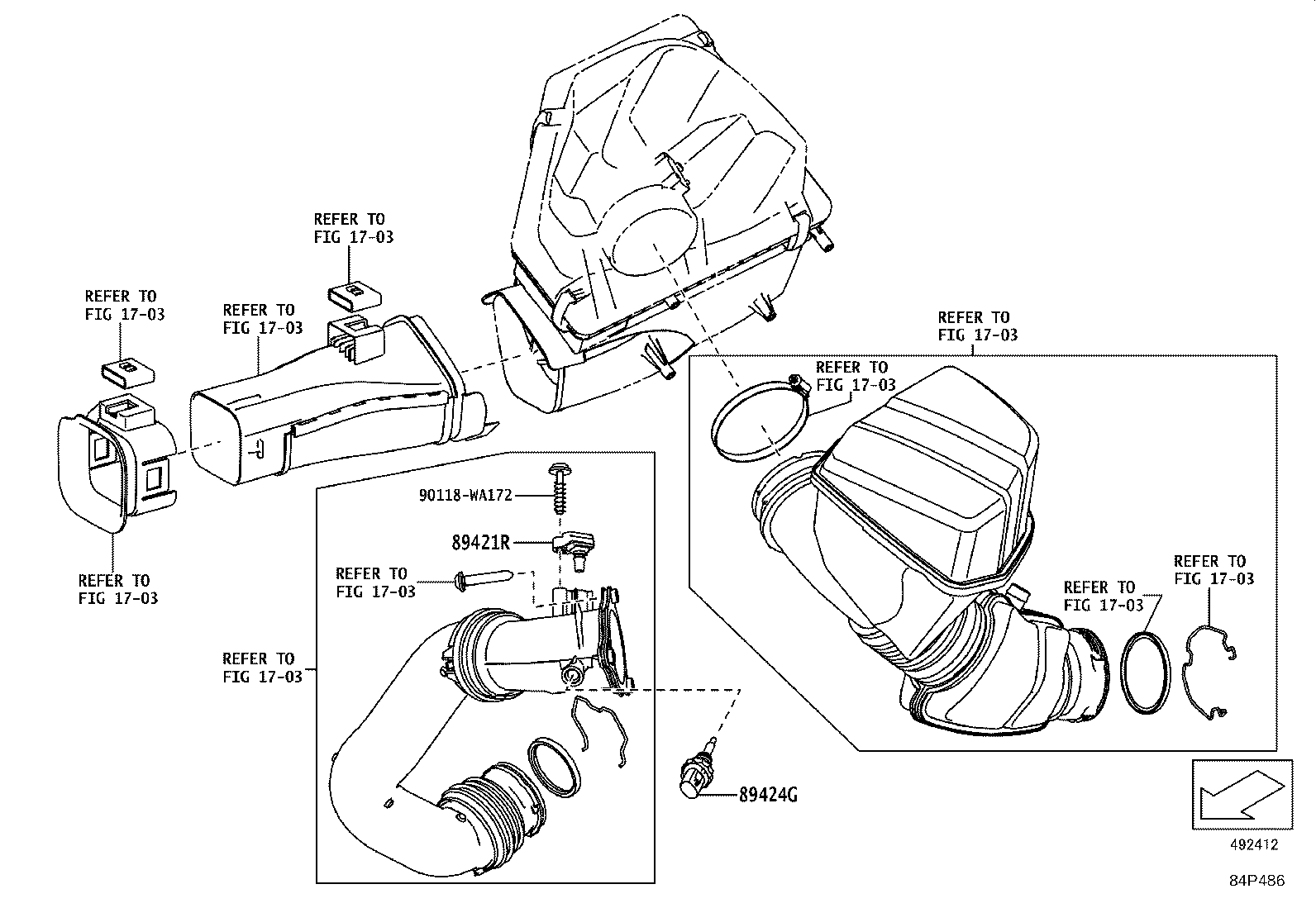

89421R Sensor, Air Pressure

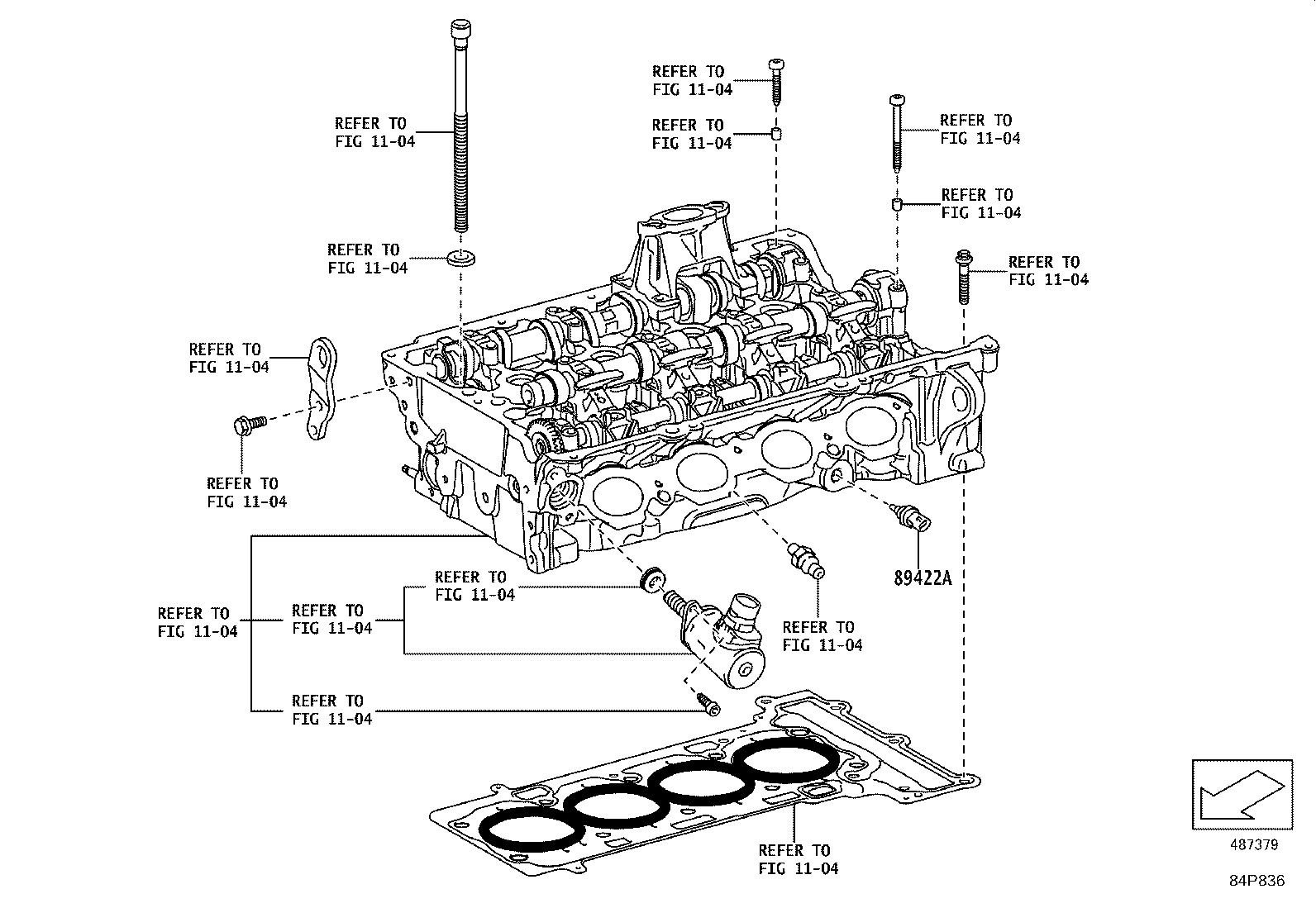

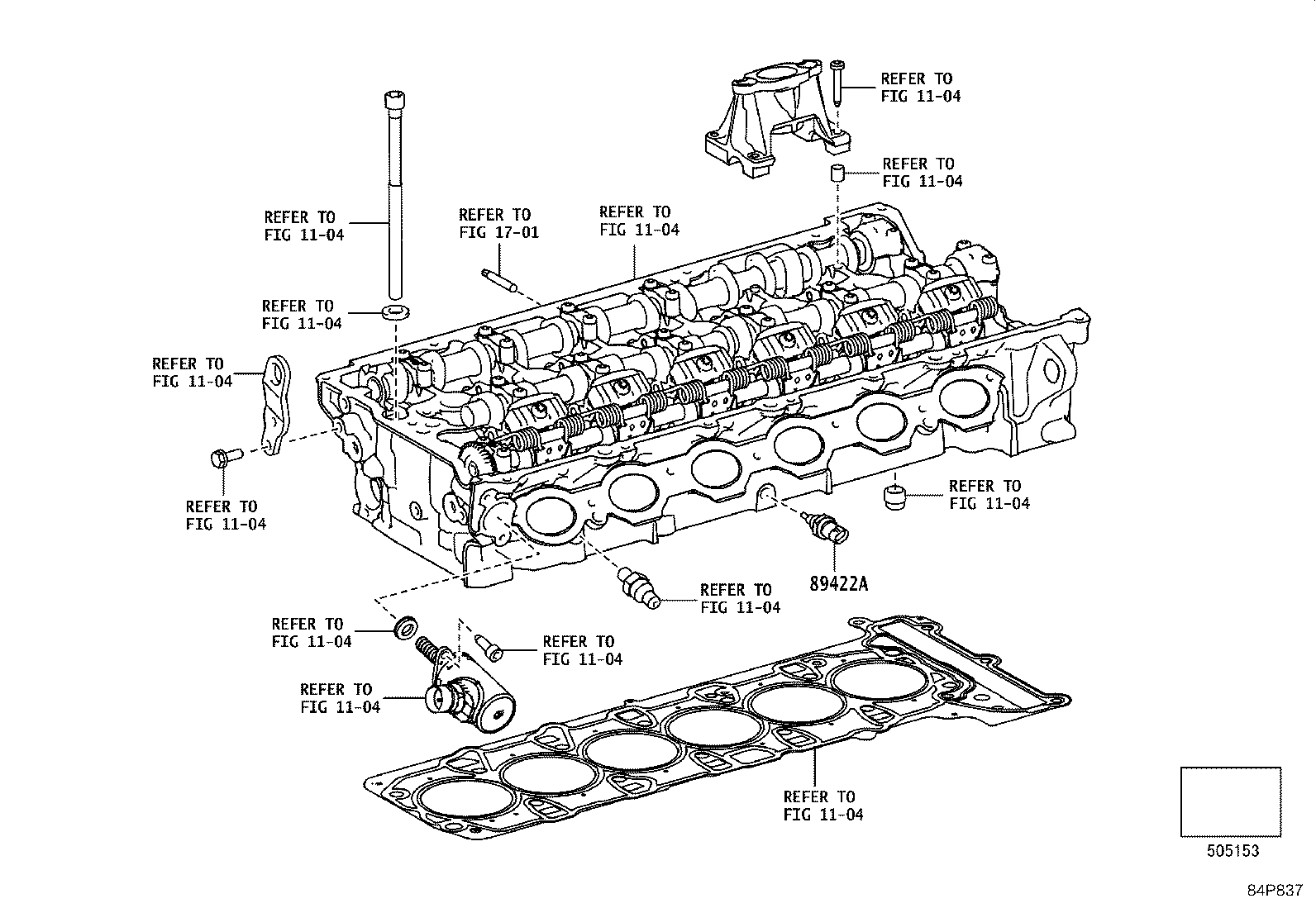

89422A Sensor, Water Temperature
89422N Sensor, Water Temperature, NO.2
89424G Sensor, Inlet Air Temperature

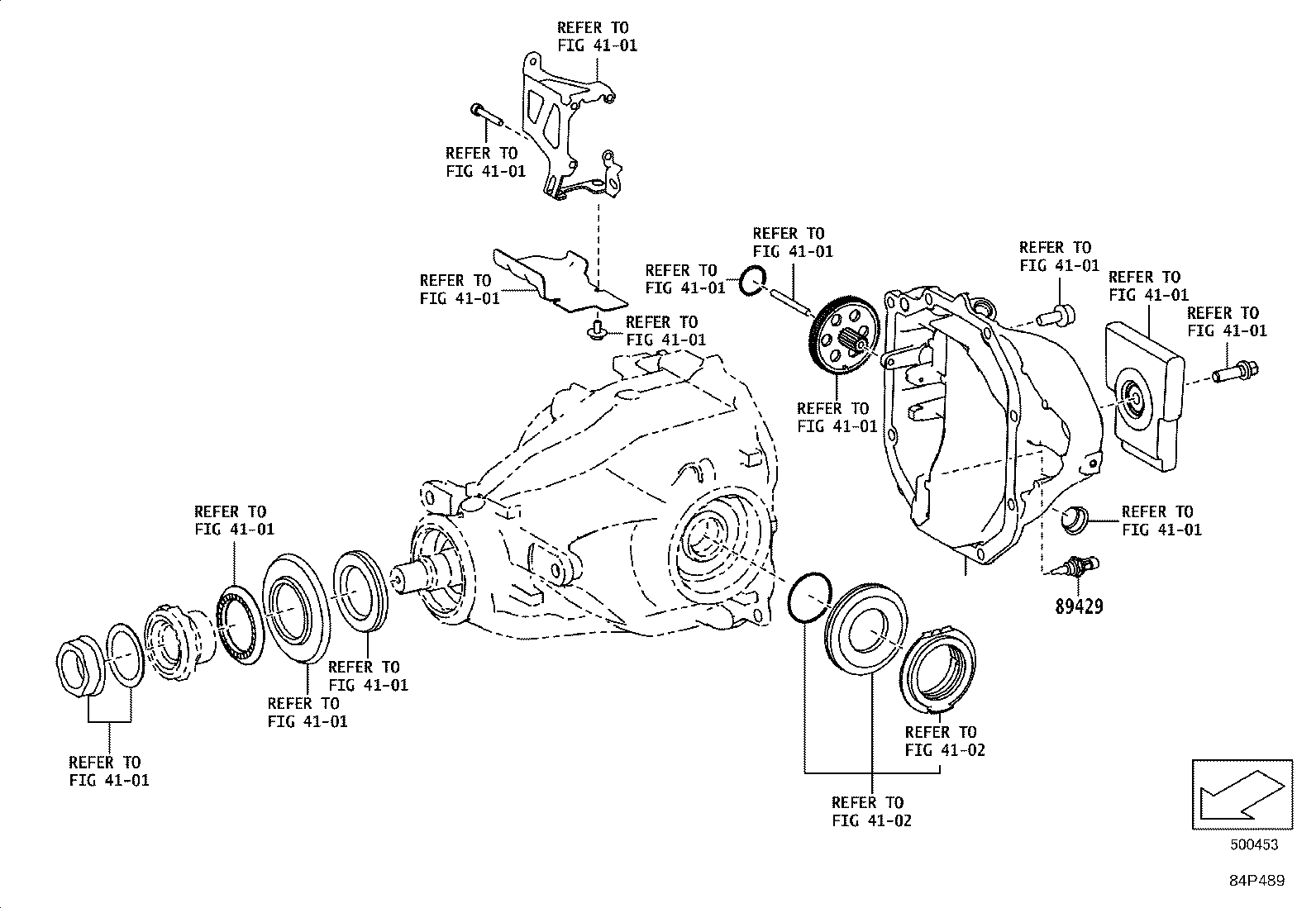

89429 Sensor, Oil Temperature

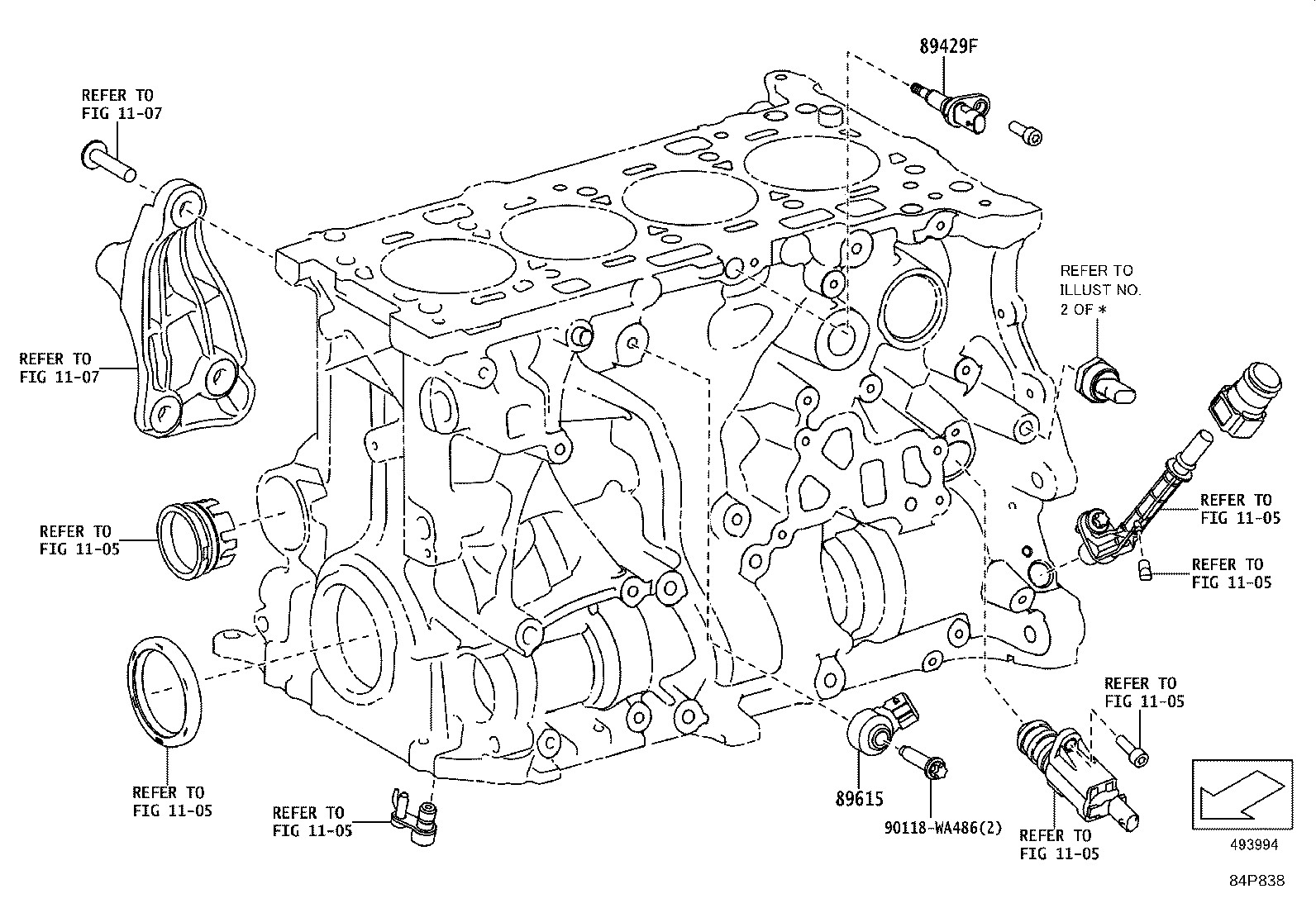

89429F Sensor, Temperature

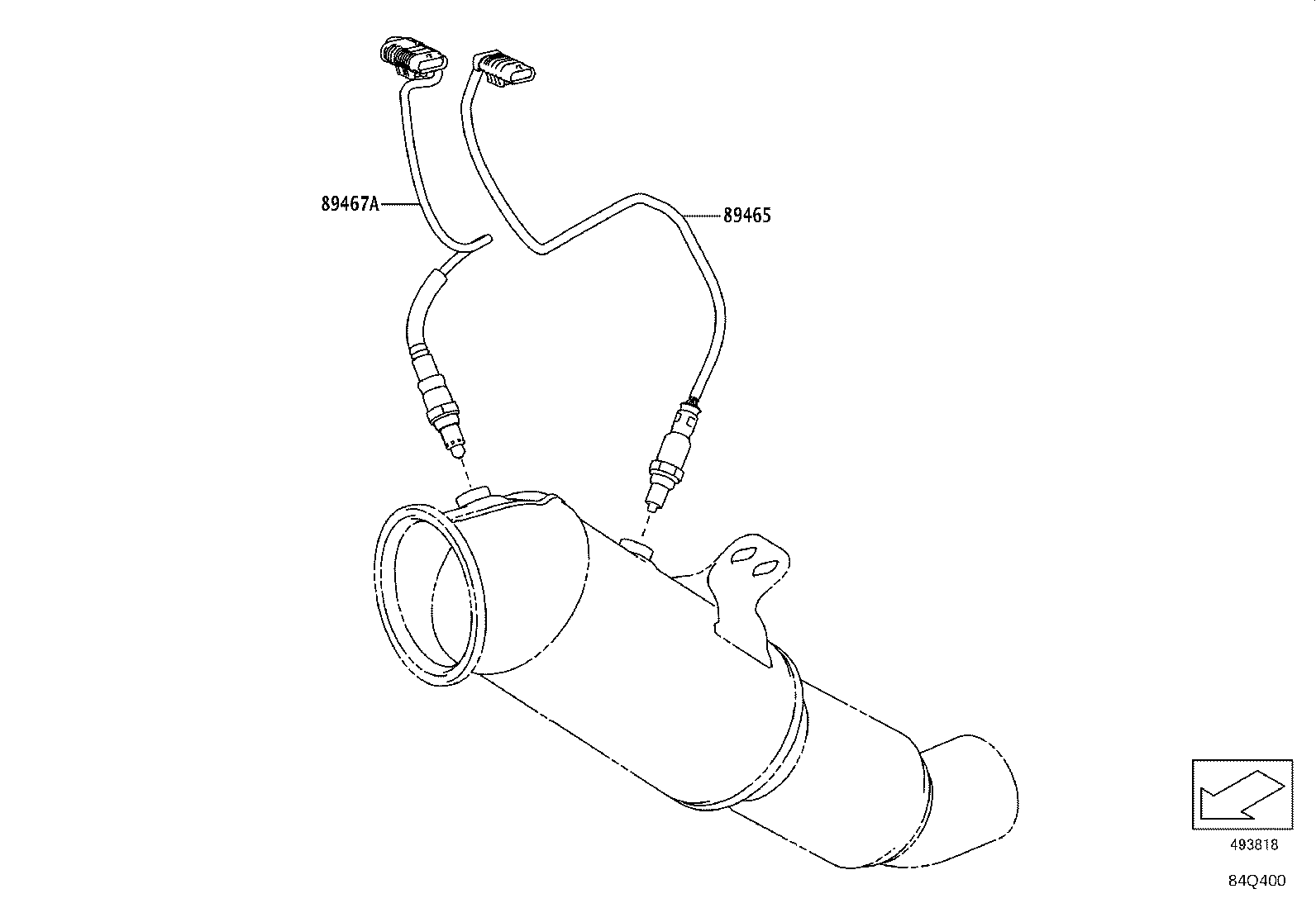

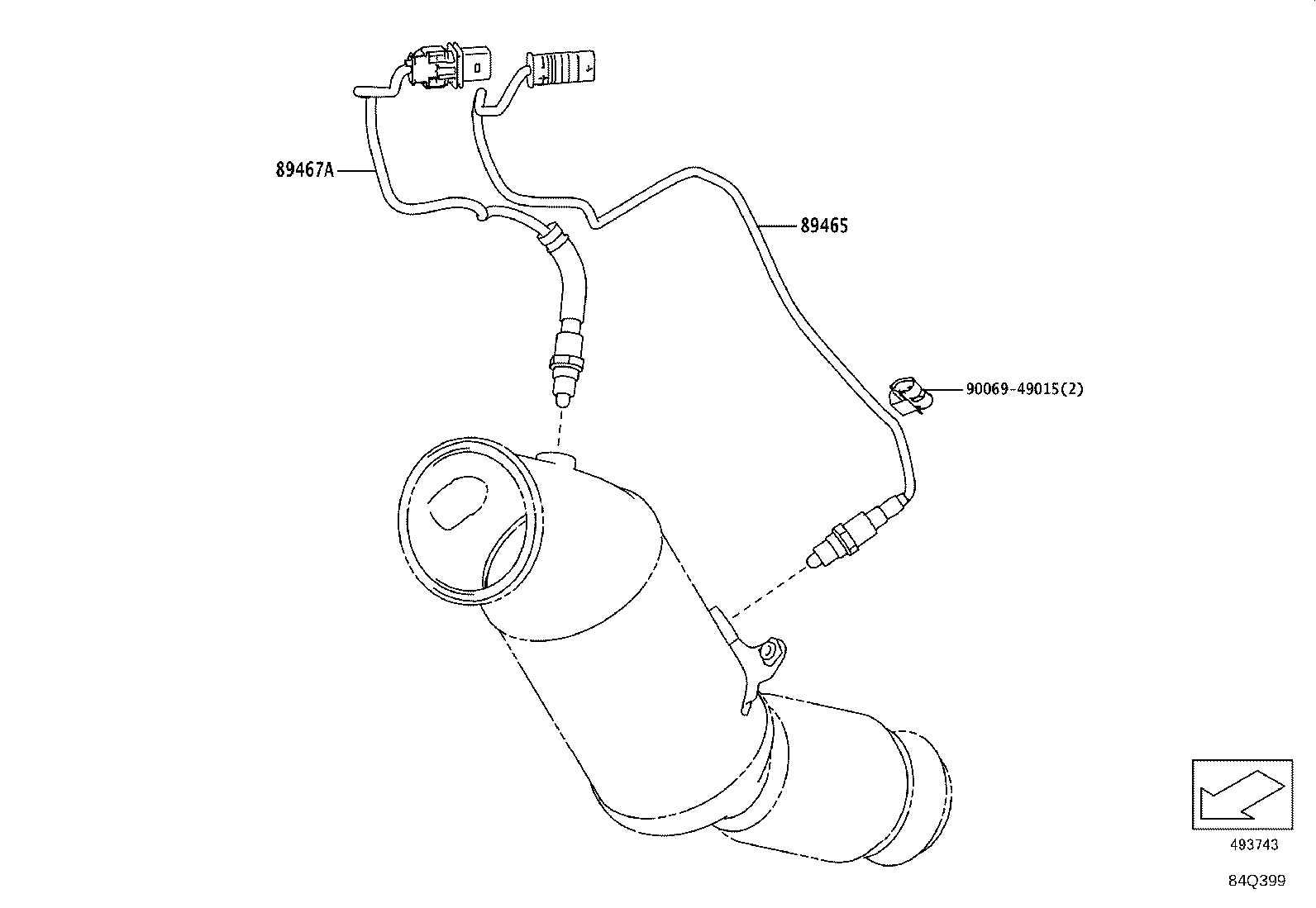

89465 Sensor, Oxygen
89467A Sensor, Wide Range Air Fuel Ratio

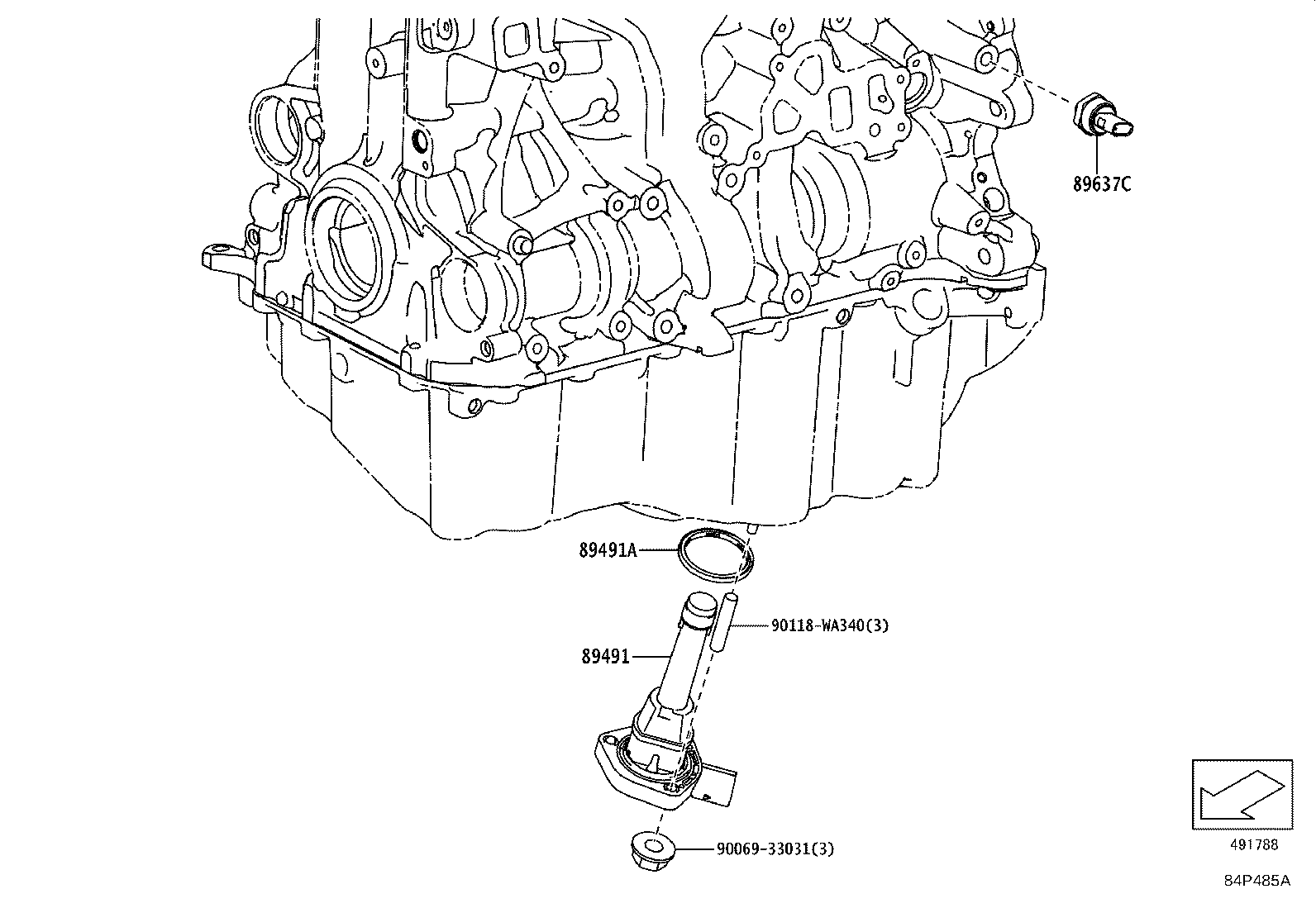

89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor

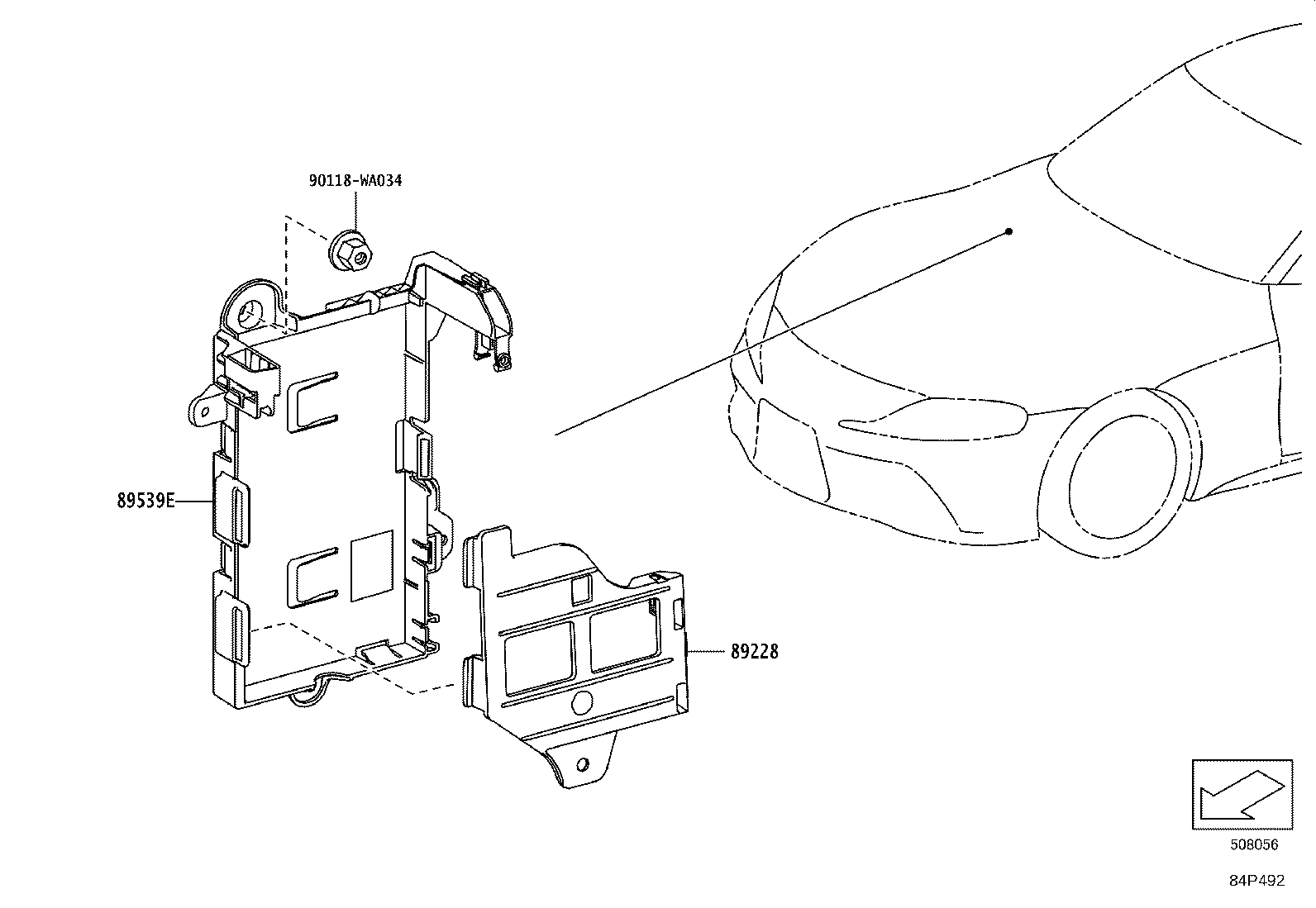

89539E Bracket, Computer

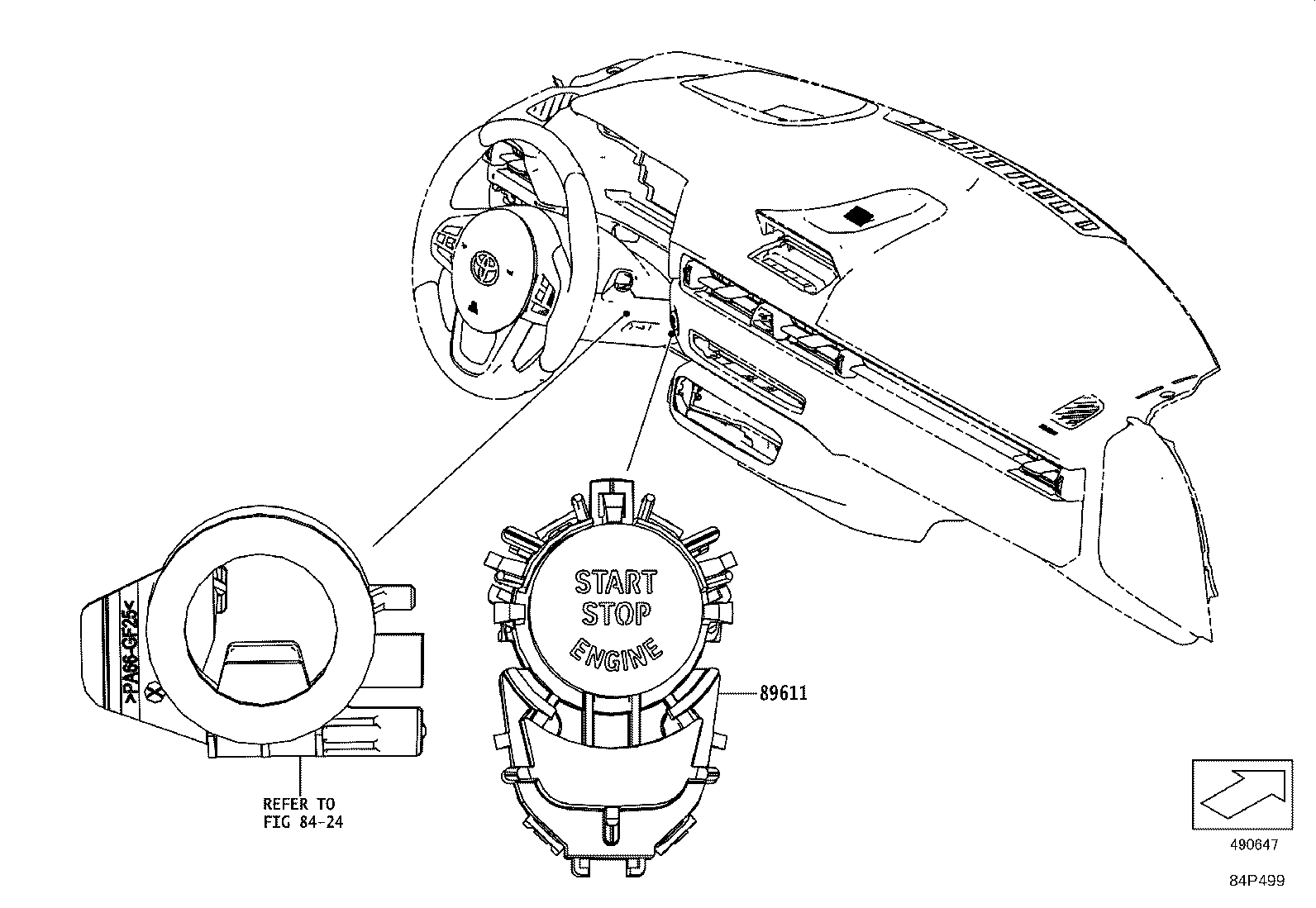

89611 Switch, Push Start

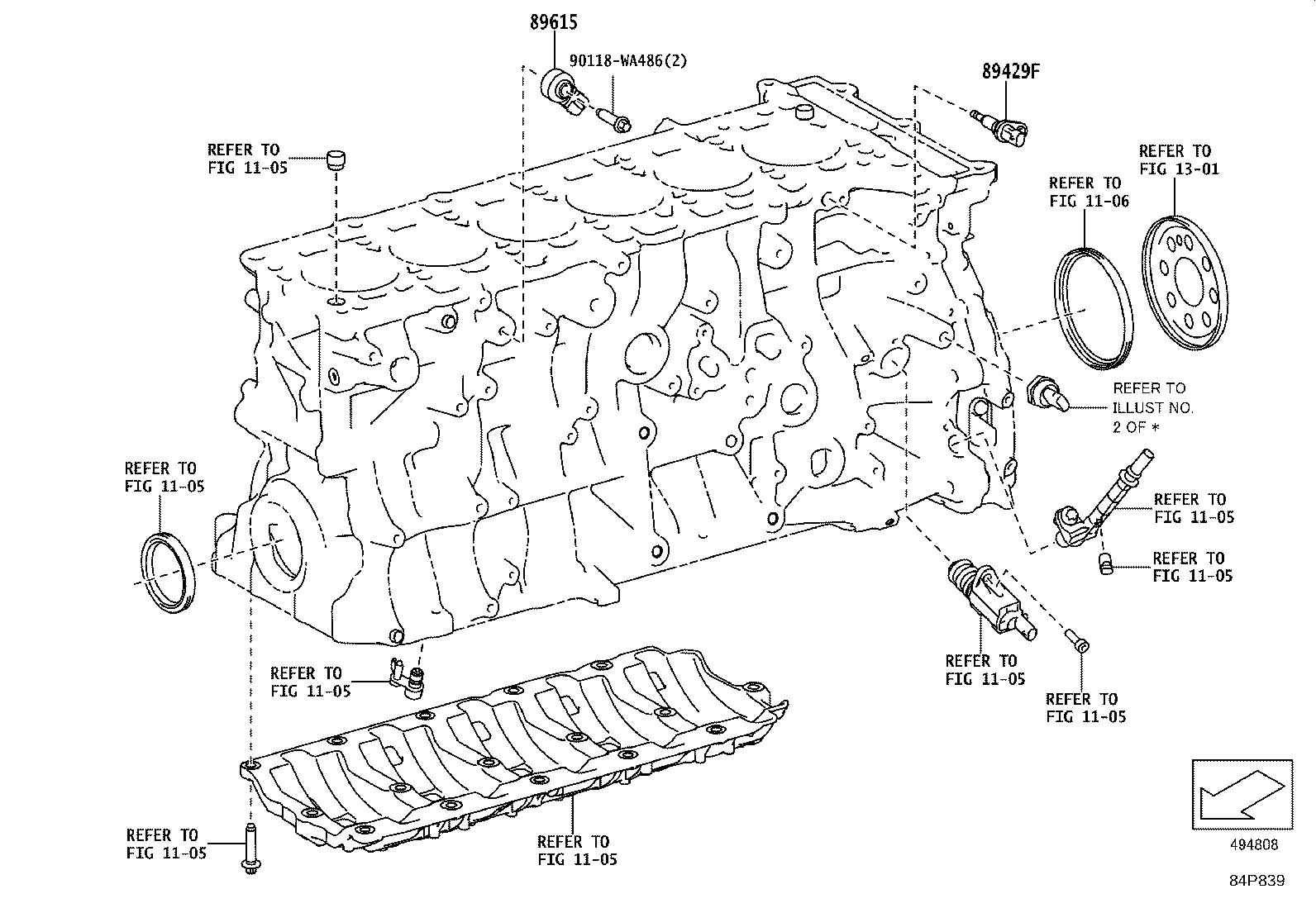

89615 Sensor, Knock Control
89637C Sensor, Oil Pressure
89710 Computer Assy, Position Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
