Toyota Supra
2022-07 → present · chassis DB02,27 · catalogue 291450 · United States
Supported model
Data version 2022-08

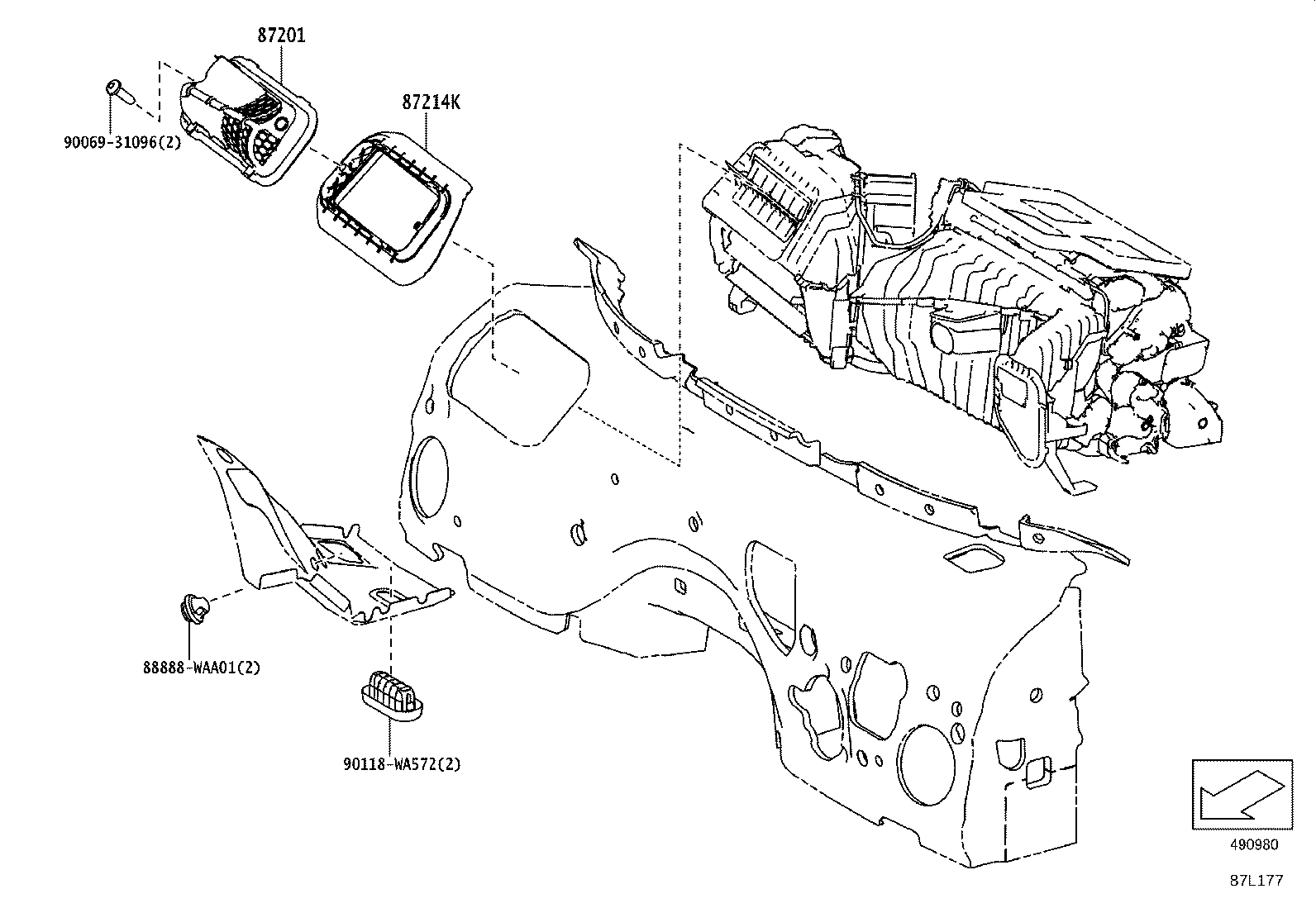

Heating & Air Conditioning - Control & Air Duct
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55900 | Control Assy, Air Conditioner |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87214K | Bracket, Air Duct |
| 89410 | Sensor Assy, Temperature |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
