Heating & Air Conditioning - Cooler Piping

12 part groups · 3 illustrations

Illustrations

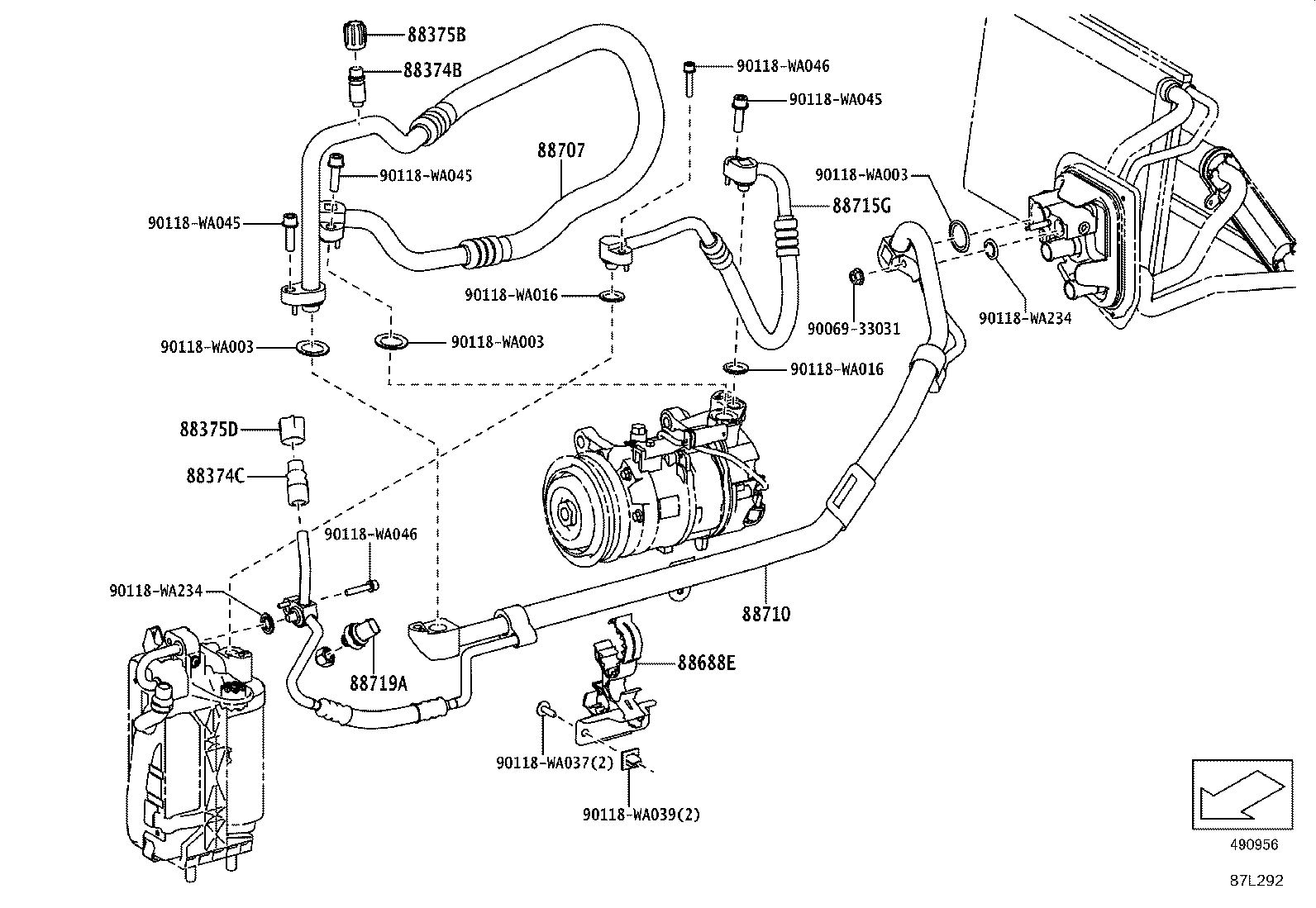

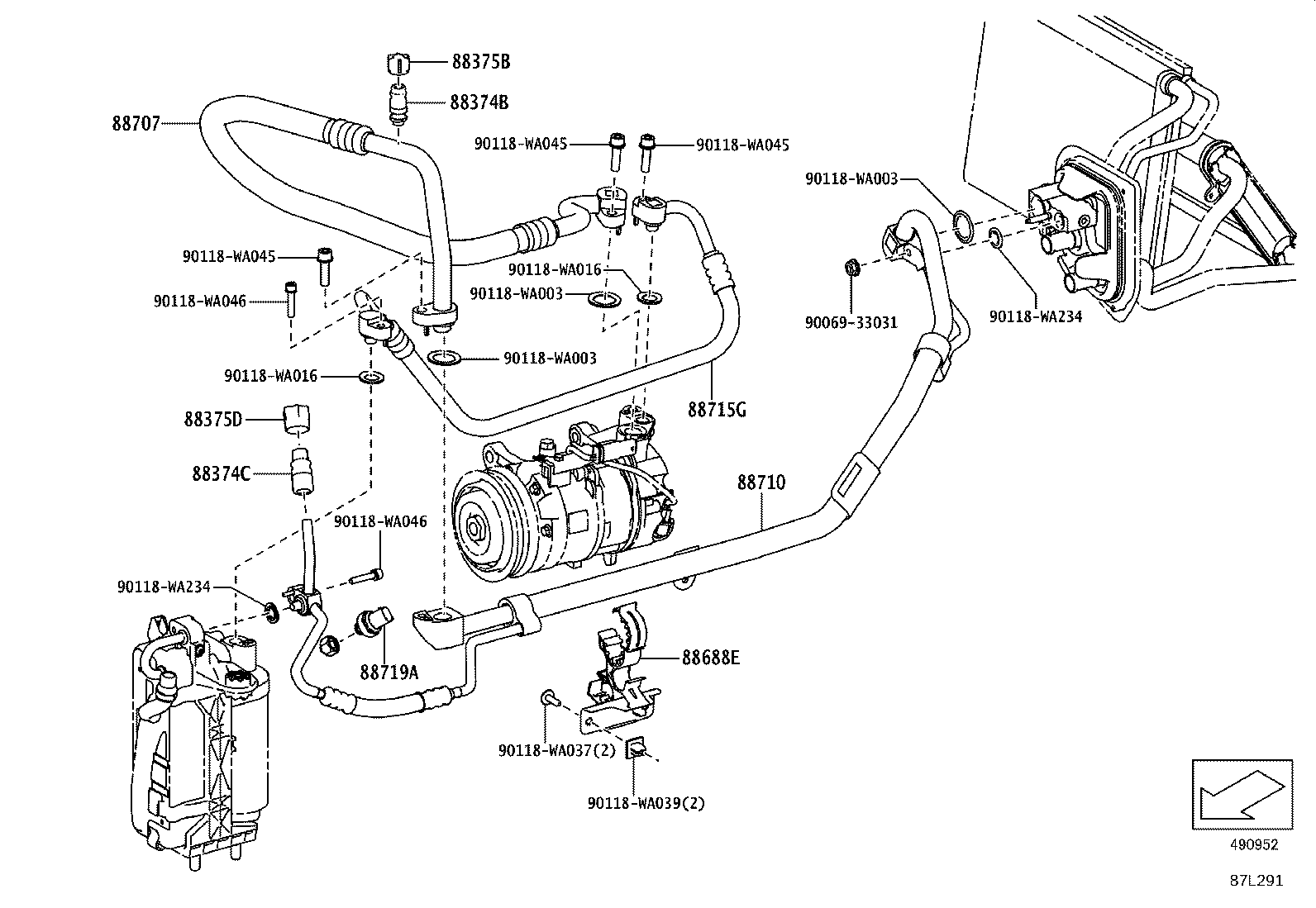

Figure 87L290 87L290 2022-07 → — Figure 87L291 87L291 2022-07 → — Figure 87L292 87L292 2022-07 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460B Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
884A0 Condenser Assy, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88715G Tube, Discharge, G
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
