Exploded illustration 524532D 8417 — not listed in this catalogue 7501 — not listed in this catalogue 5301 — not listed in this catalogue 5301 — not listed in this catalogue 8102 — not listed in this catalogue 8102 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 7601 — not listed in this catalogue 53112D — GRILLE, RADIATOR, LOWER RH (1 parts) 53113D — GRILLE, RADIATOR, LOWER LH (1 parts) 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (1 parts) 52119A — COVER, FRONT BUMPER (8 parts) 52125A — BRACKET, FOG LAMP MOUNTING, RH (1 parts) 52126D — BRACKET, FOG LAMP MOUNTING, LH (1 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (1 parts) 52143D — BRACKET, FRONT BUMPER SIDE, RH (1 parts) 52144D — BRACKET, FRONT BUMPER SIDE, LH (1 parts) 52161C — PIECE, FRONT BUMPER (1 parts) 52161C — PIECE, FRONT BUMPER (1 parts) 53112E — GRILLE, RADIATOR, LOWER NO.1 (1 parts) 9015960431 — not listed in this catalogue 9017906349 — not listed in this catalogue 93567A5014 — not listed in this catalogue 93567A5014 — not listed in this catalogue 52128C — COVER, FRONT BUMPER HOLE, LH (1 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (1 parts) 52119F — SCREW, NO.3 (1 parts)

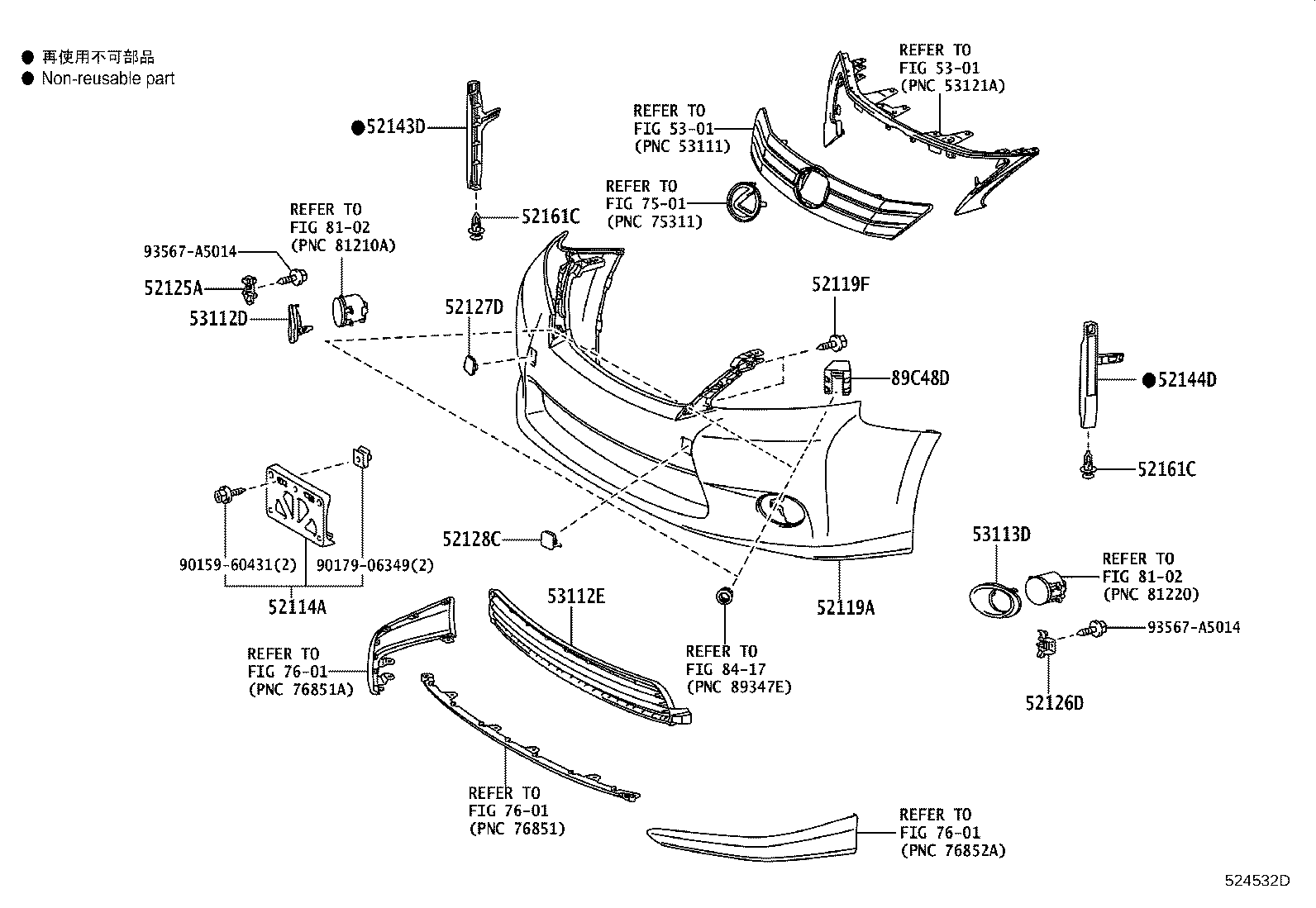

524532D · 15 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
21 parts on this figure
Part number Description Fitment Price
52114A — Bracket, Front Bumper Extension Mounting
52114-75010 Bracket, Front Bumper Extension Mounting
2009-07 → 2012-01 ended
ANF10 —
52119A — Cover, Front Bumper
52119-75900 note Cover, Front Bumper
2009-07 → 2012-01 ended
ANF10 —
52119-75901 note Cover, Front Bumper
2009-07 → 2011-10 ended
ANF10 —
52119-75901 note Cover, Front Bumper
2011-10 → 2012-01 ended
ANF10 —
52119-75903 note Cover, Front Bumper
2009-07 → 2012-01 ended
ANF10 W —
52119-75903 note Cover, Front Bumper
2009-07 → 2012-01 ended
ANF10 W —
52119-75904 note Cover, Front Bumper
2009-07 → 2012-01 ended
ANF10 W —
52119-75904 note Cover, Front Bumper
2009-07 → 2012-01 ended
ANF10 W —
52119-75904 note Cover, Front Bumper
2009-07 → 2012-01 ended
ANF10 W —
52119F — Screw, NO.3
93568-55014 Screw, NO.3
2009-07 → 2012-01 ended
ANF10 —
52125A — Bracket, Fog Lamp Mounting, RH
52125-75020 Bracket, Fog Lamp Mounting, RH
2009-07 → 2012-01 ended
ANF10 —
52126D — Bracket, Fog Lamp Mounting, LH
52126-75020 Bracket, Fog Lamp Mounting, LH
2009-07 → 2012-01 ended
ANF10 —
52127D — Cover, Front Bumper Hole, RH
52127-75901 Cover, Front Bumper Hole, RH
2009-07 → 2012-01 ended
ANF10 —
52128C — Cover, Front Bumper Hole, LH
52128-75901 Cover, Front Bumper Hole, LH
2009-07 → 2012-01 ended
ANF10 —
52143D — Bracket, Front Bumper Side, RH
52143-75020 Bracket, Front Bumper Side, RH
2009-07 → 2012-01 ended
ANF10 —
52144D — Bracket, Front Bumper Side, LH
52144-75020 Bracket, Front Bumper Side, LH
2009-07 → 2012-01 ended
ANF10 —
52161C — Piece, Front Bumper
52161-16010 Piece, Front Bumper
2009-07 → 2012-01 ended
ANF10 —
53112D — Grille, Radiator, Lower RH
53112-75070 Grille, Radiator, Lower RH
2009-07 → 2012-01 ended
ANF10 —
53112E — Grille, Radiator, Lower NO.1
53111-75070 note Grille, Radiator, Lower NO.1
2009-07 → 2012-01 ended
ANF10 —
53113D — Grille, Radiator, Lower LH
53113-75030 Grille, Radiator, Lower LH
2009-07 → 2012-01 ended
ANF10 —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-75010 note Retainer, Ultrasonic Sensor, Front Corner
2009-07 → 2012-01 ended
ANF10 W —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
