Toyota Lexus HS250H

2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States

Supported model Data version 2012-01

Suspension Crossmember & Under Cover

33 part groups · 2 illustrations

PNC	Description
51107A	Reinforcement Sub-assy, Side Rail, Rear RH
51108A	Reinforcement Sub-assy, Side Rail, Rear LH
51201	Crossmember Sub-assy, Front Suspension
51206A	Member Sub-assy, Rear Suspension

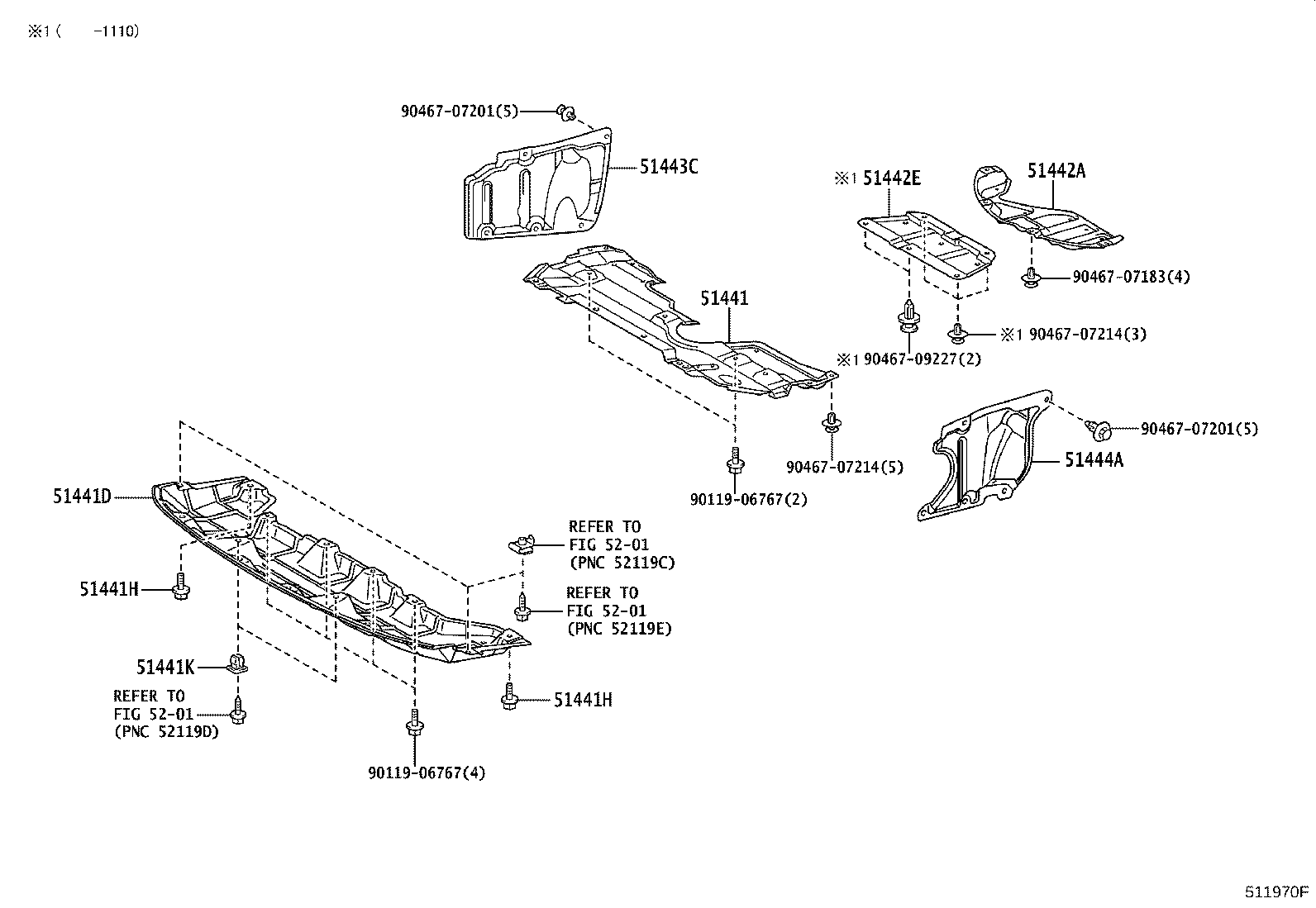

51441	Cover, Engine Under, NO.1
51441D	Cover, Engine Under
51441H	Bolt, W/Washer(FOR ENGINE UNDER COVER)
51441K	Grommet(FOR ENGINE UNDER COVER)
51442A	Cover, Engine Under, Front NO.3
51442E	Cover, Engine Under, NO.2
51443C	Cover, Engine Under, Rear RH
51444A	Cover, Engine Under, Rear LH
52211F	Cushion, Body Mounting, Front Upper
52213A	Stopper, Front Suspension Member Body Mounting, Front
52215	Cushion, Front Suspension Member Body Mounting, Rear
52216B	Stopper, Front Suspension Member Body Mounting, Rear
52223A	Spacer, Cab Rear Mounting, Lower
52241E	Cushion, Cab Rear Mounting
52255	Brace, Front Suspension Member, Front RH
52256	Brace, Front Suspension Member, Front LH
52257	Brace, Front Suspension Member, Rear RH
52258A	Brace, Front Suspension Member, Rear LH
52271D	Cushion, Rear Suspension Member Body Mounting, Front
52272	Stopper, Rear Suspension Member, Upper
52273A	Stopper, Rear Suspension Member, Lower RH
52274A	Stopper, Rear Suspension Member, Lower LH
52275B	Cushion, Rear Suspension Member Body Mount, Rear RH
52276A	Cushion, Rear Suspension Member Body Mount, Rear LH
52277B	Stopper, Rear Suspension Member, Rear Upper
52278C	Stopper, Rear Suspension Member, Rear Lower
52295	Brace, Rear Suspension Member, RH
52296	Brace, Rear Suspension Member, LH
57104E	Member Sub-assy, Front Cross

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
