Toyota Lexus HS250H

2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

23 part groups · 2 illustrations

Illustrations

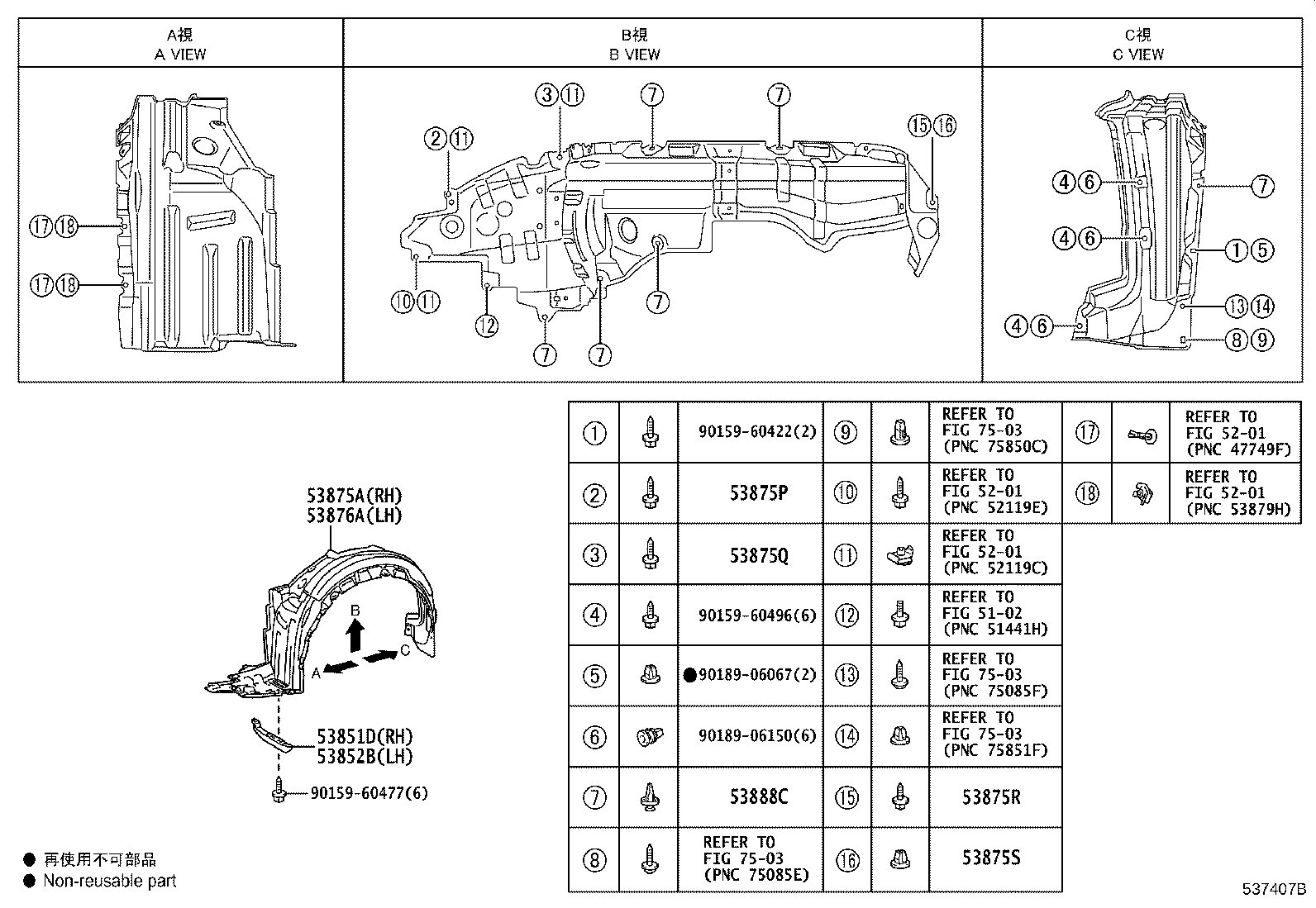

Figure 535747A 535747A 2009-07 → — Figure 537407B 537407B 2009-07 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53807D Reinforcement Sub-assy, Front Fender, Top RH
53808D Reinforcement Sub-assy, Front Fender, Top LH
53813D Extension, Front Fender
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53875P Screw, NO.1
53875Q Screw, NO.2
53875R Screw, NO.3
53875S Grommet, NO.1
53876A Liner, Front Fender, LH
53882F Seal, Front Fender
53882N Clip(FOR FRONT FENDER SEAL)
53888C Spacer, Front Fender
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
