Toyota Lexus HS250H
2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States
Supported model
Data version 2012-01
Floor Pan & Lower Back Panel

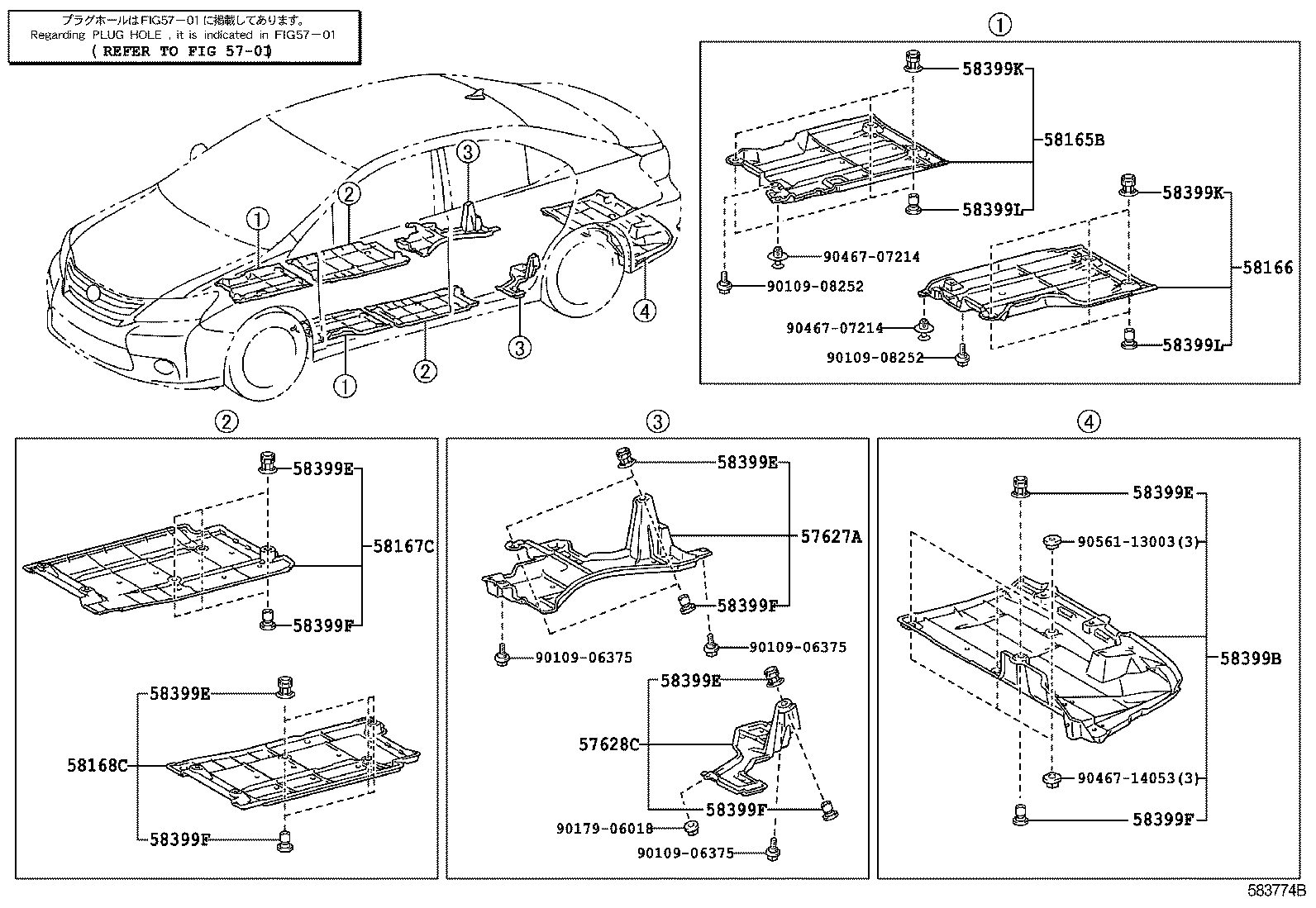

61 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55129C | Cover, Dash Panel Hole |
| 57043A | Reinforcement Sub-assy, Front Side Member, Rear RH |
| 57044A | Reinforcement Sub-assy, Front Side Member, Rear LH |
| 57051A | Member Sub-assy, Front Floor Cross, RH |
| 57052A | Member Sub-assy, Front Floor Cross, LH |
| 57053 | Reinforcement Sub-assy, Front Floor Crossmember, RH |
| 57054A | Reinforcement Sub-assy, Front Floor Crossmember, LH |
| 57407C | Member Sub-assy, Center Floor Cross, NO.1 |
| 57501 | Bracket Sub-assy, Front Seat, Center |
| 57509 | Reinforcement Sub-assy, Front Floor, Center |
| 57531 | Bracket, Front Floor Center Brace, RH |
| 57532 | Bracket, Front Floor Center Brace, LH |
| 57627A | Cover, Rear Floor Side Member, RH |
| 57628C | Cover, Rear Floor Side Member, LH |
| 57695D | Bracket, Rear Floor Mounting, NO.2 RH |
| 57696B | Bracket, Rear Floor Mounting, NO.2 LH |
| 57805F | Reinforcement Sub-assy, Belt Anchor, NO.1 |
| 57807B | Reinforcement Sub-assy, Belt Anchor, NO.2 |
| 57809A | Reinforcement Sub-assy, Belt Anchor, NO.3 |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58111A | Pan, Front Floor, RH |
| 58112C | Pan, Front Floor, LH |
| 58113A | Panel, Front Floor, Center |
| 58136A | Cover, Front Floor Service Hole |
| 58161B | Reinforcement, Belt Anchor TO Floor Pan |
| 58165B | Cover, Front Floor, RH |
| 58166 | Cover, Front Floor, LH |
| 58167C | Cover, Front Floor, Center RH |
| 58168C | Cover, Front Floor, Center LH |
| 58171A | Reinforce, Parking Brake Base |
| 58172D | Bracket, Computer Mounting, NO.4 |
| 58175A | Reinforcement, Parking Brake Base, NO.1 |
| 58211H | Pan, Center Floor |
| 58233 | Bracket, Exhaust Pipe Mounting |
| 58244C | Bracket, Rear Seat Cushion Mounting, RH |
| 58245C | Bracket, Rear Seat Cushion Mounting, LH |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248D | Bracket, Rear Seat Hinge, Outer LH |
| 58251C | Brace, Floor Panel, Front RH |
| 58252B | Brace, Floor Panel, Front LH |
| 58253D | Bracket, Parking Brake Cable |
| 58305F | Panel Sub-assy, Rear Floor Side, RH |
| 58306F | Panel Sub-assy, Rear Floor Side, LH |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58336B | Reinforcement, Rear Floor Pan |
| 58351A | Bracket, Spare Wheel Carrier |
| 58383E | Reinforcement, Body Lower Back, NO.2 RH |
| 58384C | Reinforcement, Body Lower Back, NO.2 LH |
| 58385H | Bracket, Rear Bumper Cover, NO.1 |
| 58386B | Bracket, Rear Bumper Cover, NO.2 |
| 58399B | Cover, Floor Under, NO.2 |
| 58399E | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58399F | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 58399K | Clip, NO.1(FOR FLOOR UNDER COVER) |
| 58399L | Clip, NO.2(FOR FLOOR UNDER COVER) |
| 64726K | Clip, Luggage Trim, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
