Toyota Lexus HS250H

2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

15 part groups · 2 illustrations

Illustrations

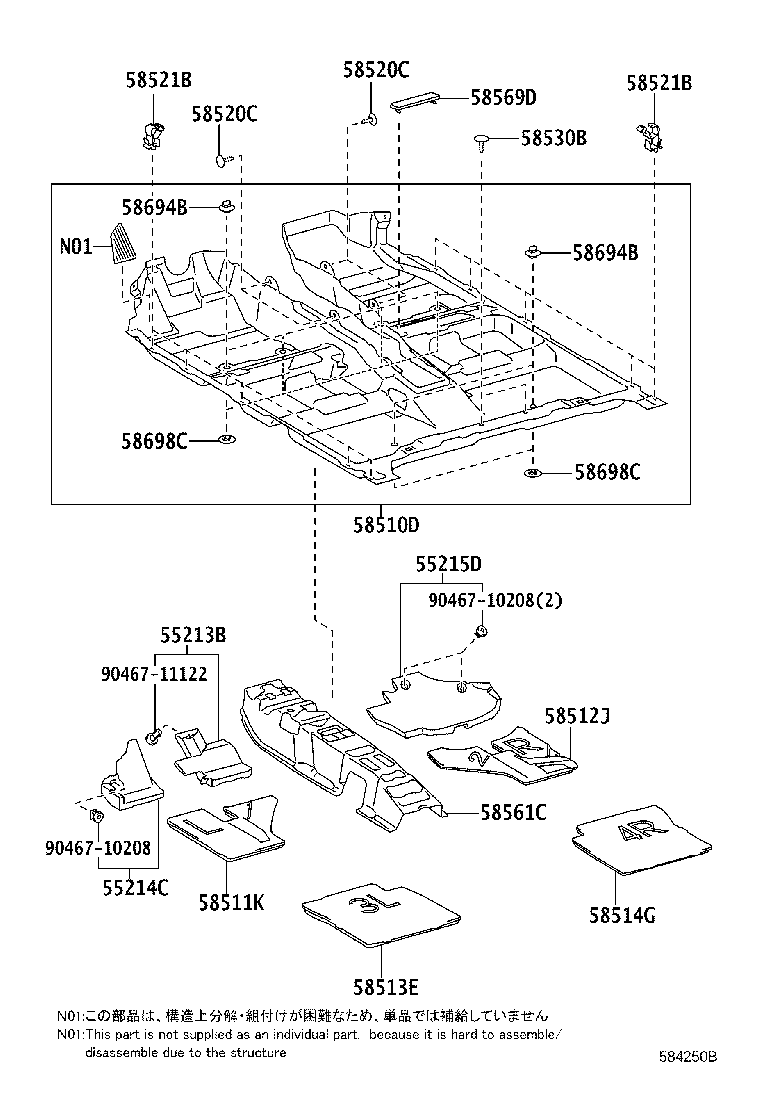

Figure 583630C 583630C 2009-07 → 2011-10 Figure 584250B 584250B 2011-10 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58513E Mat, Floor, Rear LH
58514G Mat, Floor, Rear RH
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
