Roof Panel & Back Window Glass

25 part groups · 2 illustrations

Illustrations

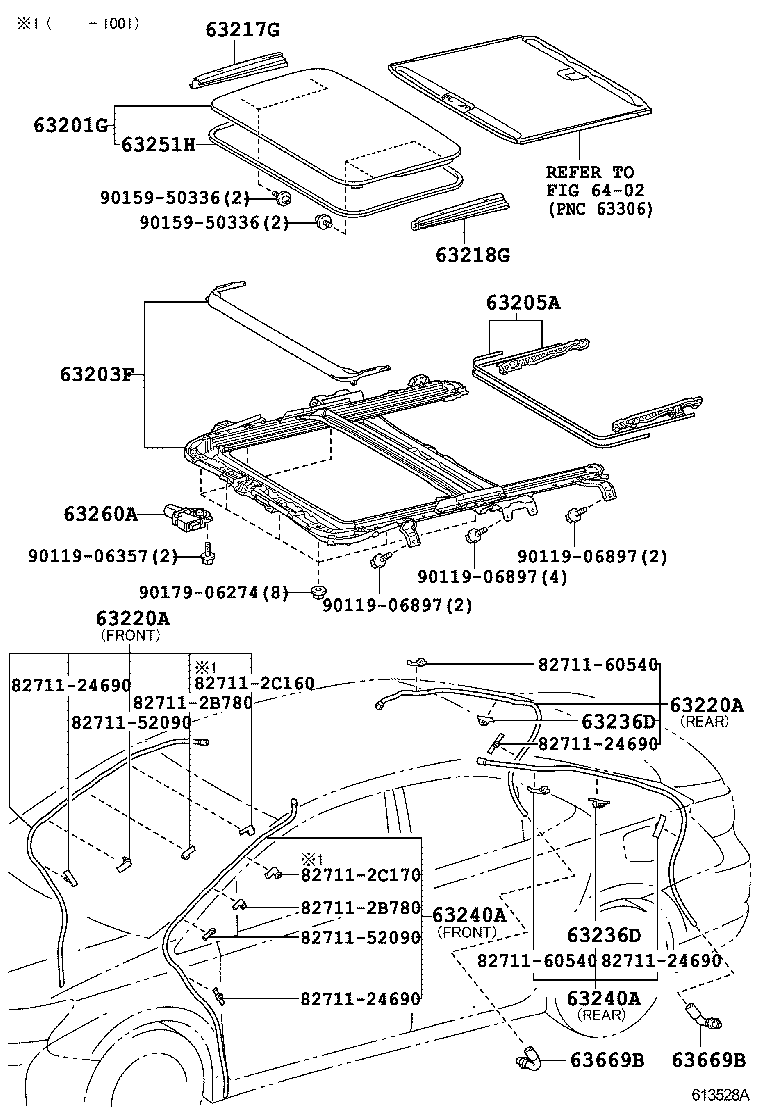

Figure 613537A 613537A 2009-07 → — Figure 613528A 613528A 2009-07 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
56119B Dam, Back Window Glass Adhesive
63102A Panel Sub-assy, Windshield Header
63111 Panel, Roof
63118 Support, Roof Panel, RH
63119 Support, Roof Panel, LH
63126B Reinforcement, Roof Panel, Rear NO.2
63133A Frame, Back Window, Upper
63142D Reinforcement Sub-assy, Roof Panel, Rear
63144B Reinforcement, Roof Panel, NO.4
63201G Glass Sub-assy, Sliding Roof
63203F Housing Sub-assy, Sliding Roof
63205A Cable Sub-assy, Sliding Roof Drive
63217G Garnish, Sliding Roof Side, RH
63218G Garnish, Sliding Roof Side, LH
63220A Hose Assy, Sliding Roof Drain, RH
63236D Clamp, Sliding Roof Drain Hose
63240A Hose Assy, Sliding Roof Drain, LH
63251H Weatherstrip, Sliding Roof
63260A Gear Sub-assy, Sliding Roof Drive
63669B Grommet, Sliding Roof Drain
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
75571G Moulding, Back Window, Outside Upper, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
