Toyota Lexus HS250H
2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States
Supported model
Data version 2012-01

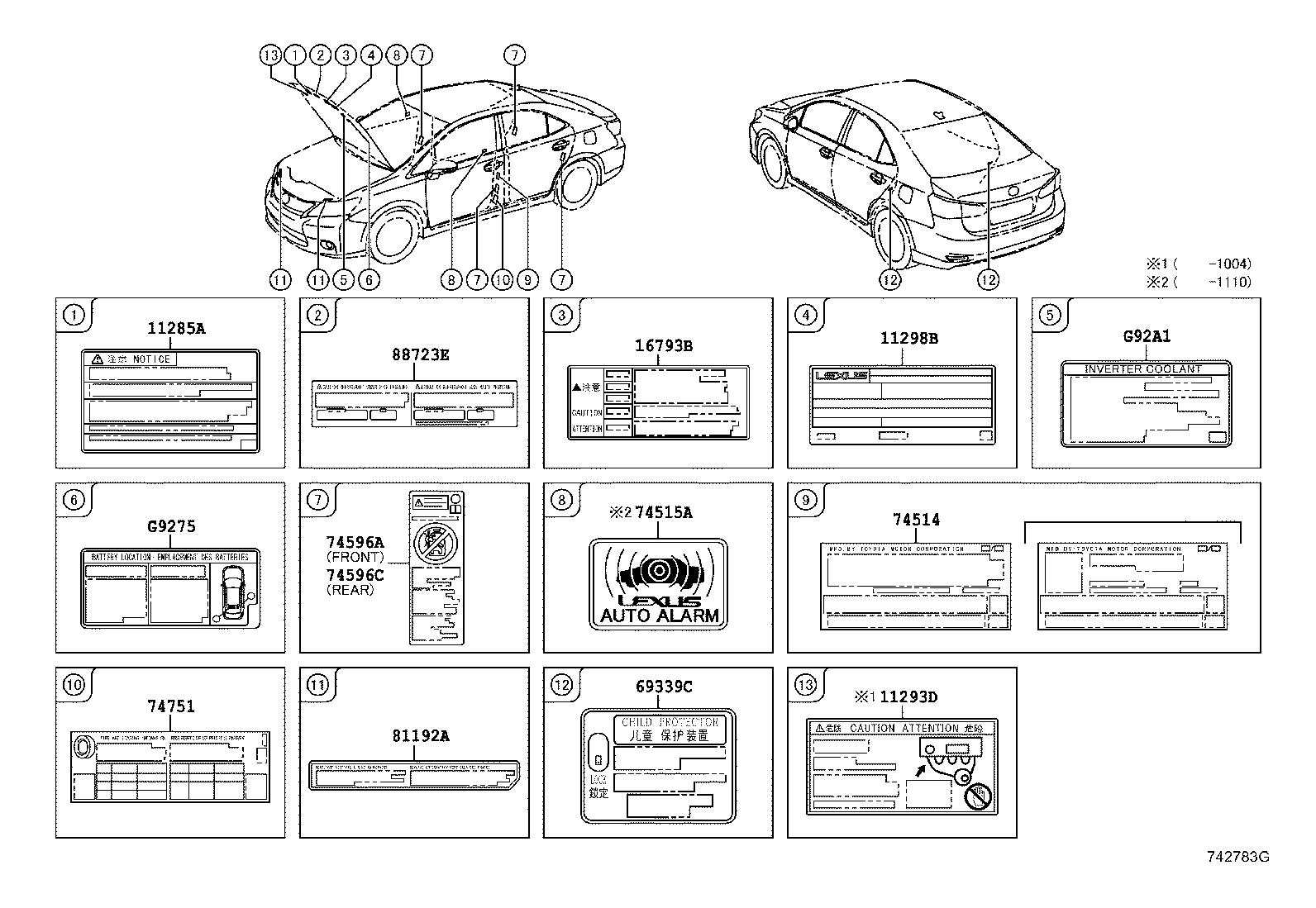

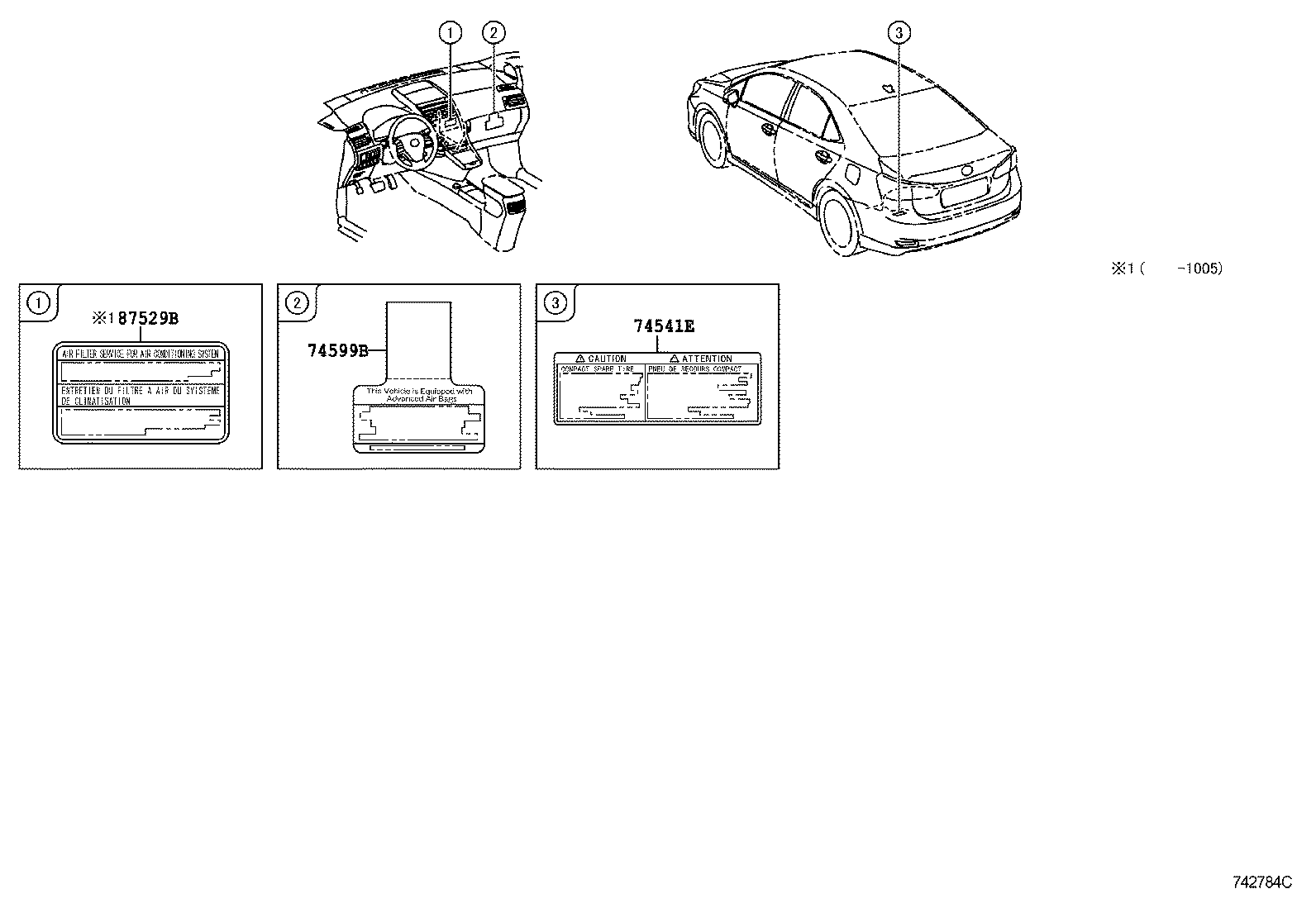

Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11293E | Label, Engine Caution, NO.2 |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 69339C | Label, Child Protector Information |
| 74514 | Plate, Certification Regulation |
| 74515A | Plate, Theft Warning |
| 74541E | Plate, Compact Spare Tire Caution |
| 74596A | Label, Side Airbag Caution |
| 74596C | Label, Side Airbag Caution, NO.2 |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 81192A | Seal, Headlamp |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| G9275 | Label, Battery Caution, NO.1 |
| G92A1 | Label, Hybrid Coolant System Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
