Toyota Lexus HS250H

2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

18 part groups · 2 illustrations

Illustrations

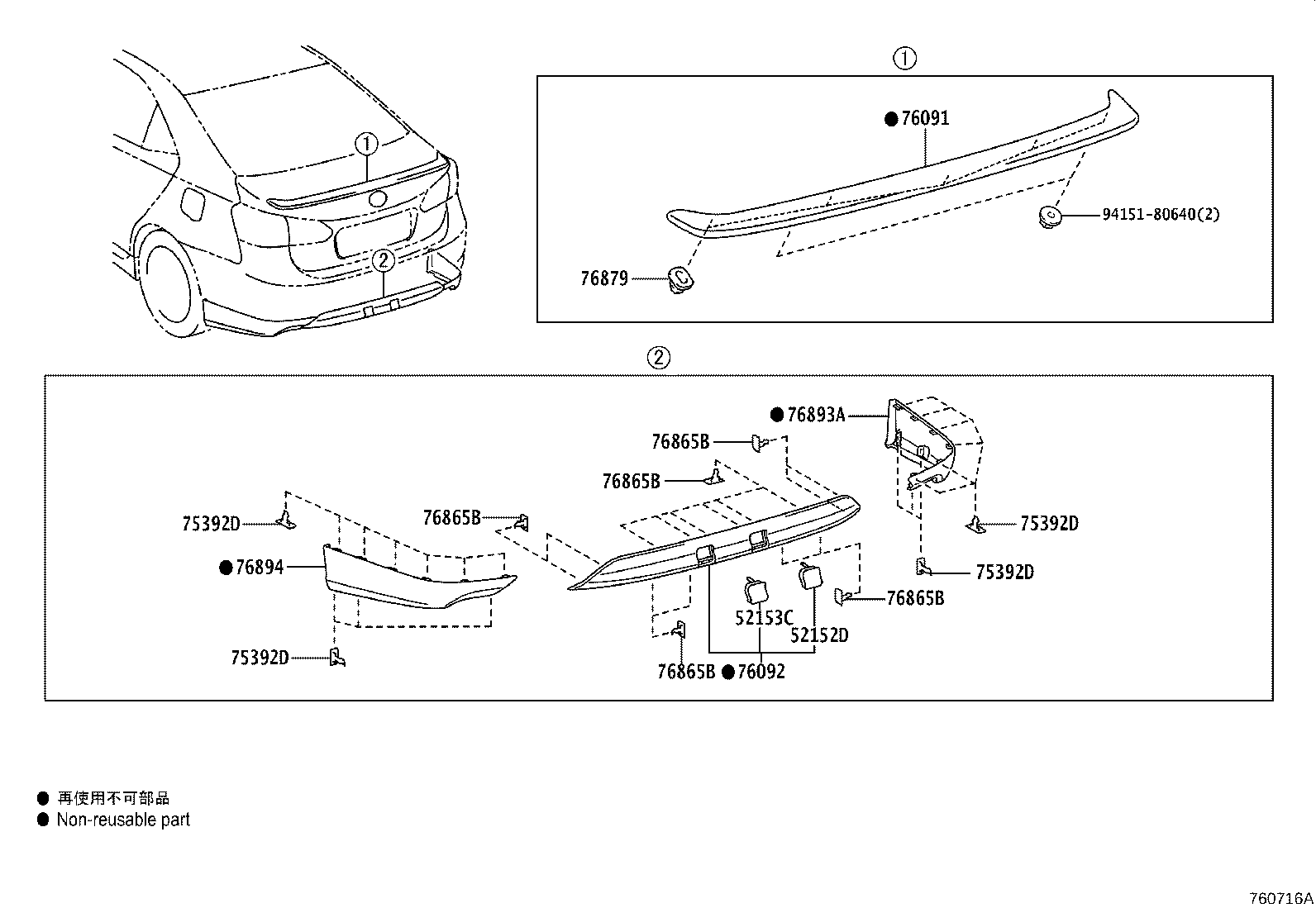

Figure 761238A 761238A 2009-07 → — Figure 760716A 760716A 2009-07 → —

Part groups

PNCDescription
52152D Extension, Rear Bumper, RH
52153C Extension, Rear Bumper, LH
52161L Piece, Front Spoiler
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
75392D Retainer, Outside Moulding
75867B Clip, Rocker Panel Moulding
76091 Spoiler Sub-assy, Rear Upper
76092 Spoiler Sub-assy, Rear Lower
76851 Cover, Front Spoiler
76851A Cover, Front Spoiler, RH
76852A Cover, Front Spoiler, LH
76853C Retainer, Front Spoiler, NO.1
76854A Retainer, Front Spoiler, NO.2
76865B Retainer, Rear Spoiler
76879 Clip, Rear Spoiler, NO.1
76893A Cover, Rear Spoiler, RH
76894 Cover, Rear Spoiler, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
