Toyota Lexus HS250H
2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States
Supported model
Data version 2012-01

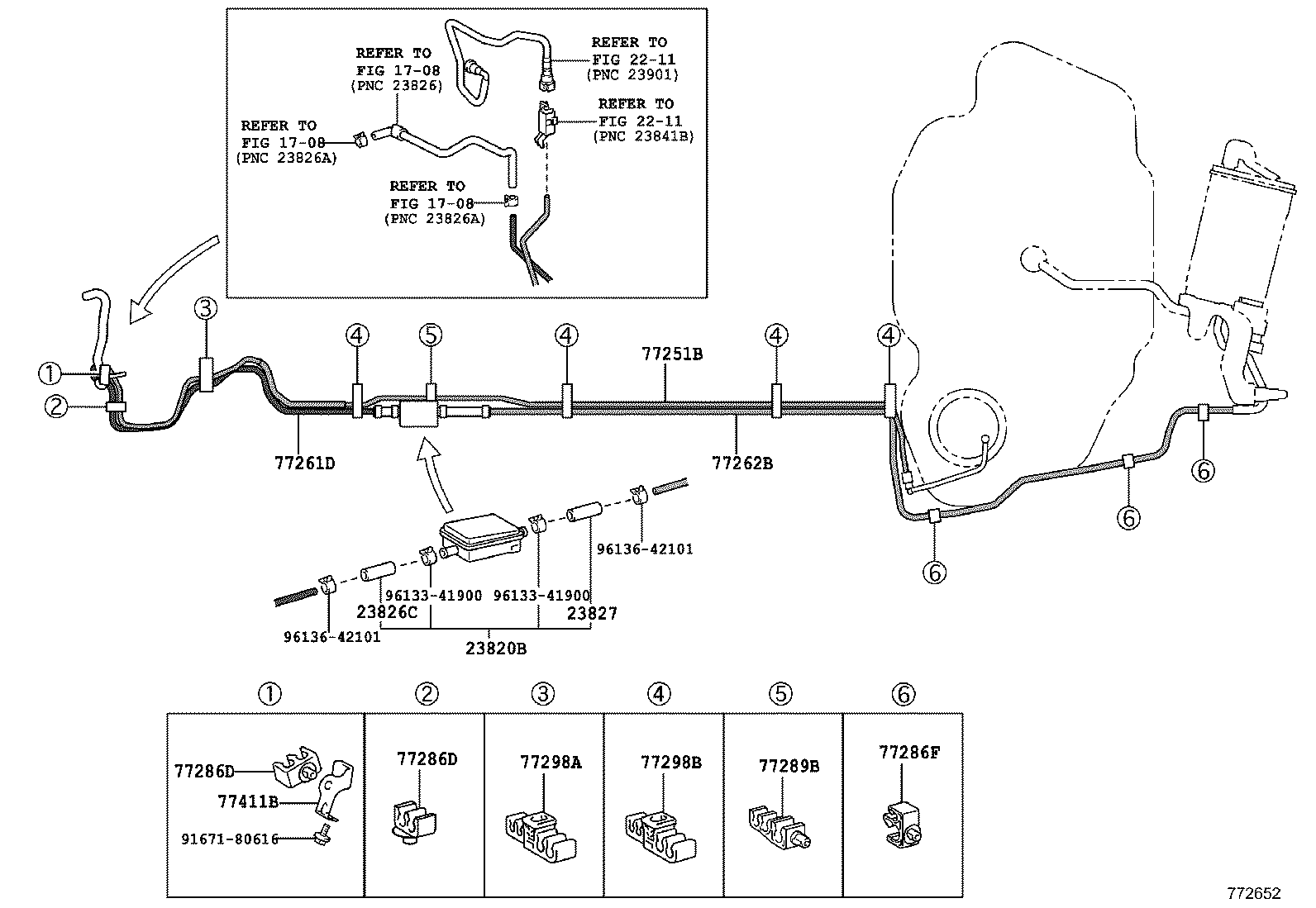

Fuel Tank & Tube
53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 23221 | Pump, Fuel |
| 23225A | Spacer, Fuel Pump |
| 23280J | Regulator Assy, Fuel Pressure |
| 23280K | Ring, O(FOR FUEL PRESSURE REGULATOR) |
| 23820B | Hose Assy, Fuel Vapor Feed |
| 23826C | Hose, Fuel Vapor Feed, NO.1 |
| 23827 | Hose, Fuel Vapor Feed, NO.2 |
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77024C | Plate Sub-assy, Fuel Suction W/Fuel Filter |
| 77030A | Lock Assy, Fuel Lid W/Motor |
| 77100 | Tank Assy, Fuel |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77211B | Clamp (FOR FUEL FILLER PIPE) |
| 77213E | Hose, Fuel Tank TO Filler Pipe |
| 77226A | Tube, Fuel Tank Breather, NO.6 |
| 77229C | Clamp, Breather Tube |
| 77229E | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77248A | Holder, Fuel Tank Filler Pipe Cover |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77262B | Tube, Fuel Tank TO Canister, NO.2 |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77278C | Protector, Fuel Tank Filler Pipe, NO.2 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77404 | Hose Sub-assy, Fuel Tank Vent |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77512 | Bracket, Fuel Tank, Rear |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77740 | Canister Assy, Charcoal |
| 77775 | Guide, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
