Toyota Lexus HS250H

2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

65 part groups · 12 illustrations

Illustrations

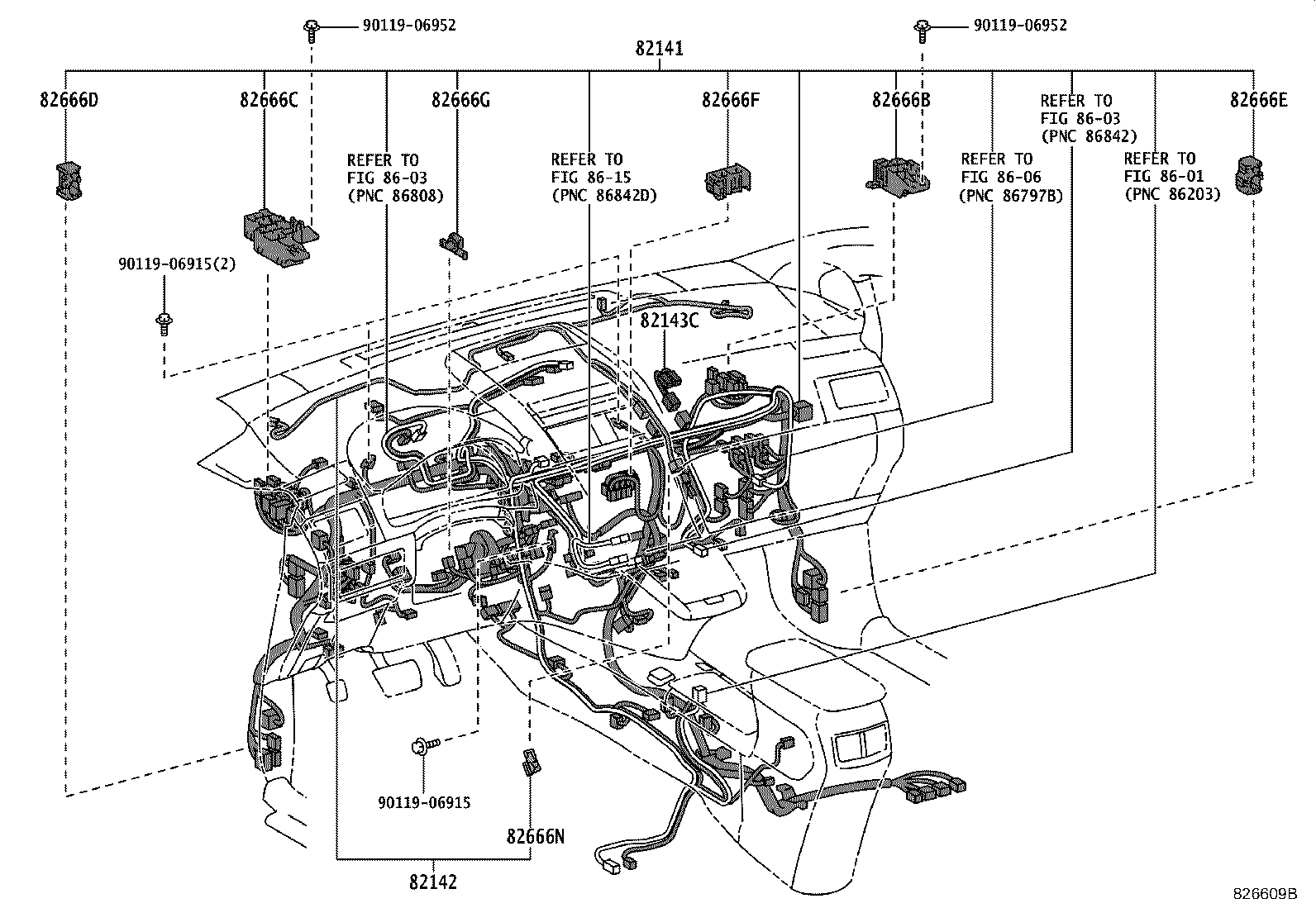

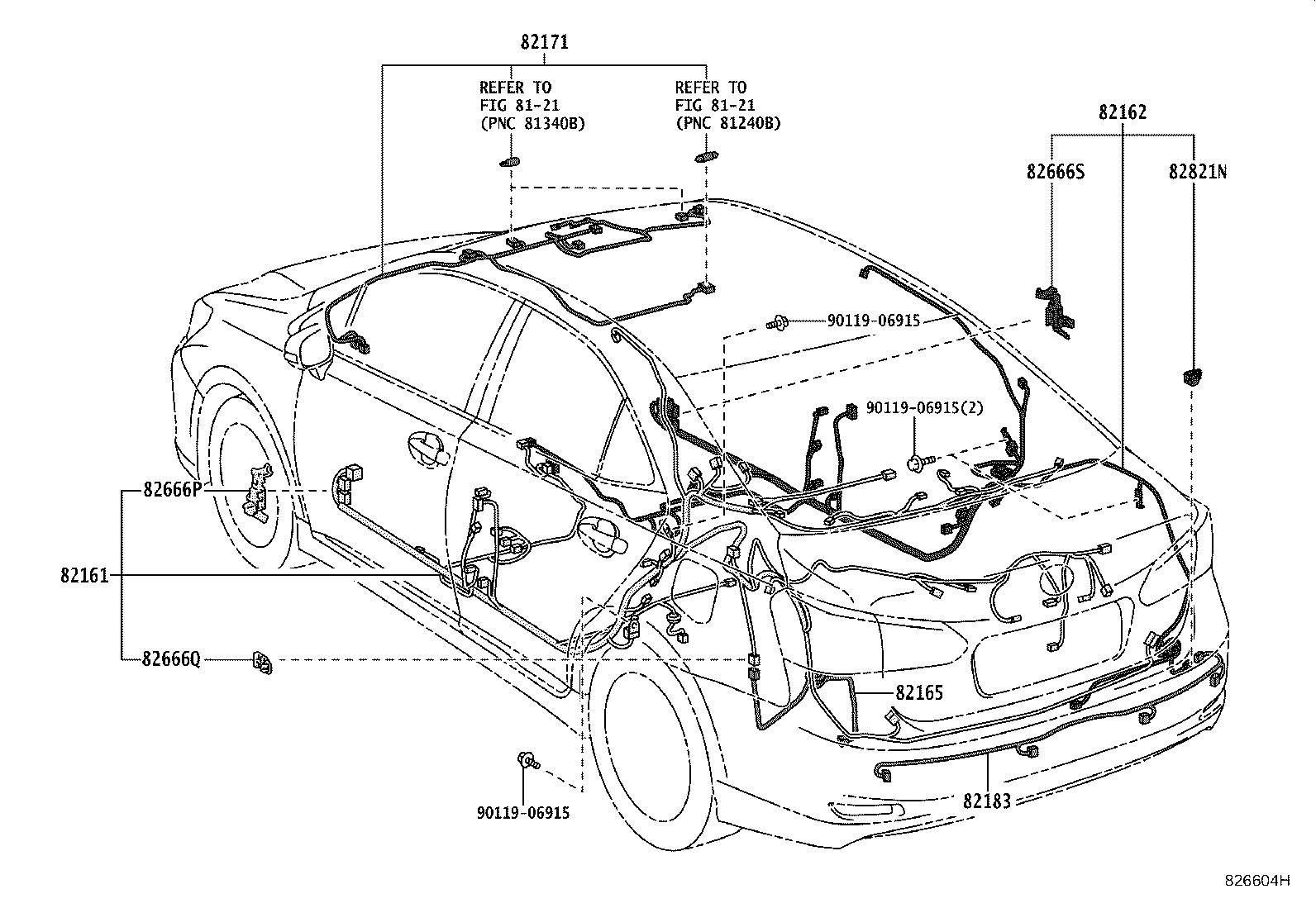

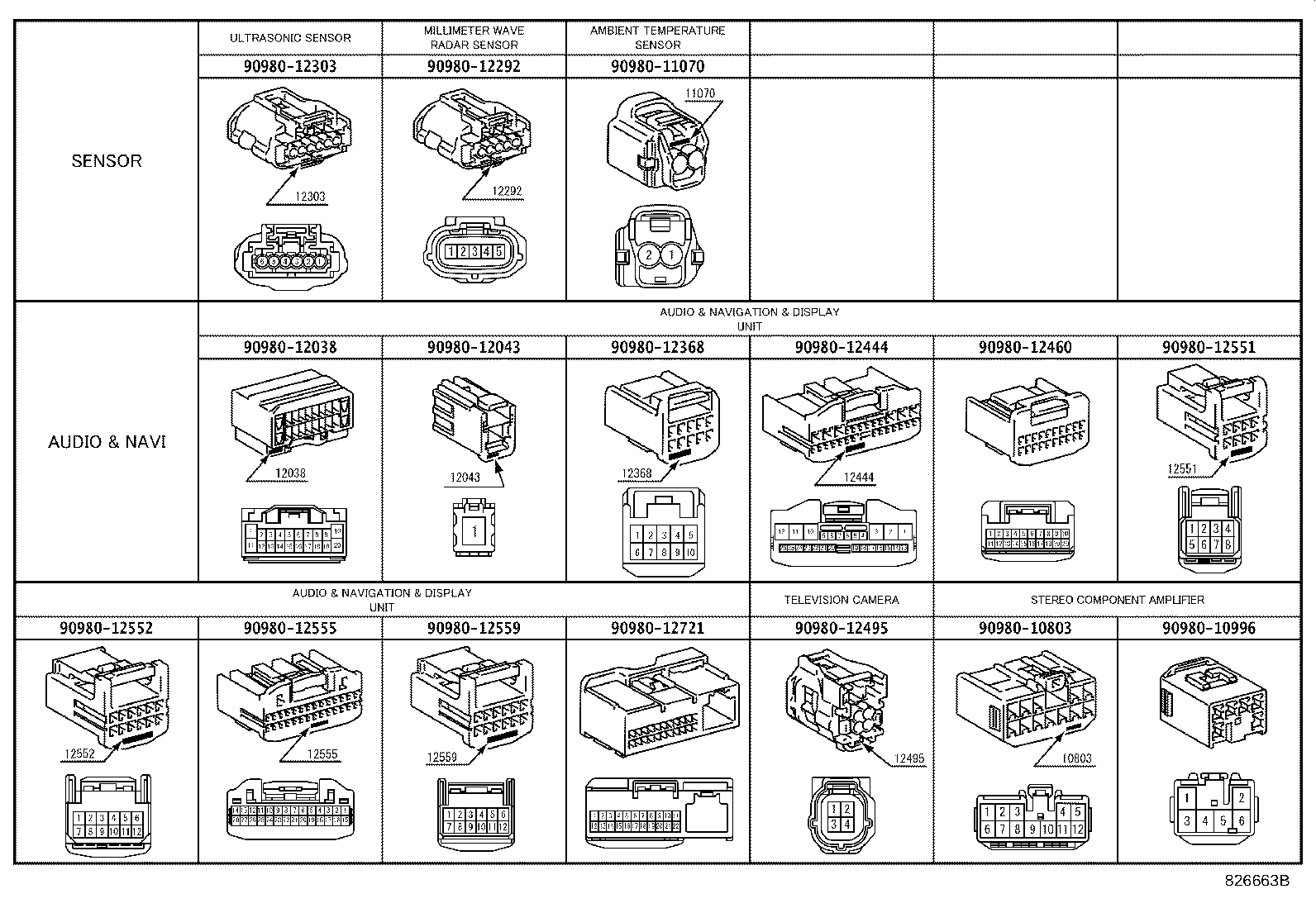

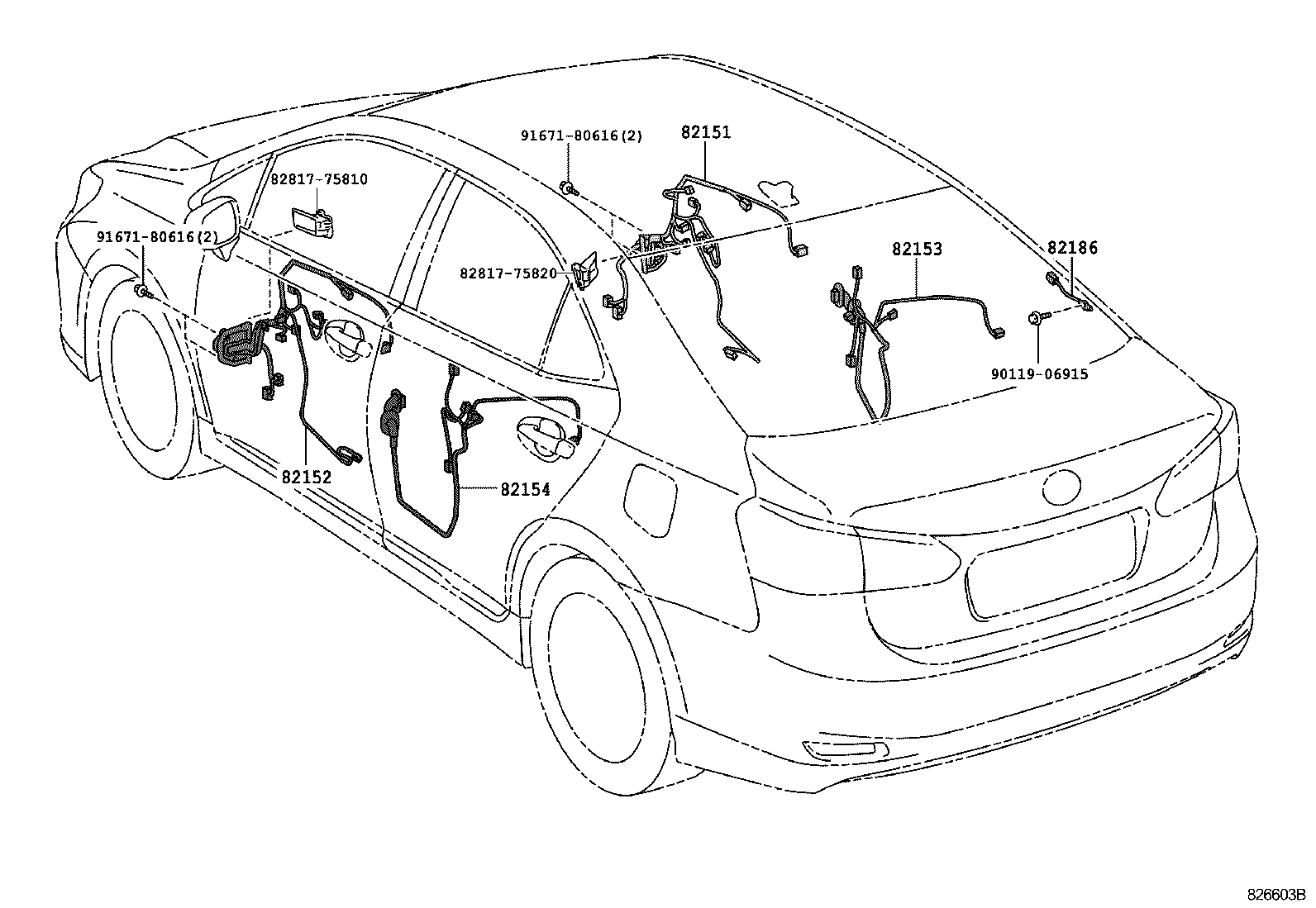

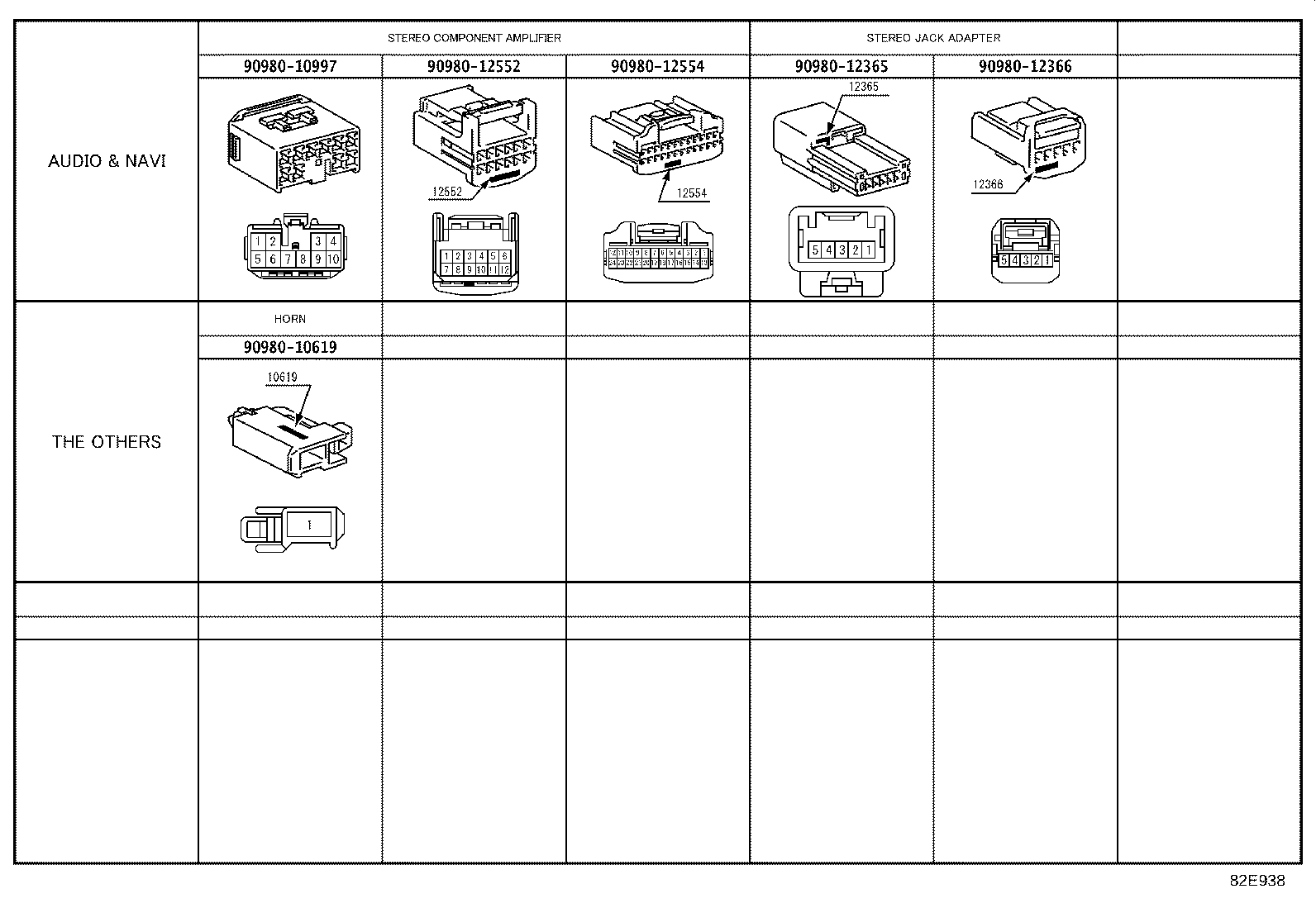

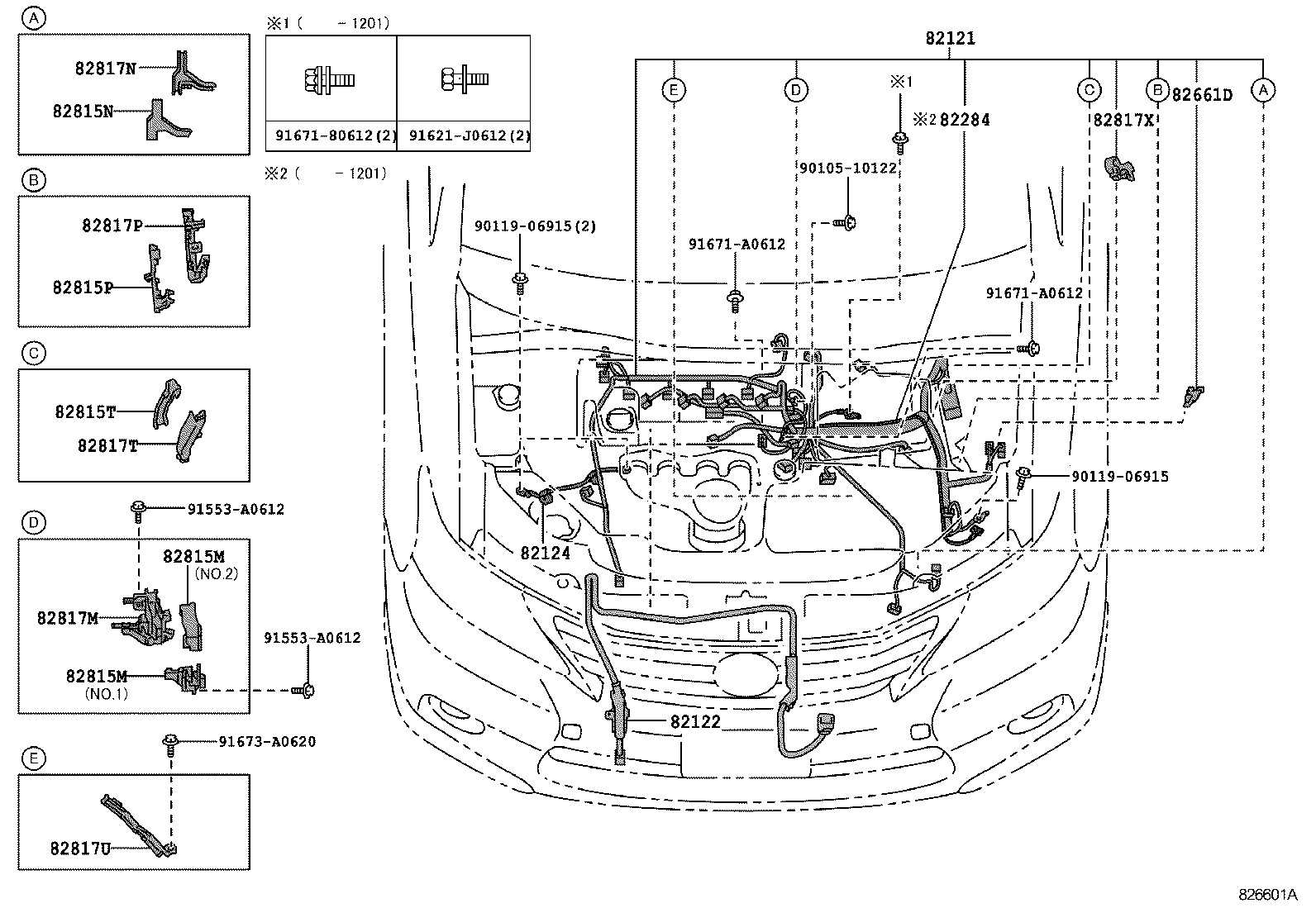

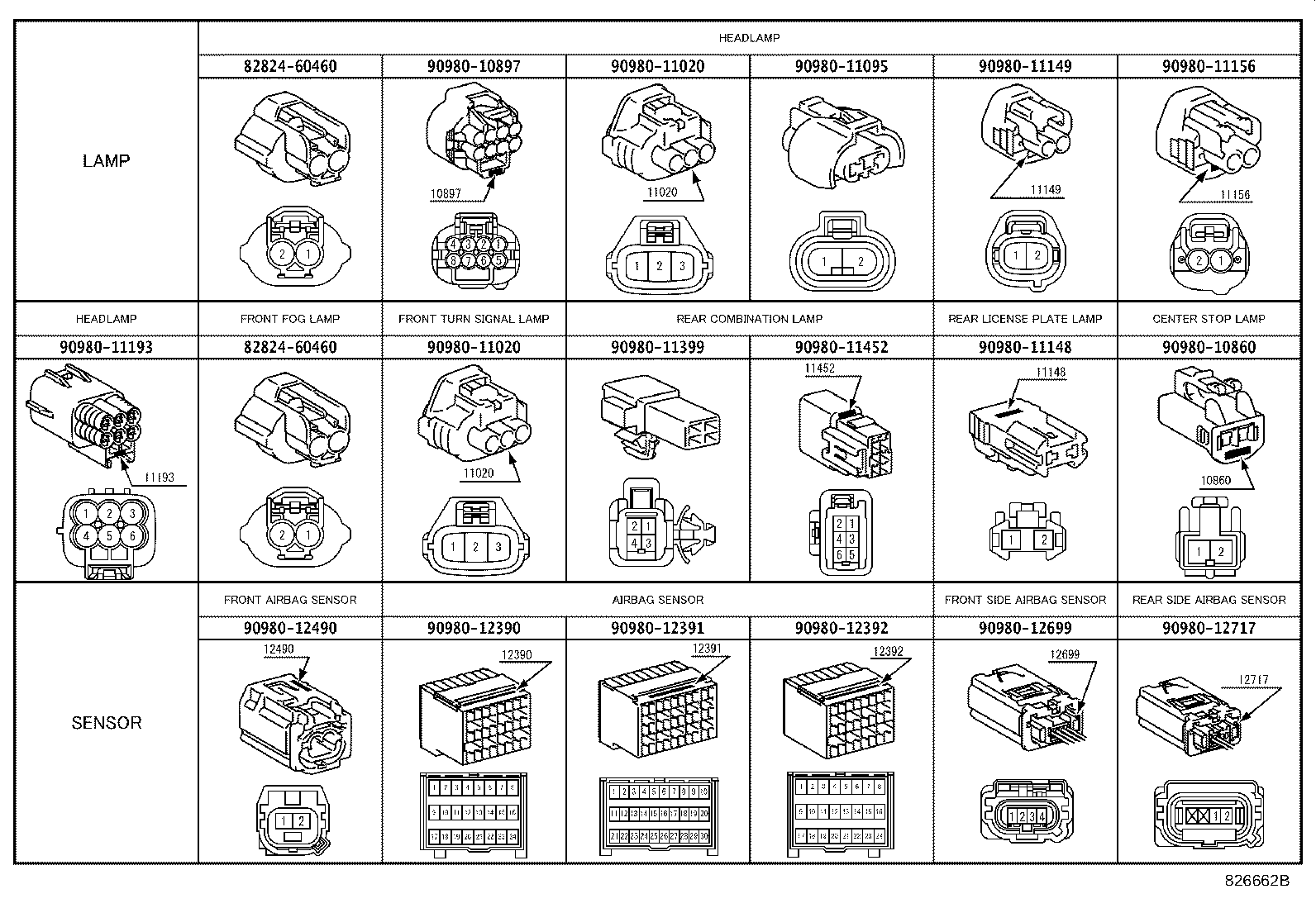

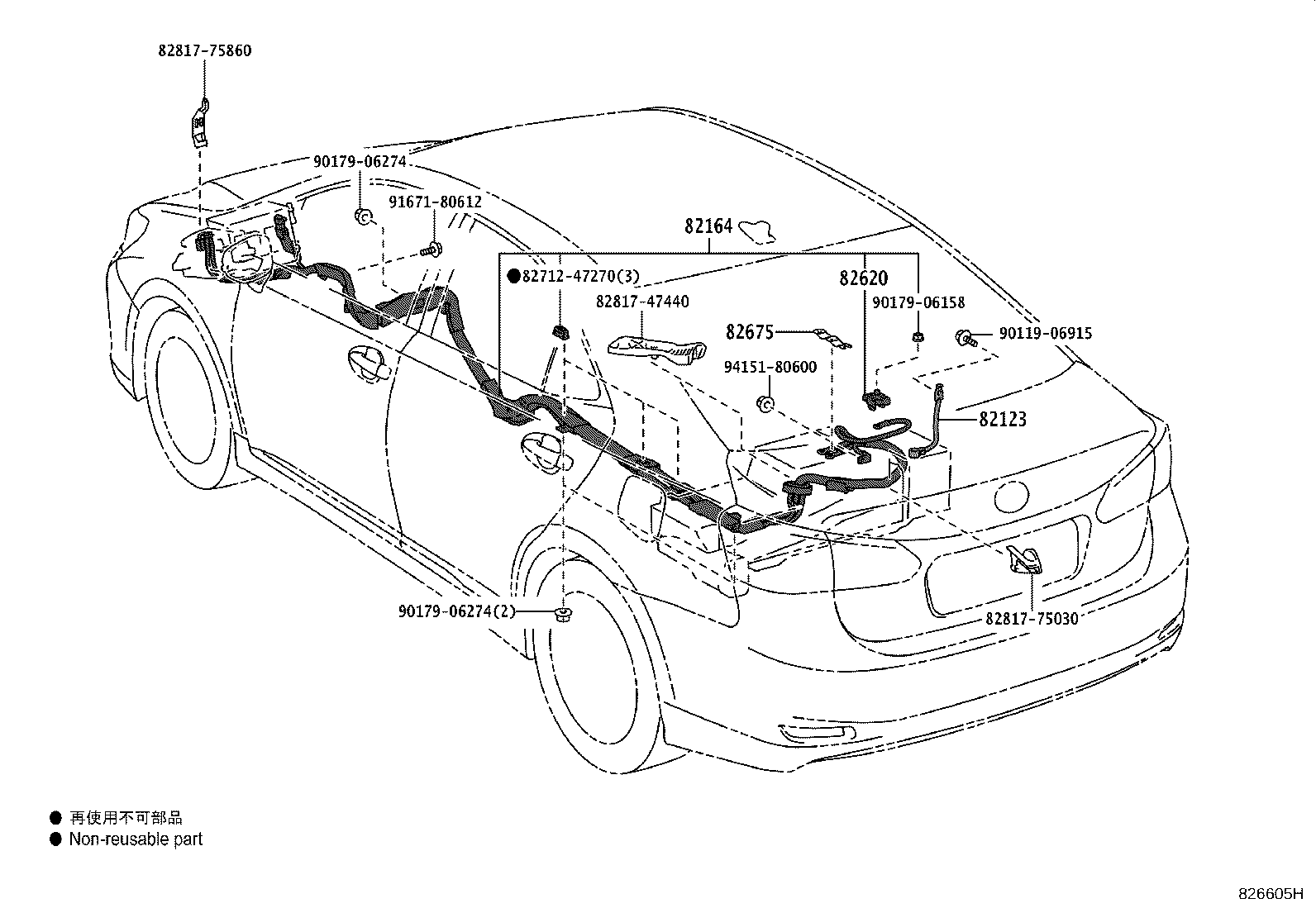

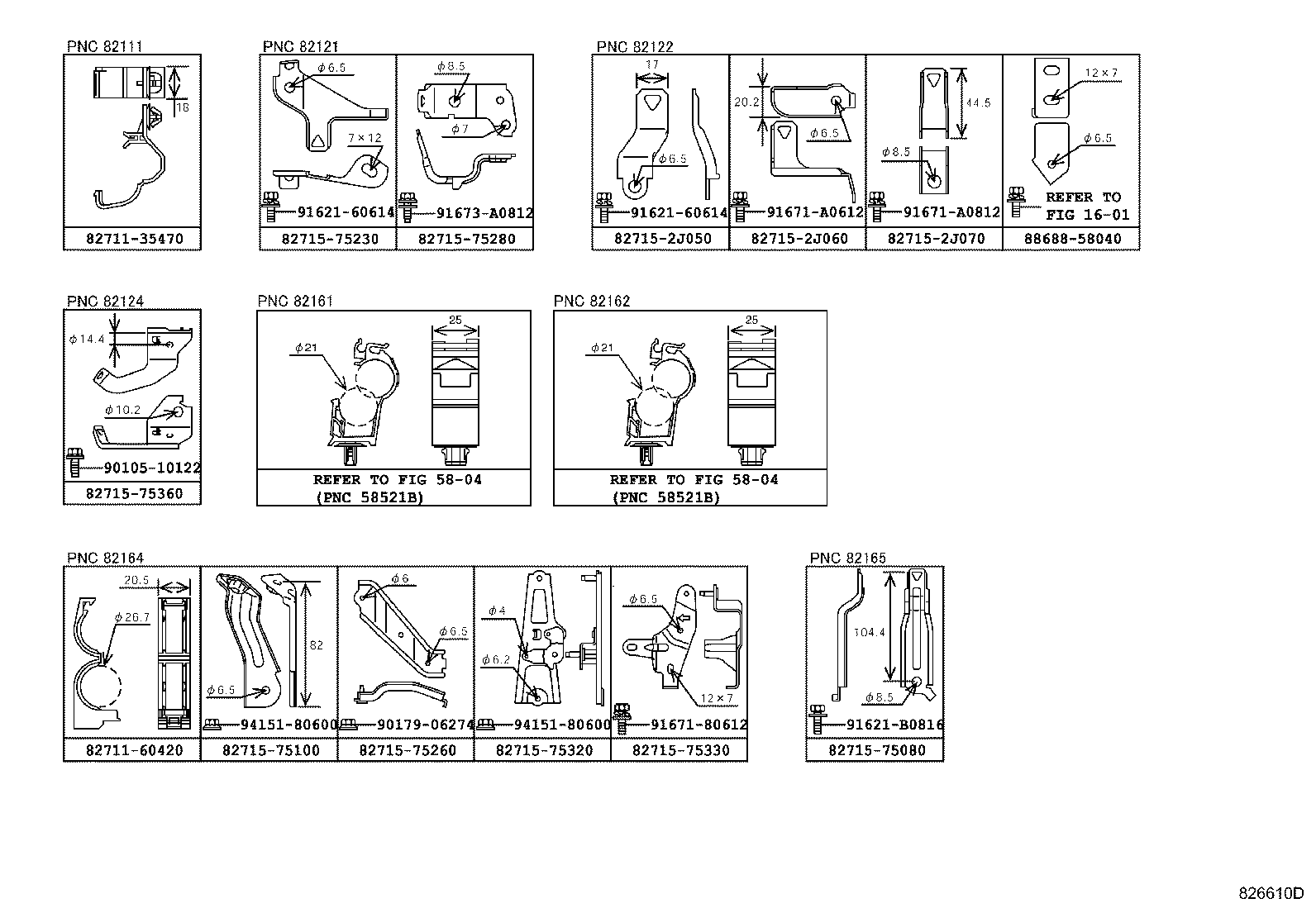

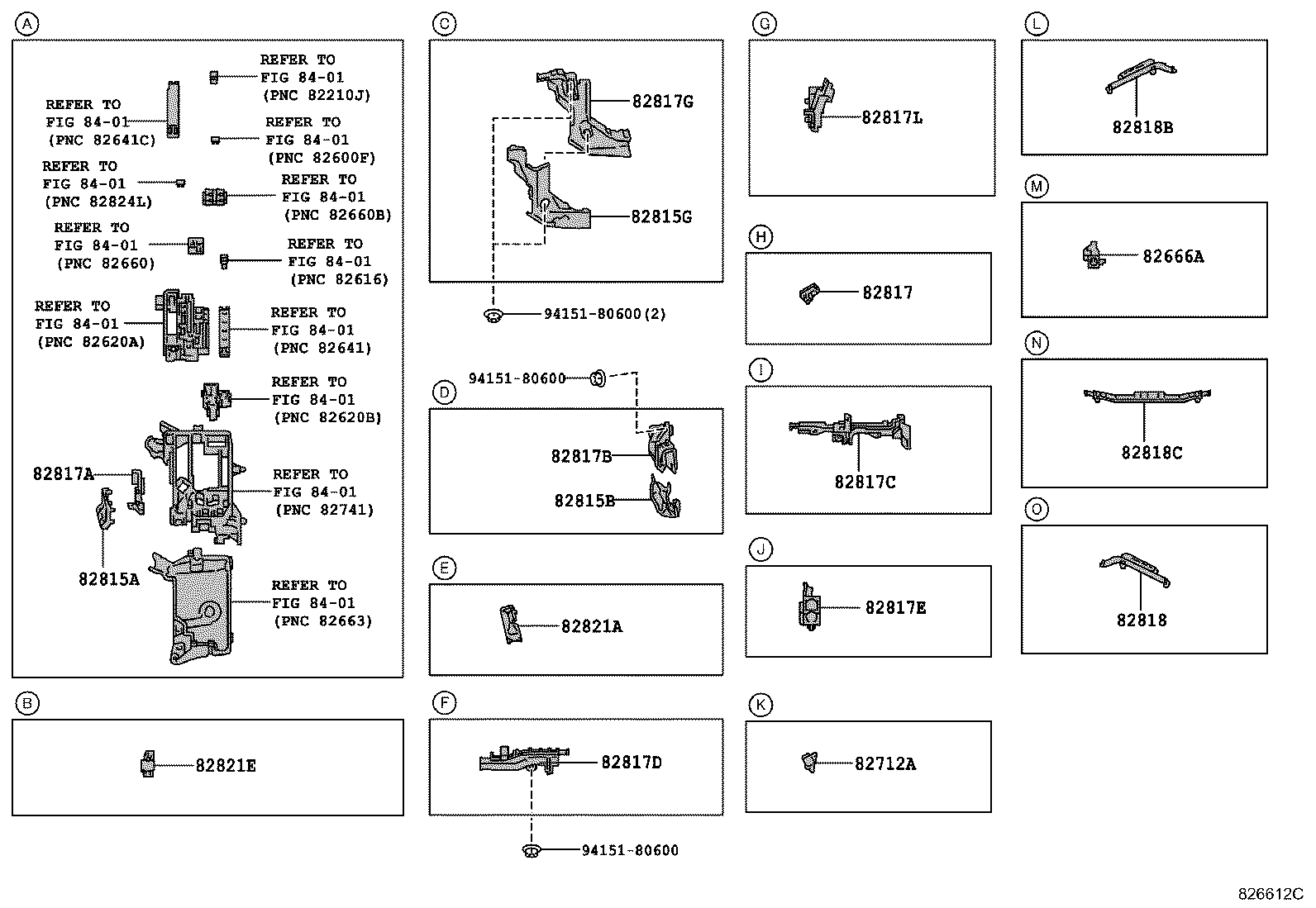

Figure 826608 826608 2009-07 → — Figure 826612C 826612C 2009-07 → — Figure 826601A 826601A 2009-07 → — Figure 826609B 826609B 2009-07 → — Figure 826603B 826603B 2009-07 → — Figure 826604H 826604H 2009-07 → — Figure 826605H 826605H 2009-07 → — Figure 826606 826606 2009-07 → — Figure 826610D 826610D 2009-07 → — Figure 826662B 826662B 2009-07 → — Figure 826663B 826663B 2009-07 → — Figure 82E938 82E938 2009-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143C Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82183 Wire, Luggage Room, NO.3
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82284 Wire, Earth
82620 Block Assy, Fusible Link
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82675 Terminal, Junction
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815T Cover, Wiring Harness Protector, NO.16
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817G Protector, Wiring Harness, NO.8
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82821A Cover, Connector
82821E Cover, Connector
82821N Cover, Connector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
