Toyota Lexus HS250H
2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States
Supported model
Data version 2012-01
Switch & Relay & Computer
85 part groups · 8 illustrations
Part groups

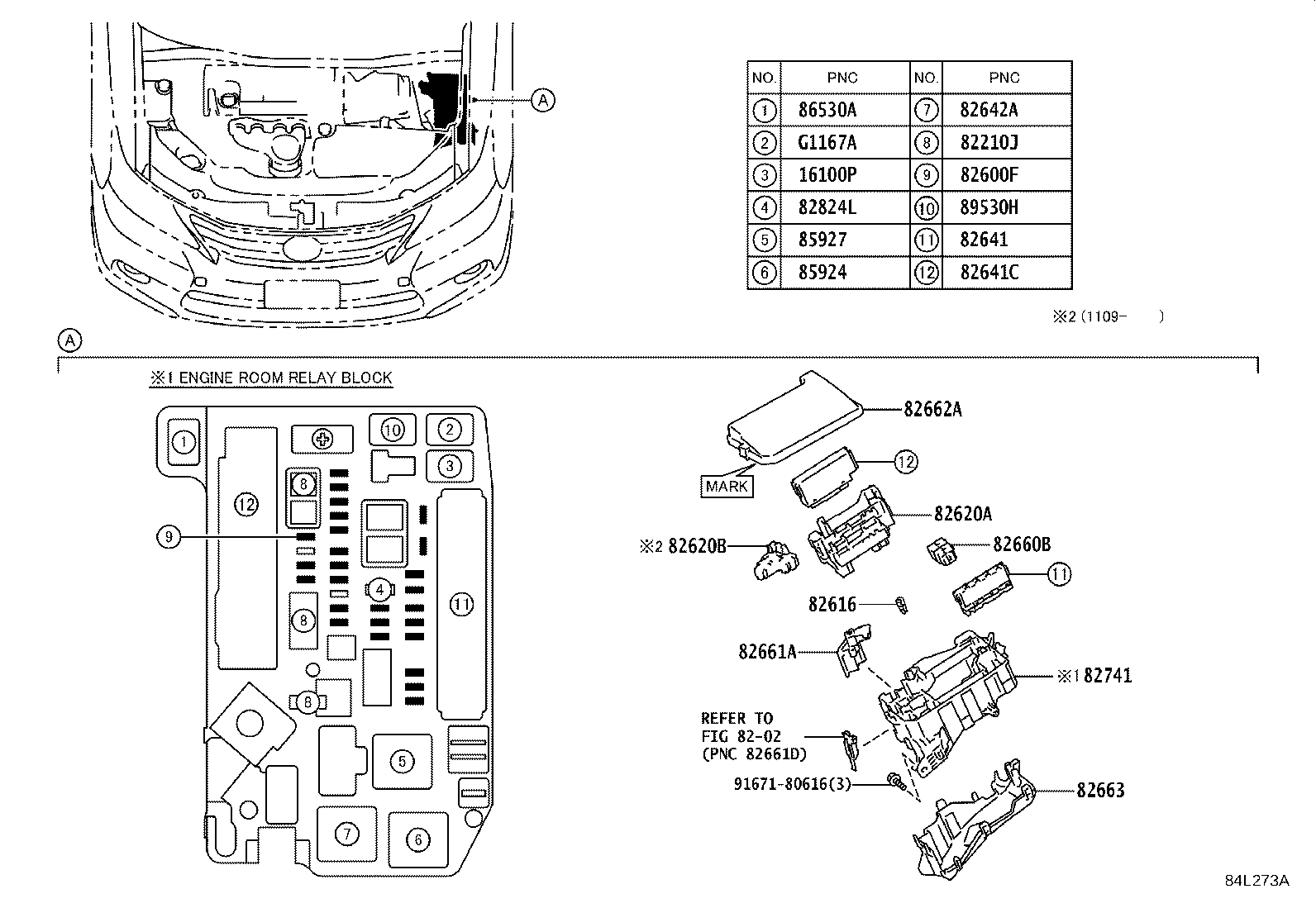

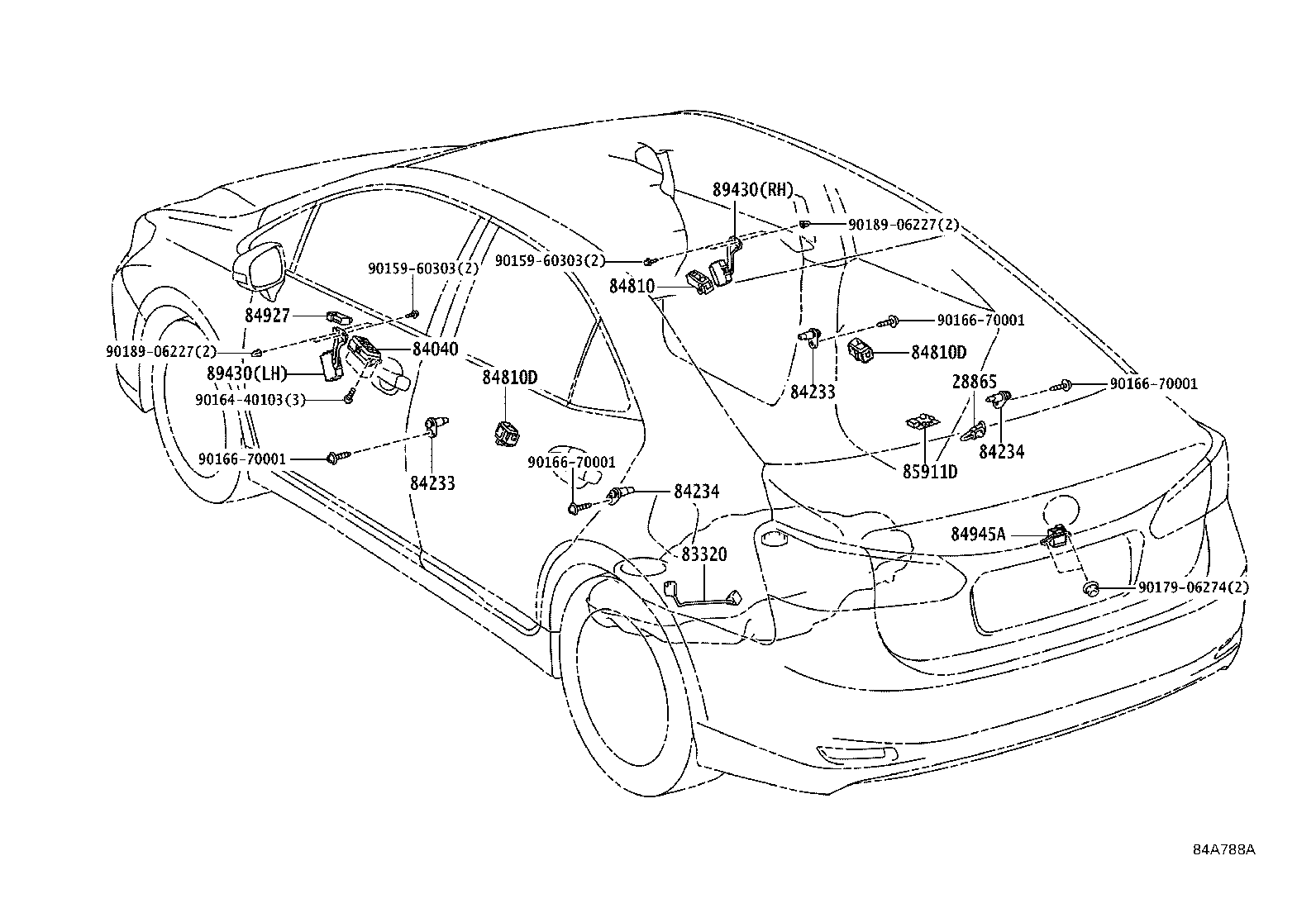

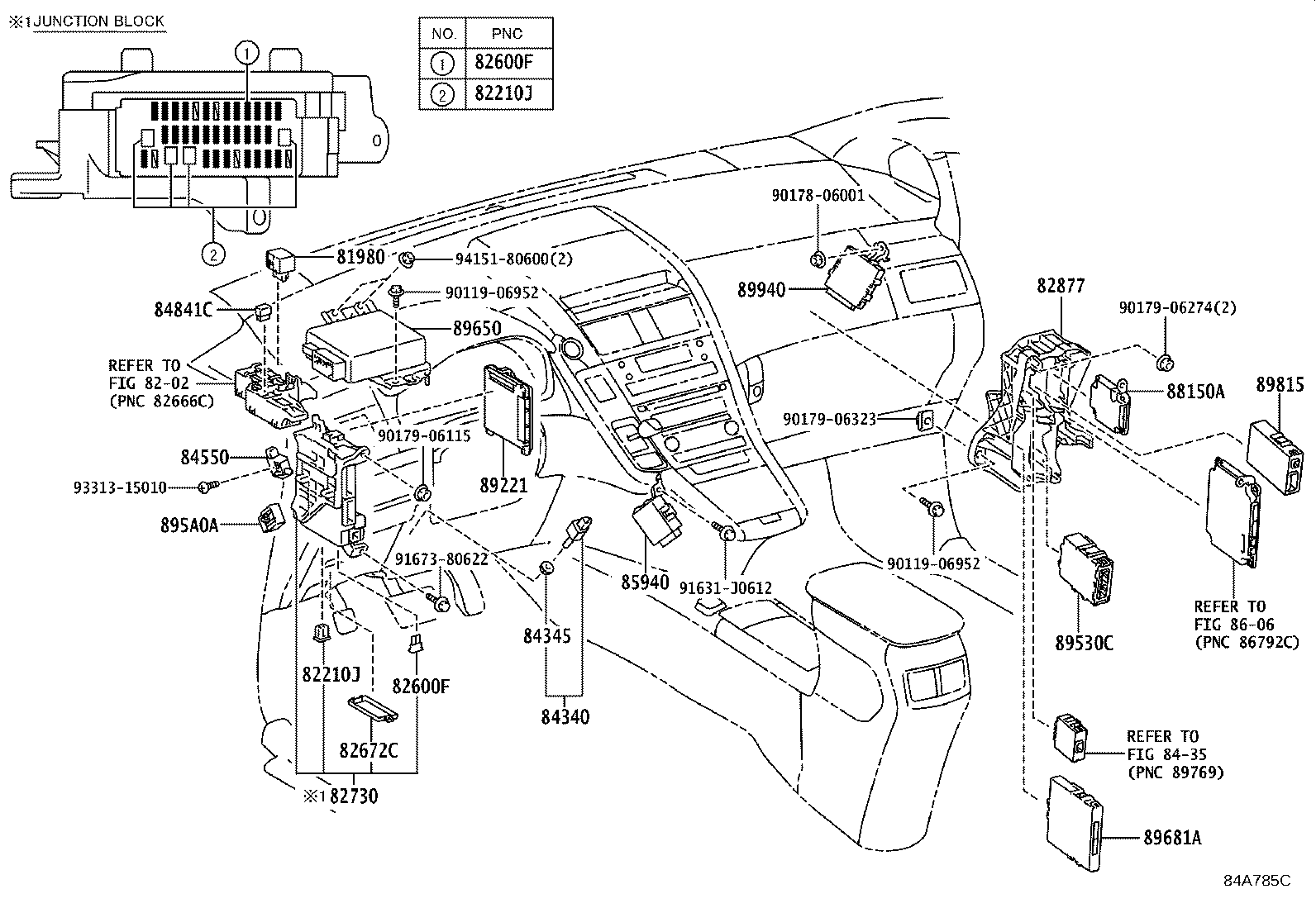

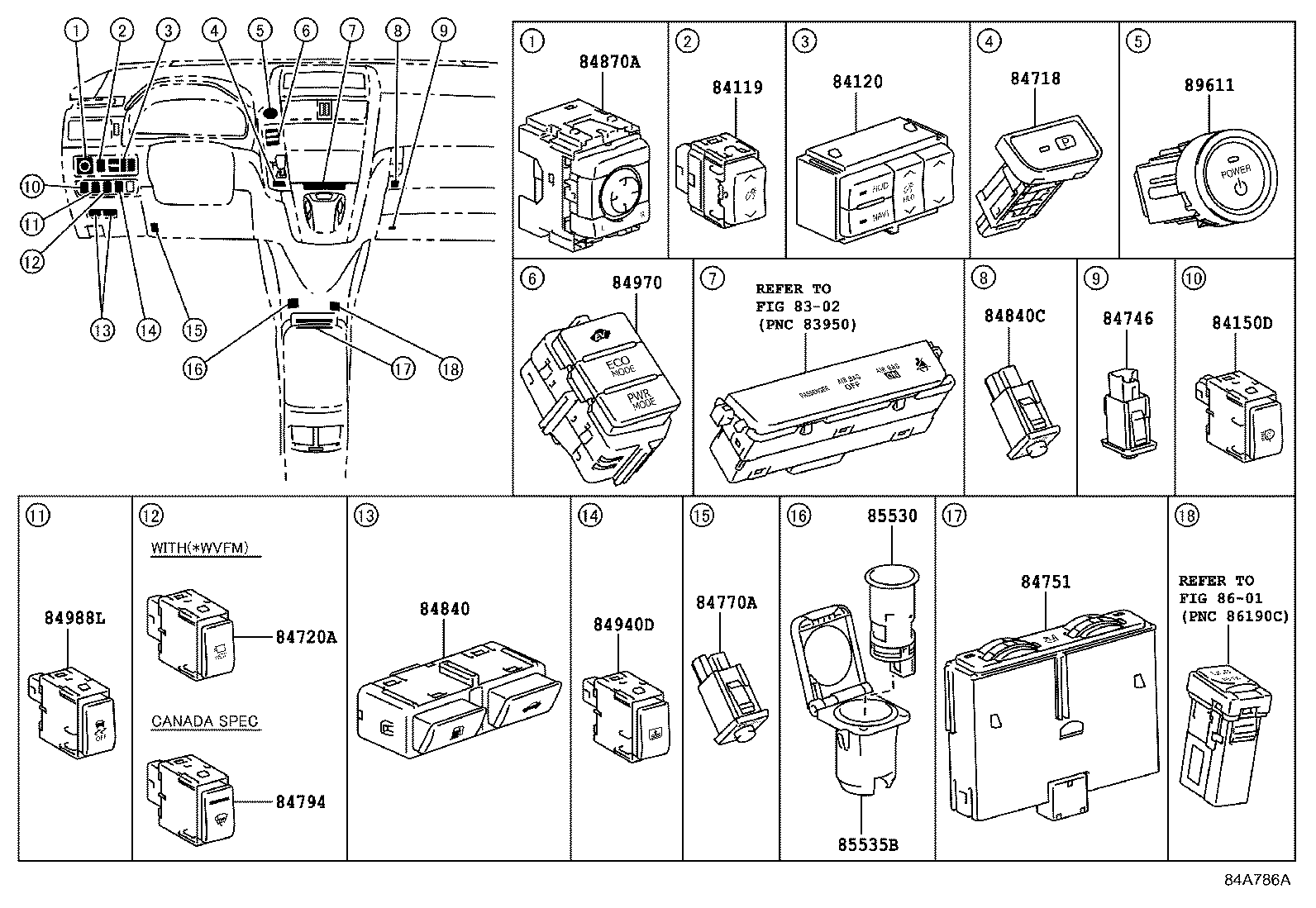

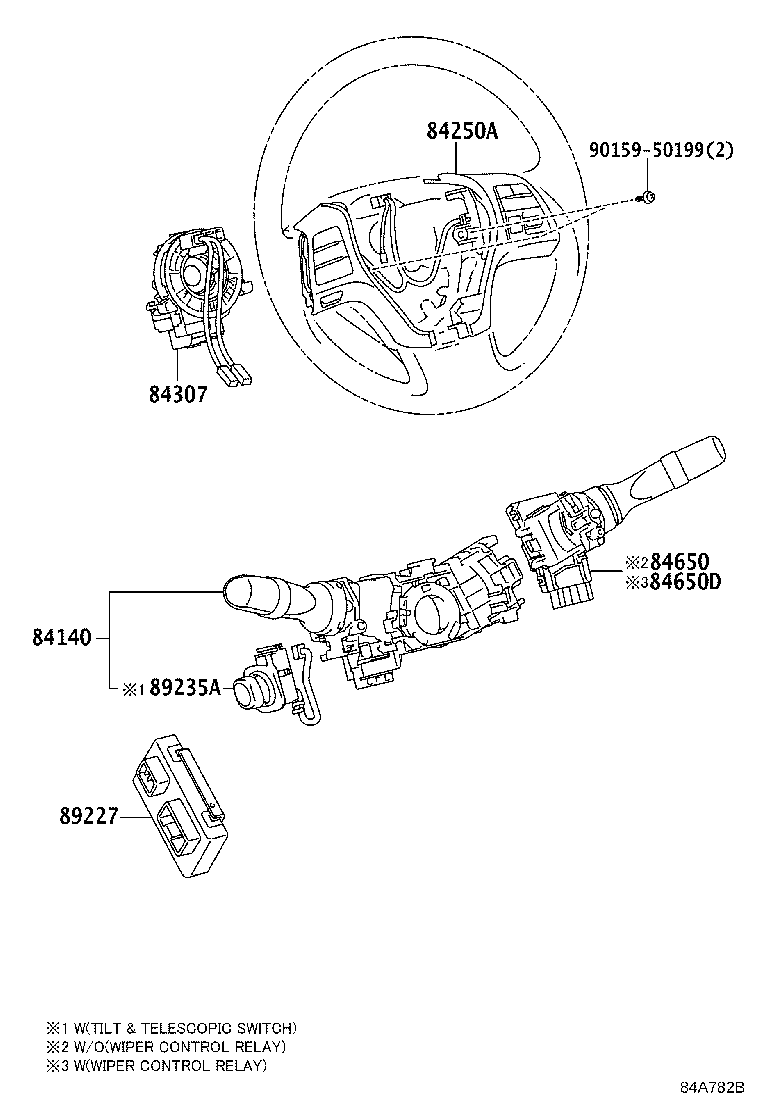

| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28865 | Sensor, Battery Thermometer |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82641C | Relay, Integration NO.2 |
| 82642A | Relay, Running Light |
| 82660B | Block Assy, Relay |
| 82661A | Cover, Relay Block, NO.2 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82672C | Cover, Junction Block |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84040 | Master Switch Assy,Multiplex Network |
| 84119 | Rheostat, Light Control |
| 84120 | Switch Assy, Head UP Display |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84718 | Switch, Transmission Shift Main |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84746 | Switch, Tire Pressure Warning |
| 84751 | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794 | Switch, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840 | Switch Assy, Luggage Compartment Door Opening |
| 84840C | Switch Assy, Luggage Door Opening, Cancel |
| 84841C | Relay, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84920C | Switch Assy, Power Seat Front, RH |
| 84920D | Switch Assy, Power Seat Front, LH |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84927 | Switch, Seat Memory |
| 84940D | Switch Assy, Rear Sun Shade |
| 84945A | Switch, Luggage Electrical Key |
| 84970 | Switch Assy, Combination |
| 84988L | Switch, Vsc Off |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85911D | Relay, Rear Sunshade |
| 85924 | Relay, Ignition Control |
| 85927 | Relay, Cooling Fan |
| 85940 | Relay Assy, Windshield Wiper |

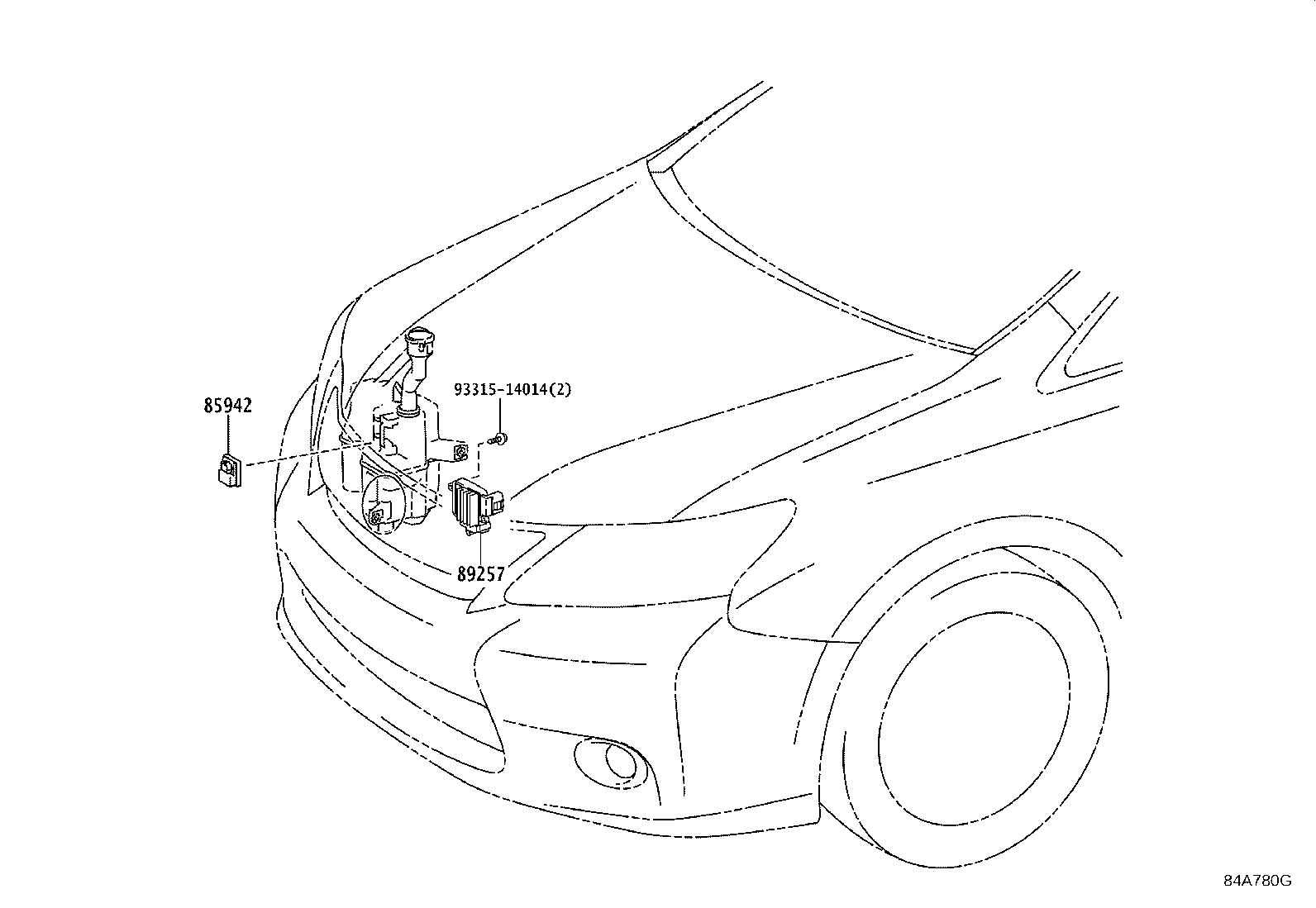

| 85942 | Relay, Headlamp Cleaner Control |
| 86530A | Relay, Horn |
| 88150A | Computer Assy, Driving Support |
| 89221 | Computer, Multiplex Network Body |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89257 | Computer, Cooling Fan |
| 89430 | Computer Assy, Outer Mirror Control |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89530C | Computer Assy, Transmission Control |
| 89530H | Relay, Transaxle Parking Look Control |
| 895A0A | Computer Assy, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89681A | Computer, Power Management Control |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| G1167A | Relay (FOR OIL PUMP MOTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
