Toyota Lexus HS250H
2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States
Supported model
Data version 2012-01
Radio Receiver & Amplifier & Condenser
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

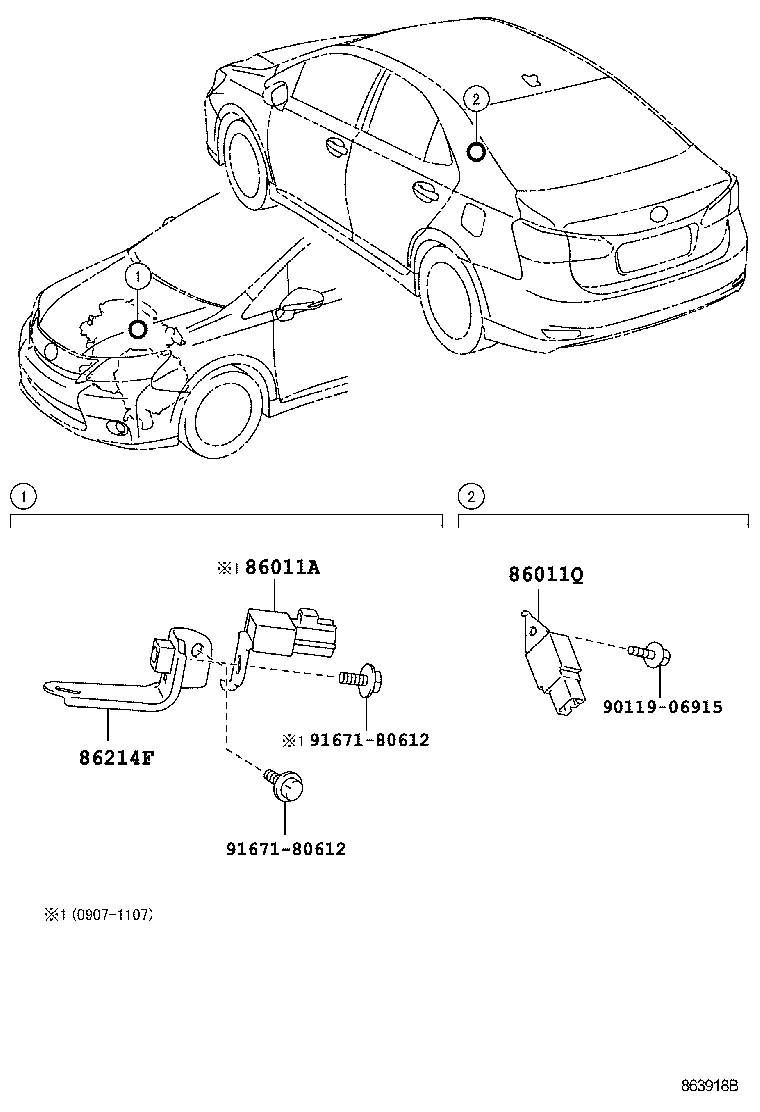

| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86183C | Clip, Audio Rack |

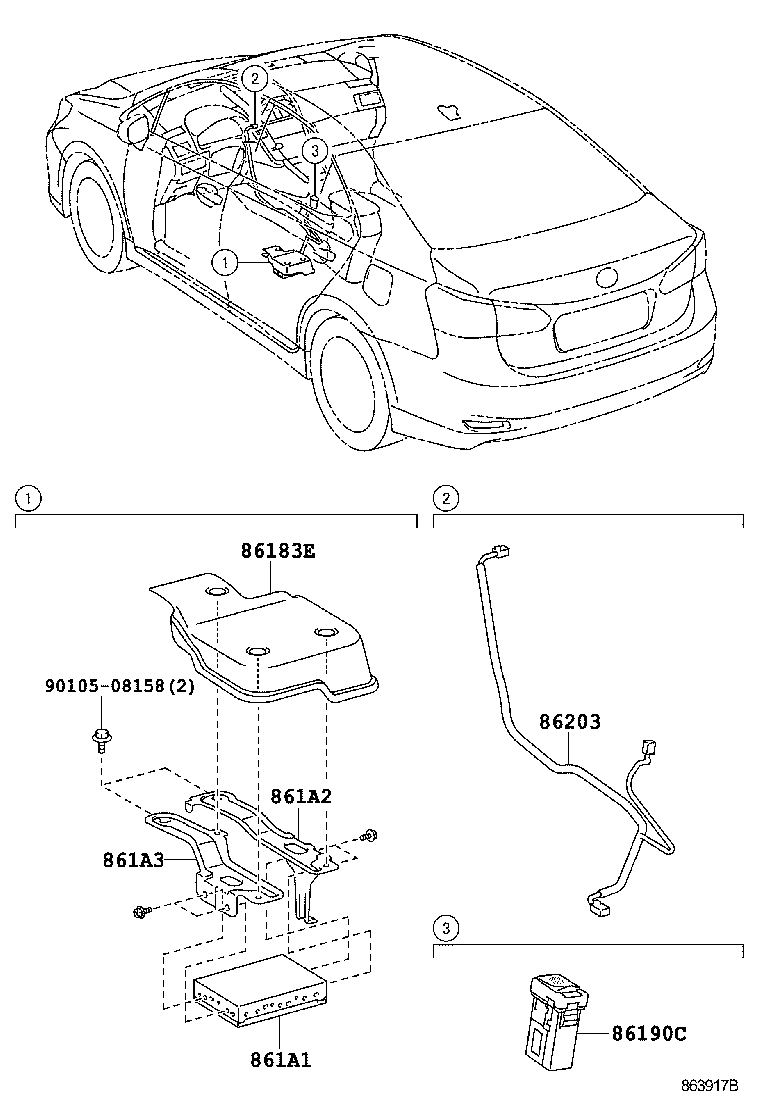

| 86183D | Cover, Audio Amplifier |
| 86183E | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 861A1 | Computer, Multi-media Interface |
| 861A2 | Bracket, Multi-media Interface, NO.1 |
| 861A3 | Bracket, Multi-media Interface, NO.2 |
| 86203 | Wire, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86214F | Bracket, Radio Earth |
| 86250 | Microphone Assy, Amplifier |
| 86280 | Amplifier Assy, Stereo Component |
| 86285 | Bracket, Amplifier, NO.1 |
| 86730C | Microphone Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
