Toyota Lexus HS250H

2009-07 → 2012-01 · chassis ANF10 · catalogue 292410 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

22 part groups · 3 illustrations

Illustrations

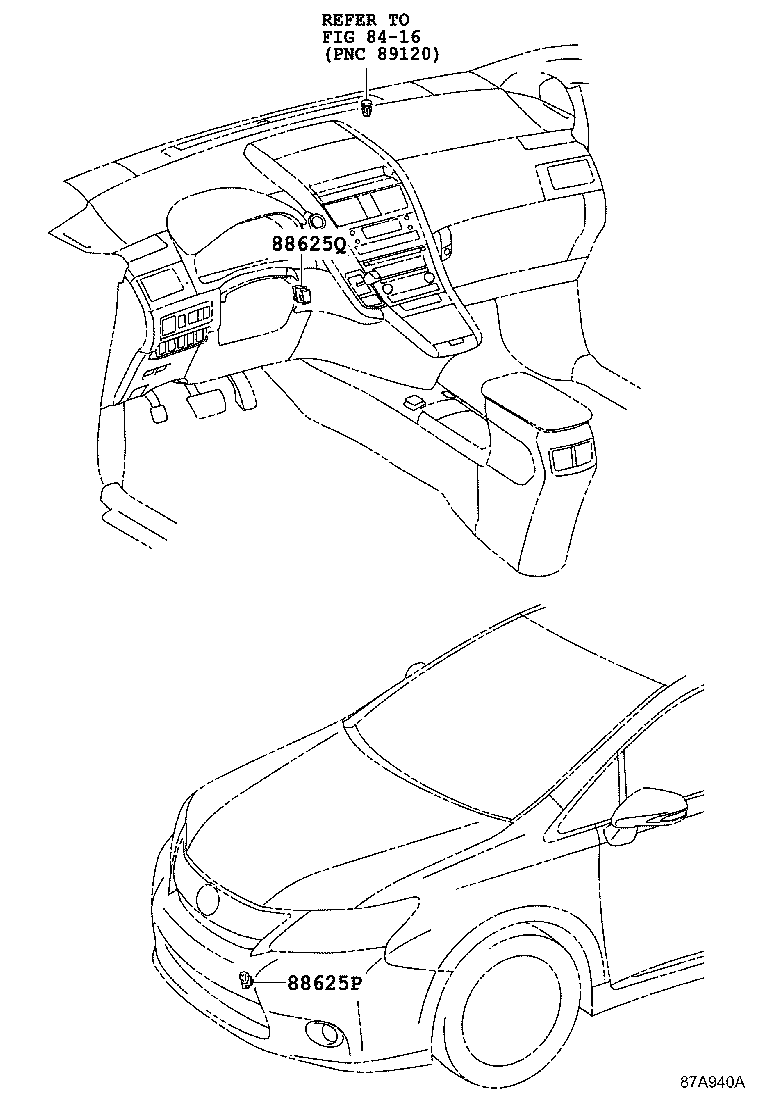

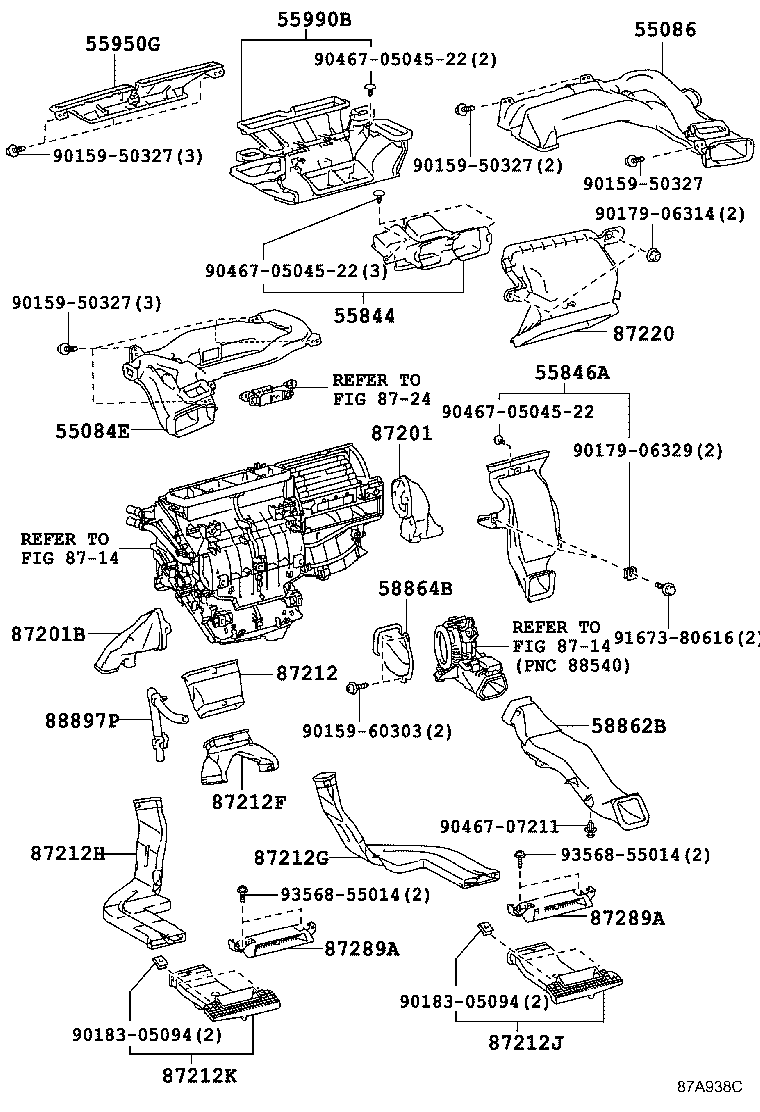

Figure 87A936B 87A936B 2009-07 → — Figure 87A938C 87A938C 2009-07 → — Figure 87A940A 87A940A 2009-07 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55086 Duct Sub-assy, Heater TO Register, NO.3
55844 Duct, Heater TO Register, NO.2
55846A Duct, Heater TO Register, NO.4
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
58862B Duct, Console Box, NO.2
58864B Duct, Console Box, NO.4
84010A Control & Panel Assy, Integration
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87212J Duct, Air, Rear NO.5
87212K Duct, Air, Rear NO.6
87220 Duct Assy, Air
87289A Bezel, Rear Heater Register, NO.1
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
