Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 3 illustrations

Illustrations

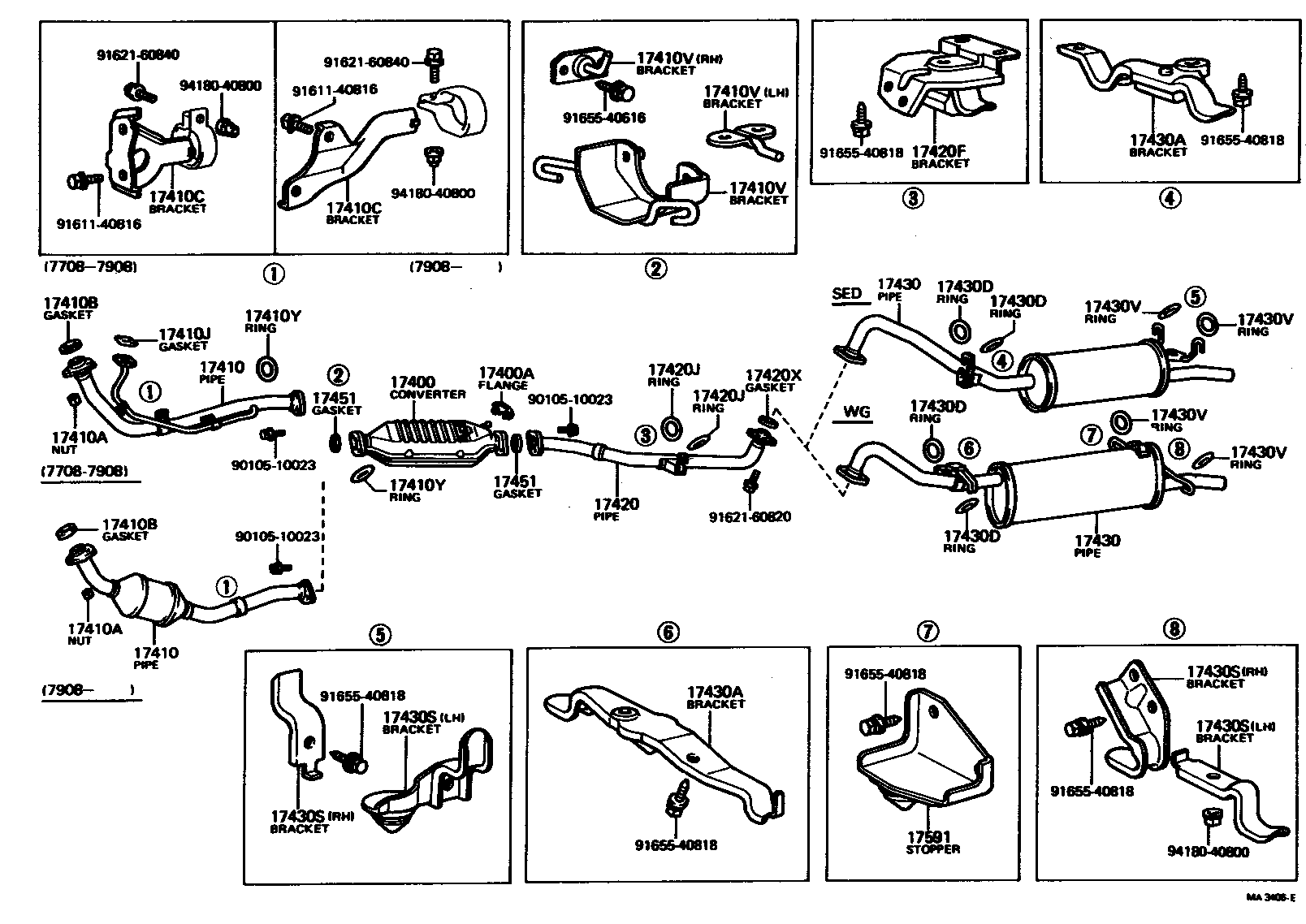

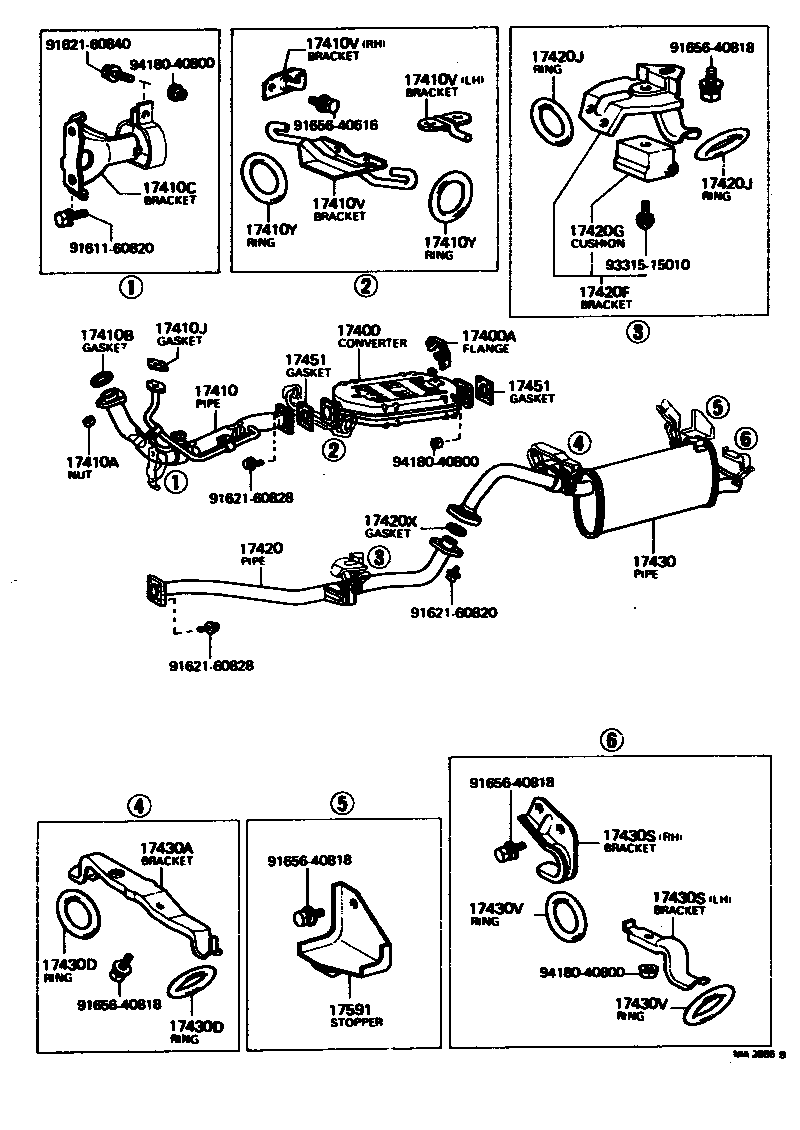

Figure MA2865B MA2865B 1977-08 → 1978-08 Figure MA2866B MA2866B 1977-08 → 1978-08 Figure MA3406E MA3406E 1978-08 → 1980-08

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400A Flange, Thermosenser Inlet
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410J Gasket, Converter Air Inlet Pipe
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420F Bracket, Exhaust Pipe, Center
17420G Cushion, Exhaust Pipe Center, Center
17420J Bolt OR Ring, Exhaust Pipe Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17451 Gasket, Exhaust Pipe
17591 Stopper, Exhaust Pipe Hanger
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
