Toyota Cressida
1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States
Discontinued model
Data version 1985-06

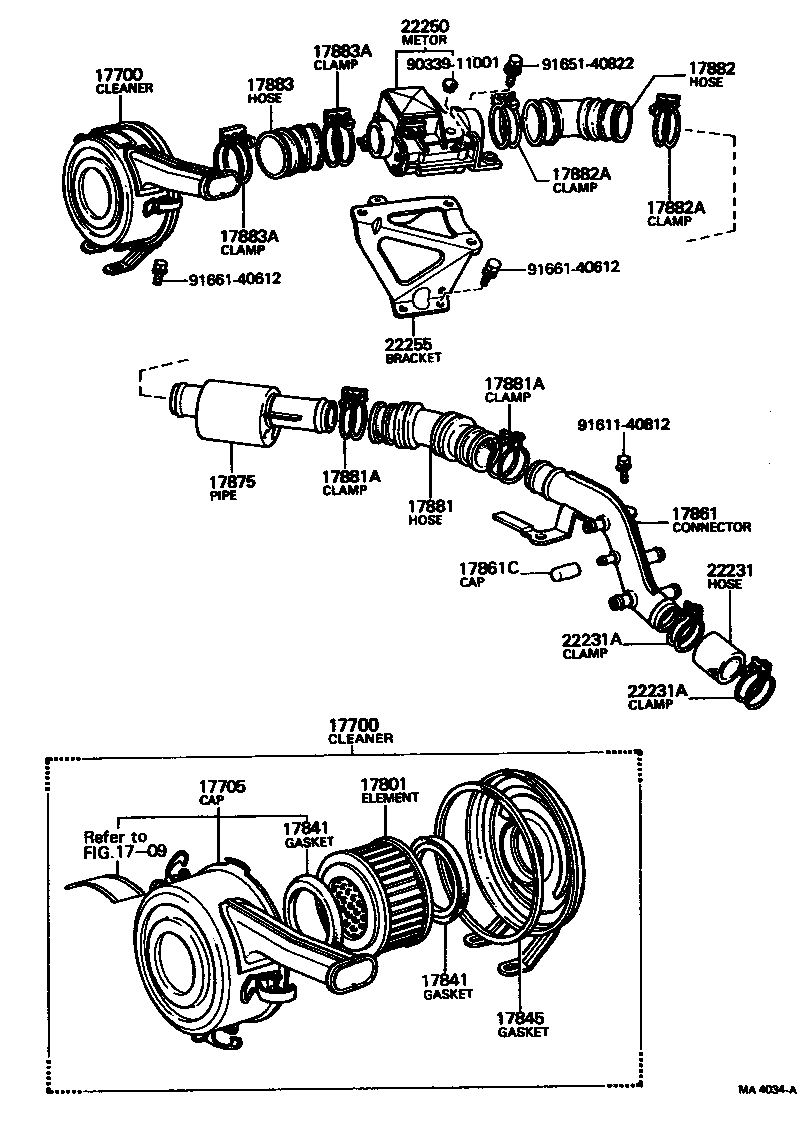

Air Cleaner
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17061 | Diaphragm Sub-assy |
| 17700 | Cleaner Assy, Air |
| 17700A | Nut, Wing(FOR AIR CLEANER) |
| 17700F | Bolt, Stud(FOR AIR CLEANER SETTING) |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17706 | Inlet Sub-assy, Air Cleaner, NO.2 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17841 | Gasket, Filter Element |
| 17845 | Gasket, Air Cleaner Cap |
| 17848 | Gasket, Air Cleaner TO Carburetor |
| 17861 | Connector, Intake Air |
| 17861C | Cap(FOR INTAKE AIR CONNECTOR) |
| 17875 | Pipe, Intake Air Connector |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17882B | Clamp(FOR COOL AIR INTAKE) |
| 17883 | Hose, Air Cleaner, NO.3 |
| 17883A | Clamp(FOR AIR CLEANER HOSE, NO.3) |
| 21071C | Valve Sub-assy, Thermostatic(FOR AIR CLEANER) |
| 22231 | Hose, Throttle Body |
| 22231A | Clamp OR Clip(FOR THROTTLE BODY HOSE) |
| 22250 | Meter Assy, Intake Air Flow |
| 22255 | Bracket, Air Flow Meter |
| 23285B | Valve, Check, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
