Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 2 illustrations

Illustrations

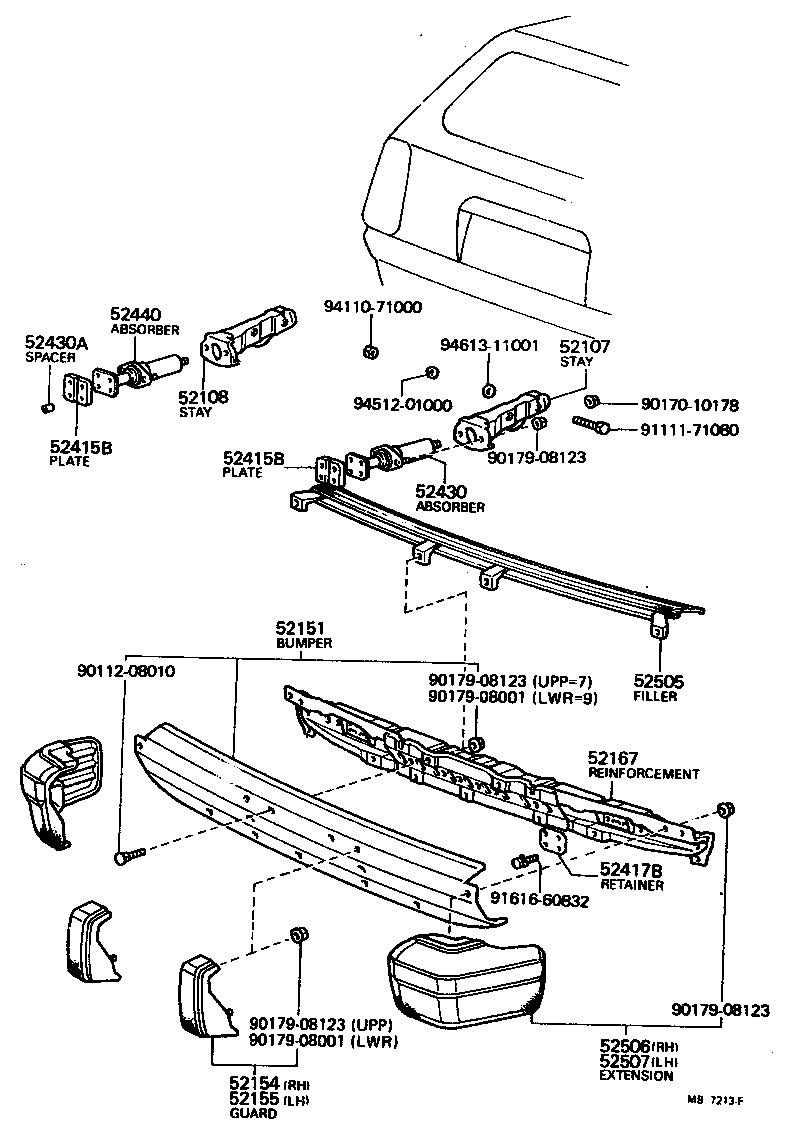

Figure MB7212F MB7212F 1977-08 → 1980-08 Figure MB7213F MB7213F 1977-08 → 1980-08

Part groups

PNCDescription
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52154 Guard, Bumper, Rear RH
52155 Guard, Bumper, Rear LH
52167 Reinforcement, Rear Bumper
52415B Plate, Rear Absorber Mounting
52417B Retainer, Rear Absorber Mounting
52430 Absorber, Rear Bumper, RH
52430A Spacer, Rear Bumper Absorber
52440 Absorber, Rear Bumper, LH
52505 Filler Sub-assy, Rear Bumper
52506 Extension Sub-assy, Rear Bumper, RH
52507 Extension Sub-assy, Rear Bumper, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
