Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

28 part groups · 2 illustrations

Illustrations

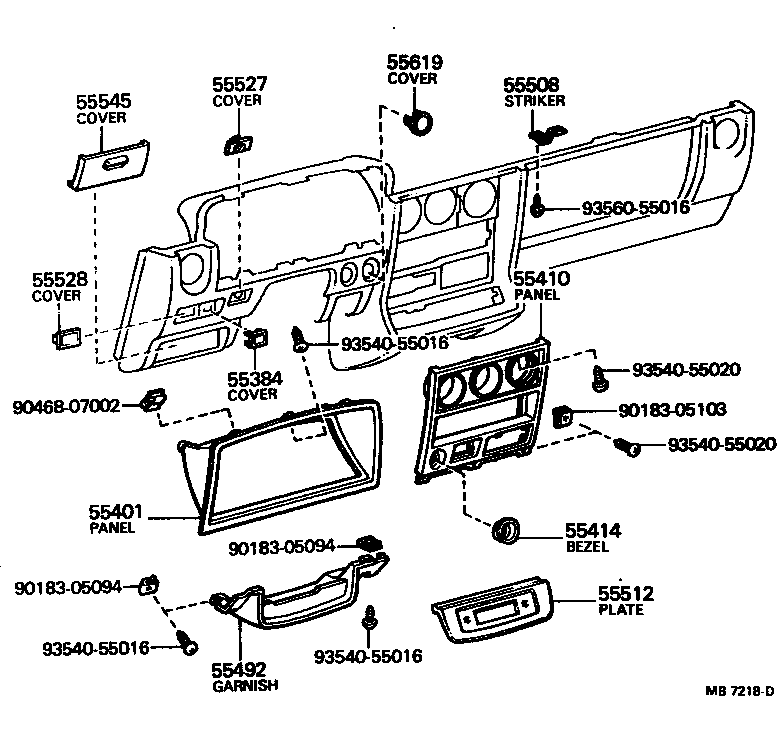

Figure MBA269D MBA269D 1977-08 → 1980-08 Figure MB7218D MB7218D 1977-08 → 1980-08

Part groups

PNCDescription
55031 Reinforcement, Instrument Panel, NO.1
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55341 Brace, Instrument Panel, NO.1
55342 Brace, Instrument Panel, NO.2
55343 Brace, Instrument Panel, NO.3
55384 Cover, Base Switch Hole
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55410 Panel Assy, Instrument Cluster Finish, NO.2
55414 Bezel, Cigar Lighter Hole
55418A Retainer, Safety Pad
55449 Cover, Cooler Switch Hole
55492 Garnish OR Safety Pad, Lower, RH
55503 Compartment Sub-assy, Glove
55503B Cushion(FOR GLOVE COMPARTMENT)
55507 Hinge Sub-assy, Glove Compartment Door
55508 Striker Sub-assy, Glove Compartment Door Lock
55510 Door Assy, Glove Compartment
55512 Plate, Radio Tuner Finish
55517 Stopper, Glove Compartment Door Arm
55527 Cover, Transmission Control Switch Hole
55528 Cover, Auto Drive Opening
55545 Cover, Fuse Box Opening
55619 Cover, Switch Hole
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55699 Knob, Instrument Panel Register Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
