Toyota Cressida
1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States
Discontinued model
Data version 1985-06
Inside Trim Board & Door Opening Trim Moulding

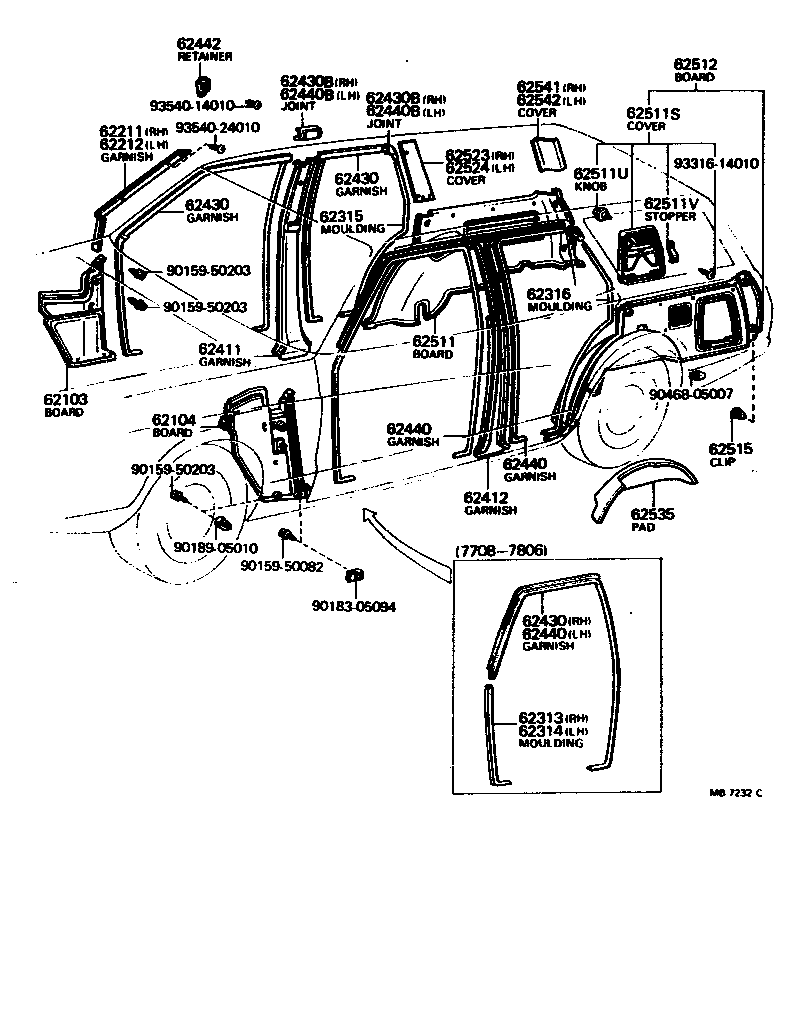

28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430B | Joint, Roof Side Rail Garnish, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62440B | Joint, Roof Side Rail Garnish, LH |
| 62442 | Retainer, Roof Side Rail Garnish |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511S | Cover, Quarter Trim Jack |
| 62511U | Knob, Jack Cover |
| 62511V | Stopper, Jack Cover |
| 62512 | Board, Quarter Inside Trim, LH |
| 62515 | Clip, Quarter Inside Trim |
| 62523 | Cover, Rear Pillar Upper Garnish, RH |
| 62524 | Cover, Rear Pillar Upper Garnish, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62541 | Cover, Quarter Pillar Upper Garnish, RH |
| 62542 | Cover, Quarter Pillar Upper Garnish, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
