Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

16 part groups · 2 illustrations

Illustrations

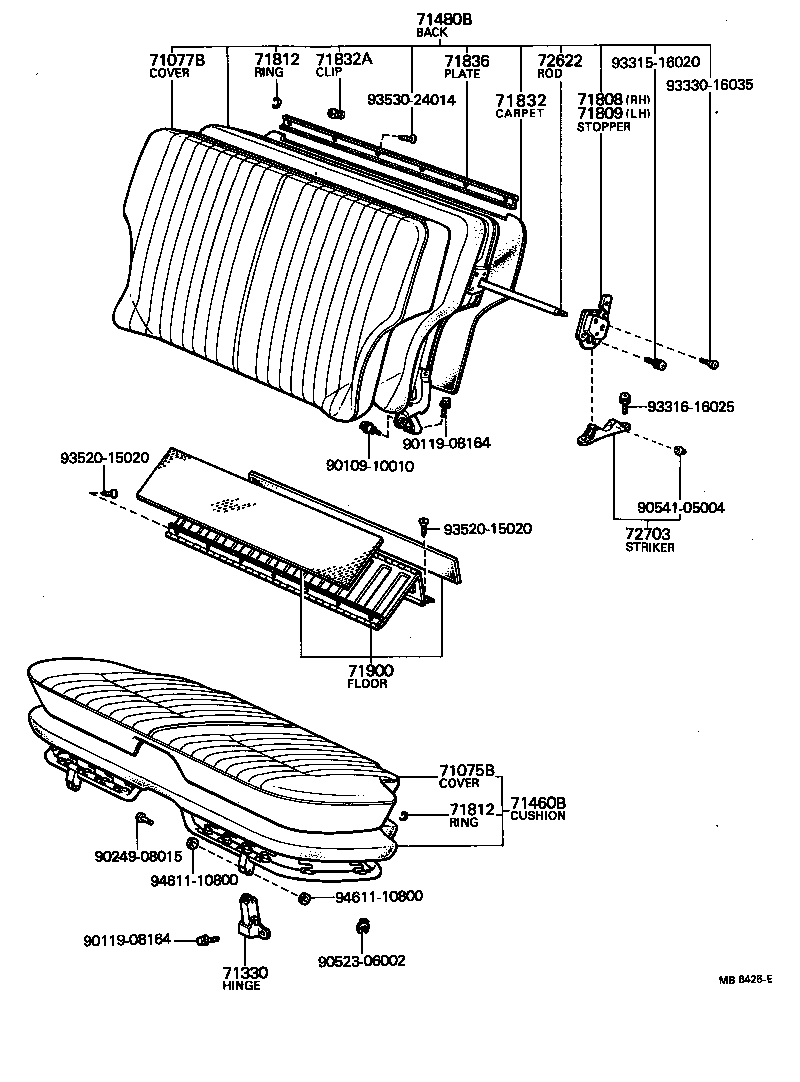

Figure MB6381B MB6381B 1977-08 → 1980-08 Figure MB6426E MB6426E 1977-08 → 1980-08

Part groups

PNCDescription
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71078 Cover Sub-assy, Rear Seat Center Armrest
71330 Hinge Assy, Rear Seat Cushion
71460B Cushion Assy, Rear Seat (FOR BENCH TYPE)
71480B Back Assy, Rear Seat (FOR BENCH TYPE)
71530 Armrest Assy, Rear Seatback, Center
71538 Bush, Rear Seat Armrest, RH
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71832 Carpet OR Mat, Rear Seatback
71832A Clip, Rear Seatback Carpet OR Mat
71836 Plate, Rear Seatback Carpet OR Mat Support, Upper
71900 Floor Assy, Rear Seat
72622 Rod, Rear Seatback Stopper Connecting
72703 Striker Sub-assy, Rear Seatback Stopper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
