Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

10 part groups · 2 illustrations

Illustrations

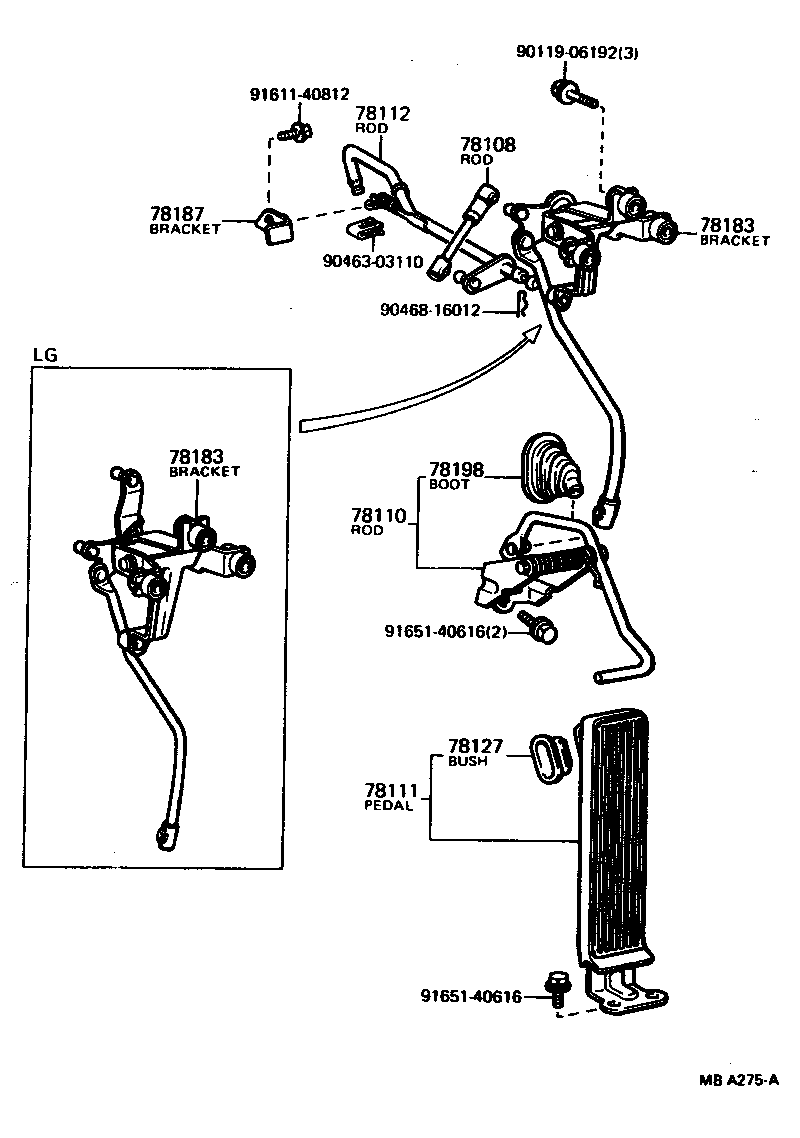

Figure MB7258A MB7258A 1977-08 → 1979-08 Figure MBA275A MBA275A 1979-08 → 1980-08

Part groups

PNCDescription
78026 Bellcrank Sub-assy, Accelerator, NO.2
78103 Rod Sub-assy, Accelerator Connecting, NO.1
78108 Rod Sub-assy, Accelerator Connecting, NO.4
78110 Rod Assy, Accelerator Pedal
78111 Pedal, Accelerator
78112 Rod Sub-assy, Accelerator Connecting, NO.4
78127 Bush, Accelerator Pedal, NO.2
78183 Bracket, Accelerator Link Rod
78187 Bracket, Accelerator Pull Back Spring
78198 Boot, Accelerator Connecting Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
