Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

28 part groups · 9 illustrations

Illustrations

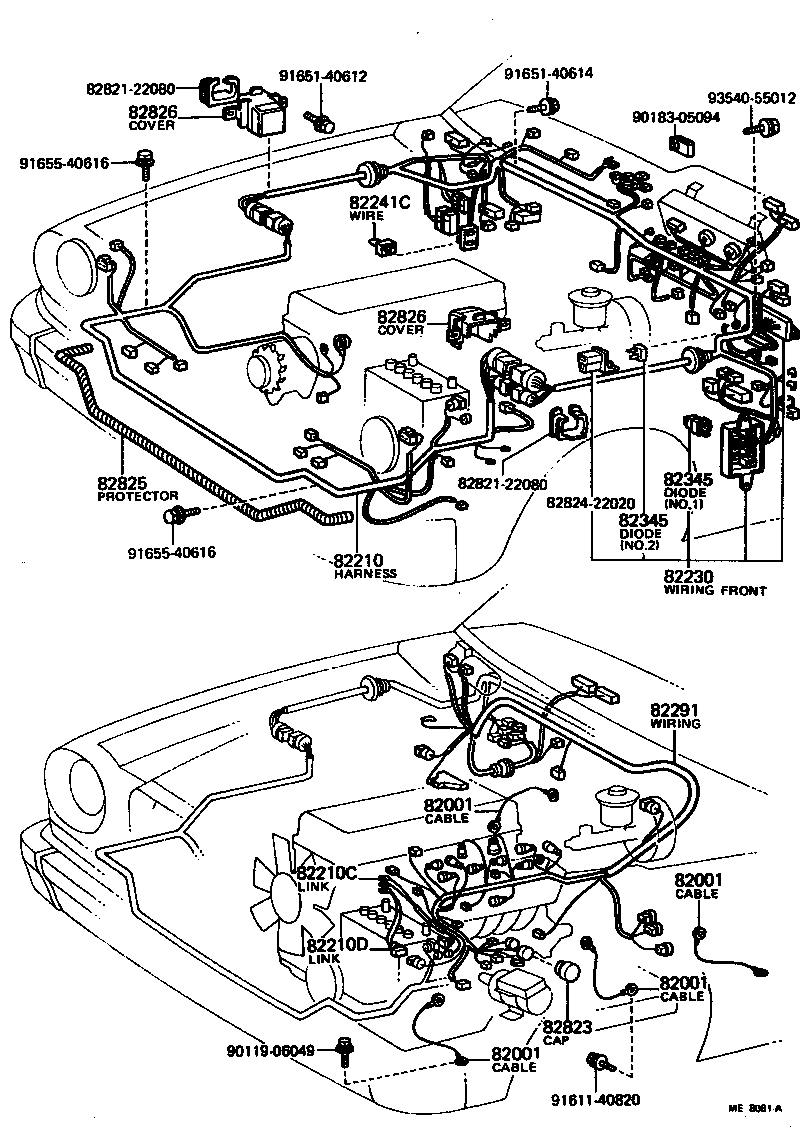

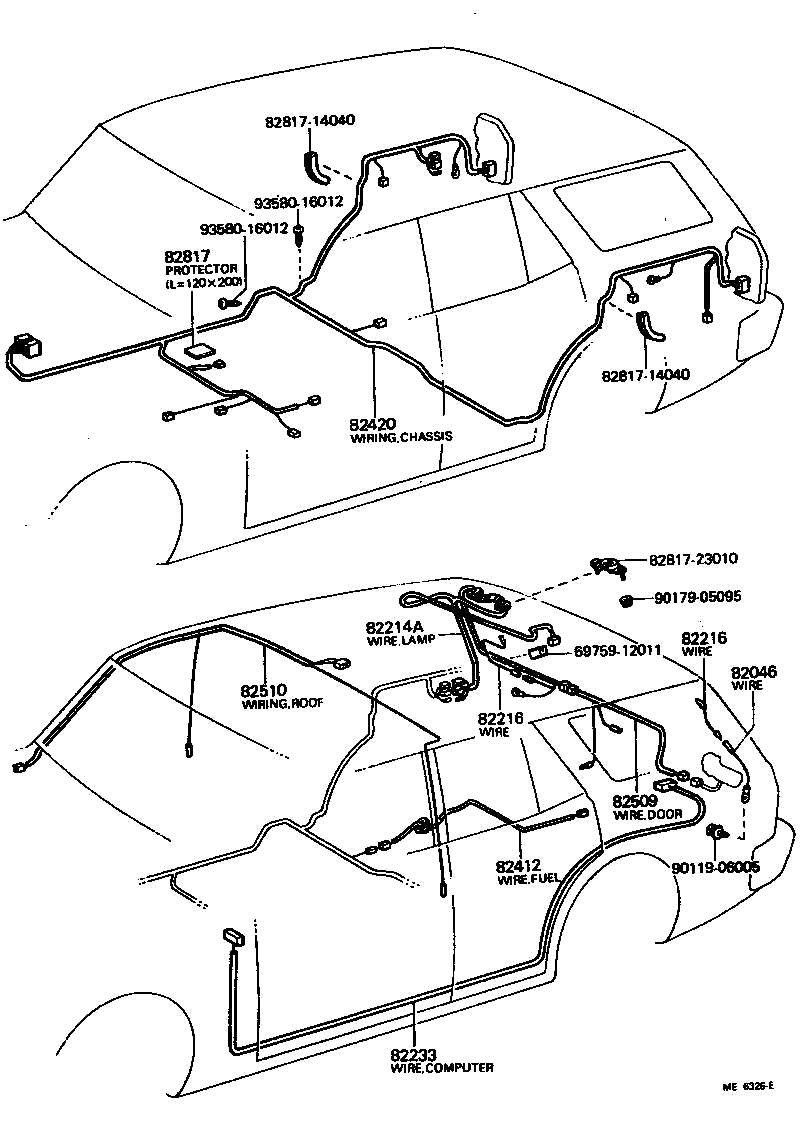

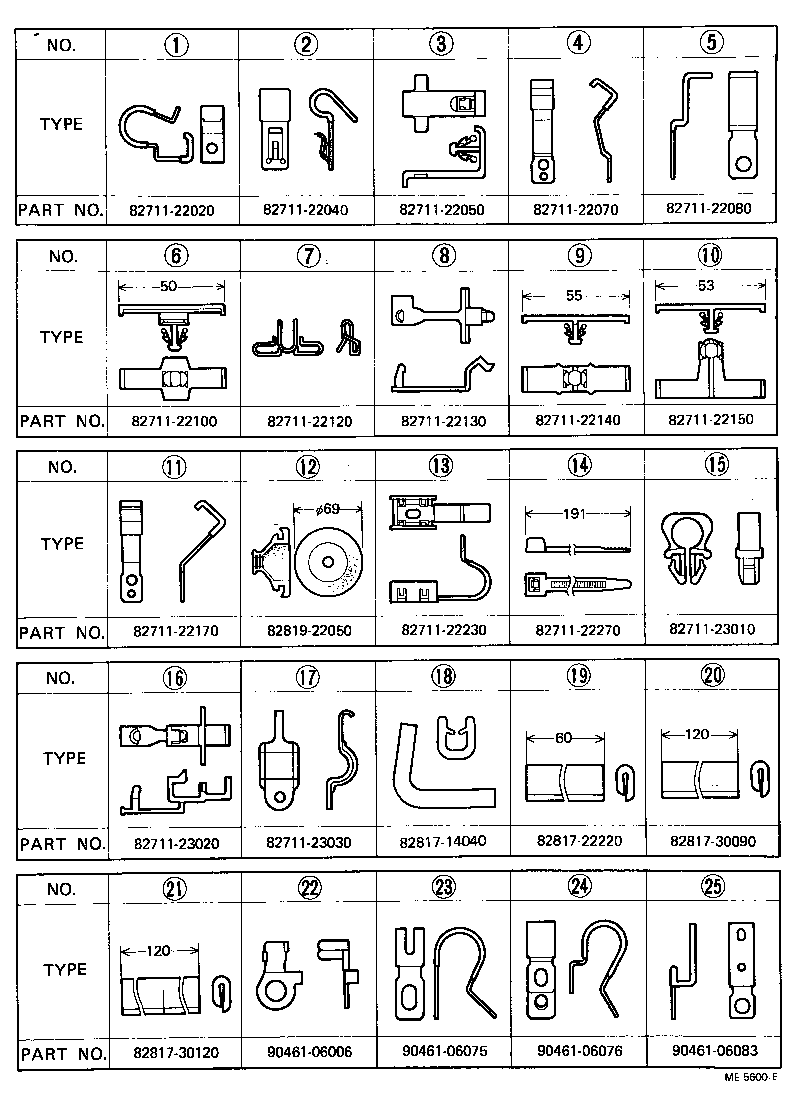

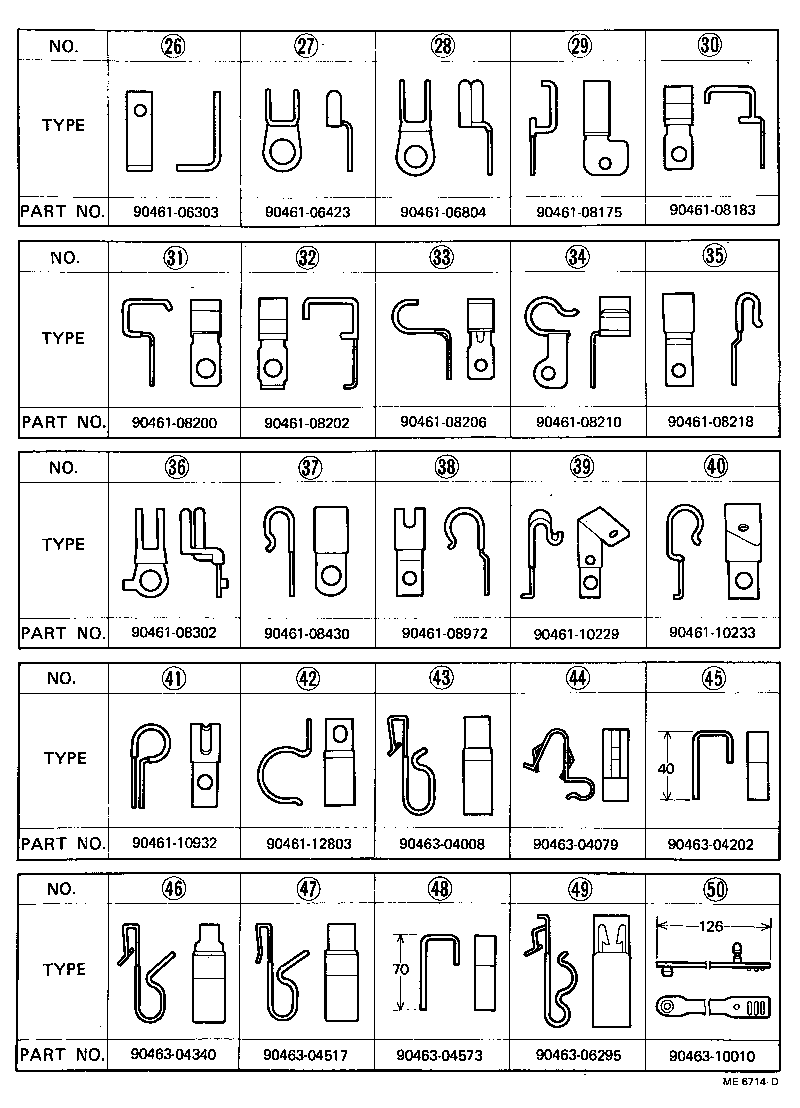

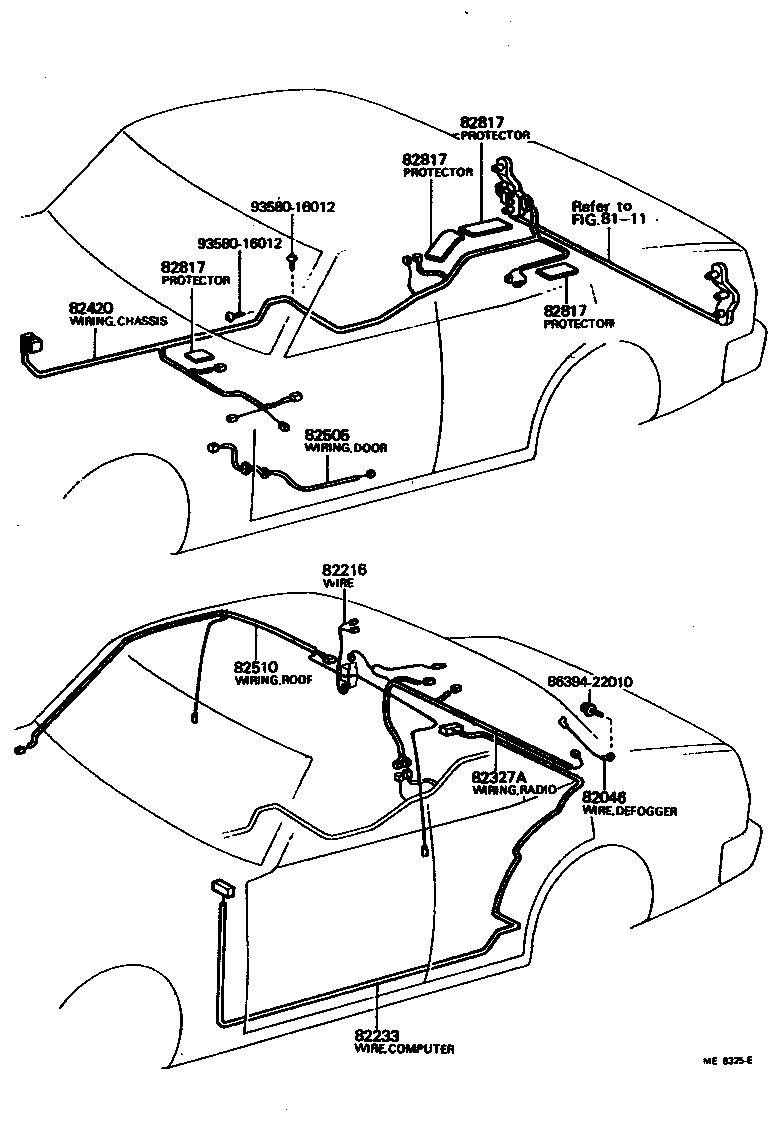

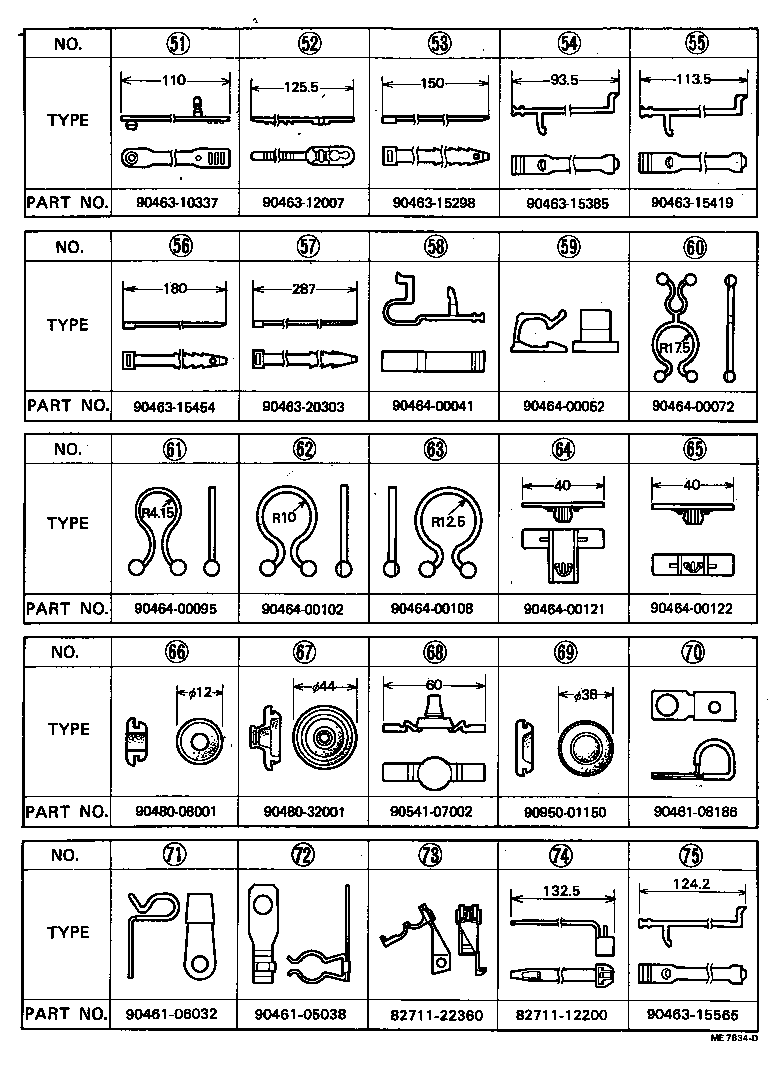

Figure ME6324D ME6324D 1977-08 → 1979-08 Figure ME8061A ME8061A 1979-08 → 1980-08 Figure ME6325E ME6325E 1977-08 → 1980-08 Figure ME7225A ME7225A 1978-08 → 1980-08 Figure ME6326E ME6326E 1977-08 → 1980-08 Figure ME5600E ME5600E 1977-08 → 1980-08 Figure ME6714D ME6714D 1977-08 → 1980-08 Figure ME7834D ME7834D 1977-08 → 1980-08 Figure ME8756B ME8756B 1977-08 → 1980-08

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82021 Wiring Assy, Starter
82046 Wire Sub-assy, Rear Window Defogger Earth
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82214A Wire, Lamp
82216 Wire, Rear Window Defogger
82223 Wire, Switch
82230 Wiring Assy, Front Side
82233 Wire, Computer
82241C Wire, Relay
82291 Wiring, TO Solenoid
82327A Wiring Sub-assy, TO Radio Instration
82345 Diode
82375A Wire, Wiper Motor
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82505 Wiring Sub-assy, Front Door, RH
82509 Wiring Sub-assy, Back Door
82510 Wiring Assy, Roof
82540 Wiring Assy, Power Window, Front LH
82540A Wiring Assy, Power Window, Rear
82542 Wiring Assy, Power Window, Front RH
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
82825 Protector, Wiring Harness
82826 Cover, Wiring Harness Hole
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
