Toyota Cressida
1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States
Discontinued model
Data version 1985-06
Meter
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

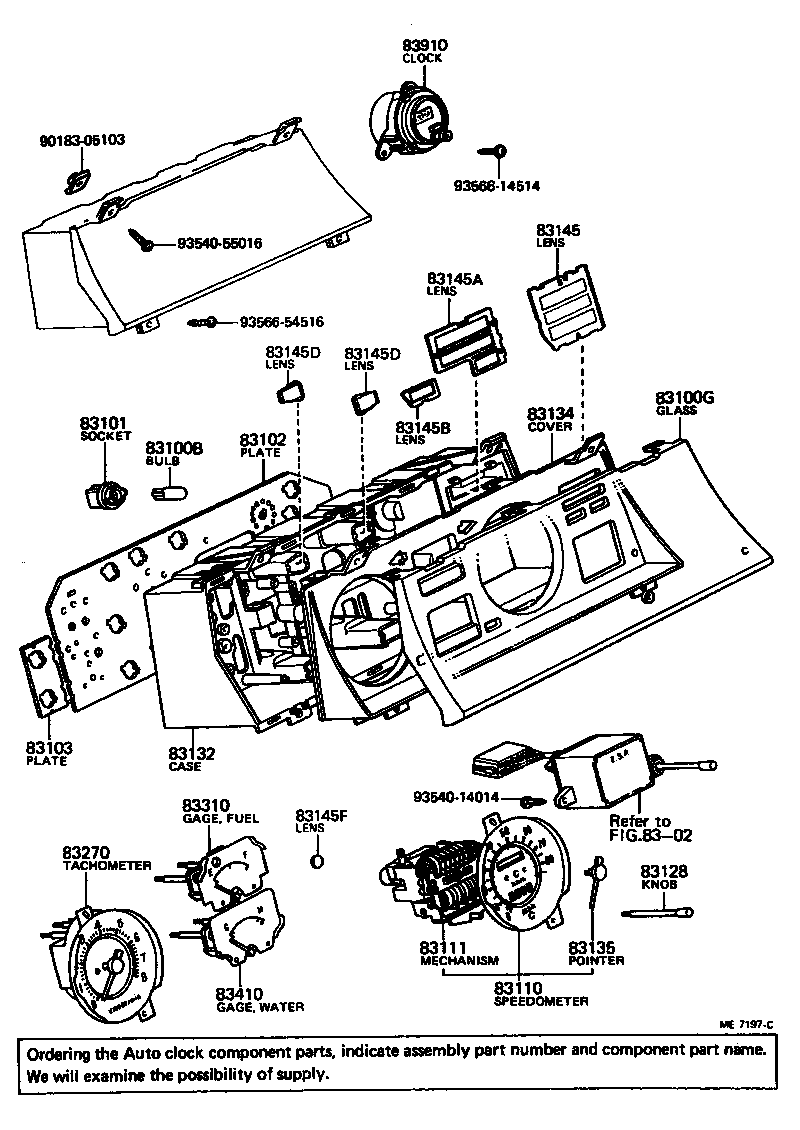

| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83103 | Plate Sub-assy, Combination Meter Circuit, NO.2 |
| 83110 | Speedometer Assy |
| 83111 | Mechanism, Speedometer |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83134 | Cover, Combination Meter, NO.1 |
| 83135 | Pointer, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145D | Lens, Meter, NO.5 |
| 83145F | Lens, Meter, NO.7 |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

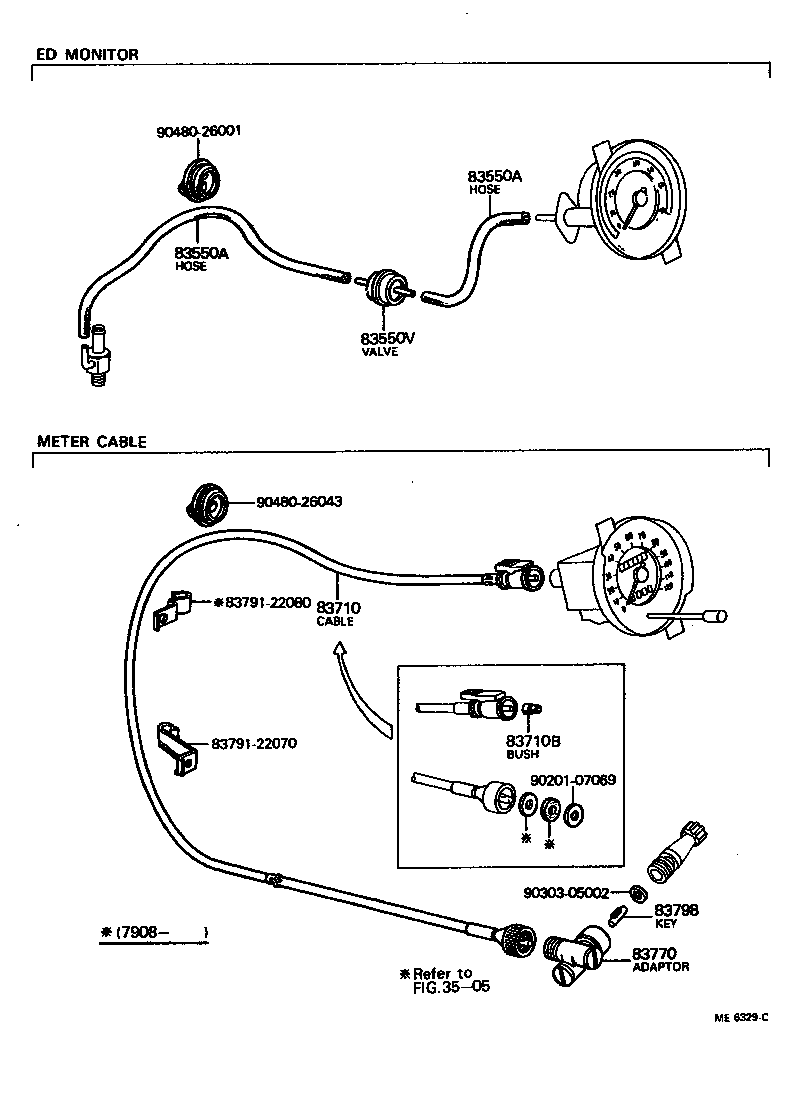

| 83550 | Gage Assy, ED Monitor |
| 83550A | Hose, ED Monitor Gage |
| 83550V | Valve, Vacuum Transmitting |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83710B | Bush, Speedometer Drive Cable |
| 83770 | Adapter Assy, Speedometer Cable |
| 83798 | Key, Speedometer Cable Adapter |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83919 | Screw, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
