Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

9 part groups · 3 illustrations

Illustrations

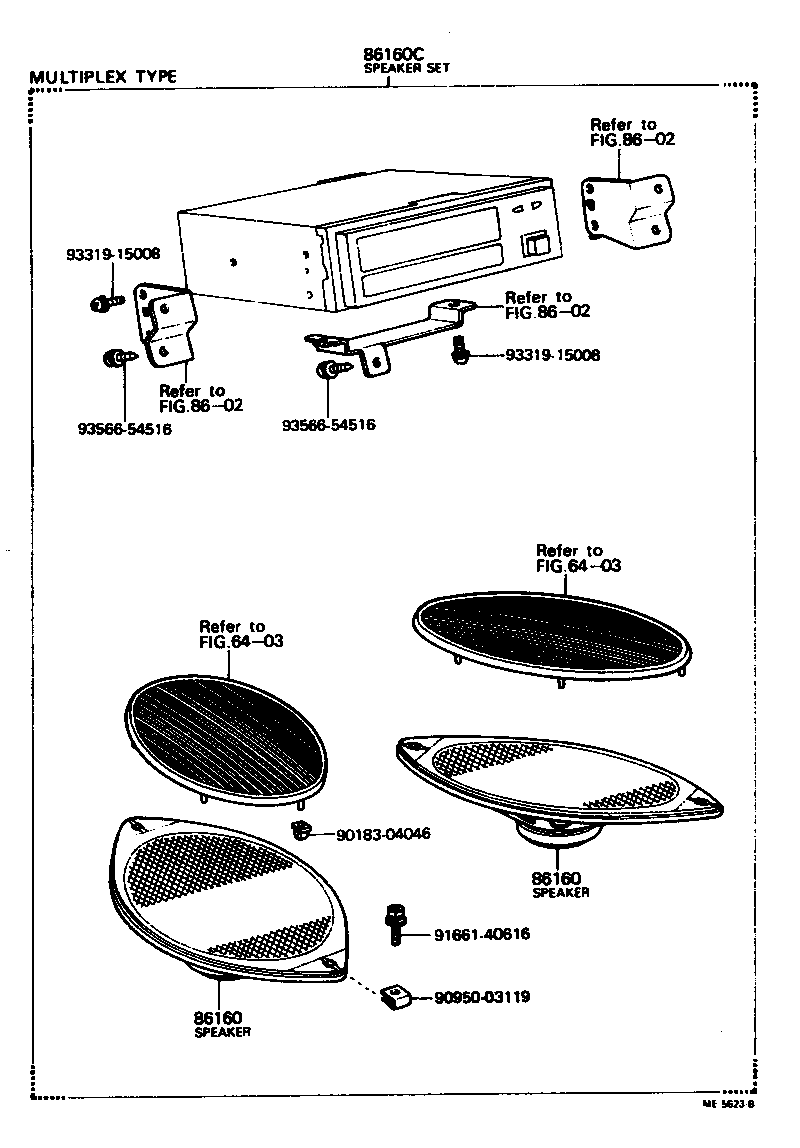

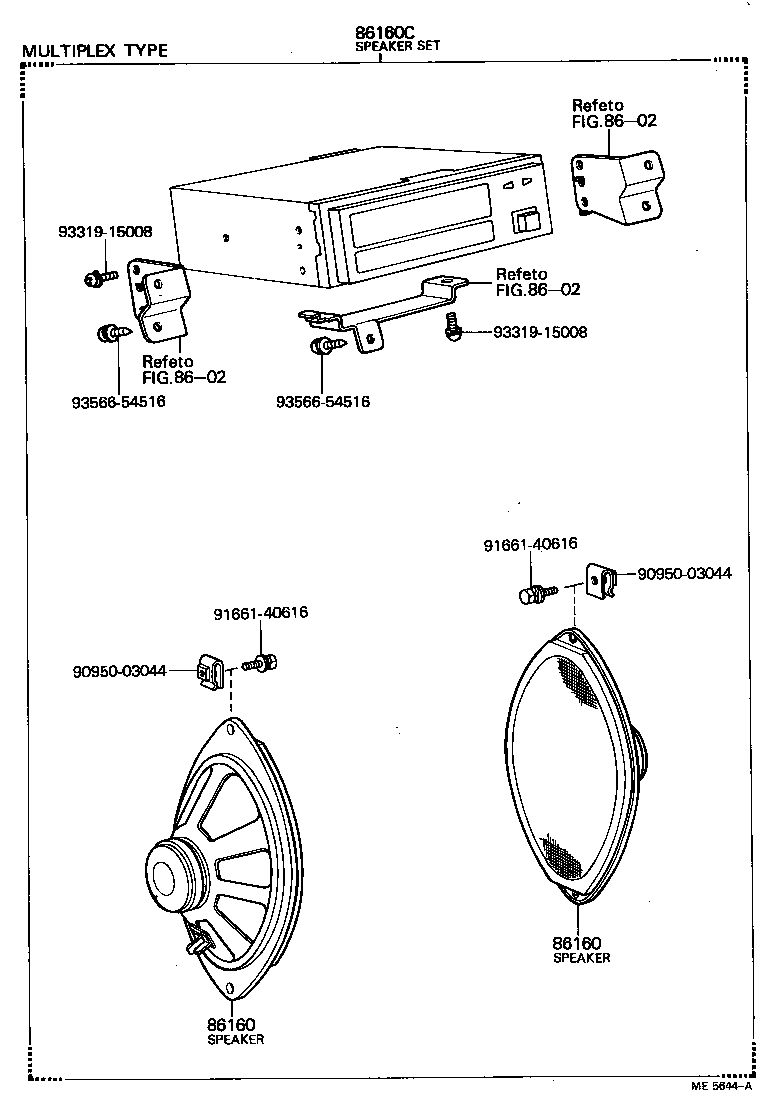

Figure ME6557B ME6557B 1977-08 → 1980-08 Figure ME5623B ME5623B 1977-08 → 1980-08 Figure ME5644A ME5644A 1977-08 → 1980-08

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86012 Parts Set, Radio Setting
86100 Radio Assy
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86160 Speaker Assy, Front NO.1
86160C Speaker Set, Rear
86211 Bracket, Radio, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
