Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

21 part groups · 2 illustrations

Illustrations

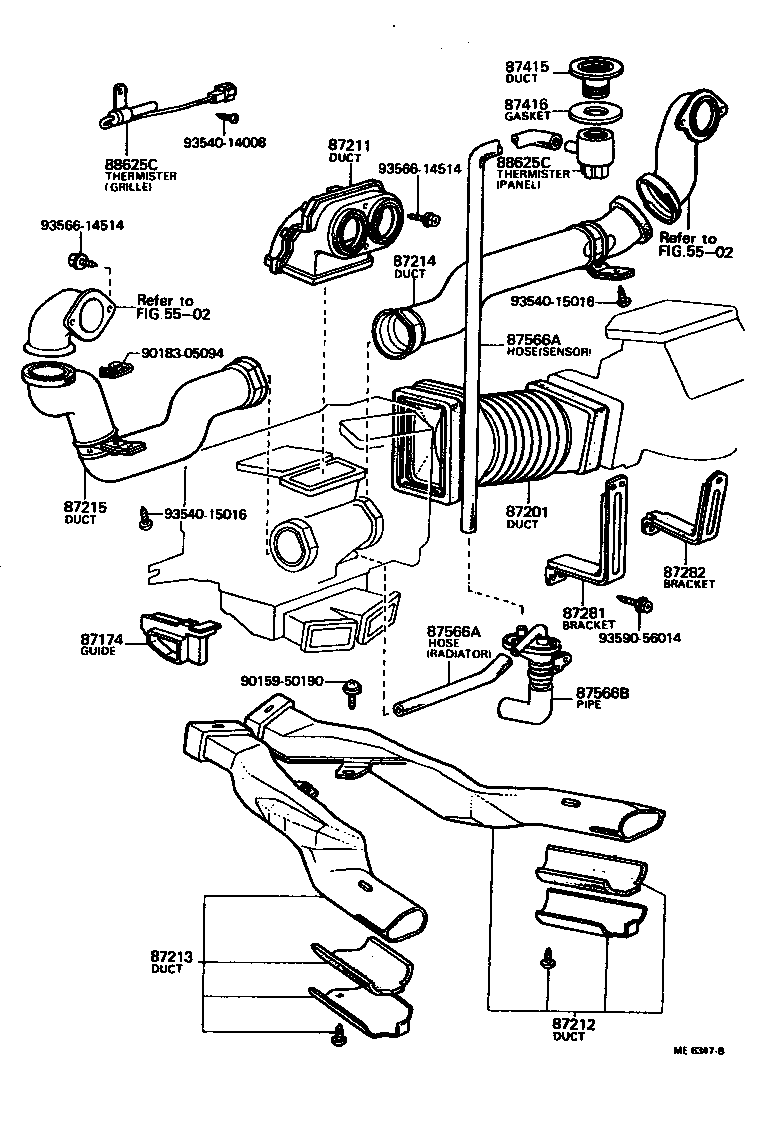

Figure ME6346A ME6346A 1977-08 → 1980-08 Figure ME6347B ME6347B 1977-08 → 1980-08

Part groups

PNCDescription
55903 Lever Sub-assy, Heater Control
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55937 Knob, Heater Control Lever
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87281 Bracket, Air Duct
87282 Bracket, Air Duct
87284 Resistor Sub-assy, Variable
87415 Duct, Air
87416 Gasket, Air Duct
87566A Hose, Air Duct
87566B Pipe, Air Duct
88625C Thermistor, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
