Toyota Cressida

1977-08 → 1980-08 · chassis MX3# · catalogue 311430 · United States

Discontinued model Data version 1985-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

11 part groups · 2 illustrations

Illustrations

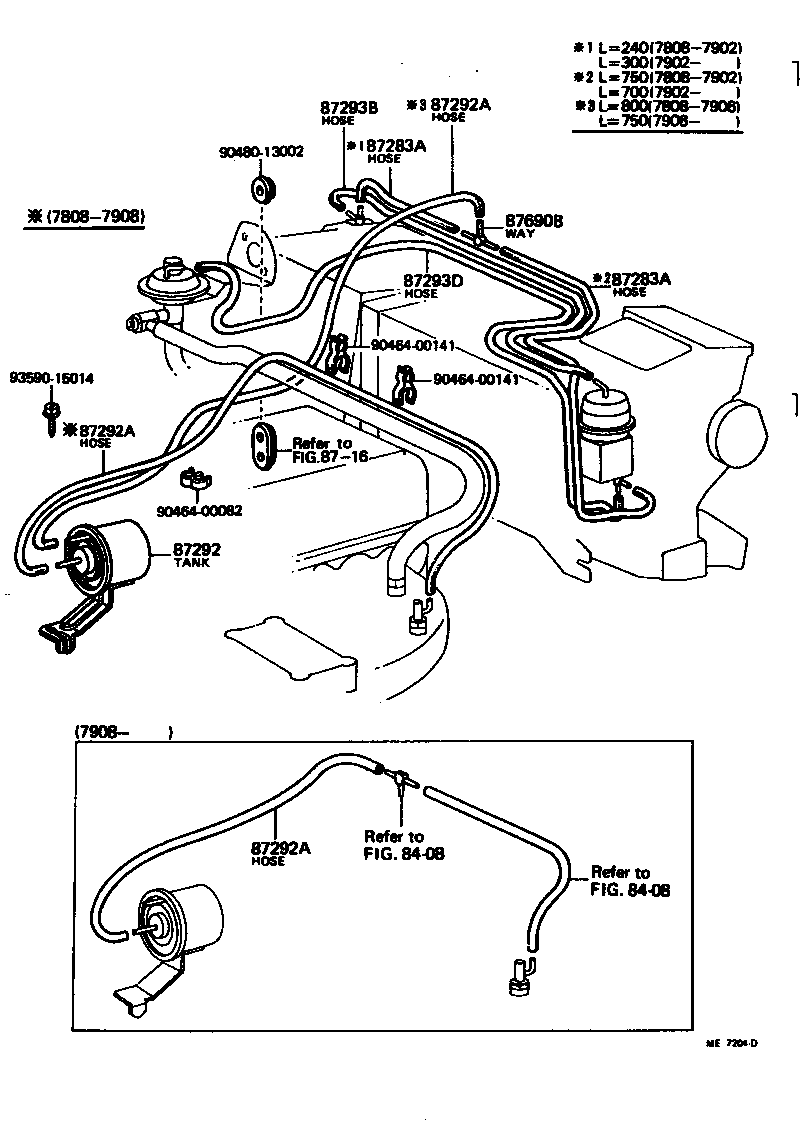

Figure ME6349B ME6349B 1977-08 → 1980-08 Figure ME7204D ME7204D 1978-08 → 1980-08

Part groups

PNCDescription
87283A Hose, NO.1
87292 Tank, Vacuum
87292A Hose, Vacuum Tank
87293B Hose, NO.2
87293D Hose, Heater Vacuum Switch
87690B Way, 3
88031A Diaphragm Sub-assy, Idle-up Actuator
88603 Wire, Idle UP Device
88645D Hose (FOR IDLE UP DEVICE)
88683A Hose (ENGINE TO MAGNET VALVE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
