Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03

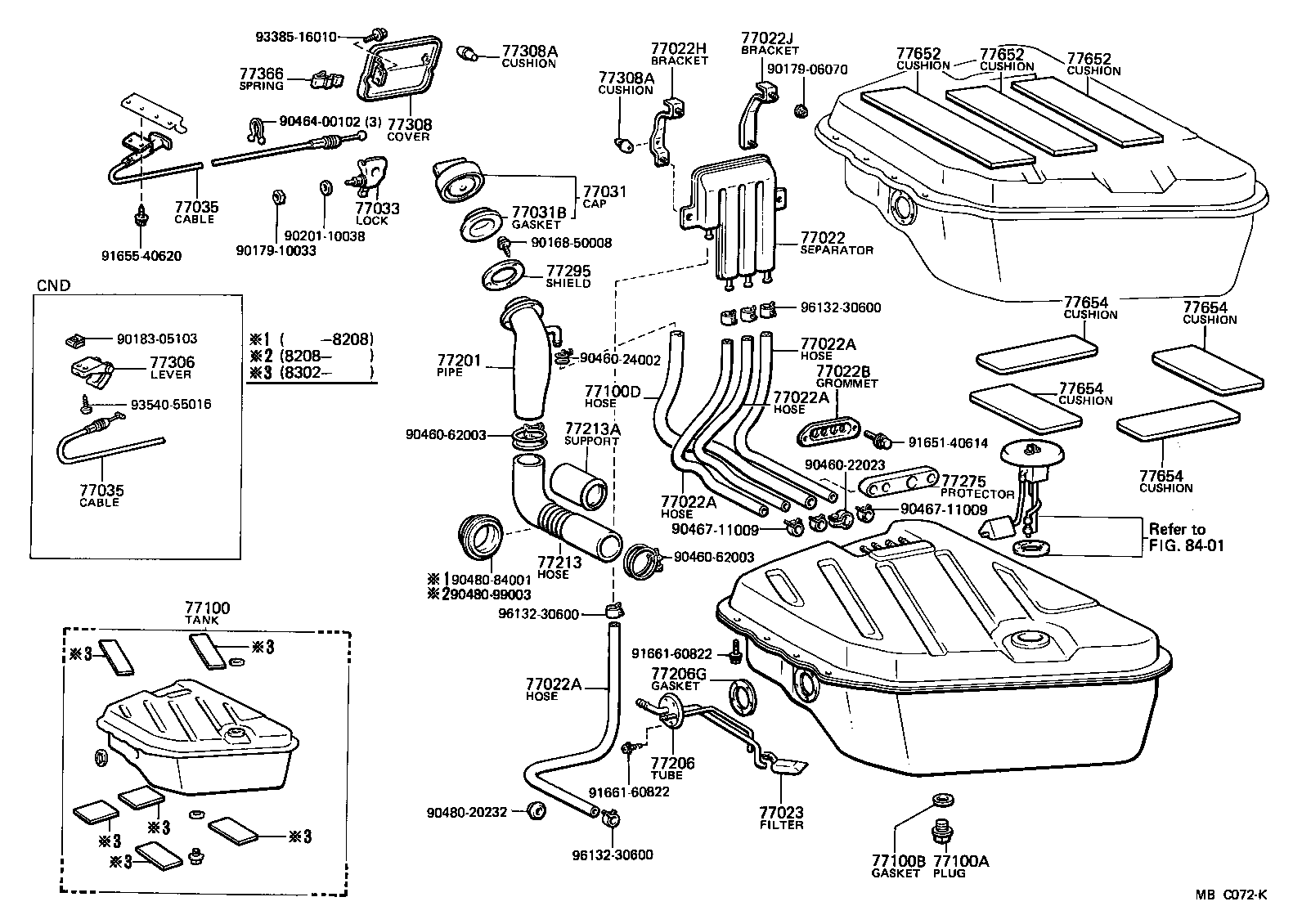

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77022 — Separator Sub-assy, Fuel Evaporative | ||||
| 77271-13010 |
Separator Sub-assy, Fuel Evaporative
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77022A — Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 95332-06060 note |
Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 95332-06100 note |
Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1980-09 → 1984-05
ended
|
MX62 WG | — | |
| 95332-06100 note |
Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1984-05 → 1984-07
ended
|
MX62 | — | |
| 77022B — Grommet(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) | ||||
| 77290-91600 |
Grommet(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE)
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77022H — Bracket, Fuel Vapor Liquid Separator, Front | ||||
| 65103-91601 |
Bracket, Fuel Vapor Liquid Separator, Front
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77022J — Bracket, Fuel Vapor Liquid Separator, Rear | ||||
| 65105-91601 |
Bracket, Fuel Vapor Liquid Separator, Rear
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77023 — Filter Sub-assy, Fuel Suction Tube | ||||
| 77023-30010 |
Filter Sub-assy, Fuel Suction Tube
1980-09 → 1984-07
ended
|
MX6# | — | |
| 77031 — Cap Assy, Fuel Tank | ||||
| 77310-12090 |
Cap Assy, Fuel Tank
1980-09 → 1981-08
ended
|
MX62 | — | |
| 77310-12100 |
Cap Assy, Fuel Tank
1981-08 → 1982-08
ended
|
MX62 | — | |
| 77310-16010 |
Cap Assy, Fuel Tank
1982-08 → 1984-07
ended
|
MX6# | — | |
| 77031B — Gasket (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
Gasket (FOR FUEL TANK CAP)
1980-09 → 1982-08
ended
|
MX62 | — | |
| 77316-16010 |
Gasket (FOR FUEL TANK CAP)
1982-08 → 1984-07
ended
|
MX6# | — | |
| 77033 — Lock Sub-assy, Fuel Tank Cap | ||||
| 77037-12010 |
Lock Sub-assy, Fuel Tank Cap
1980-09 → 1984-07
ended
|
MX6# | — | |
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77030-22010 |
Cable Sub-assy, Fuel Lid Lock Control
1980-09 → 1980-12
ended
|
MX62 SED USA | — | |
| 77030-22011 |
Cable Sub-assy, Fuel Lid Lock Control
1980-12 → 1984-07
ended
|
MX6# SED USA | — | |
| 77030-91601 |
Cable Sub-assy, Fuel Lid Lock Control
1980-09 → 1981-03
ended
|
MX62 WG | — | |
| 77030-91602 |
Cable Sub-assy, Fuel Lid Lock Control
1981-03 → 1984-07
ended
|
MX62 WG USA | — | |
| 77035-22080 |
Cable Sub-assy, Fuel Lid Lock Control
1980-09 → 1984-07
ended
|
MX6# SED CND | — | |
| 77035-91603 |
Cable Sub-assy, Fuel Lid Lock Control
1981-08 → 1984-07
ended
|
MX62 WG CND | — | |
| 77100 — Tank Assy, Fuel | ||||
| 77001-29015 |
Tank Assy, Fuel
1980-09 → 1983-04
ended
|
MX6# SED | — | |
| 77001-29035 |
Tank Assy, Fuel
1980-09 → 1982-08
ended
|
MX62 WG | — | |
| 77001-29075 |
Tank Assy, Fuel
1982-08 → 1983-02
ended
|
MX62 | — | |
| 77001-29076 |
Tank Assy, Fuel
1983-02 → 1984-07
ended
|
MX62 | — | |
| 77001-29085 |
Tank Assy, Fuel
1983-04 → 1984-07
ended
|
MX63 | — | |
| 77100A — Plug(FOR FUEL TANK) | ||||
| 90105-12018 |
Plug(FOR FUEL TANK)
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 90341-20003 |
Plug(FOR FUEL TANK)
1983-04 → 1984-07
ended
|
MX63 | — | |
| 90341-24036 |
Plug(FOR FUEL TANK)
1980-09 → 1983-04
ended
|
MX6# SED | — | |
| 77100B — Gasket(FOR FUEL TANK) | ||||
| 90430-12245 |
Gasket(FOR FUEL TANK)
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 90430-20006 |
Gasket(FOR FUEL TANK)
1983-04 → 1984-07
ended
|
MX63 | — | |
| 90430-24047 |
Gasket(FOR FUEL TANK)
1980-09 → 1983-04
ended
|
MX6# SED | — | |
| 77100D — Hose, Fuel, NO.1(FOR FUEL TANK) | ||||
| 90445-22009 |
Hose, Fuel, NO.1(FOR FUEL TANK)
1980-09 → 1984-07
ended
|
MX6# SED | — | |
| 90445-22018 |
Hose, Fuel, NO.1(FOR FUEL TANK)
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77201 — Pipe Sub-assy, Fuel Tank Inlet | ||||
| 77201-22110 |
Pipe Sub-assy, Fuel Tank Inlet
1980-09 → 1982-03
ended
|
MX62 SED | — | |
| 77201-22111 |
Pipe Sub-assy, Fuel Tank Inlet
1982-03 → 1982-08
ended
|
MX62 SED | — | |
| 77201-22140 |
Pipe Sub-assy, Fuel Tank Inlet
1982-08 → 1984-07
ended
|
MX63 | — | |
| 77201-91259 |
Pipe Sub-assy, Fuel Tank Inlet
1980-09 → 1982-08
ended
|
MX62 WG | — | |
| 77201-91617 |
Pipe Sub-assy, Fuel Tank Inlet
1982-08 → 1984-07
ended
|
MX62 | — | |
| 77206 — Tube Sub-assy, Fuel Tank Suction | ||||
| 77017-22060 note |
Tube Sub-assy, Fuel Tank Suction
1982-08 → 1984-07
ended
|
MX63 USA | — | |
| 77017-22070 |
Tube Sub-assy, Fuel Tank Suction
1980-09 → 1984-07
ended
|
MX6# SED | — | |
| 77017-91607 |
Tube Sub-assy, Fuel Tank Suction
1980-09 → 1982-08
ended
|
MX62 WG | — | |
| 77017-91616 |
Tube Sub-assy, Fuel Tank Suction
1982-08 → 1984-07
ended
|
MX62 | — | |
| 77206G — Gasket (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
Gasket (FOR FUEL TANK SUCTION TUBE)
1980-09 → 1984-07
ended
|
MX6# SED | — | |
| 83361-20030 |
Gasket (FOR FUEL TANK SUCTION TUBE)
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77213 — Hose, Fuel Tank Sub Inlet | ||||
| 77213-91607 |
Hose, Fuel Tank Sub Inlet
1980-09 → 1982-08
ended
|
MX62 WG | — | |
| 77213-91608 |
Hose, Fuel Tank Sub Inlet
1982-08 → 1983-09
ended
|
MX62 | — | |
| 77213-91609 |
Hose, Fuel Tank Sub Inlet
1983-09 → 1984-07
ended
|
MX62 | — | |
| 77408-22010 |
Hose, Fuel Tank Sub Inlet
1980-09 → 1982-08
ended
|
MX62 SED | — | |
| 77408-22020 |
Hose, Fuel Tank Sub Inlet
1982-08 → 1984-07
ended
|
MX63 | — | |
| 77213A — Support, Fuel Tank Filler Pipe | ||||
| 77219-91609 |
Support, Fuel Tank Filler Pipe
1982-08 → 1983-09
ended
|
MX62 | — | |
| 77219-91610 |
Support, Fuel Tank Filler Pipe
1983-09 → 1984-07
ended
|
MX62 | — | |
| 77275 — Protector, Fuel Evaporative Separator | ||||
| 77276-91602 |
Protector, Fuel Evaporative Separator
1982-10 → 1984-07
ended
|
MX62 | — | |
| 77295 — Shield, Fuel Filler Pipe | ||||
| 77291-12010 |
Shield, Fuel Filler Pipe
1980-09 → 1982-08
ended
|
MX62 WG | — | |
| 77291-22010 note |
Shield, Fuel Filler Pipe
1980-09 → 1982-03
ended
|
MX62 SED | — | |
| 77291-22030 note |
Shield, Fuel Filler Pipe
1982-03 → 1984-07
ended
|
MX6# SED | — | |
| 77291-22030 |
Shield, Fuel Filler Pipe
1982-08 → 1984-07
ended
|
MX62 | — | |
| 77292-22050 note |
Shield, Fuel Filler Pipe
1980-09 → 1984-07
ended
|
MX6# SED | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77051-22010-01 note |
Lever Sub-assy, Fuel Lid Lock Open
1980-09 → 1981-08
ended
|
MX62 CND | — | |
| 77051-22010-01 note |
Lever Sub-assy, Fuel Lid Lock Open
1981-08 → 1982-08
ended
|
MX62 CND | — | |
| 77051-22010-02 note |
Lever Sub-assy, Fuel Lid Lock Open
1982-08 → 1984-07
ended
|
MX6# CND | — | |
| 77051-22010-04 note |
Lever Sub-assy, Fuel Lid Lock Open
1980-09 → 1981-08
ended
|
MX62 CND | — | |
| 77051-22010-04 note |
Lever Sub-assy, Fuel Lid Lock Open
1981-08 → 1982-08
ended
|
MX62 CND | — | |
| 77051-22010-06 note |
Lever Sub-assy, Fuel Lid Lock Open
1980-09 → 1981-08
ended
|
MX62 CND | — | |
| 77051-22010-06 note |
Lever Sub-assy, Fuel Lid Lock Open
1981-08 → 1984-07
ended
|
MX6# CND | — | |
| 77051-22010-14 note |
Lever Sub-assy, Fuel Lid Lock Open
1982-08 → 1984-07
ended
|
MX6# CND | — | |
| 77308 — Cover Sub-assy, Fuel Inlet Box | ||||
| 77350-22030 |
Cover Sub-assy, Fuel Inlet Box
1980-09 → 1984-07
ended
|
MX6# SED | — | |
| 77350-91602 |
Cover Sub-assy, Fuel Inlet Box
1980-09 → 1984-07
ended
|
MX62 WG | — | |
| 77308A — Cushion(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
Cushion(FOR FUEL INLET BOX COVER)
1980-09 → 1984-07
ended
|
MX6# | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-12010 |
Spring, Fuel Filler Opening Lid Hinge
1980-09 → 1984-07
ended
|
MX6# | — | |
| 77652 — Cushion, Fuel Tank, NO.1 | ||||
| 77651-91601 note |
Cushion, Fuel Tank, NO.1
1980-09 → 1981-02
ended
|
MX62 WG | — | |
| 77651-91602 note |
Cushion, Fuel Tank, NO.1
1981-02 → 1981-11
ended
|
MX62 WG | — | |
| 77651-91603 note |
Cushion, Fuel Tank, NO.1
1981-11 → 1984-07
ended
|
MX62 WG | — | |
| 77653-91601 note |
Cushion, Fuel Tank, NO.1
1980-09 → 1981-02
ended
|
MX62 WG | — | |
| 77653-91602 note |
Cushion, Fuel Tank, NO.1
1981-02 → 1981-11
ended
|
MX62 WG | — | |
| 77654 — Cushion, Fuel Tank, NO.2 | ||||
| 77652-91601 note |
Cushion, Fuel Tank, NO.2
1980-09 → 1981-02
ended
|
MX62 WG | — | |
| 77652-91602 note |
Cushion, Fuel Tank, NO.2
1981-02 → 1981-12
ended
|
MX62 WG | — | |
| 77652-91603 note |
Cushion, Fuel Tank, NO.2
1981-12 → 1984-07
ended
|
MX62 WG | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
