Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

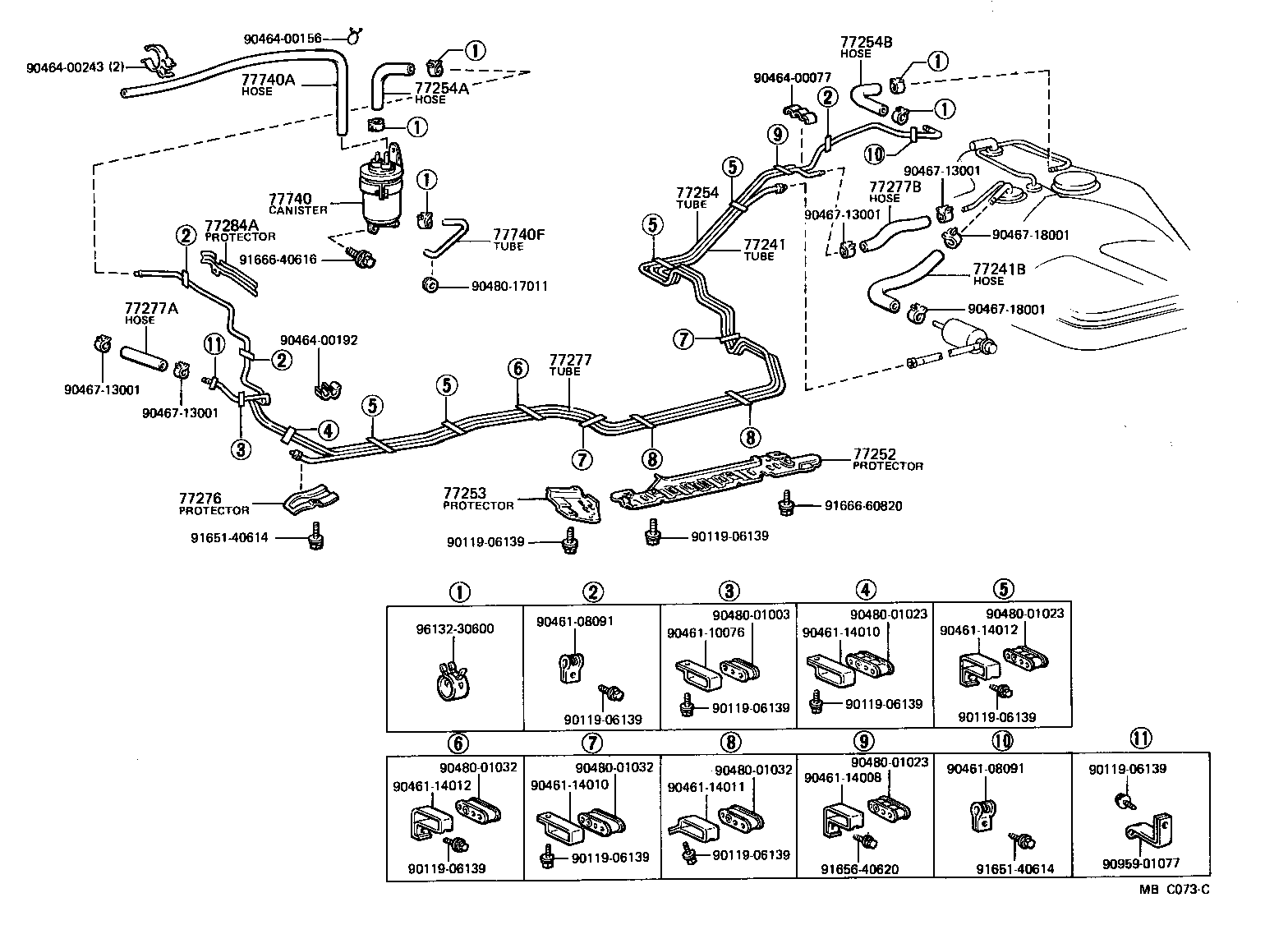

Exploded illustration MBC073C 9046400156 — not listed in this catalogue 77254B — HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) (1 parts) 9046400243 — not listed in this catalogue 9046400077 — not listed in this catalogue 77740A — HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) (2 parts) 77254A — HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) (1 parts) 9046713001 — not listed in this catalogue 77277B — HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) (3 parts) 77254 — TUBE, FUEL EMISSION, NO.1 (2 parts) 77740 — CANISTER ASSY, CHARCOAL (2 parts) 9046713001 — not listed in this catalogue 77284A — PROTECTOR, FUEL TUBE, NO.3 (1 parts) 77740F — TUBE, FUEL, NO.1(FOR CHARCOAL CANISTER) (1 parts) 9046718001 — not listed in this catalogue 77241 — TUBE, FUEL MAIN, NO.1 (2 parts) 9166640616 — not listed in this catalogue 77241B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) (2 parts) 9048017011 — not listed in this catalogue 77277A — HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) (2 parts) 9046718001 — not listed in this catalogue 9046400192 — not listed in this catalogue 77277 — TUBE, FUEL RETURN, NO.1 (4 parts) 9046713001 — not listed in this catalogue 9046713001 — not listed in this catalogue 77252 — PROTECTOR, FUEL TUBE (1 parts) 77253 — PROTECTOR, FUEL TUBE, NO.2 (1 parts) 77276 — PROTECTOR, FUEL HOSE (1 parts) 9166660820 — not listed in this catalogue 9011906139 — not listed in this catalogue 9165140614 — not listed in this catalogue 9011906139 — not listed in this catalogue 9048001023 — not listed in this catalogue 9048001023 — not listed in this catalogue 9048001003 — not listed in this catalogue 9046108091 — not listed in this catalogue 9613230600 — not listed in this catalogue 9046114012 — not listed in this catalogue 9046114010 — not listed in this catalogue 9046110076 — not listed in this catalogue 9011906139 — not listed in this catalogue 9011906139 — not listed in this catalogue 9011906139 — not listed in this catalogue 9011906139 — not listed in this catalogue 9048001023 — not listed in this catalogue 9048001032 — not listed in this catalogue 9048001032 — not listed in this catalogue 9046108091 — not listed in this catalogue 9011906139 — not listed in this catalogue 9048001032 — not listed in this catalogue 9046114008 — not listed in this catalogue 9046114010 — not listed in this catalogue 9046114012 — not listed in this catalogue 9046114011 — not listed in this catalogue 9011906139 — not listed in this catalogue 9011906139 — not listed in this catalogue 9095901077 — not listed in this catalogue 9011906139 — not listed in this catalogue 9165640620 — not listed in this catalogue 9165140614 — not listed in this catalogue
MBC073C · 15 callouts, 44 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
77241 — Tube, Fuel Main, NO.1
77251-22250 Tube, Fuel Main, NO.1
1980-09 → 1984-07 ended
MX6# SED —
77251-91623 Tube, Fuel Main, NO.1
1980-09 → 1984-07 ended
MX62 WG —
77241B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77259-22030 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1980-09 → 1984-07 ended
MX6# SED —
77260-91601 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
1980-09 → 1984-07 ended
MX62 WG —
77252 — Protector, Fuel Tube
77266-22020 Protector, Fuel Tube
1980-09 → 1984-07 ended
MX6# —
77253 — Protector, Fuel Tube, NO.2
77267-22010 Protector, Fuel Tube, NO.2
1980-09 → 1984-07 ended
MX6# —
77254 — Tube, Fuel Emission, NO.1
77261-22060 Tube, Fuel Emission, NO.1
1980-09 → 1984-07 ended
MX6# SED —
77261-91608 Tube, Fuel Emission, NO.1
1980-09 → 1984-07 ended
MX62 WG —
77254A — Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1)
1980-09 → 1984-07 ended
MX6# —
77254B — Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1)
1980-09 → 1984-07 ended
MX6# SED —
77276 — Protector, Fuel Hose
77276-22010 Protector, Fuel Hose
1980-09 → 1984-07 ended
MX6# —
77277 — Tube, Fuel Return, NO.1
77255-22140 Tube, Fuel Return, NO.1
1980-09 → 1982-08 ended
MX62 SED —
77255-22170 Tube, Fuel Return, NO.1
1982-08 → 1984-07 ended
MX63 —
77255-91609 Tube, Fuel Return, NO.1
1980-09 → 1982-08 ended
MX62 WG —
77255-91613 Tube, Fuel Return, NO.1
1982-08 → 1984-07 ended
MX62 —
77277A — Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
23271-43040 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1982-08 → 1984-07 ended
MX6# —
95335-08034 note Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
1980-09 → 1982-08 ended
MX62 —
77277B — Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
95335-08012 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1980-09 → 1982-08 ended
MX62 WG —
95335-08015 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1982-08 → 1984-07 ended
MX62 —
95335-08022 note Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
1980-09 → 1984-07 ended
MX6# SED —
77284A — Protector, Fuel Tube, NO.3
77284-22010 Protector, Fuel Tube, NO.3
1982-08 → 1984-07 ended
MX6# —
77740 — Canister Assy, Charcoal
77740-22190 Canister Assy, Charcoal
1980-09 → 1982-08 ended
MX62 —
77740-22210 Canister Assy, Charcoal
1982-08 → 1984-07 ended
MX6# —
77740A — Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
95411-19995 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1980-09 → 1982-08 ended
MX62 —
95411-19995 note Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
1982-08 → 1984-07 ended
MX6# —
77740F — Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
77264-22010 Tube, Fuel, NO.1(FOR CHARCOAL CANISTER)
1980-09 → 1984-07 ended
MX6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
