Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

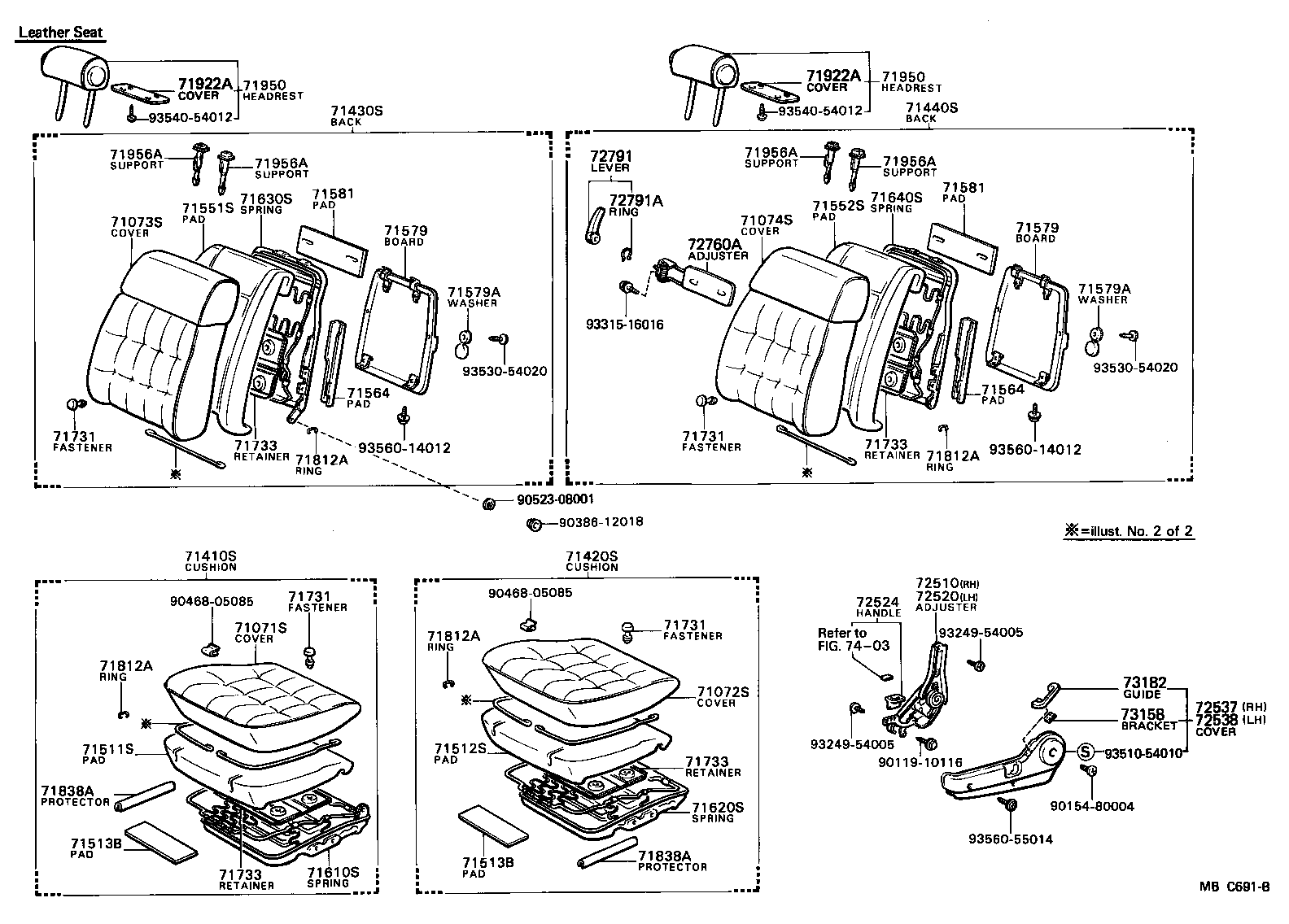

Exploded illustration MBC691B 71922A — COVER, FRONT SEAT HEADREST UNDER (4 parts) 71950 — HEADREST ASSY, FRONT SEAT (32 parts) 71922A — COVER, FRONT SEAT HEADREST UNDER (4 parts) 71950 — HEADREST ASSY, FRONT SEAT (32 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (10 parts) 71430S — BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (10 parts) 9354054012 — not listed in this catalogue 9354054012 — not listed in this catalogue 71956A — SUPPORT, FRONT SEAT HEADREST (8 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (8 parts) 72791 — LEVER, LUMBAR SUPPORT (5 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (8 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (8 parts) 71581 — PAD, FRONT SEATBACK SILENCER (1 parts) 71581 — PAD, FRONT SEATBACK SILENCER (1 parts) 71640S — SPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (1 parts) 71630S — SPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (1 parts) 72791A — RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) (1 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (2 parts) 71551S — PAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (2 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (18 parts) 71073S — COVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE) (18 parts) 71579 — BOARD, FRONT SEATBACK (12 parts) 71579 — BOARD, FRONT SEATBACK (12 parts) 72760A — ADJUSTER ASSY, LUMBAR SUPPORT (2 parts) 71579A — WASHER, FRONT SEATBACK BOARD SETTING (5 parts) 71579A — WASHER, FRONT SEATBACK BOARD SETTING (5 parts) 9331516016 — not listed in this catalogue 9353054020 — not listed in this catalogue 9353054020 — not listed in this catalogue 71564 — PAD, FRONT SEATBACK, SIDE (4 parts) 71564 — PAD, FRONT SEATBACK, SIDE (4 parts) 71731 — FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) (4 parts) 71731 — FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) (4 parts) 71733 — RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) (1 parts) 71733 — RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) (1 parts) 9356014012 — not listed in this catalogue 9356014012 — not listed in this catalogue 71812A — RING, HOG, SMALL (FOR FRONT SEAT) (1 parts) 71812A — RING, HOG, SMALL (FOR FRONT SEAT) (1 parts) 9052308001 — not listed in this catalogue 9038612018 — not listed in this catalogue 71410S — CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) (7 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (7 parts) 72510 — ADJUSTER ASSY, RECLINING SEATBACK, RH (1 parts) 9046805085 — not listed in this catalogue 71731 — FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) (4 parts) 72520 — ADJUSTER ASSY, RECLINING SEATBACK, LH (1 parts) 9046805085 — not listed in this catalogue 72524 — HANDLE, RECLINING ADJUSTER RELEASE (10 parts) 71731 — FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) (4 parts) 71071S — COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (18 parts) 9324954005 — not listed in this catalogue 71812A — RING, HOG, SMALL (FOR FRONT SEAT) (1 parts) 7403 — not listed in this catalogue 71812A — RING, HOG, SMALL (FOR FRONT SEAT) (1 parts) 73182 — GUIDE, FRONT SEAT LAP BELT, OUTER (15 parts) 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (18 parts) 72537 — COVER, RECLINING HINGE OUTER, RH (5 parts) 73158 — BRACKET, SEAT BELT GUIDE SET (3 parts) 72538 — COVER, RECLINING HINGE OUTER, LH (13 parts) 9324954005 — not listed in this catalogue 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (2 parts) 71511S — PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (2 parts) 9351054010 — not listed in this catalogue 71733 — RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) (1 parts) 9011910116 — not listed in this catalogue 71838A — PROTECTOR, FRONT SEAT CUSHION EDGE (1 parts) 9015480004 — not listed in this catalogue 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (3 parts) 9356055014 — not listed in this catalogue 71513B — PAD, FRONT SEAT CUSHION, B (2 parts) 71838A — PROTECTOR, FRONT SEAT CUSHION EDGE (1 parts) 71513B — PAD, FRONT SEAT CUSHION, B (2 parts) 71610S — SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) (3 parts) 71733 — RETAINER, SEAT COVER FASTENER, A (FOR FRONT SEAT) (1 parts)
MBC691B · 58 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
253 parts on this figure
Part number Description Fitment Price
71071S — Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71071-22720-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71071-22720-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71071-22720-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71071-22721-03 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71071-22721-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71071-22721-05 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71071-22722-02 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71071-22722-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71071-22722-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71071-22740-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71071-22740-16 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1983-08 ended
MX63 USA —
71071-22741-02 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71071-22741-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71071-22742-02 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71071-22742-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71071-2A020-02 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71071-2A020-04 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71071-2A020-06 note Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-22420-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71072-22420-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71072-22420-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71072-22421-03 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71072-22421-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71072-22421-05 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71072-22422-02 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71072-22422-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71072-22422-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71072-22440-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71072-22440-16 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1983-08 ended
MX63 USA —
71072-22441-02 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71072-22441-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71072-22442-02 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71072-22442-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71072-22600-02 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71072-22600-04 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71072-22600-06 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71073S — Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71073-2A120-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71073-2A120-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71073-2A120-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71073-2A121-03 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71073-2A121-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71073-2A121-05 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71073-2A122-02 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71073-2A122-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71073-2A122-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71073-2A140-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71073-2A140-16 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1982-08 → 1983-08 ended
MX63 USA —
71073-2A141-02 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71073-2A141-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71073-2A142-02 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71073-2A142-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71073-2A340-02 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71073-2A340-04 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71073-2A340-06 note Cover, Front Seatback, RH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71073-2A120-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71073-2A120-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71073-2A120-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71073-2A121-03 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71073-2A121-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71073-2A121-05 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71073-2A122-02 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71073-2A122-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71073-2A122-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-06 ended
MX6# —
71073-2A140-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71073-2A140-16 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1982-08 → 1983-08 ended
MX63 USA —
71073-2A141-02 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71073-2A141-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1983-08 → 1984-04 ended
MX63 USA —
71073-2A142-02 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71073-2A142-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1984-04 → 1984-07 ended
MX63 USA —
71073-2A340-02 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71073-2A340-04 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71073-2A340-06 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
1983-06 → 1984-07 ended
MX6# —
71410S — Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410-22720-03 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71410-22720-04 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71410-22720-05 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71410-22830-06 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71410-22840-03 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71410-22840-04 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71410-22840-05 note Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-22480-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71420-22480-04 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71420-22480-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71420-22530-06 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71420-22540-03 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71420-22540-04 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71420-22540-05 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 —
71430S — Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71430-2A080-03 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71430-2A080-04 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71430-2A080-05 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71430-2A081-03 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-03 ended
MX62 —
71430-2A081-04 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-03 ended
MX62 —
71430-2A081-05 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-03 ended
MX62 —
71430-2A082-03 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1982-03 → 1982-08 ended
MX62 —
71430-2A082-04 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1982-03 → 1982-08 ended
MX62 —
71430-2A082-05 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1982-03 → 1982-08 ended
MX62 —
71430-2A250-06 note Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-22850-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71440-22850-04 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71440-22850-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1980-09 → 1981-08 ended
MX62 —
71440-22851-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1981-08 → 1982-03 ended
MX62 —
71440-22851-04 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1981-08 → 1982-03 ended
MX62 —
71440-22851-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1981-08 → 1982-03 ended
MX62 —
71440-22852-03 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1982-03 → 1982-08 ended
MX62 —
71440-22852-04 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1982-03 → 1982-08 ended
MX62 —
71440-22852-05 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1982-03 → 1982-08 ended
MX62 —
71440-2A130-06 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
1981-08 → 1982-08 ended
MX62 SED USA —
71511S — Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71511-22210 Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-09 → 1984-07 ended
MX6# —
71511-22270 note Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-08 → 1984-07 ended
MX6# SED USA —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71511-22210 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1980-09 → 1984-07 ended
MX6# —
71511-22270 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
1981-08 → 1984-07 ended
MX6# SED USA —
71513B — Pad, Front Seat Cushion, B
71522-22090 note Pad, Front Seat Cushion, B
1980-09 → 1984-07 ended
MX6# —
71522-22100 note Pad, Front Seat Cushion, B
1980-09 → 1984-07 ended
MX6# —
71551S — Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71551-22180 Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1980-09 → 1984-07 ended
MX6# —
71551-22250 note Pad, Front Seatback, RH(FOR SEPARATE TYPE)
1981-08 → 1984-07 ended
MX6# SED USA —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71551-22180 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1980-09 → 1984-07 ended
MX6# —
71551-22250 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
1981-08 → 1984-07 ended
MX6# SED USA —
71564 — Pad, Front Seatback, Side
71563-22050 note Pad, Front Seatback, Side
1980-09 → 1980-11 ended
MX62 —
71563-22080 note Pad, Front Seatback, Side
1980-11 → 1984-07 ended
MX6# —
71564-22060 note Pad, Front Seatback, Side
1980-09 → 1980-11 ended
MX62 —
71564-22090 note Pad, Front Seatback, Side
1980-11 → 1984-07 ended
MX6# —
71579 — Board, Front Seatback
71705-20050-01 note Board, Front Seatback
1982-03 → 1982-08 ended
MX62 —
71705-20050-04 note Board, Front Seatback
1982-03 → 1982-08 ended
MX62 —
71705-20050-16 note Board, Front Seatback
1982-03 → 1982-08 ended
MX62 —
71705-22010-01 note Board, Front Seatback
1980-09 → 1982-03 ended
MX62 —
71705-22010-04 note Board, Front Seatback
1980-09 → 1982-03 ended
MX62 —
71705-22010-06 note Board, Front Seatback
1980-09 → 1982-03 ended
MX62 —
71705-22060 note Board, Front Seatback
1981-08 → 1982-08 ended
MX62 SED USA —
71705-22061-02 note Board, Front Seatback
1982-08 → 1984-07 ended
MX63 USA —
71705-22061-06 note Board, Front Seatback
1982-08 → 1984-07 ended
MX63 USA —
71705-22080-02 note Board, Front Seatback
1982-08 → 1984-07 ended
MX6# —
71705-22080-04 note Board, Front Seatback
1982-08 → 1984-07 ended
MX6# —
71705-22080-06 note Board, Front Seatback
1982-08 → 1984-07 ended
MX6# —
71579A — Washer, Front Seatback Board Setting
71788-22010-01 note Washer, Front Seatback Board Setting
1980-09 → 1982-08 ended
MX62 —
71788-22010-04 note Washer, Front Seatback Board Setting
1980-09 → 1982-08 ended
MX62 —
71788-22010-06 note Washer, Front Seatback Board Setting
1980-09 → 1984-07 ended
MX6# —
71788-22010-22 note Washer, Front Seatback Board Setting
1982-08 → 1984-07 ended
MX6# —
71788-22010-24 note Washer, Front Seatback Board Setting
1982-08 → 1984-07 ended
MX6# —
71581 — Pad, Front Seatback Silencer
71571-22150 Pad, Front Seatback Silencer
1980-09 → 1984-07 ended
MX6# —
71610S — Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71610-20250 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1981-02 → 1982-08 ended
MX62 —
71610-20251 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1982-08 → 1984-07 ended
MX6# —
71610-22170 Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
1980-09 → 1981-02 ended
MX62 —
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71620-20110 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1981-02 → 1982-08 ended
MX62 —
71620-20111 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1982-08 → 1984-07 ended
MX6# —
71620-22080 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
1980-09 → 1981-02 ended
MX62 —
71630S — Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71630-22210 Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
1980-09 → 1984-07 ended
MX6# —
71640S — Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71640-22170 Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
1980-09 → 1984-07 ended
MX6# —
71731 — Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71731-22020-02 note Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
1983-08 → 1984-07 ended
MX63 USA —
71731-22020-06 note Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
1981-08 → 1982-08 ended
MX62 SED USA —
71731-22020-16 note Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
1982-08 → 1983-08 ended
MX63 USA —
71731-22020-26 note Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
1983-08 → 1984-07 ended
MX63 USA —
71733 — Retainer, Seat Cover Fastener, A (FOR FRONT SEAT)
71701-22060 note Retainer, Seat Cover Fastener, A (FOR FRONT SEAT)
1981-08 → 1984-07 ended
MX6# SED USA —
71812A — Ring, Hog, Small (FOR FRONT SEAT)
90468-18071 Ring, Hog, Small (FOR FRONT SEAT)
1980-09 → 1984-07 ended
MX6# —
71838A — Protector, Front Seat Cushion Edge
71838-22011 Protector, Front Seat Cushion Edge
1980-09 → 1984-07 ended
MX6# —
71922A — Cover, Front Seat Headrest Under
71922-22020-01 note Cover, Front Seat Headrest Under
1980-09 → 1982-08 ended
MX62 —
71922-22020-02 note Cover, Front Seat Headrest Under
1982-08 → 1984-07 ended
MX6# —
71922-22020-04 note Cover, Front Seat Headrest Under
1980-09 → 1984-07 ended
MX6# —
71922-22020-06 note Cover, Front Seat Headrest Under
1980-09 → 1984-07 ended
MX6# —
71950 — Headrest Assy, Front Seat
71910-22340-03 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 —
71910-22340-04 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 —
71910-22340-05 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 —
71910-22350-03 note Headrest Assy, Front Seat
1980-09 → 1981-08 ended
MX62 —
71910-22350-04 note Headrest Assy, Front Seat
1980-09 → 1981-08 ended
MX62 —
71910-22350-05 note Headrest Assy, Front Seat
1980-09 → 1981-08 ended
MX62 —
71910-22380-06 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 SED USA —
71910-22380-16 note Headrest Assy, Front Seat
1982-08 → 1983-08 ended
MX63 USA —
71910-22381-02 note Headrest Assy, Front Seat
1983-08 → 1984-07 ended
MX63 USA —
71910-22381-06 note Headrest Assy, Front Seat
1983-08 → 1984-07 ended
MX63 USA —
71910-22450-02 note Headrest Assy, Front Seat
1982-08 → 1983-06 ended
MX6# —
71910-22450-04 note Headrest Assy, Front Seat
1982-08 → 1983-06 ended
MX6# —
71910-22450-06 note Headrest Assy, Front Seat
1982-08 → 1983-06 ended
MX6# —
71910-22451-02 note Headrest Assy, Front Seat
1983-06 → 1984-07 ended
MX6# —
71910-22451-04 note Headrest Assy, Front Seat
1983-06 → 1984-07 ended
MX6# —
71910-22451-06 note Headrest Assy, Front Seat
1983-06 → 1984-07 ended
MX6# —
71920-22130-03 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 —
71920-22130-04 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 —
71920-22130-05 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 —
71920-22140-03 note Headrest Assy, Front Seat
1980-09 → 1981-08 ended
MX62 —
71920-22140-04 note Headrest Assy, Front Seat
1980-09 → 1981-08 ended
MX62 —
71920-22140-05 note Headrest Assy, Front Seat
1980-09 → 1981-08 ended
MX62 —
71920-22150-06 note Headrest Assy, Front Seat
1981-08 → 1982-08 ended
MX62 SED USA —
71920-22150-16 note Headrest Assy, Front Seat
1982-08 → 1983-08 ended
MX63 USA —
71920-22151-02 note Headrest Assy, Front Seat
1983-08 → 1984-07 ended
MX63 USA —
71920-22151-06 note Headrest Assy, Front Seat
1983-08 → 1984-07 ended
MX63 USA —
71920-22170-02 note Headrest Assy, Front Seat
1982-08 → 1983-06 ended
MX6# —
71920-22170-04 note Headrest Assy, Front Seat
1982-08 → 1983-06 ended
MX6# —
71920-22170-06 note Headrest Assy, Front Seat
1982-08 → 1983-06 ended
MX6# —
71920-22171-02 note Headrest Assy, Front Seat
1983-06 → 1984-07 ended
MX6# —
71920-22171-04 note Headrest Assy, Front Seat
1983-06 → 1984-07 ended
MX6# —
71920-22171-06 note Headrest Assy, Front Seat
1983-06 → 1984-07 ended
MX6# —
71956A — Support, Front Seat Headrest
71930-10060-01 note Support, Front Seat Headrest
1980-09 → 1982-08 ended
MX62 —
71930-10060-02 note Support, Front Seat Headrest
1982-08 → 1984-07 ended
MX6# —
71930-10060-04 note Support, Front Seat Headrest
1980-09 → 1984-07 ended
MX6# —
71930-10060-16 note Support, Front Seat Headrest
1980-09 → 1984-07 ended
MX6# —
71931-10010-01 note Support, Front Seat Headrest
1980-09 → 1982-08 ended
MX62 —
71931-10010-02 note Support, Front Seat Headrest
1982-08 → 1984-07 ended
MX6# —
71931-10010-04 note Support, Front Seat Headrest
1980-09 → 1984-07 ended
MX6# —
71931-10010-16 note Support, Front Seat Headrest
1980-09 → 1984-07 ended
MX6# —
72510 — Adjuster Assy, Reclining Seatback, RH
72510-22080 Adjuster Assy, Reclining Seatback, RH
1980-09 → 1984-07 ended
MX6# —
72520 — Adjuster Assy, Reclining Seatback, LH
72520-22080 Adjuster Assy, Reclining Seatback, LH
1980-09 → 1984-07 ended
MX6# —
72524 — Handle, Reclining Adjuster Release
72525-20050-01 note Handle, Reclining Adjuster Release
1980-09 → 1982-08 ended
MX62 —
72525-20050-04 note Handle, Reclining Adjuster Release
1980-09 → 1982-08 ended
MX62 —
72525-20050-06 note Handle, Reclining Adjuster Release
1980-09 → 1984-07 ended
MX6# —
72525-20050-12 note Handle, Reclining Adjuster Release
1982-08 → 1984-07 ended
MX6# —
72525-20050-24 note Handle, Reclining Adjuster Release
1982-08 → 1984-07 ended
MX6# —
72526-20040-01 note Handle, Reclining Adjuster Release
1980-09 → 1982-08 ended
MX62 —
72526-20040-04 note Handle, Reclining Adjuster Release
1980-09 → 1982-08 ended
MX62 —
72526-20040-06 note Handle, Reclining Adjuster Release
1980-09 → 1984-07 ended
MX6# —
72526-20040-12 note Handle, Reclining Adjuster Release
1982-08 → 1984-07 ended
MX6# —
72526-20040-24 note Handle, Reclining Adjuster Release
1982-08 → 1984-07 ended
MX6# —
72537 — Cover, Reclining Hinge Outer, RH
71811-22070-01 note Cover, Reclining Hinge Outer, RH
1980-09 → 1982-08 ended
MX62 —
71811-22070-02 note Cover, Reclining Hinge Outer, RH
1982-08 → 1984-07 ended
MX6# —
71811-22070-04 note Cover, Reclining Hinge Outer, RH
1980-09 → 1982-08 ended
MX62 —
71811-22070-06 note Cover, Reclining Hinge Outer, RH
1980-09 → 1984-07 ended
MX6# —
71811-22070-14 note Cover, Reclining Hinge Outer, RH
1982-08 → 1984-07 ended
MX6# —
72538 — Cover, Reclining Hinge Outer, LH
71812-22030-01 note Cover, Reclining Hinge Outer, LH
1980-09 → 1982-08 ended
MX62 CND —
71812-22030-02 note Cover, Reclining Hinge Outer, LH
1982-08 → 1984-07 ended
MX6# CND —
71812-22030-04 note Cover, Reclining Hinge Outer, LH
1980-09 → 1982-08 ended
MX62 CND —
71812-22030-06 note Cover, Reclining Hinge Outer, LH
1980-09 → 1984-07 ended
MX6# CND —
71812-22030-14 note Cover, Reclining Hinge Outer, LH
1982-08 → 1984-07 ended
MX6# CND —
71812-22070-01 note Cover, Reclining Hinge Outer, LH
1980-09 → 1981-08 ended
MX62 USA —
71812-22070-04 note Cover, Reclining Hinge Outer, LH
1980-09 → 1981-08 ended
MX62 USA —
71812-22070-06 note Cover, Reclining Hinge Outer, LH
1980-09 → 1981-08 ended
MX62 USA —
71812-22080-01 note Cover, Reclining Hinge Outer, LH
1981-08 → 1982-08 ended
MX62 USA —
71812-22080-02 note Cover, Reclining Hinge Outer, LH
1982-08 → 1984-07 ended
MX6# USA —
71812-22080-04 note Cover, Reclining Hinge Outer, LH
1981-08 → 1982-08 ended
MX62 USA —
71812-22080-06 note Cover, Reclining Hinge Outer, LH
1981-08 → 1984-07 ended
MX6# USA —
71812-22080-14 note Cover, Reclining Hinge Outer, LH
1982-08 → 1984-07 ended
MX6# USA —
72760A — Adjuster Assy, Lumbar Support
72750-22030 Adjuster Assy, Lumbar Support
1980-09 → 1982-08 ended
MX62 —
72750-22040 Adjuster Assy, Lumbar Support
1982-08 → 1984-07 ended
MX6# —
72791 — Lever, Lumbar Support
72791-30030-01 note Lever, Lumbar Support
1980-09 → 1982-08 ended
MX62 —
72791-30030-04 note Lever, Lumbar Support
1980-09 → 1982-08 ended
MX62 —
72791-30030-06 note Lever, Lumbar Support
1980-09 → 1984-07 ended
MX6# —
72791-30030-12 note Lever, Lumbar Support
1982-08 → 1984-07 ended
MX6# —
72791-30030-14 note Lever, Lumbar Support
1982-08 → 1984-07 ended
MX6# —
72791A — Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
90520-01002 Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
1980-09 → 1984-07 ended
MX6# —
73158 — Bracket, Seat Belt Guide Set
73158-20010 Bracket, Seat Belt Guide Set
1980-09 → 1981-08 ended
MX62 USA —
73158-20010 Bracket, Seat Belt Guide Set
1981-08 → 1984-07 ended
MX6# —
73158-20010 Bracket, Seat Belt Guide Set
1980-09 → 1981-08 ended
MX62 CND —
73182 — Guide, Front Seat Lap Belt, Outer
73181-20020-01 note Guide, Front Seat Lap Belt, Outer
1980-09 → 1982-08 ended
MX62 —
73181-20020-04 note Guide, Front Seat Lap Belt, Outer
1980-09 → 1982-08 ended
MX62 —
73181-20020-06 note Guide, Front Seat Lap Belt, Outer
1980-09 → 1984-07 ended
MX6# —
73181-20020-12 note Guide, Front Seat Lap Belt, Outer
1982-08 → 1984-07 ended
MX6# —
73181-20020-14 note Guide, Front Seat Lap Belt, Outer
1982-08 → 1984-07 ended
MX6# —
73182-20010-01 note Guide, Front Seat Lap Belt, Outer
1980-09 → 1982-08 ended
MX62 CND —
73182-20010-04 note Guide, Front Seat Lap Belt, Outer
1980-09 → 1982-08 ended
MX62 CND —
73182-20010-06 note Guide, Front Seat Lap Belt, Outer
1980-09 → 1984-07 ended
MX6# CND —
73182-20010-12 note Guide, Front Seat Lap Belt, Outer
1982-08 → 1984-07 ended
MX6# CND —
73182-20010-14 note Guide, Front Seat Lap Belt, Outer
1982-08 → 1984-07 ended
MX6# CND —
73182-22010-01 note Guide, Front Seat Lap Belt, Outer
1981-08 → 1982-08 ended
MX62 USA —
73182-22010-02 note Guide, Front Seat Lap Belt, Outer
1982-08 → 1984-07 ended
MX6# USA —
73182-22010-04 note Guide, Front Seat Lap Belt, Outer
1981-08 → 1982-08 ended
MX62 USA —
73182-22010-06 note Guide, Front Seat Lap Belt, Outer
1981-08 → 1984-07 ended
MX6# USA —
73182-22010-14 note Guide, Front Seat Lap Belt, Outer
1982-08 → 1984-07 ended
MX6# USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
