Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

19 part groups · 2 illustrations

Illustrations

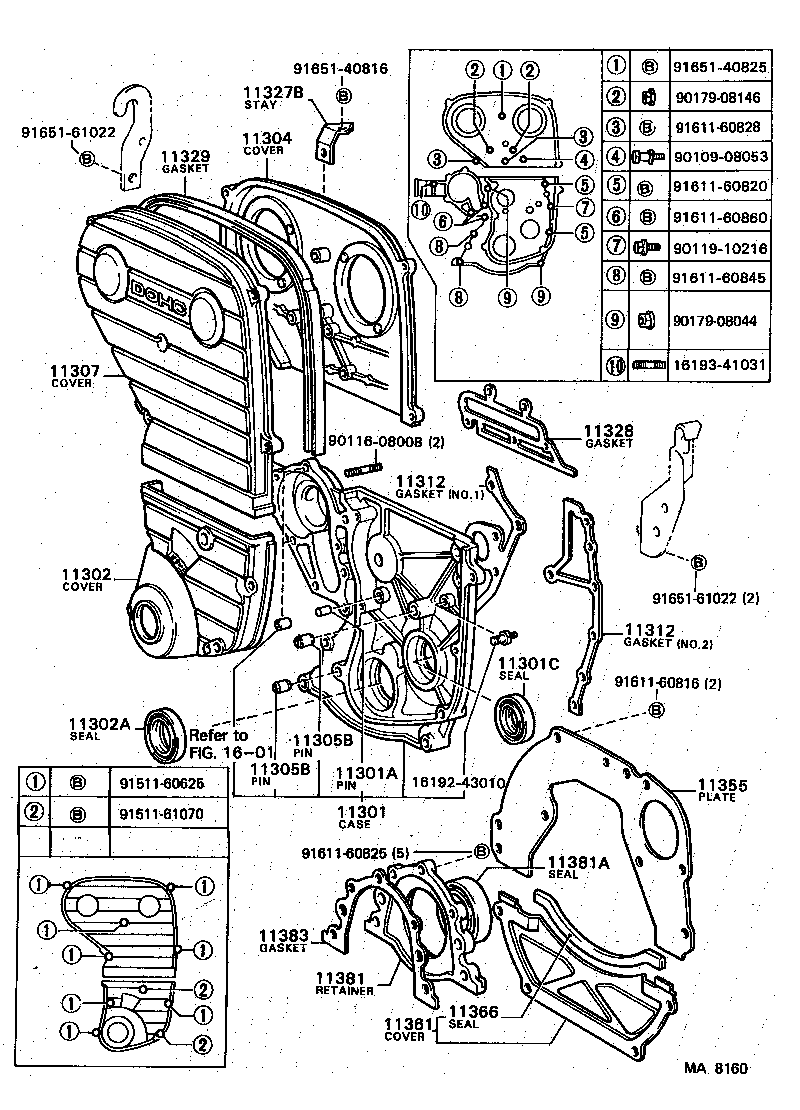

Figure MA8159 MA8159 1980-09 → 1982-08 Figure MA8160 MA8160 1982-08 → —

Part groups

PNCDescription
11301 Case Sub-assy, Timing Gear
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11305B Pin, Ring(FOR OIL SEAL RETAINER, NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11312 Gasket, Front End Plate
11327B Stay, Timing Belt Cover
11328 Gasket, Timing Gear OR Chain Cover
11329 Gasket, Timing Gear Rear Cover
11338 Gasket, Timing Chain Cover, NO.2
11355 Plate, Rear End
11361 Cover, Flywheel Housing Under
11366 Seal, Flywheel Housing Under Cover Dust
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
