Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

22 part groups · 2 illustrations

Illustrations

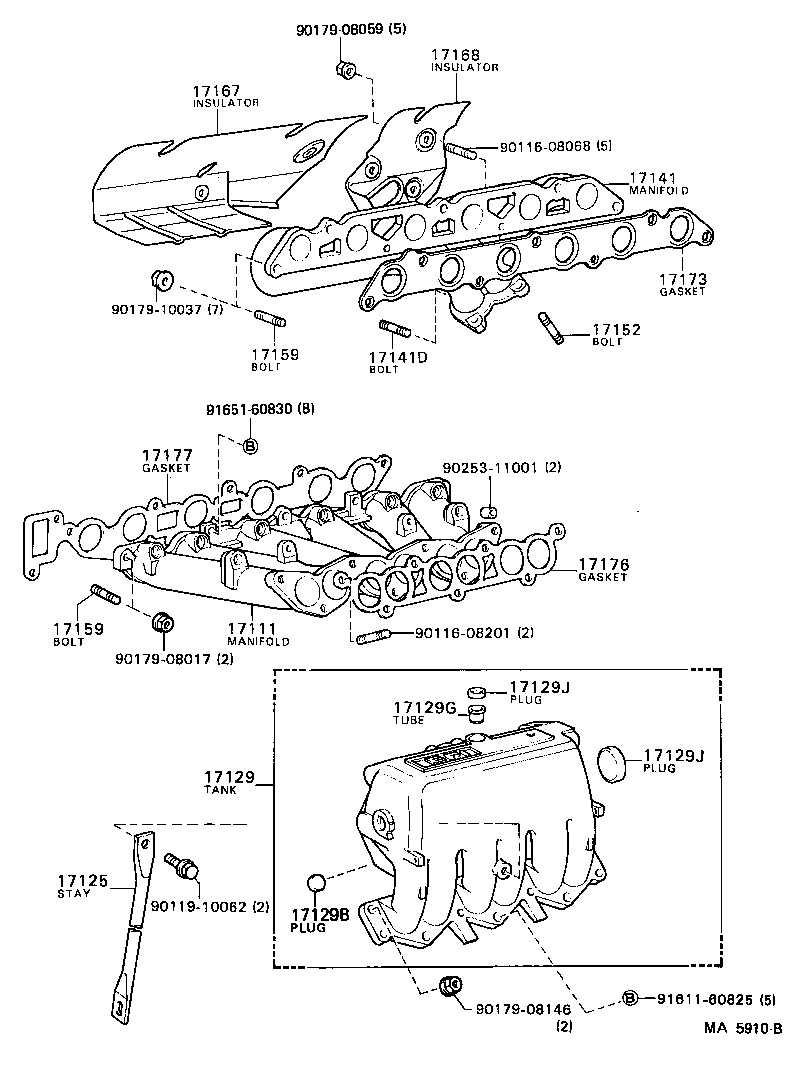

Figure MA5020D MA5020D 1980-09 → 1982-08 Figure MA5910B MA5910B 1982-08 → —

Part groups

PNCDescription
16194 Bolt, Stud(FOR WATER OUTLET SETTING)
17111 Manifold, Intake
17111B Plug, NO.2
17111G Union(FOR INTAKE MANIFOLD WATER)
17111V Pin, Straight(FOR INTAKE MANIFOLD SETTING)
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17129A Union, NO.1
17129B Plug
17129F Plug, Intake Manifold Suction Hole
17129G Tube, Egr Inlet
17129J Plug, Tight(FOR INTAKE AIR SURGE TANK)
17141 Manifold, Exhaust
17141D Bolt, Stud(FOR OXYGEN SENSOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
17361A Tube, Air(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
