Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 3 illustrations

Illustrations

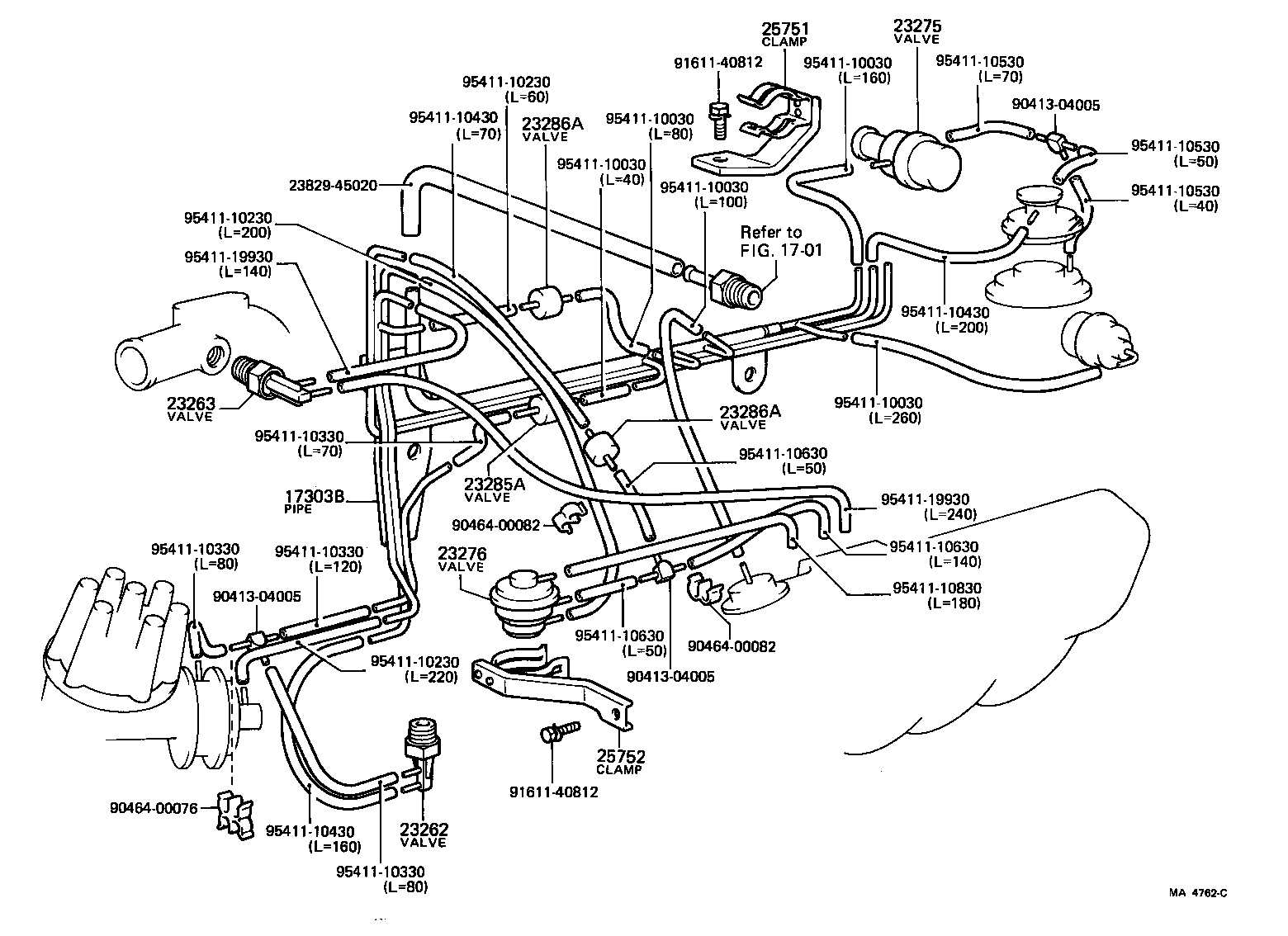

Figure MA9502Z MA9502Z 1980-09 → — Figure MA4762C MA4762C 1980-09 → 1982-08 Figure MA6125B MA6125B 1982-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
