Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03

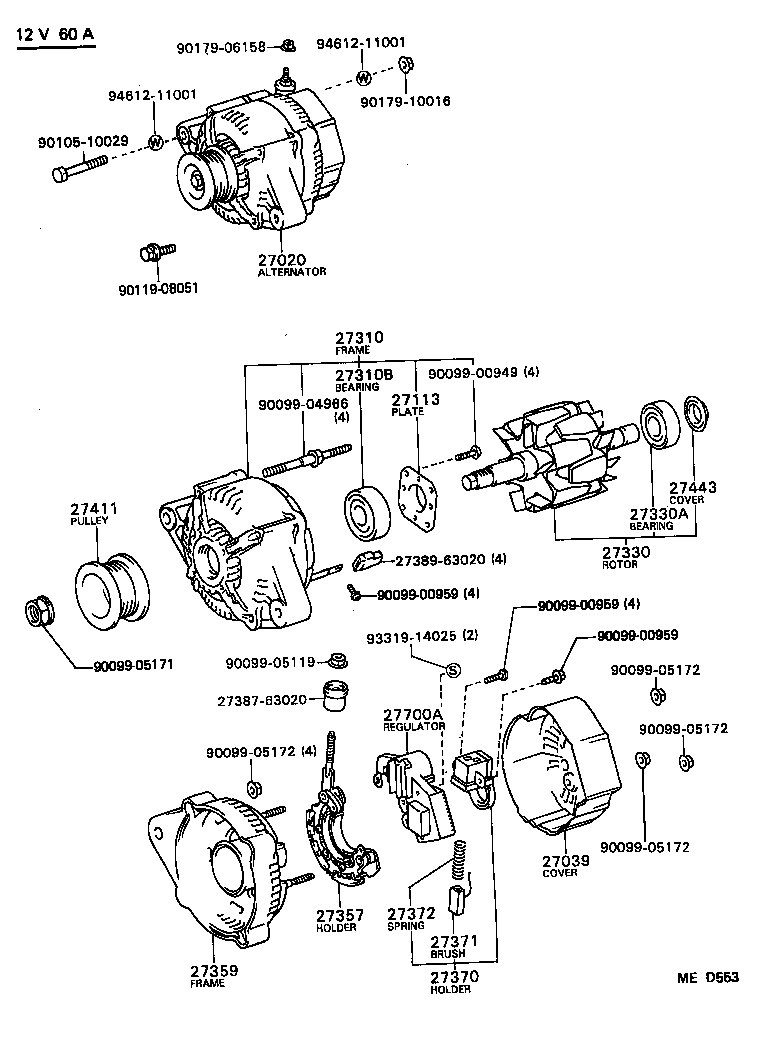

Alternator
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27039 | Cover, Alternator Rear End |
| 27113 | Plate, Bearing Retainer, Alternator |
| 27212 | Ring, Space(FOR ALTERNATOR ROTOR) |
| 27310 | Frame Assy, Drive End, Alternator |
| 27310A | Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME) |
| 27310B | Bearing(FOR ALTERNATOR DRIVE END FRAME) |
| 27330 | Rotor Assy, Alternator |
| 27330A | Bearing(FOR ALTERNATOR ROTOR) |
| 27350B | Condenser, Alternator |
| 27351 | Bush(FOR ALTERNATOR RECTIFIER END FRAME) |
| 27357 | Holder, Alternator, W/Rectifier |
| 27359 | Frame, Alternator Rectifier End |
| 27362 | Rectifier Assy, W/Brush |
| 27370 | Holder Assy, Alternator Brush |
| 27371 | Brush, Alternator |
| 27372 | Spring, Alternator Brush |
| 27410 | Stator Assy, Alternator |
| 27411 | Pulley, Alternator |
| 27441 | Fan, Alternator |
| 27443 | Cover, Alternator Bearing |
| 27700A | Regulator Assy, Generator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
