Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03
Steering Column & Shaft
74 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44101D | Washer, Plate(FOR STEERING WORM) |
| 44101E | Ring, O(FOR STEERING WORM) |
| 44101H | Bearing, Thrust Needle Roller(FOR STEERING WORM) |
| 44101J | Ring(FOR STEERING WORM) |
| 44101K | Worm Kit, Power Steering |

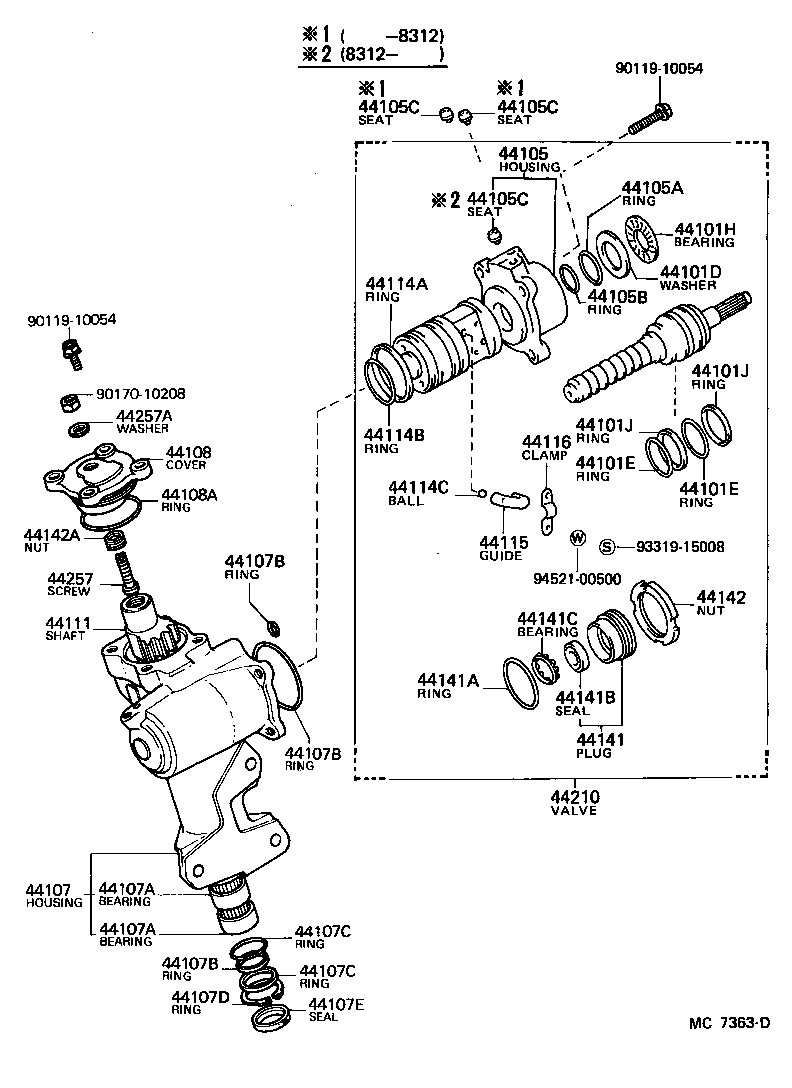

| 44105 | Housing Sub-assy, Valve |
| 44105A | Ring, O(FOR VALVE HOUSING) |
| 44105B | Ring(FOR VALVE HOUSING) |
| 44105C | Seat, Union(FOR VALVE BODY HOUSING) |
| 44107 | Housing Sub-assy, Power Steering Gear |
| 44107A | Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING) |
| 44107B | Ring, O(FOR POWER STEERING GEAR HOUSING) |
| 44107C | Ring(FOR POWER STEERING GEAR HOUSING) |
| 44107D | Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING) |
| 44107E | Seal, Oil(FOR POWER STEERING GEAR HOUSING) |
| 44108 | Cover Sub-assy, Side |
| 44108A | Ring, O(FOR SIDE COVER) |

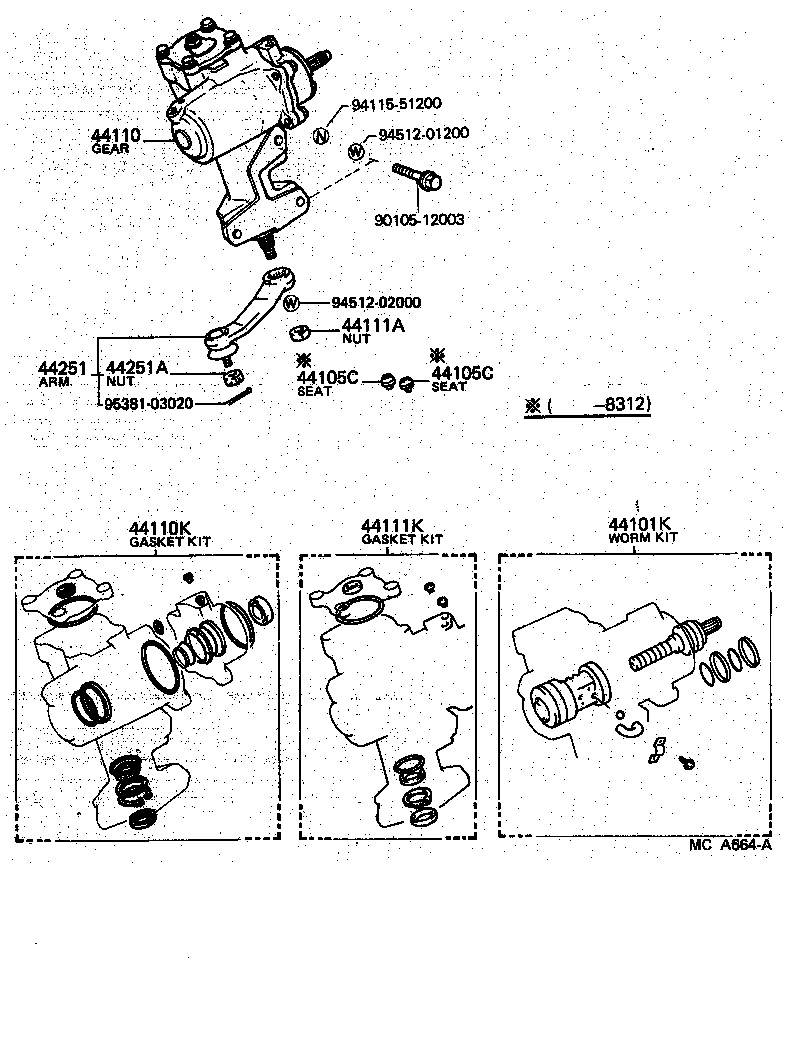

| 44110 | Gear Assy, Power Steering |
| 44110K | Gasket Kit, Power Steering Gear |
| 44111 | Shaft, Cross |
| 44111A | Nut, Hexagon(FOR CROSS SHAFT TO PITMAN ARM SETTING) |
| 44111K | Gasket Kit, Power Steering Cross Shaft Overhaul |
| 44114A | Ring(FOR POWER PISTON NUT) |
| 44114B | Ring, O(FOR POWER PISTON NUT) |
| 44114C | Ball(FOR POWER PISTON NUT) |
| 44115 | Guide, Ball |
| 44116 | Clamp, Ball Guide |
| 44141 | Plug, Adjuster |
| 44141A | Ring, O(FOR ADJUSTER PLUG) |
| 44141B | Seal, Oil(FOR ADJUSTER PLUG) |
| 44141C | Bearing(FOR ADJUSTER PLUG) |
| 44142 | Nut, Lock |
| 44142A | Nut, Lock, NO.1 |
| 44210 | Valve Assy, Power Steering Control |
| 44251 | Arm, Pitman |
| 44251A | Nut, Castle(FOR PITMAN ARM) |
| 44257 | Screw, Cross Shaft Adjusting |
| 44257A | Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW) |

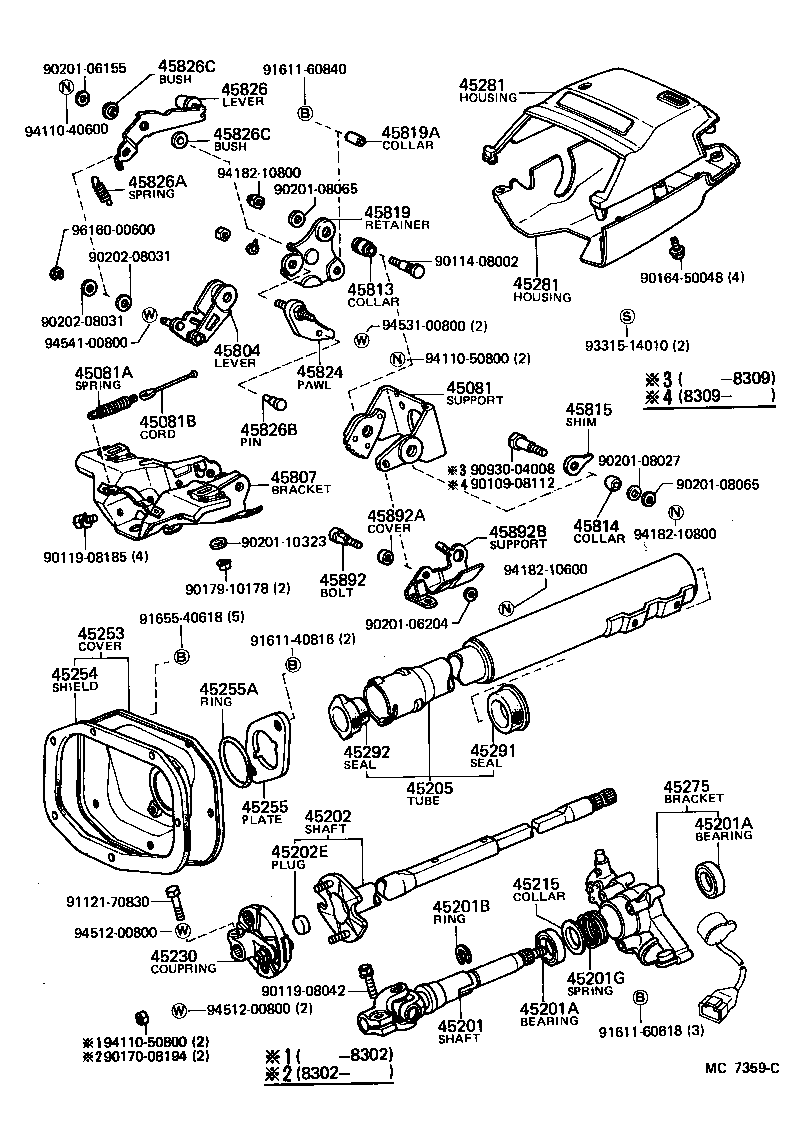

| 45081 | Support Sub-assy, Tilt Steering |
| 45081A | Spring, Tension(FOR TILT STEERING) |
| 45081B | Cord(FOR TILT STEERING) |
| 45081C | Reinforce, Tilt Steering Support |
| 45201 | Shaft Sub-assy, Steering Main |
| 45201A | Bearing(FOR STEERING MAIN SHAFT) |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45201G | Spring, Compression(FOR STEERING MAIN SHAFT) |
| 45202 | Shaft Sub-assy, Steering Intermediate |
| 45202E | Plug, Plate(FOR STEERING INTERMEDIATE SHAFT) |
| 45205 | Tube Sub-assy, Steering Column |
| 45215 | Collar, Main Shaft Bearing Thrust |
| 45230 | Coupling Assy, Flexible |
| 45253 | Cover, Steering Column Hole |
| 45254 | Shield, Steering Column Hole |
| 45255 | Plate, Steering Column Hole Cover |
| 45255A | Grommet OR Ring, O(FOR STEERING COLUMN CLAMP) |
| 45275 | Bracket, Steering Column, Upper |
| 45281 | Housing, Steering Column |
| 45291 | Seal, Main Shaft Upper Dust |
| 45292 | Seal, Main Shaft Lower Dust |
| 45804 | Lever Sub-assy, Steering Tilt |
| 45807 | Bracket Sub-assy, Steering Column Upper Support |
| 45813 | Collar, Tilt Steering Support, NO.1 |
| 45814 | Collar, Tilt Steering Support, NO.2 |
| 45815 | Shim, Tilt Steering Support |
| 45819 | Retainer, Tilt Lever |
| 45819A | Collar(FOR TILT LEVER RETAINER) |
| 45824 | Pawl, Tilt Steering |
| 45826 | Lever, Steering Tilt |
| 45826A | Spring, Tension(FOR STEERING TILT LEVER) |
| 45826B | Pin(FOR STEERING TILT LEVER) |
| 45826C | Bush(FOR STEERING TILT LEVER) |
| 45892 | Bolt, Tilt Steering Support Stopper |
| 45892A | Cover, Tilt Steering Support Stopper |
| 45892B | Support, Tilt Steering Column Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
