Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

21 part groups · 5 illustrations

Illustrations

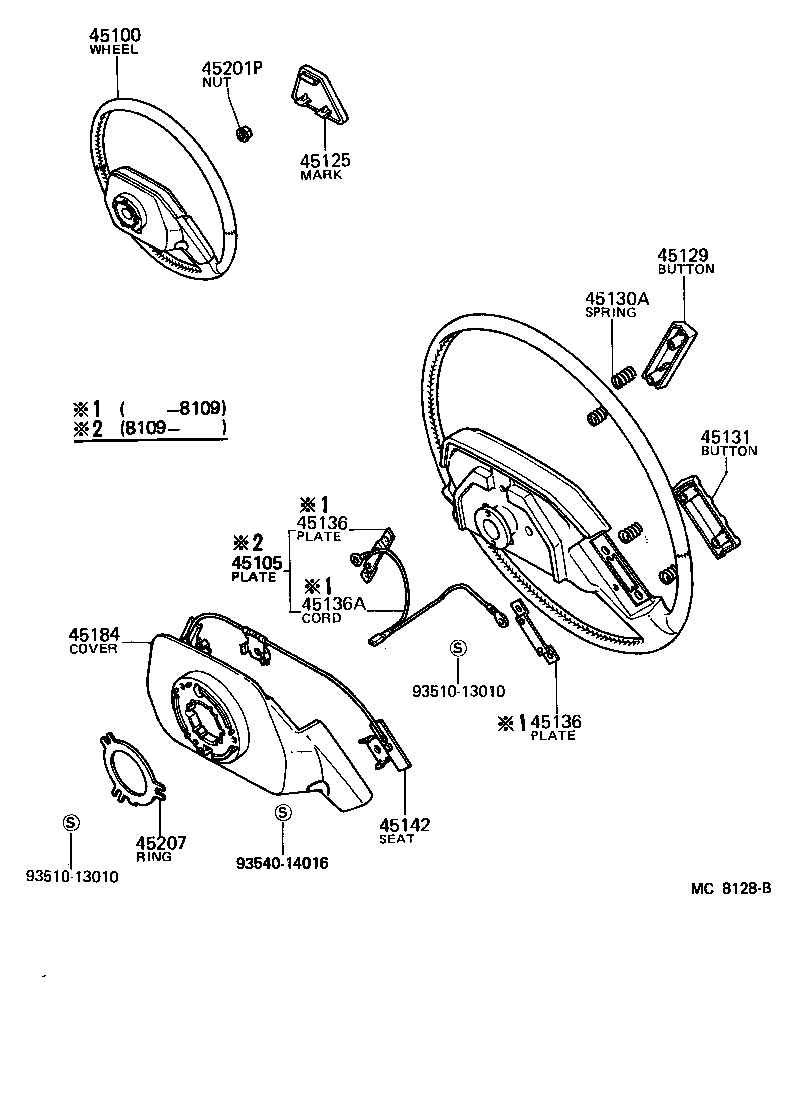

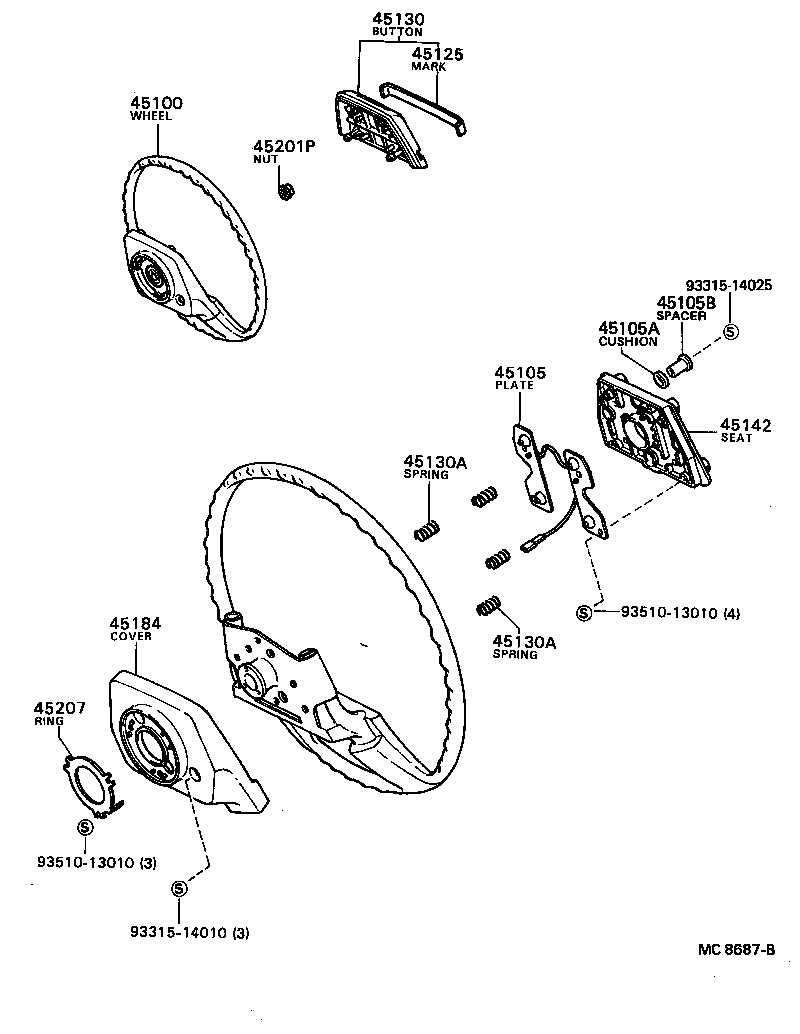

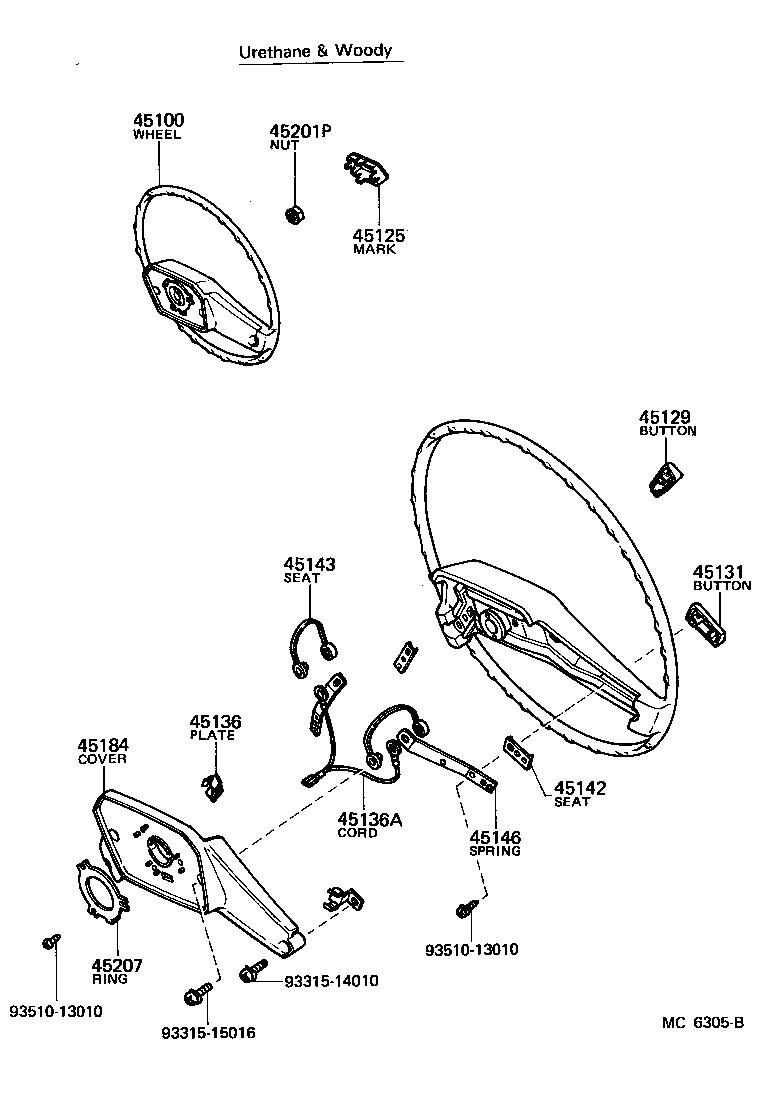

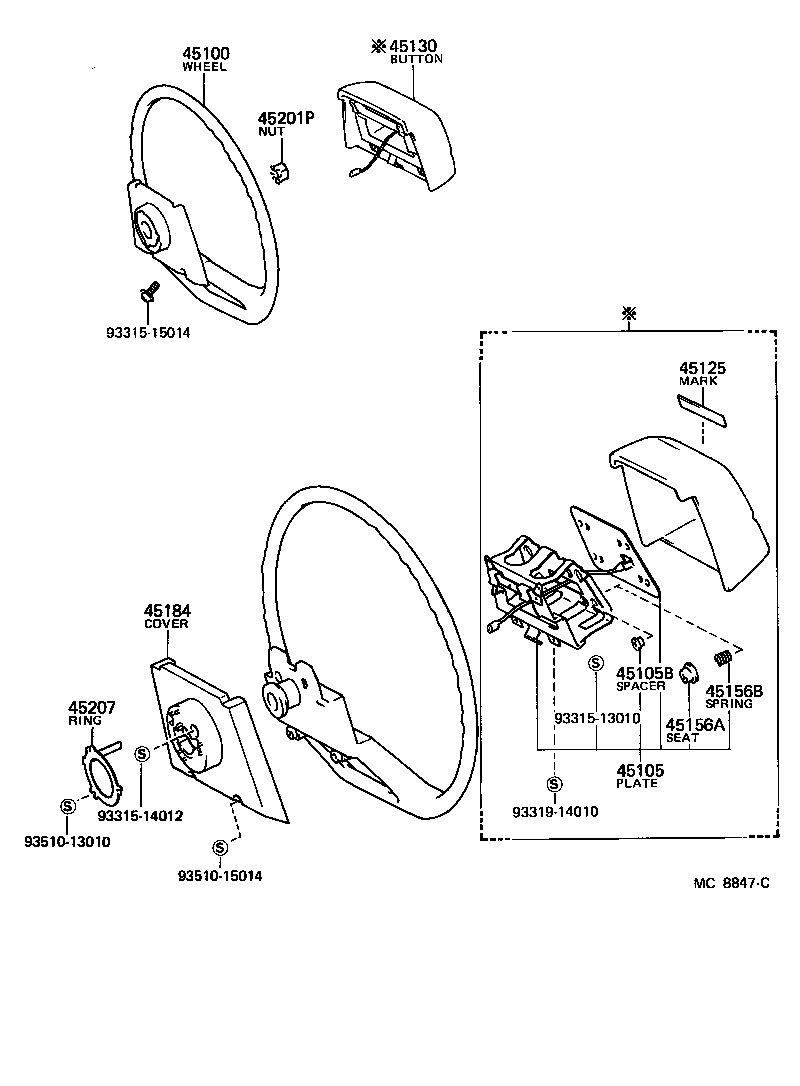

Figure MC8305B MC8305B 1980-09 → 1982-08 Figure MC8687B MC8687B 1982-08 → — Figure MC6305B MC6305B 1980-09 → 1981-08 Figure MC8128B MC8128B 1981-08 → 1982-08 Figure MC8847C MC8847C 1982-08 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105A Cushion(FOR HORN BUTTON CONTACT PLATE)
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45143 Seat, Horn Button Contact, NO.2
45146 Spring, Horn Button Contact
45155 Spacer, Horn Button Contact Plate
45156A Seat, Horn Contact Spring Set
45156B Spring(FOR HORN CONTACT SPRING SET SEAT)
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
