Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 2 illustrations

Illustrations

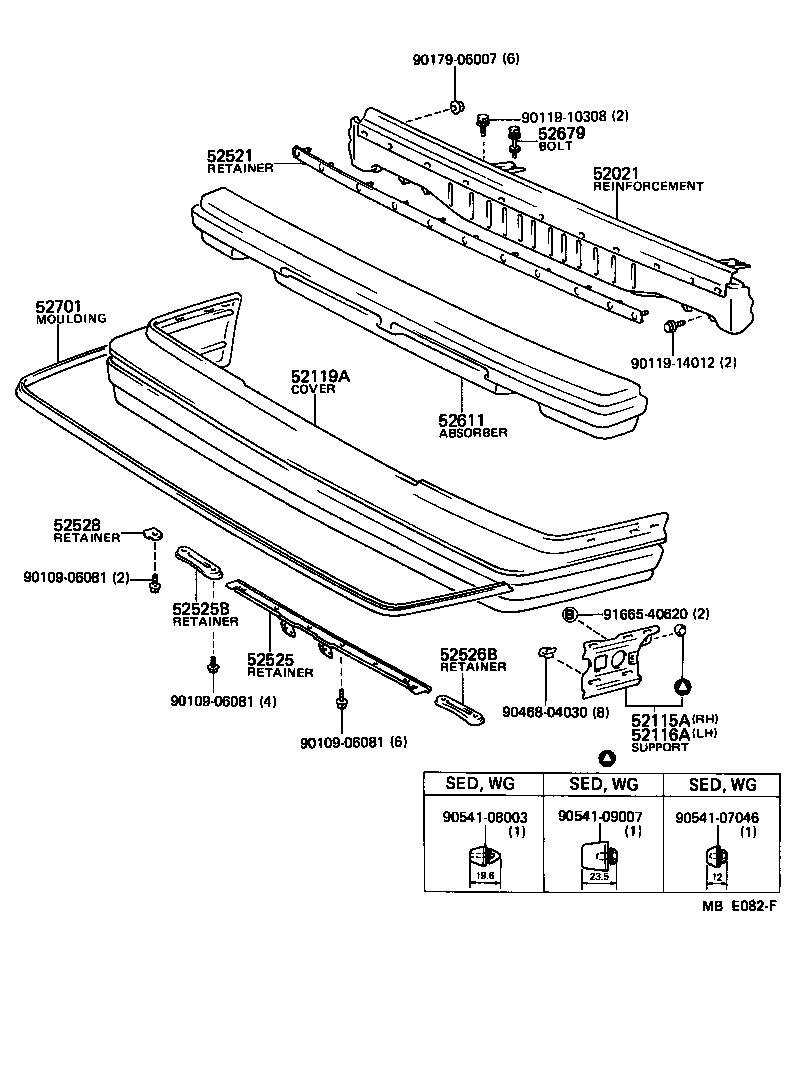

Figure MBB889F MBB889F 1980-09 → 1982-08 Figure MBE082F MBE082F 1982-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52528 Retainer, Front Bumper, Lower Corner
52611 Absorber, Front Bumper Energy
52679 Bolt, Front Bumper Arm
52701 Moulding Sub-assy, Front Bumper
52717 Retainer, Front Bumper Moulding
52721 Moulding, Front Bumper Extension, RH
52722 Moulding, Front Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
