Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

13 part groups · 3 illustrations

Illustrations

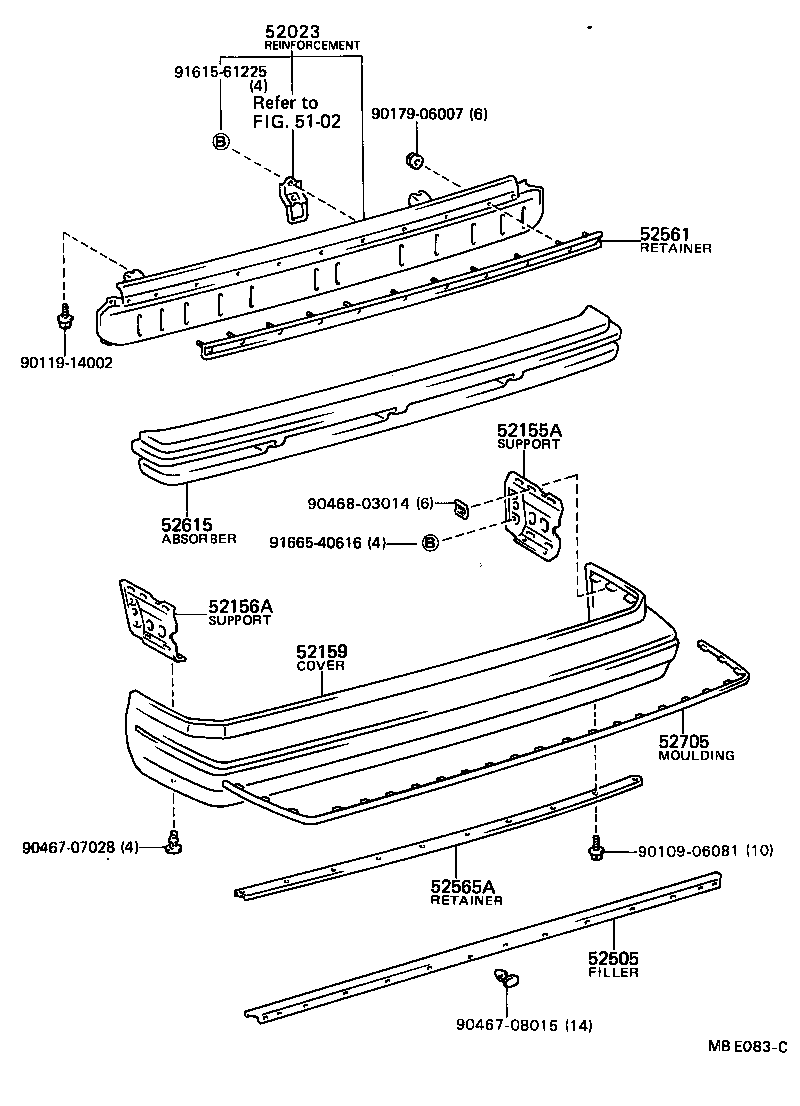

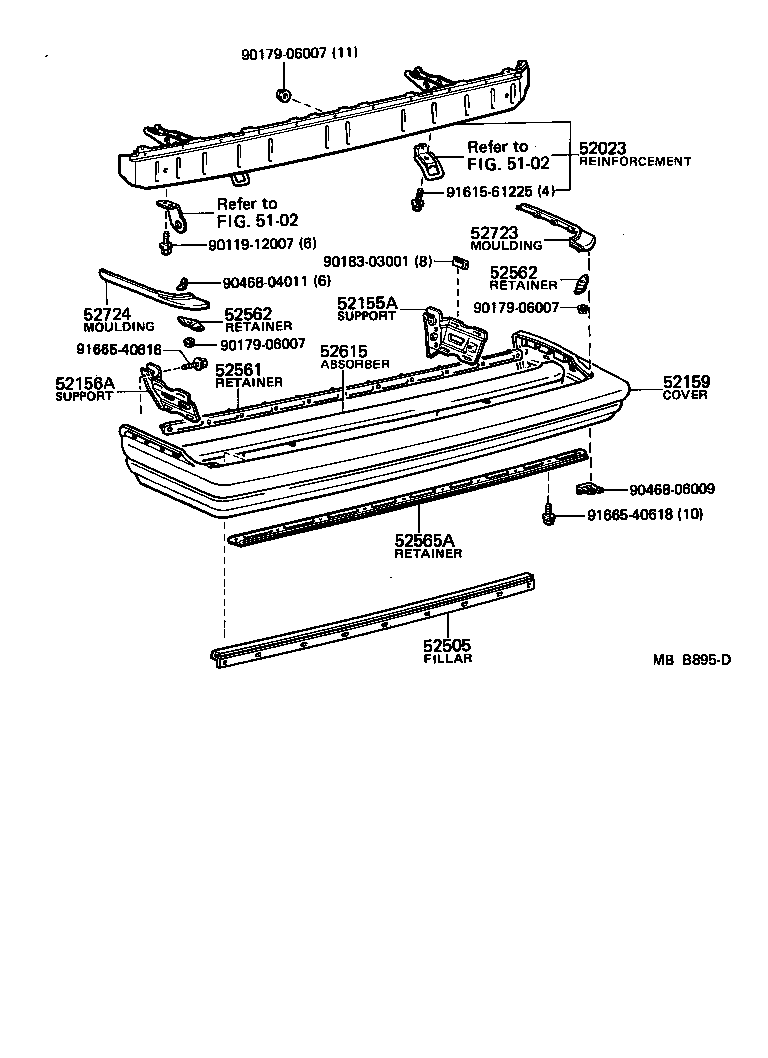

Figure MBB892D MBB892D 1980-09 → 1982-08 Figure MBE083C MBE083C 1982-08 → — Figure MBB895D MBB895D 1980-09 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52562 Retainer, Rear Bumper, Upper Side
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
52705B Retainer, Rear Bumper Moulding
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
