Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03

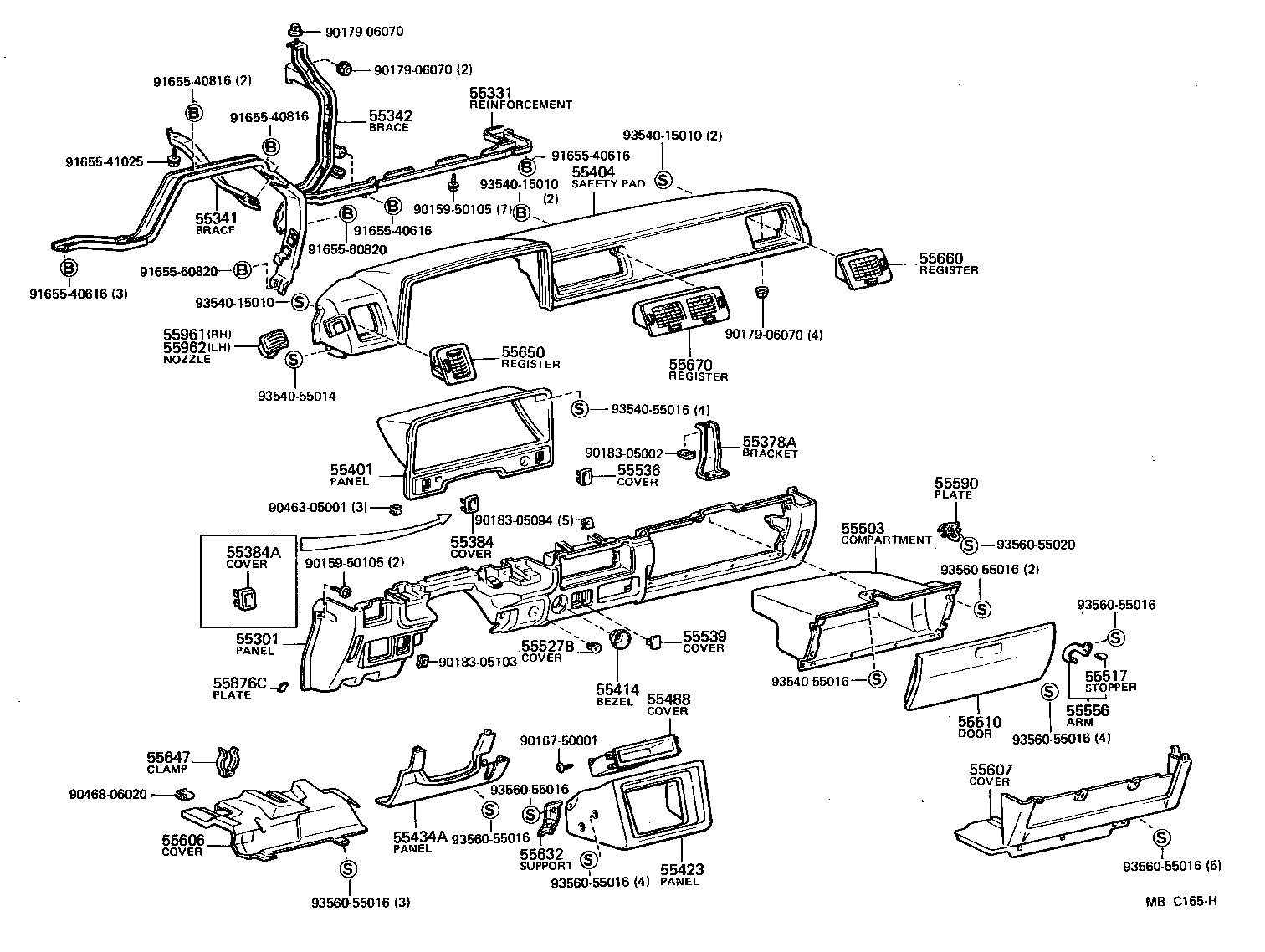

Instrument Panel & Glove Compartment
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55331 | Reinforcement, Instrument Panel |
| 55338 | Extension, Instrument Panel Reinforcement, NO.1 |
| 55339 | Extension, Instrument Panel Reinforcement, NO.2 |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55347A | Bracket, Instrument Panel Brace Mounting, NO.1 |
| 55354 | Brace, Instrument Panel TO Floor |
| 55364 | Bracket, Radio Tuner Mounting |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55384 | Cover, Base Switch Hole |
| 55384A | Cover, Parking Lamp Switch Hole |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55402C | Pad Sub-assy, Instrument Panel, Lower RH |
| 55403C | Pad Sub-assy, Instrument Panel, Lower LH |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55414 | Bezel, Cigar Lighter Hole |
| 55415 | Panel, Instrument Cluster Finish, Center |
| 55423 | Panel, Stereo Player Finish |
| 55434A | Panel, Instrument Finish, Lower Sub |
| 55446A | Base, Switch Hole, NO.1 |
| 55488 | Cover, Stereo Opening |
| 55503 | Compartment Sub-assy, Glove |
| 55510 | Door Assy, Glove Compartment |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55527B | Cover, Diesel Throttle Knob Hole |
| 55528 | Cover, Auto Drive Opening |
| 55536 | Cover, Rear Window Wiper Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55544 | Cover, Instrument Panel Register Hole |
| 55556 | Arm, Glove Compartment Door Check |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55632 | Support, Instrument Panel Under Tray, NO.1 |
| 55647 | Clamp, Instrument Panel Under Cover |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55876C | Plate,Side Ventilator Control Name, NO.2 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
