Toyota Cressida
1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States
Discontinued model
Data version 1985-03

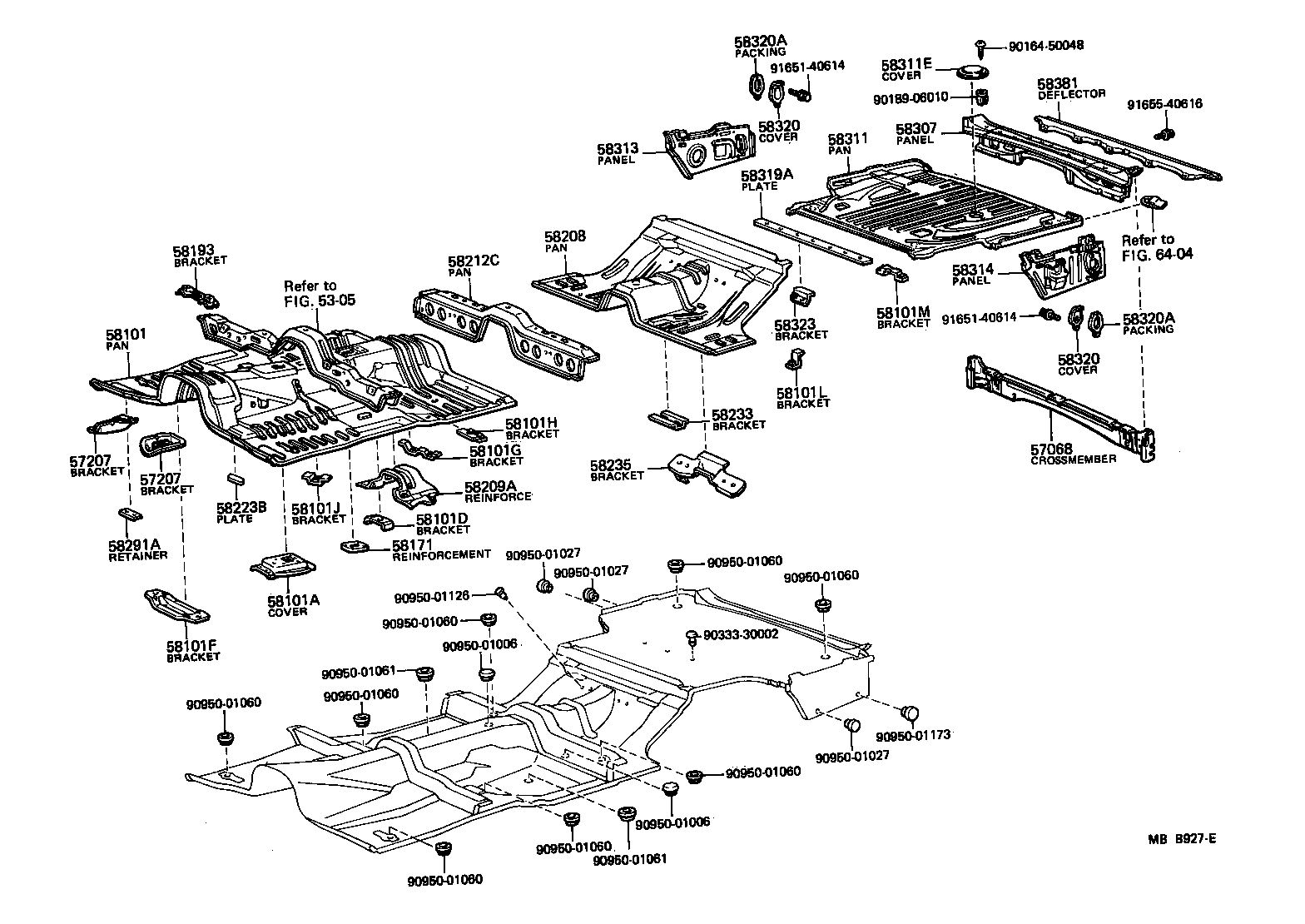

Floor Pan & Lower Back Panel
42 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57068 | Member Sub-assy, Rear Floor Rear Cross, Inner |
| 57207 | Bracket Sub-assy, Engine Rear Mounting Member |
| 57465 | Gusset, Center Floor Crossmember, Rear, RH |
| 57466 | Gusset, Center Floor Crossmember, Rear, LH |
| 57642 | Member, Center Floor Cross, NO.2 |
| 58052E | Extension, Center Floor TO Brace |
| 58101 | Pan Sub-assy, Front Floor |
| 58101A | Cover, Transmission Auxiliary |
| 58101D | Bracket, Parking Brake Cable Guide |
| 58101F | Bracket, Mounting, Floor, NO.1 |
| 58101G | Bracket, Mounting, Floor, NO.2 |
| 58101H | Bracket, Mounting, Floor, NO.3 |
| 58101J | Bracket, Mounting, Floor, NO.4 |
| 58101K | Bracket, Mounting, Floor, NO.5 |
| 58101L | Bracket, Mounting, Floor, NO.6 |
| 58101M | Bracket, Mounting, Floor, NO.7 |
| 58171 | Reinforcement, Parking Brake Base |
| 58193 | Bracket, Instrument Panel Brace Mounting |
| 58208 | Pan, Center Floor |
| 58209A | Reinforcement Sub-assy, Drive Shaft Center Support |
| 58212C | Pan, Center Floor, Front |
| 58223B | Plate, Accelerator Pedal |
| 58233 | Bracket, Exhaust Pipe Mounting |
| 58235 | Bracket, Differential Carrier Bumper Mounting |
| 58286 | Boot, Shift & Select Lever, NO.1 |
| 58288 | Seal, Shift Lever Boot |
| 58291A | Retainer, Accelerator Pedal |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58311E | Cover, Rear Floor Service Hole |
| 58313 | Panel, Rear Floor Side, RH |
| 58313E | Extension, Rear Floor Side Panel, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58319A | Plate, Rear Floor Panel, Front |
| 58320 | Cover, Rear Floor Service Hole |
| 58320A | Packing, Rear Floor Service Hole |
| 58323 | Bracket Sub-assy, Inlet Tube Protector |
| 58371 | Bracket, Fuel Pump Support |
| 58381 | Deflector, Rear Bumper Stone |
| 58385 | Panel, Rear Valance |
| 58794 | Carrier, Jack |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
