Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

28 part groups · 3 illustrations

Illustrations

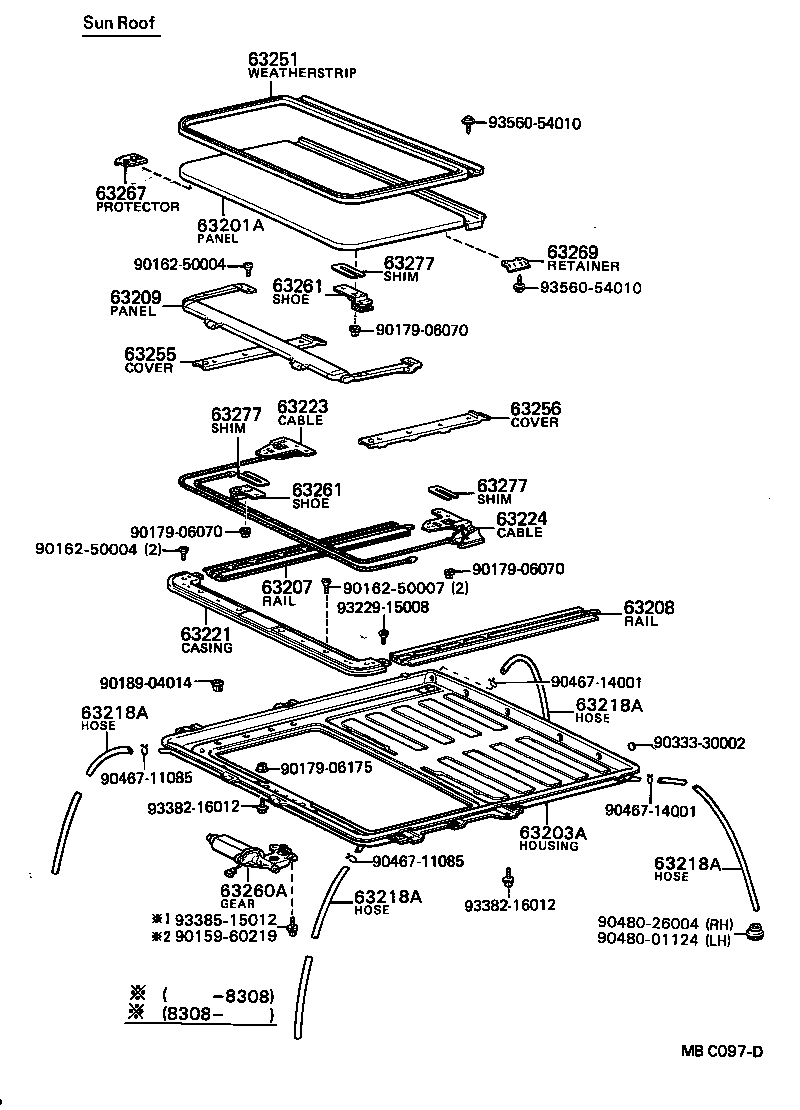

Figure MBB954B MBB954B 1980-09 → — Figure MBC097D MBC097D 1980-09 → — Figure MBB955 MBB955 1980-09 → —

Part groups

PNCDescription
63102 Reinforcement Sub-assy, Roof Panel, Front
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63105A Frame Sub-assy, Back Door Opening
63111 Panel, Roof
63133 Frame, Back Window Opening, Upper
63201A Panel Sub-assy, Sliding Roof OR Removable Roof
63203A Housing Sub-assy, Sliding Roof OR Removable Roof
63207 Rail Sub-assy, Sliding Roof Guide, RH
63208 Rail Sub-assy, Sliding Roof Guide, LH
63209 Panel Sub-assy, Roof Wind Deflector
63218A Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63221 Casing, Sliding Roof Cable Guide
63223 Cable, Sliding Roof Drive, RH
63224 Cable, Sliding Roof Drive, LH
63251 Weatherstrip, Sliding Roof Panel OR Removable Roof
63255 Cover, Sliding Roof Guide Rail, RH
63256 Cover, Sliding Roof Guide Rail, LH
63260A Gear Sub-assy, Sliding Roof Drive
63261 Shoe, Sliding Roof, Front
63267 Protector, Sliding Roof Weatherstrip
63269 Retainer, Sliding Roof Weatherstrip
63277 Shim, Sliding Roof Rail
64101 Panel Sub-assy, Upper Back
64117 Reinforcement, Upper Back Panel
64811 Glass, Back Window
64818 Spacer, Back Window Glass
64831K Dam Kit, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
