Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03

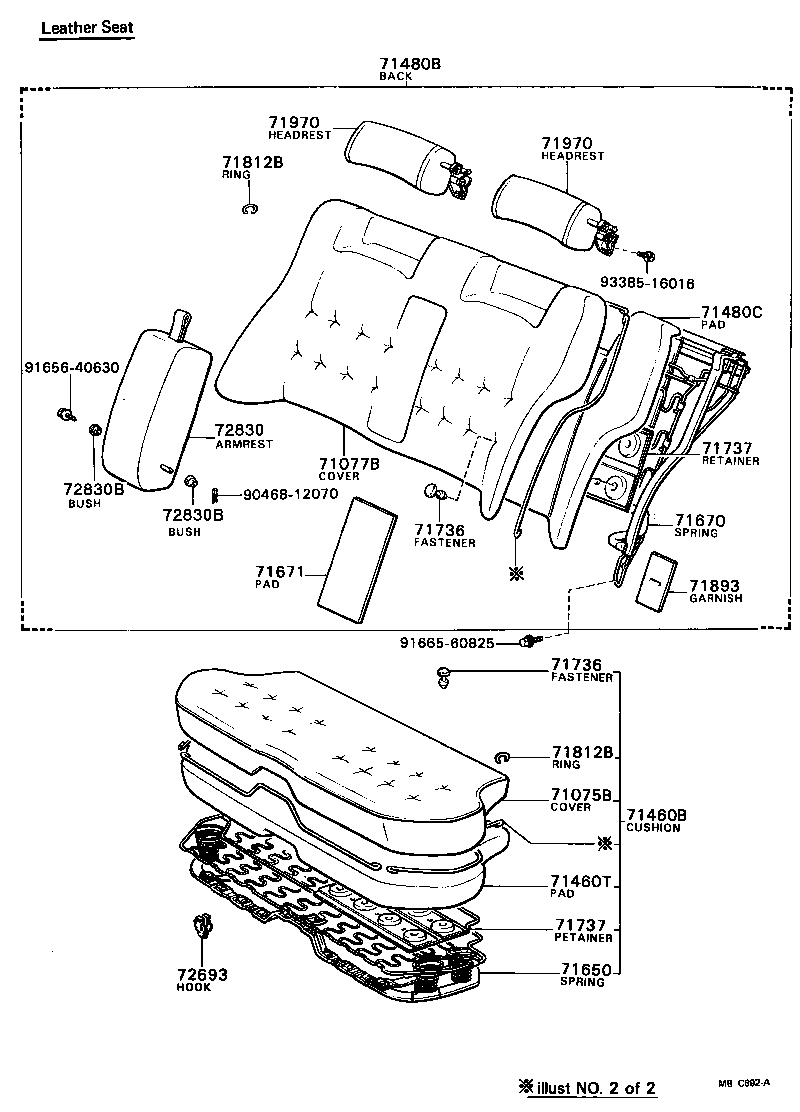

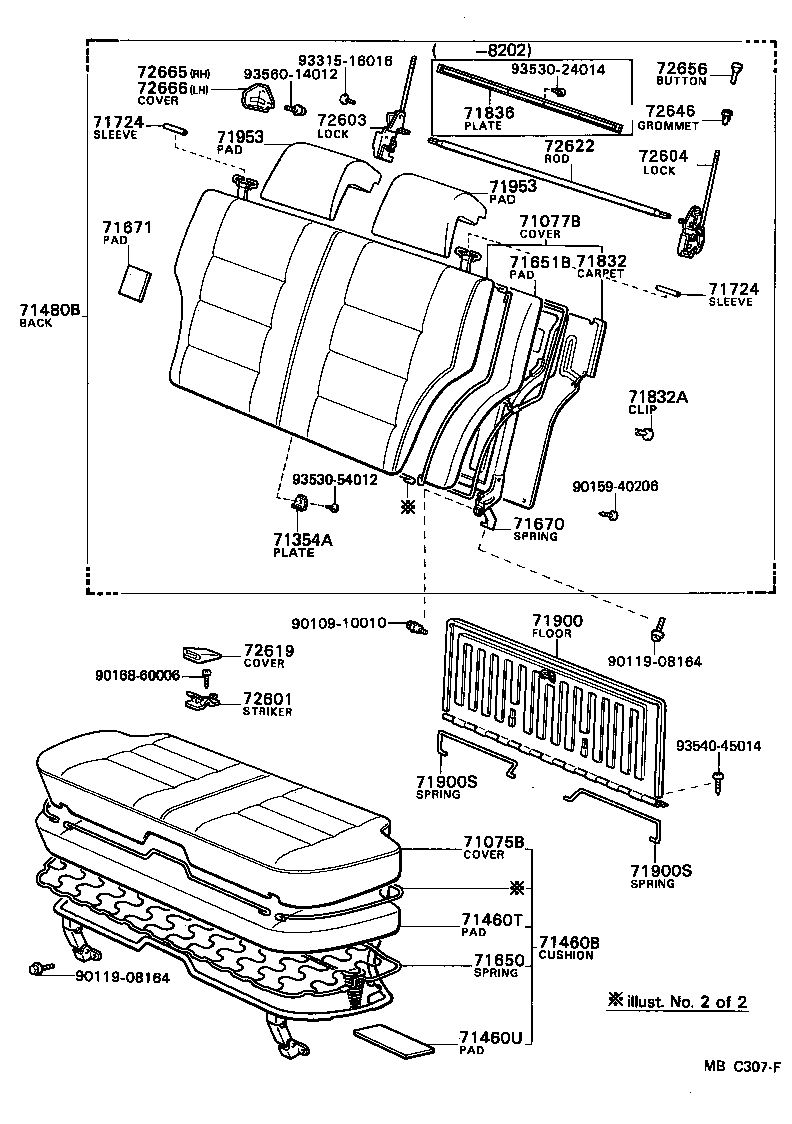

Rear Seat & Seat Track

36 part groups · 4 illustrations

PNC	Description
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71354A	Plate, Rear Seatback Set
71460B	Cushion Assy, Rear Seat (FOR BENCH TYPE)
71460T	Pad Sub-assy, Rear Seat Cushion, NO.1
71460U	Pad Sub-assy, Rear Seat Cushion, NO.2
71480B	Back Assy, Rear Seat (FOR BENCH TYPE)
71480C	Pad Sub-assy, Rear Seatback, NO.1 (FOR BENCH TYPE)
71650	Spring Assy, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71670	Spring Assy, Rear Seatback(FOR BENCH SEAT)
71671	Pad, Rear Seatback Silencer, A
71724	Sleeve, Rear Seat Belt Guide
71736	Fastener Sub-assy, Seat Cover, A (FOR REAR SEAT)
71737	Retainer, Seat Cover Fastener, B (FOR REAR SEAT)
71812B	Clip(FOR REAR SEAT CUSHION COVER)
71832	Carpet OR Mat, Rear Seatback
71832A	Clip, Rear Seatback Carpet OR Mat
71836	Plate, Rear Seatback Carpet OR Mat Support, Upper
71893	Garnish, Rear Seatback Side, Lower RH
71900	Floor Assy, Rear Seat
71900S	Spring (FOR REAR SEAT FLOOR)
71953	Pad, Rear Seat Headrest
71970	Headrest Assy, Rear Seat
72601	Striker Sub-assy, Rear Seat Lock
72603	Lock Sub-assy, Rear Seatback, RH
72604	Lock Sub-assy, Rear Seatback, LH
72619	Cover, Rear Seatback Lock Striker
72622	Rod, Rear Seatback Stopper Connecting
72646	Grommet, Rear Seatback Stop Button
72656	Button, Rear Seatback Stop Release
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72693	Hook, Rear Seat Cushion Lock
72830	Armrest Assy, Rear Seat, Center
72830B	Bush(FOR REAR SEAT CENTER ARMREST)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
