Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

28 part groups · 2 illustrations

Illustrations

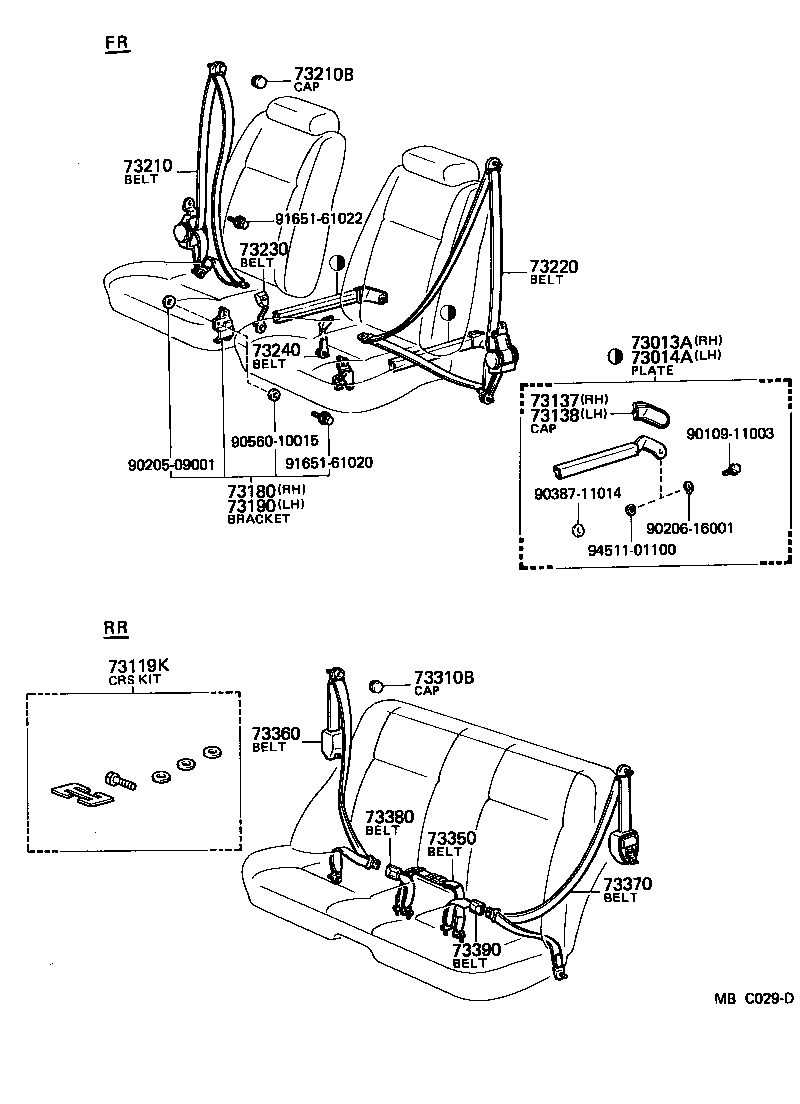

Figure MBC028E MBC028E 1980-09 → — Figure MBC029D MBC029D 1980-09 → —

Part groups

PNCDescription
73013A Plate Sub-assy, Front Seat Belt Inner Anchor, RH
73014A Plate Sub-assy, Front Seat Belt Inner Anchor, LH
73100B Belt Assy, Front Seat Shoulder
73108 Base Sub-assy, Front Seat Belt Anchor, RH
73119K Seat Kit, Child Restraint
73137 Cap, Front Seat Belt Inner Anchor, RH
73138 Cap, Front Seat Belt Inner Anchor, LH
73151 Knob, Seat Belt Lock Release Lever, RH
73152 Knob, Seat Belt Lock Release Lever, LH
73180 Bracket Assy, Seat Belt Inner Anchor, RH
73188 Extention, Front Seat Belt Inner Anchor Bracket, RH
73189 Extention, Front Seat Belt Inner Anchor Bracket, LH
73190 Bracket Assy, Seat Belt Inner Anchor, LH
73210 Belt Assy, Front Seat Outer, RH
73210B Cap (FOR FRONT SEAT OUTER BELT)
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73310B Cap (FOR REAR SEAT OUTER BELT)
73350 Belt Assy, Rear Seat Lap Type, Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73803 Track Sub-assy, Belt Drive Tape, RH
73804 Track Sub-assy, Belt Drive Tape, LH
73810 Rail Assy, Shoulder Belt Guide, RH
73820 Rail Assy, Shoulder Belt Guide, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
