Toyota Cressida

1980-09 → 1984-07 · chassis MX6# · catalogue 311440 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

18 part groups · 2 illustrations

Illustrations

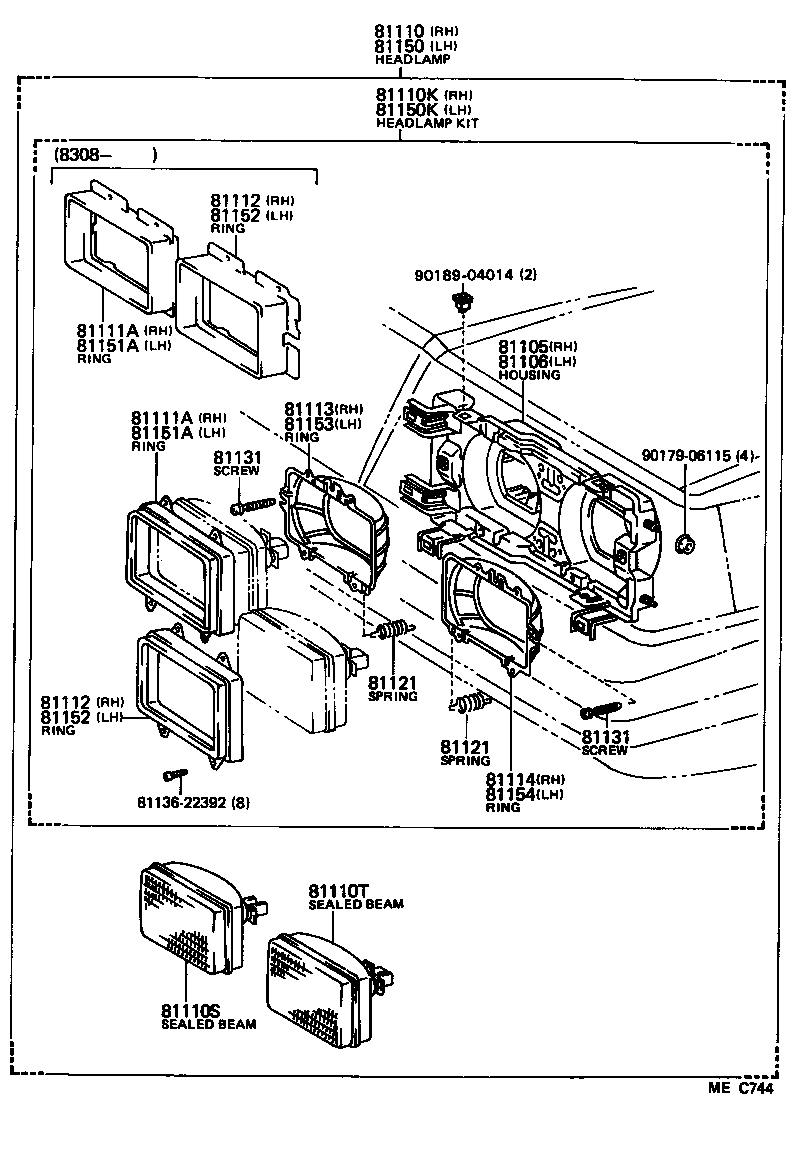

Figure MEA024B MEA024B 1980-09 → 1982-08 Figure MEC744 MEC744 1982-08 → —

Part groups

PNCDescription
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110K Headlamp Kit, W/O Sealed Beam, RH
81110S Sealed Beam Unit, NO.1
81110T Sealed Beam Unit, NO.2
81111A Ring, Sealed Beam Retaining, NO.1 RH
81112 Ring, Sealed Beam Retaining, NO.2 RH
81113 Ring, Sealed Beam Mounting, NO.1 RH
81114 Ring, Sealed Beam Mounting, NO.2 RH
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81150 Headlamp Assy, LH
81150K Headlamp Kit, W/O Sealed Beam, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
81152 Ring, Sealed Beam Retaining, NO.2 LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
81154 Ring, Sealed Beam Mounting, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
